Overview

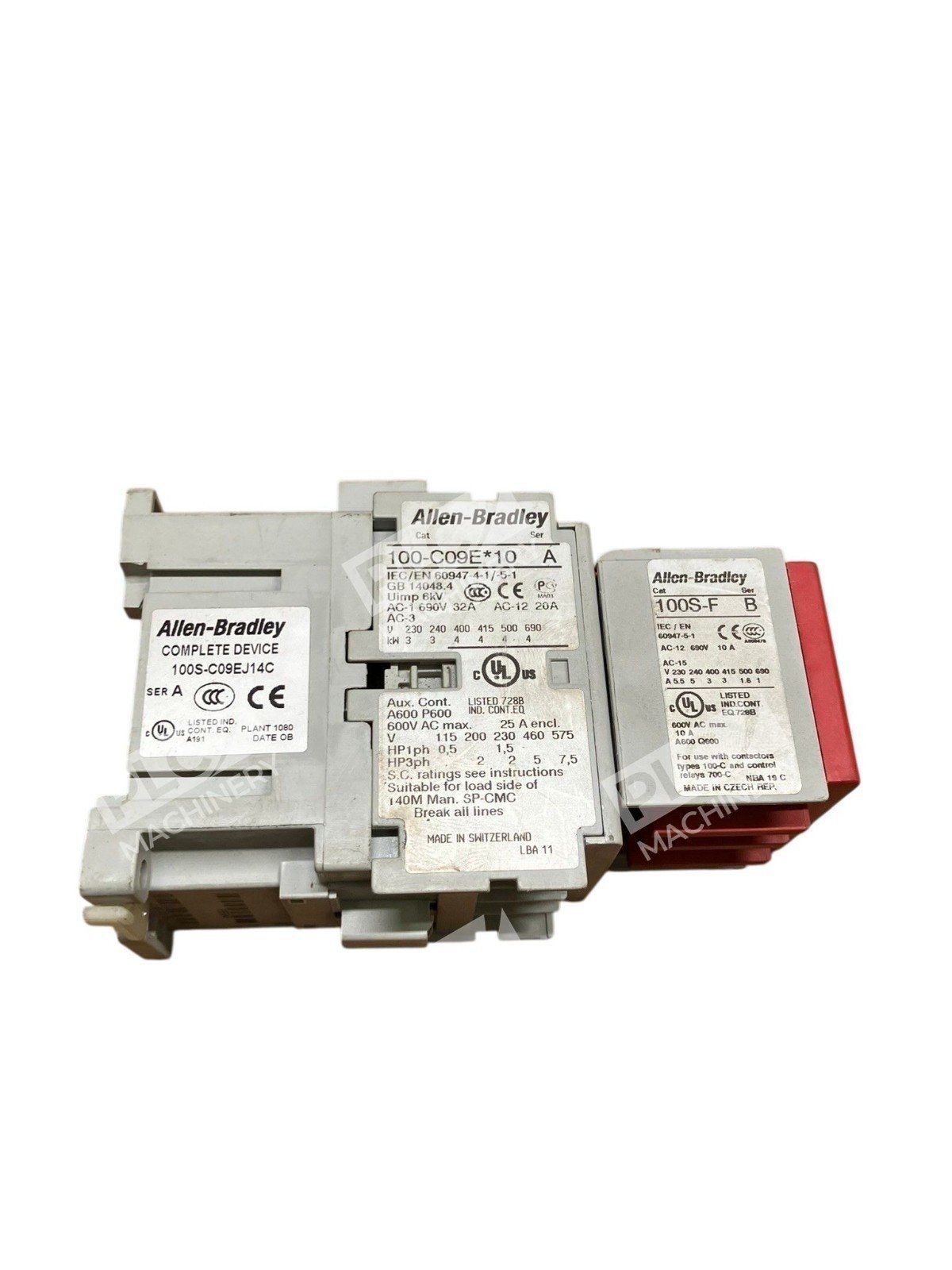

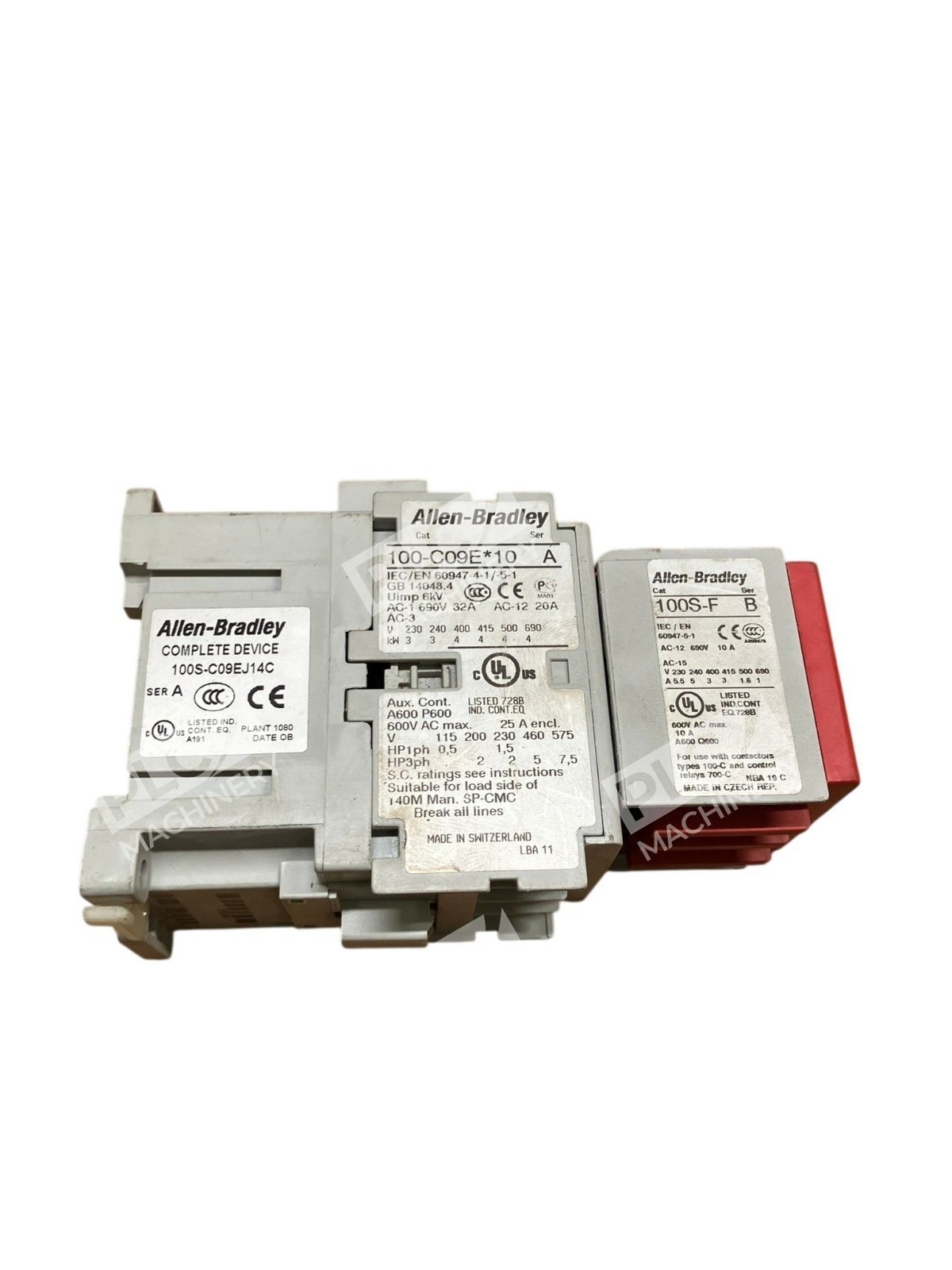

The Allen-Bradley 100S-C09EJ14C is a Bulletin 100S IEC safety contactor designed for safety-critical applications requiring mechanically linked, positively guided contacts. This 9A contactor operates at 24V 50/60Hz or 24VDC with an electronic coil and features three normally open power poles. It includes one normally open and four normally closed auxiliary contacts, ideal for emergency-stop circuits, guard interlocks, and safety feedback loops.
Key Features
- Safety-Grade Construction: Bulletin 100S safety contactors meet requirements of modern safety applications with mechanically linked positively guided or mirror contact performance
- Dual Coil Supply: 24V 50/60Hz AC or 24VDC electronic coil operation, providing flexible control options
- Comprehensive Auxiliary Contacts: One normally open and four normally closed contacts for complex safety interlocking
- DIN Rail Mounting: Mounts directly onto standard DIN rail for easy installation in control panels
- Indoor Rated: IP20 rating suitable for indoor use with basic protection against solid object ingress
Technical Specifications
Key performance ratings for typical AC-3 motor control applications and safety circuits:
- Power Poles: 3 normally open (main contacts)
- Auxiliary Contacts: 1 NO + 4 NC
- Rated Current (AC-3): 9A at 400VAC-3; 32A at 400VAC-1
- Power Rating: 4kW
- Operating Frequency: 50 or 60 Hz
- Coil Voltage: 24V AC (50/60Hz) or 24V DC electronic
- Terminal Type: Line-side coil termination with standard contact
- Contact Configuration: Positively guided mirror contacts
- Electrical Standards: C-TICK, CCC, KC certified
Typical Applications
- Emergency-stop (E-stop) control circuits requiring safety-rated contactors
- Guard and interlock interlocking systems on machinery
- Safety-feedback circuits in industrial automation
- Motor control in hazardous or high-availability environments
- Machine tool and production line control with safety requirements
- Any application requiring positively guided, mechanically linked contacts for fail-safe operation
Compatibility & Replacements
Compatible With
- Allen-Bradley GuardMaster safety modules and controllers
- Safety relay circuits requiring 24VDC auxiliary feedback
- Standard DIN rail mounted control enclosures (35mm rail)
- IEC 60947-4-1 compliant control systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 100S-C09EJ14C is the safety contactor version of the base 100-C09E series and is used alongside auxiliary block models such as 100S-F blocks and 100-C09E base units in multi-module configurations.
Works With
- Rockwell Automation Studio 5000 safety add-on instructions
- GuardMaster safety software and monitoring systems
- EtherNet/IP networks for remote safety diagnostics
- Safety Instrumented Systems (SIS) per IEC 61508 / IEC 61511
- Any PLC or control system accepting 24VDC coil command signals
