Overview

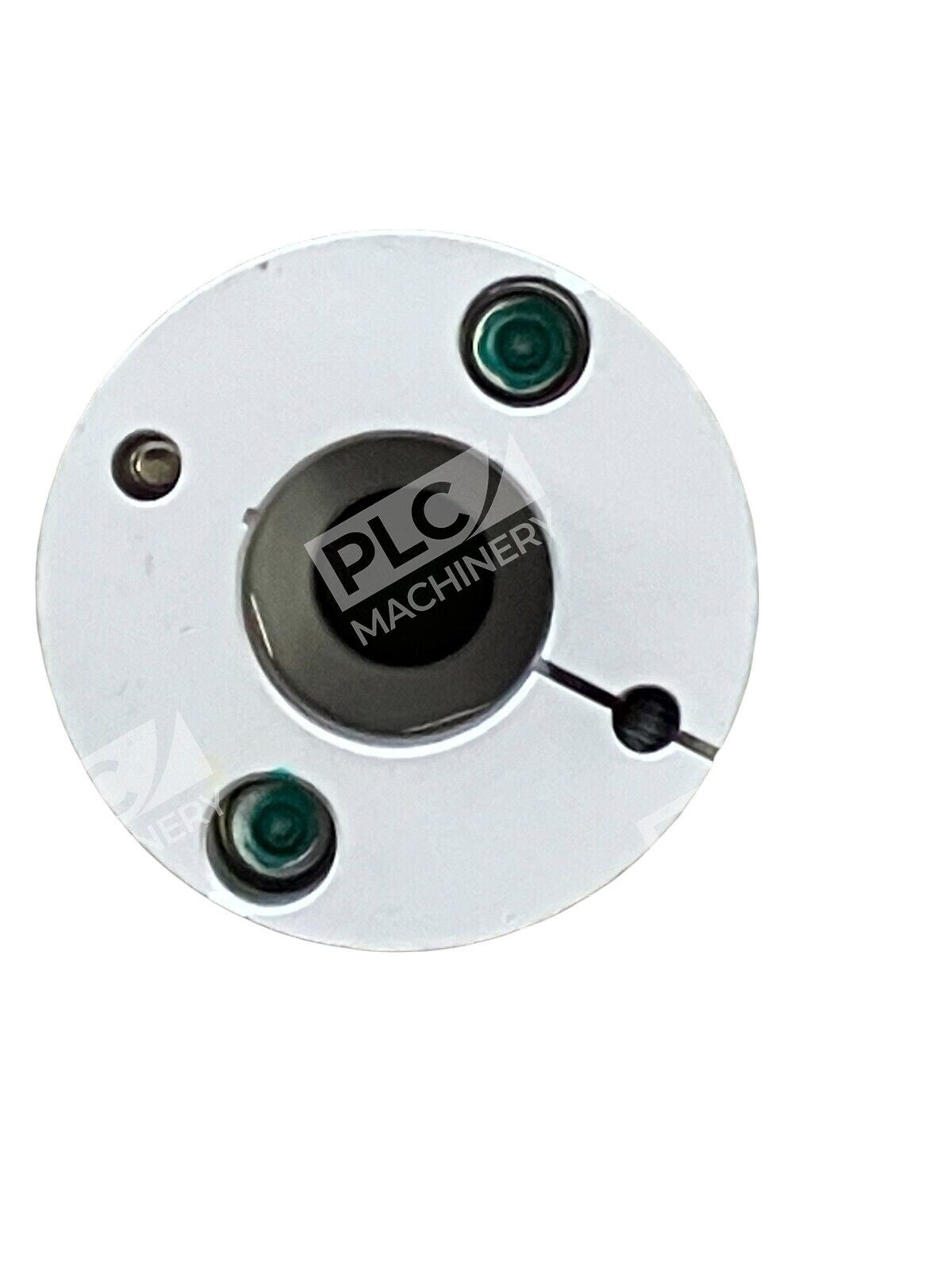

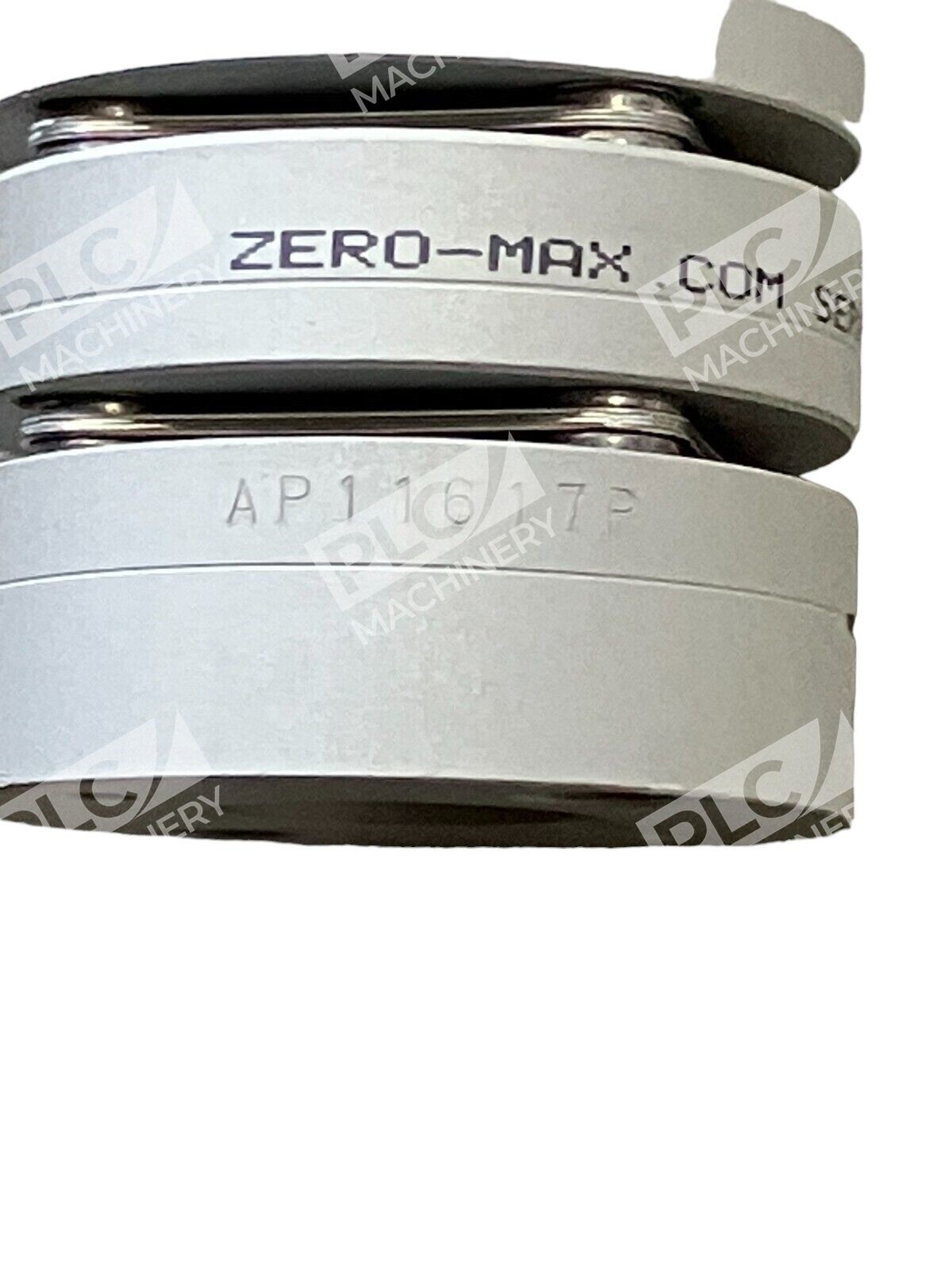

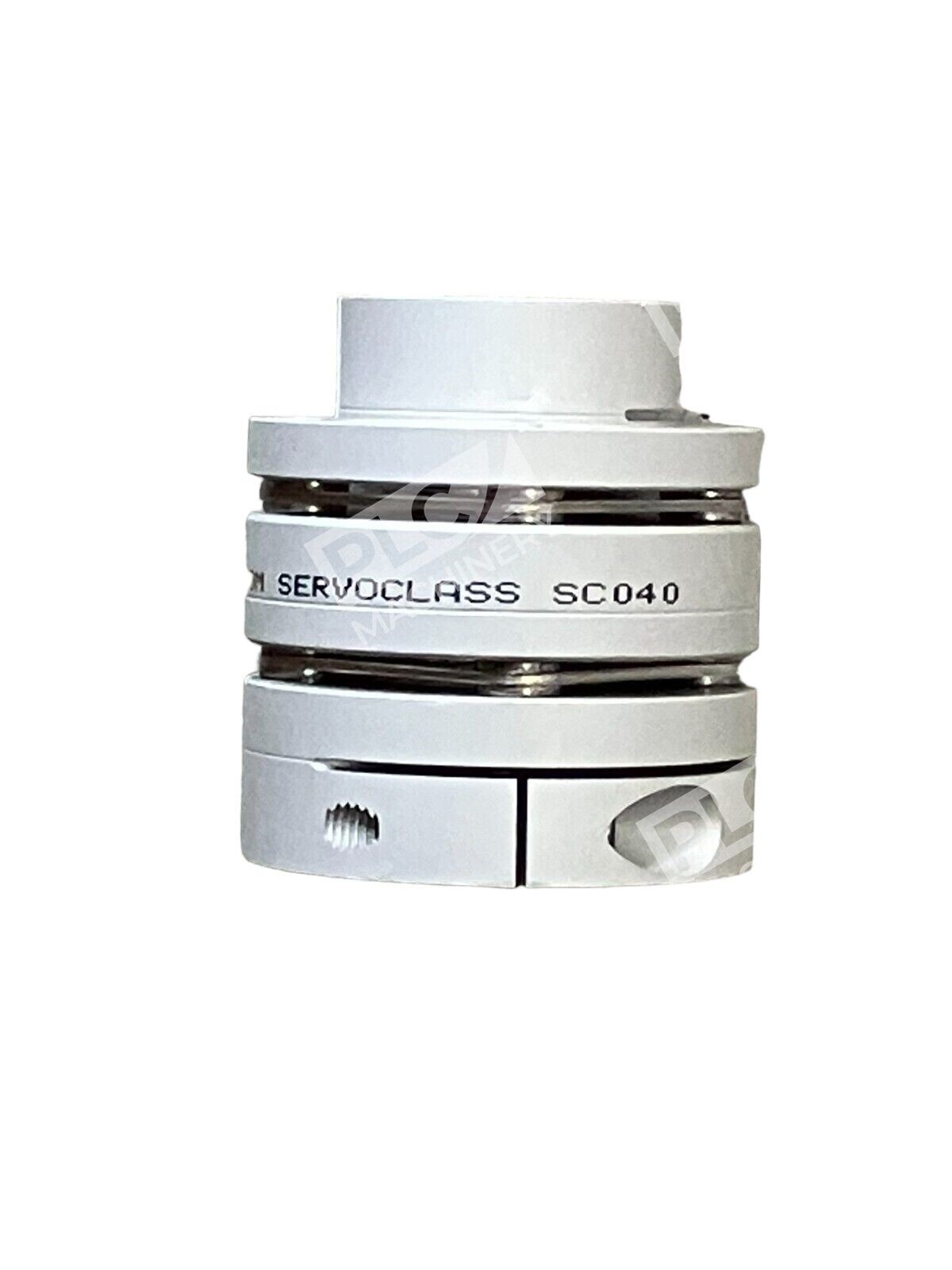

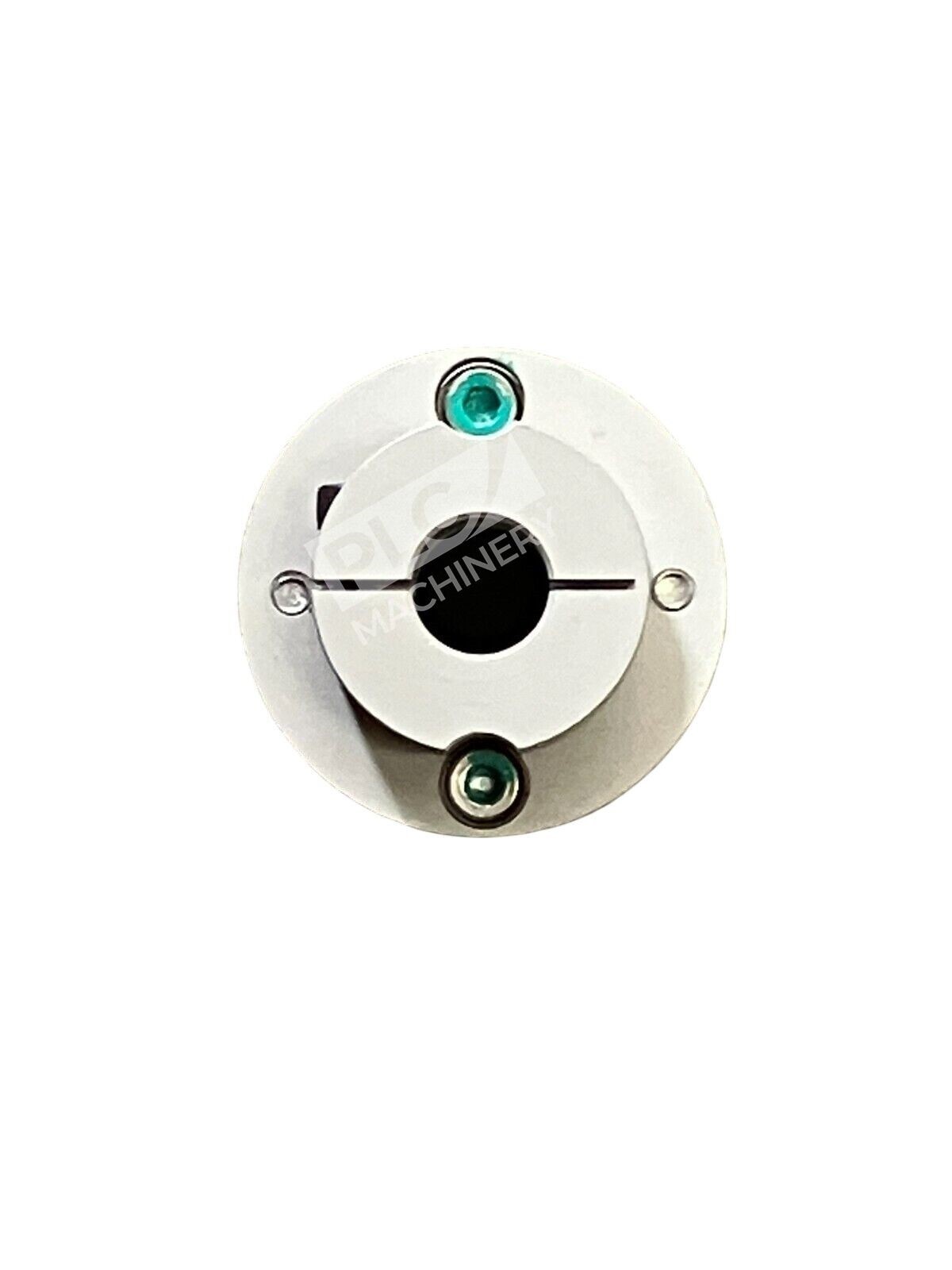

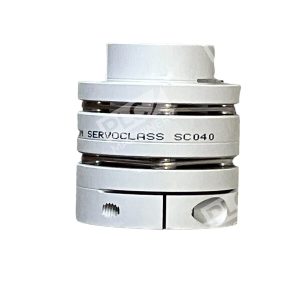

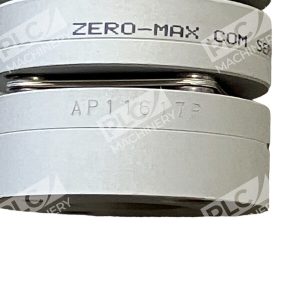

The Zero-Max SC040R is a ServoClass double flex coupling designed specifically for demanding servo motor applications. This flexible disc coupling accommodates higher torque, high speed and misalignment without premature failure due to fatigue or shock loads. The SC040R delivers 89 in-lbs operating torque, supports 10,000 RPM max speed, and provides 228 lbs/inch axial stiffness. The one-piece assembly and lightweight design make it ideal for precision servomotor applications.
Key Features
- Zero-backlash design: Field-proven ServoClass components ensure predictable, precise, zero-backlash performance.
- High torsional stiffness: Maintains precision positioning in servo control loops.
- Low runout and low inertia: Aluminum components and 304 stainless steel disc-packs provide strength and durability.
- Misalignment accommodation: Flexible disc design handles parallel, angular, and axial misalignment.
- RoHS-compliant: Eco-friendly design adapted to RoHS Directive with no banned substances.
Technical Specifications
- Operating Torque: 89 in-lbs (10 Nm)
- Maximum Speed: 10,000 RPM
- Coupling Type: ServoClass Double Flex (flexible disc)
- Coupling Size: Size 40
- Bore Range: 0.3125″ to 0.9375″
- Axial Stiffness: 228 lbs/inch
- Material: Aluminum hubs with stainless steel disc elements
- Rated for AC/DC servomotor applications
Typical Applications
The Zero-Max SC040R is widely used in:
- Precision positioning systems and robotic actuators
- AC and DC servomotor drive systems
- CNC and motion control equipment
- Laboratory and test automation equipment
- High-speed spindle and encoder coupling applications
Compatibility & Replacements
Compatible With
- AC servomotor systems
- DC servomotor systems
- Precision motion control systems
- Encoder feedback coupling applications
- Industrial automation motion platforms
Replaces / Drop-In Replacement For
- Original SC040R sizing and configuration
- Note: The original SC040 is discontinued; SC040R is the suggested replacement
- Verify bore and torque requirements with your specific application before ordering
Works With
- Standard servo motor shaft interfaces (keyway and keyless designs)
- Clamp hub and set screw mounting options
- Custom bore sizes available through Zero-Max engineering
- OEM servo drive systems and motion control platforms
