Overview

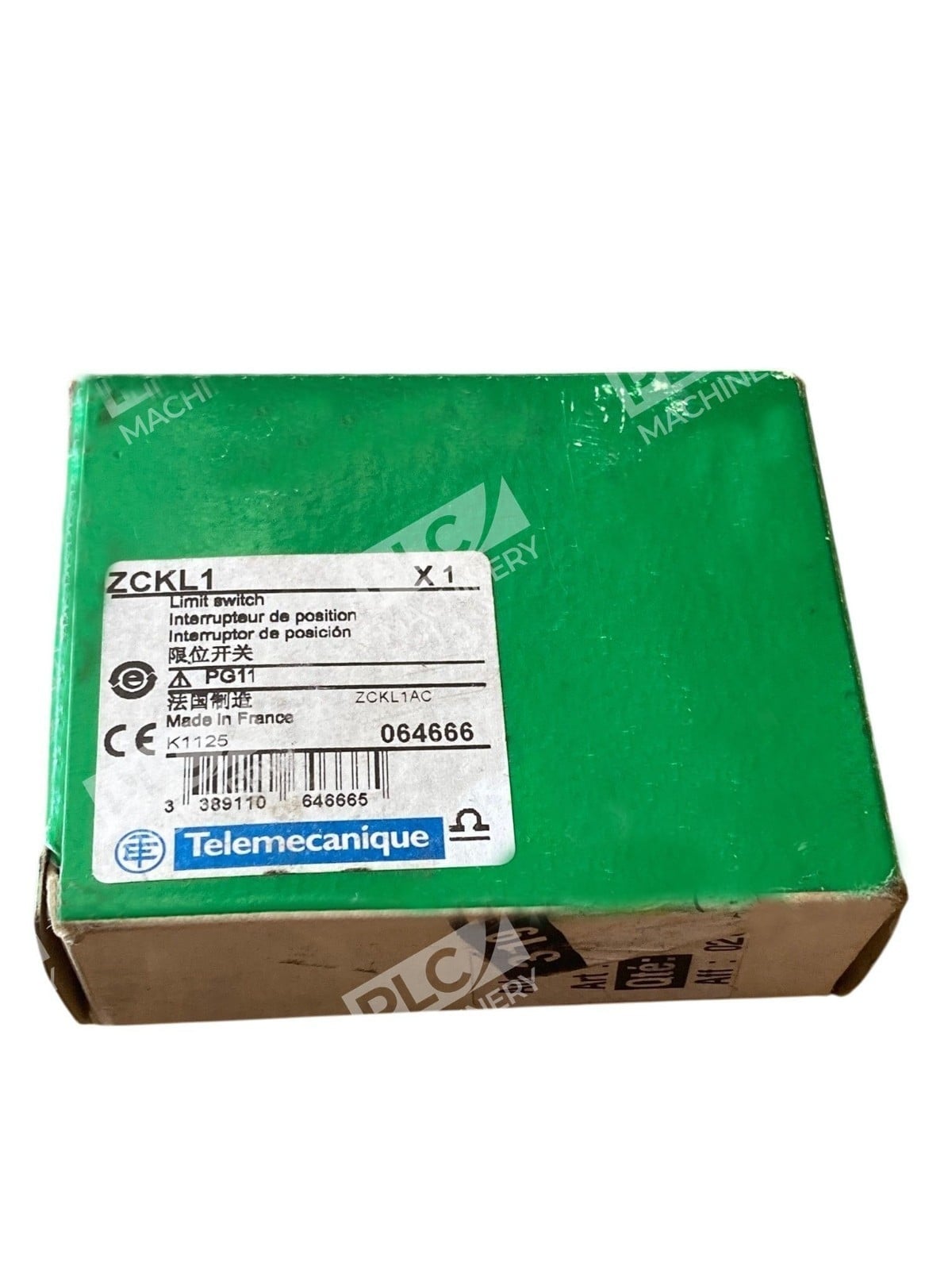

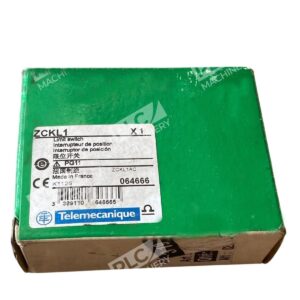

The Telemecanique ZCK-L1 is a fixed-type limit switch body engineered for industrial automation and machine control applications. This unit features 1NC + 1NO snap action contacts with silver plated contacts and screw-clamp terminal connections. The switch is IP65 rated, ensuring protection against dust and water ingress, making it suitable for manufacturing floors, packaging systems, and motion control environments.
Key Features
- Fixed metal body with 1 tapped entry for Pg 13.5 cable gland included
- Snap action mechanism rated 10A at 240V AC maximum
- Operating temperature range from -25 to 70 degrees Celsius
- Screw-clamp terminals with clamping capacity 1 x 0.34…2 x 1.5 mm²
- Drop-in replacement for XCKL series limit switch assemblies
- Zamak body construction for corrosion resistance
Technical Specifications
The Telemecanique ZCK-L1 meets international safety standards for industrial control devices and delivers consistent electrical performance across duty cycles.
Typical Applications
- Machine tool limit sensing and position detection
- Conveyor and material handling systems
- Assembly line automation and control
- Door and gate safety interlocks
- Packaging machinery and fill-level detection
- XCKL series head assemblies and expansion modules
Compatibility & Replacements
Compatible With
- XCKL series limit switch actuator heads
- Telemecanique OsiSense XC industrial limit switch families
- ZCKD-series actuator heads
- Standard industrial PLC and relay-based control circuits
- 24 VDC to 240 VAC control systems
Replaces / Drop-In Replacement For
- Telemecanique ZCKL limit switch body units
- Earlier-generation OsiSense XC limit switch bodies
- Legacy Schneider Electric limit switch bases
Works With
- Standard industrial relay logic and PLC control programs
- Screw-clamp field wiring terminals
- Pg 13.5 cable gland connectors
- 24 VDC, 120 VAC, 240 VAC industrial control voltages
- EN 50041 compliant automation systems
