Overview

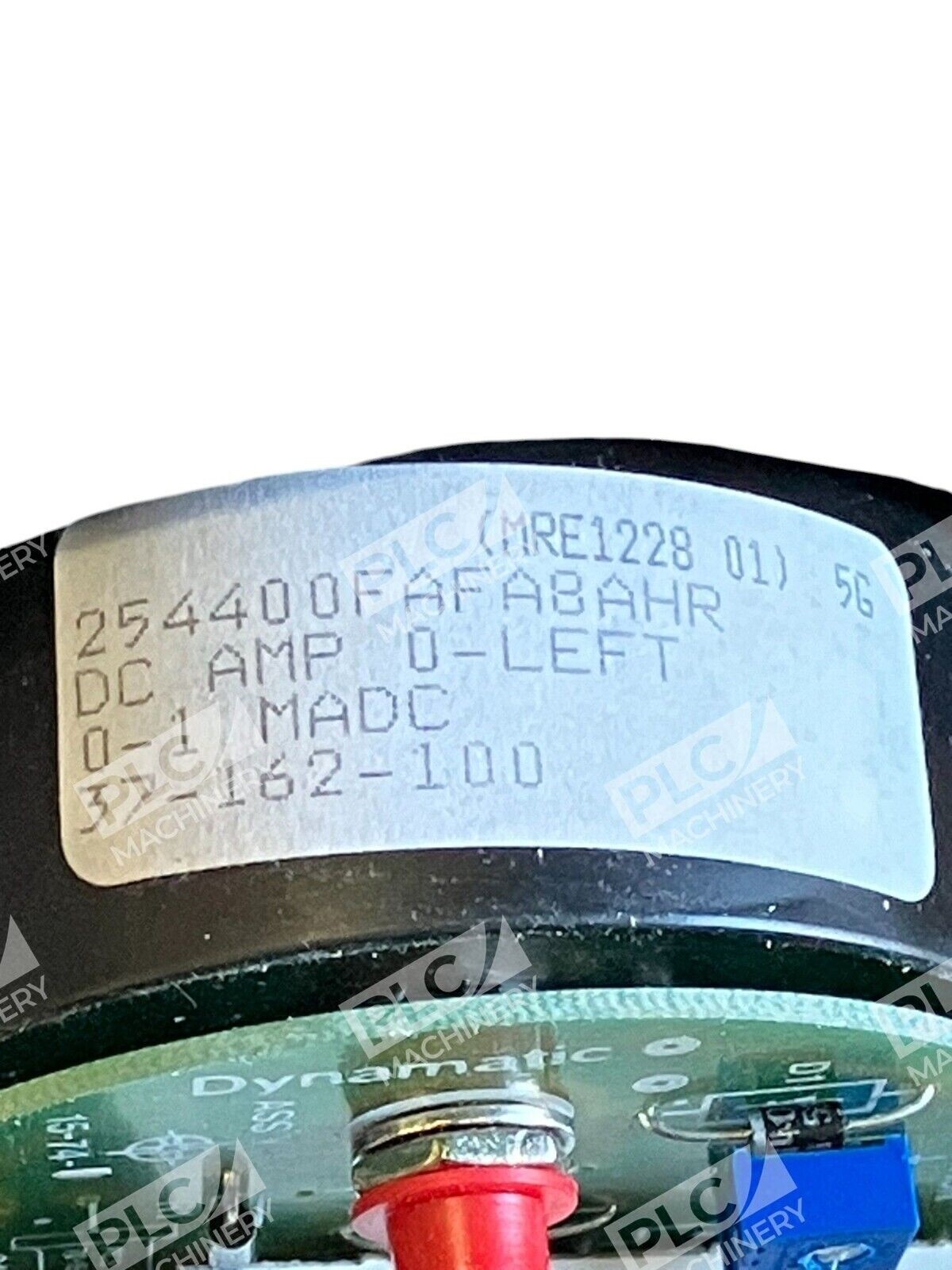

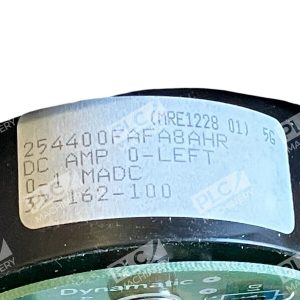

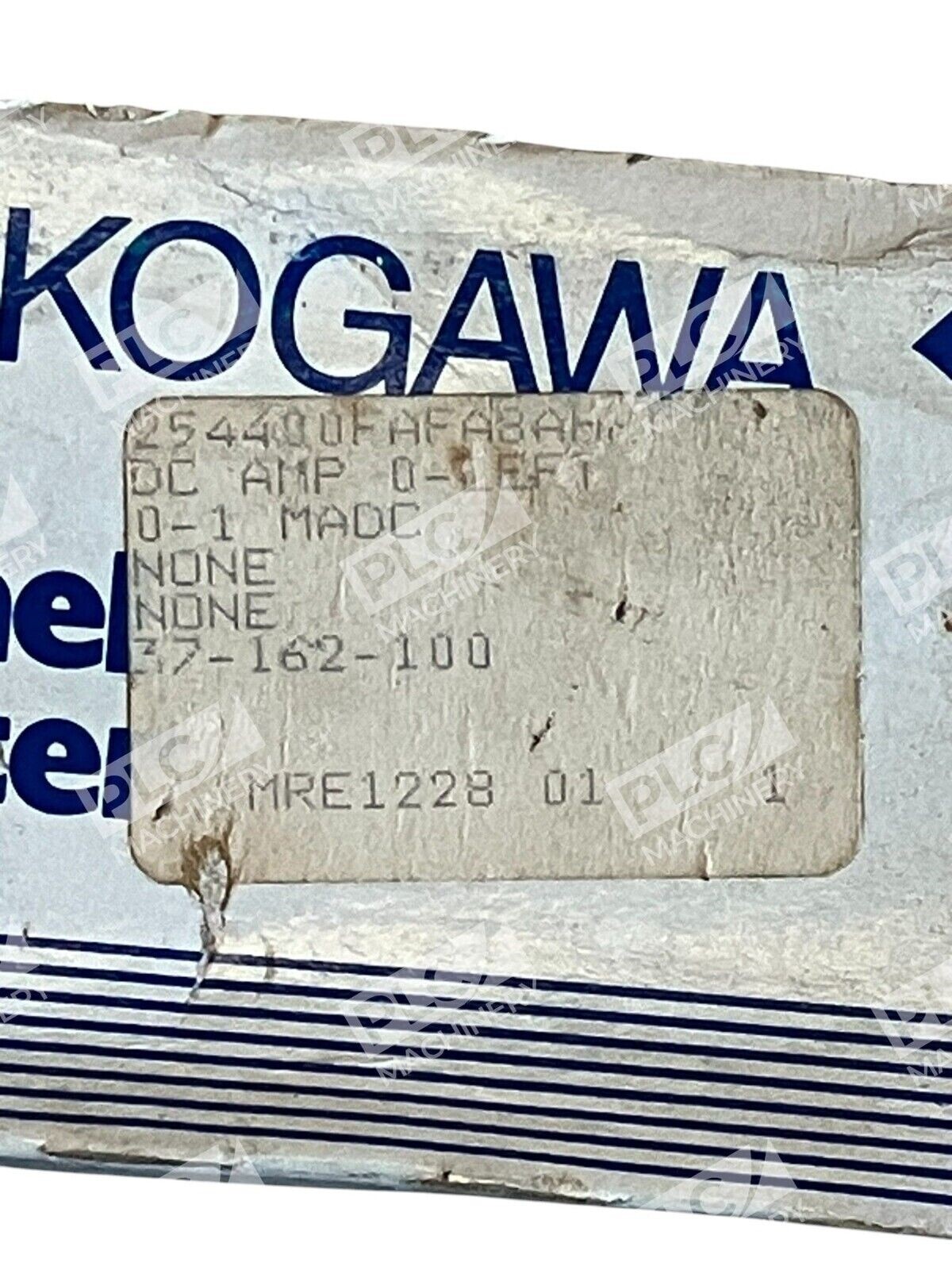

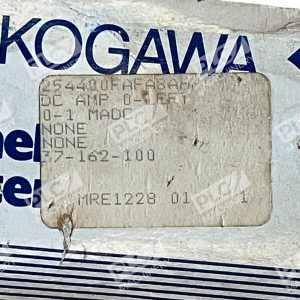

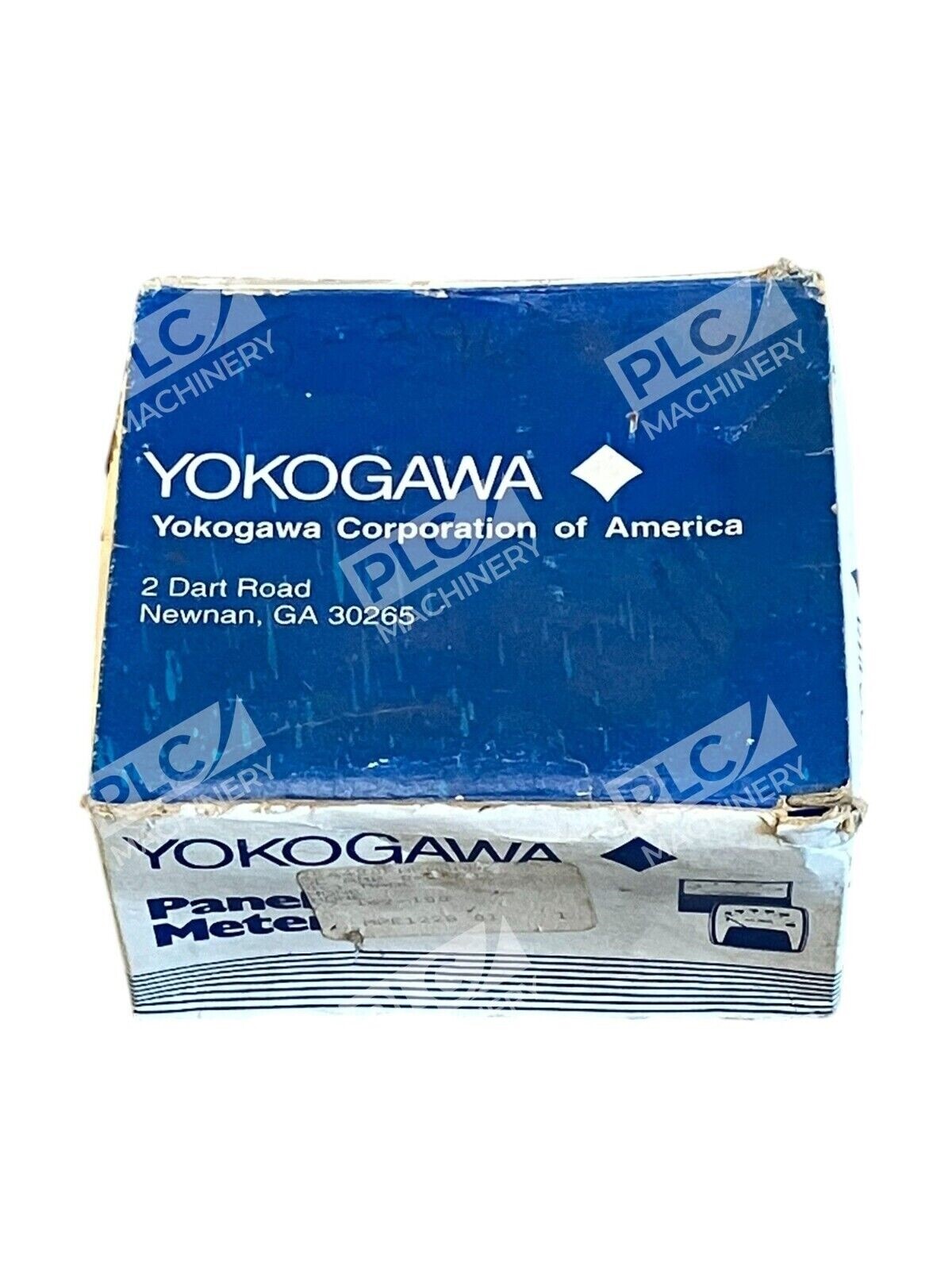

The Yokogawa 254400FAFA8AHR panel meter delivers precision measurement for industrial process control and monitoring applications. Yokogawa’s analog panel meters are engineered to provide reliable performance in harsh operating conditions, with durable construction and straightforward operation suitable for control rooms, equipment panels, and laboratory setups.
Key Features
- Analog needle display for real-time measurement visibility
- Robust construction suitable for industrial environments
- Accurate measurement across standard electrical ranges
- Direct panel-mount installation for easy integration
- Taut band or pivot & jewel suspension options for long-term reliability
- Compliant with industrial measurement standards
Technical Specifications
For exact input range, output configuration, accuracy rating, and mounting specifications, consult the manufacturer’s datasheet or contact your system integrator. Yokogawa panel meters typically feature ±0.5% accuracy, maximum working voltage of 300V for DC and AC meters, and are available in multiple case sizes and mounting configurations.
Typical Applications
- Industrial process monitoring and control
- Electrical distribution panel instrumentation
- Laboratory measurement and testing
- Manufacturing line equipment monitoring
- Facility maintenance and diagnostics
Compatibility & Replacements
Compatible With
- Standard 72 mm × 72 mm (2.75″ × 2.75″) panel cutouts
- 3.5-inch and 4.5-inch panel mount configurations
- DC and AC measurement circuits
- Industrial electrical systems up to 300V maximum working voltage
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Yokogawa analog panel meters may be interchangeable with other manufacturers such as Hoyt Panel Meters in equivalent specifications and mounting configurations, though direct part-number substitution must be confirmed with documentation.
Works With
- Standard electrical enclosures and control panels
- DC voltage and current measurement circuits
- AC current and voltage measurement circuits
- Direct or transformer/shunt-coupled measurement configurations
