Overview

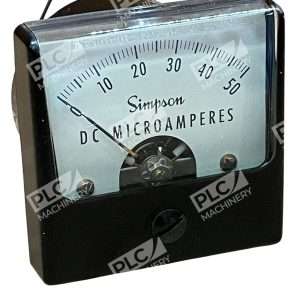

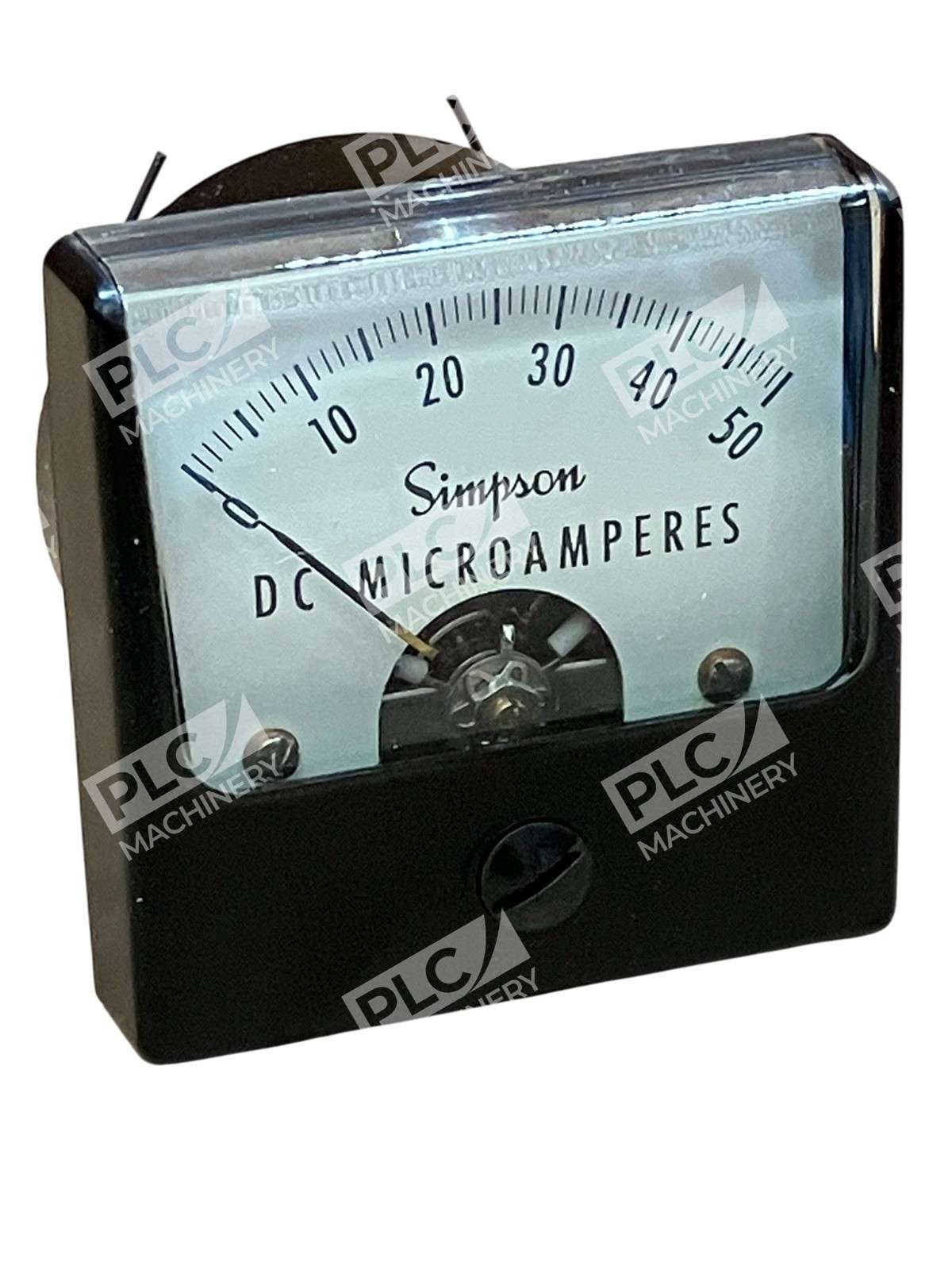

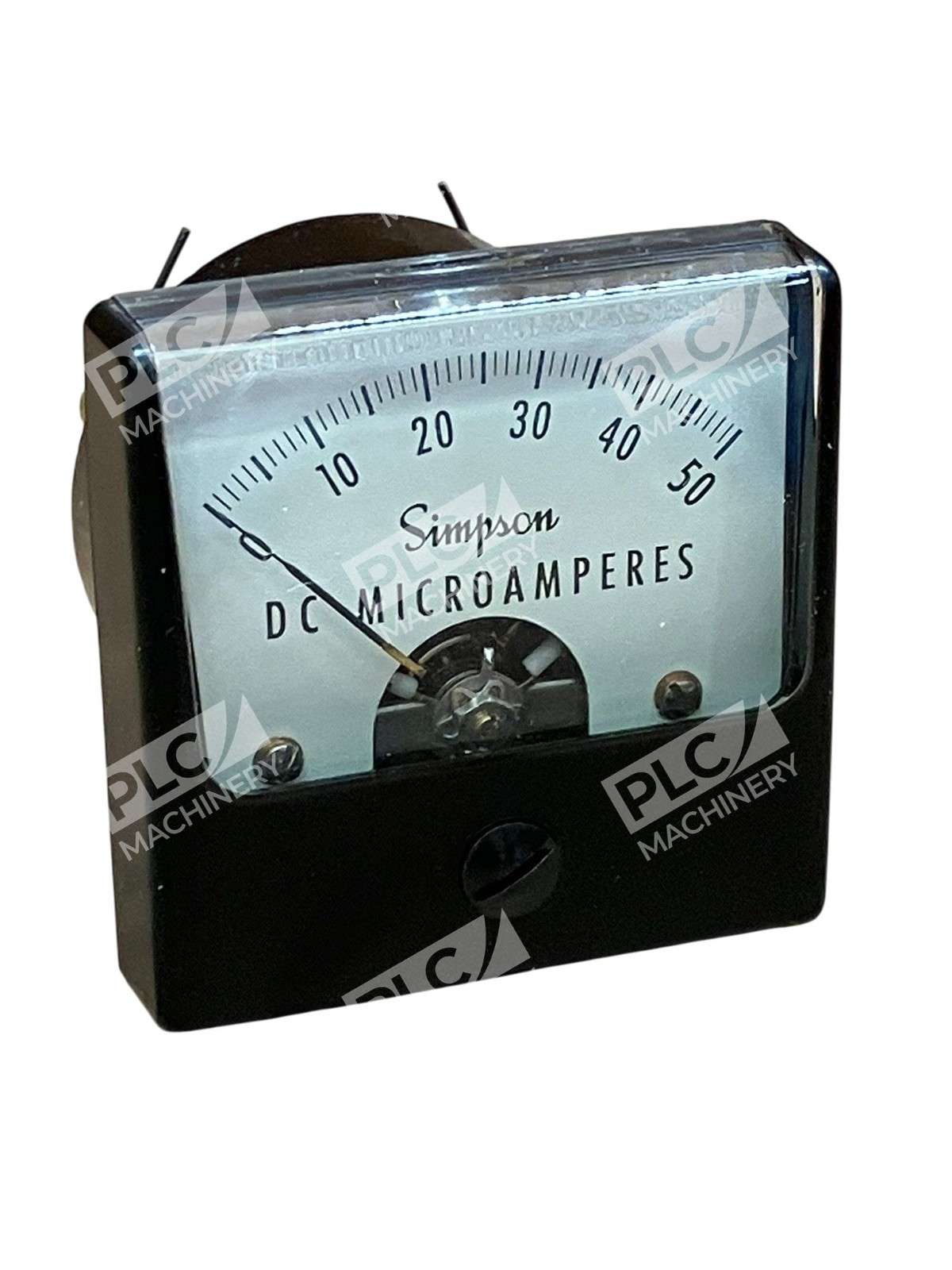

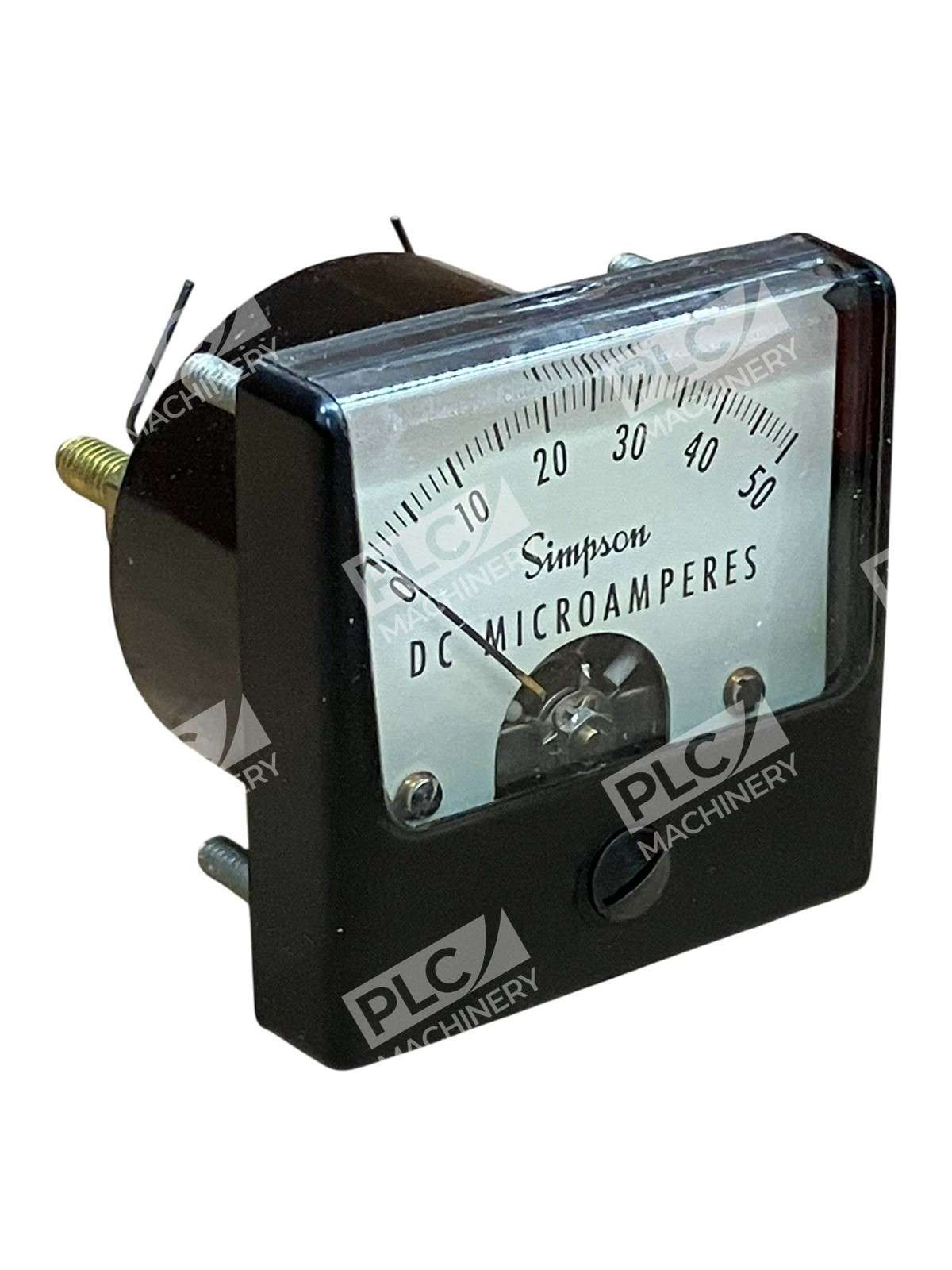

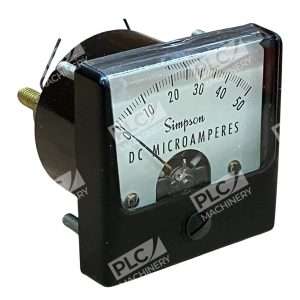

The Simpson Electric 1212 is a precision analog panel meter designed for accurate DC voltage measurement in industrial and test environments. This Wide-Vue style meter provides a clear, sharp scale and self-shielding movement to deliver reliable readings regardless of external magnetic fields. The compact 1.5-inch form factor fits standard panel cutouts, making it ideal for retrofit applications and OEM equipment integration.
Key Features
- Self-Shielding Movement — Measurement accuracy is unaffected by magnetic panel mounting or external electromagnetic interference
- Wide-Vue Display — Sharp, clear scale with optimal readability across a wide viewing angle
- Rugged Construction — High-density black plastic case with clear acrylic protective pane
- Compact Form Factor — 1.5-inch (38mm) size fits standard panel openings
- Black Lance Pointer — Model 1212 features precision black lance pointer for quick, accurate readings
- Made in USA — Simpson Electric meters have been manufactured in the USA since 1927
Technical Specifications
Measurement Range: 0–50 VDC
Accuracy: ±2% full-scale
Movement Type: Self-shielding DC
Response Time: 1.5 seconds maximum
Overload Capacity (1 sec): 10× full-scale
Continuous Overload: 1.5× full-scale
Operating Temperature: –4°F to +149°F (–20°C to +65°C)
Housing Material: High-density black plastic with clear acrylic window
Dial Type: Calibrated for DC voltage measurement
Weight: 2 oz (0.06 kg)
UL Recognition: File #E91015
Typical Applications
The Simpson Electric 1212 is suitable for a wide range of industrial and laboratory settings:
- Industrial control panels and power distribution systems
- Battery charging and monitoring systems
- Test benches and measurement stations
- Laboratory equipment racks
- Renewable energy systems and solar installations
- Telecommunications and data center monitoring
- OEM equipment integration
Compatibility & Replacements
Compatible With

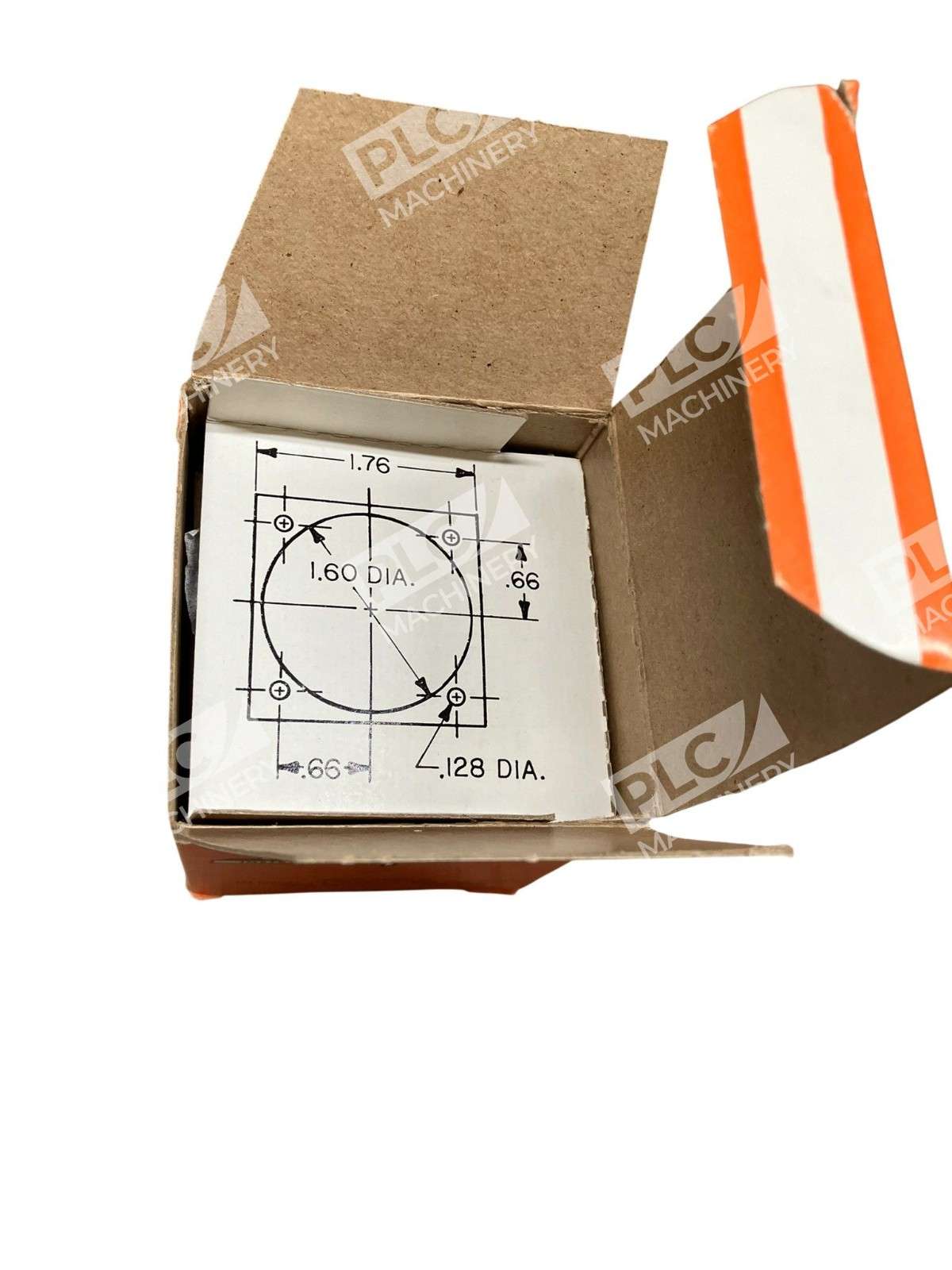

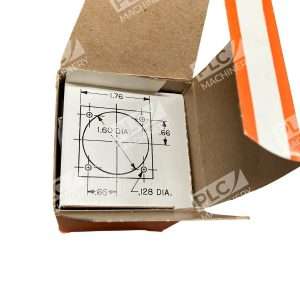

- Standard 1.5-inch panel cutout dimensions
- DC power supply systems rated 0–50 VDC
- Industrial control cabinets and enclosures
- Battery voltage monitoring applications
- Low-voltage DC circuits
Replaces / Drop-In Replacement For
- Simpson Electric 1212 (all versions)
- Other Simpson Wide-Vue meters requiring 1.5-inch cutout and DC voltage measurement
Works With
- DC power sources and regulated supplies

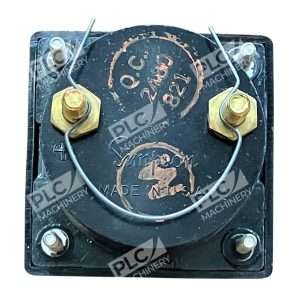

- Standard panel-mount wiring (two-terminal connection)
- External shunt resistors for extended range applications (if required)
- Industrial automation and control systems with voltage monitoring
