Overview
The General Electric AB40 wattmeter (model 50-106221FCSD1ACX) is a discontinued analog panel meter engineered for precision electrical power measurement in 120V AC systems. With a 5A current capacity and 4000 KW multiphase measurement range, the AB40 is widely used in industrial power monitoring, system commissioning, and electrical troubleshooting applications where accurate wattage readings are essential.
Key Features
- Multiphase capability – Supports three-phase and single-phase AC power measurement
- Analog dial display – Clear, easy-to-read pointer scale for quick power readings
- Robust construction – Built to General Electric’s industrial-grade reliability standards
- Wide measurement range – 4000 KW capacity accommodates large industrial loads

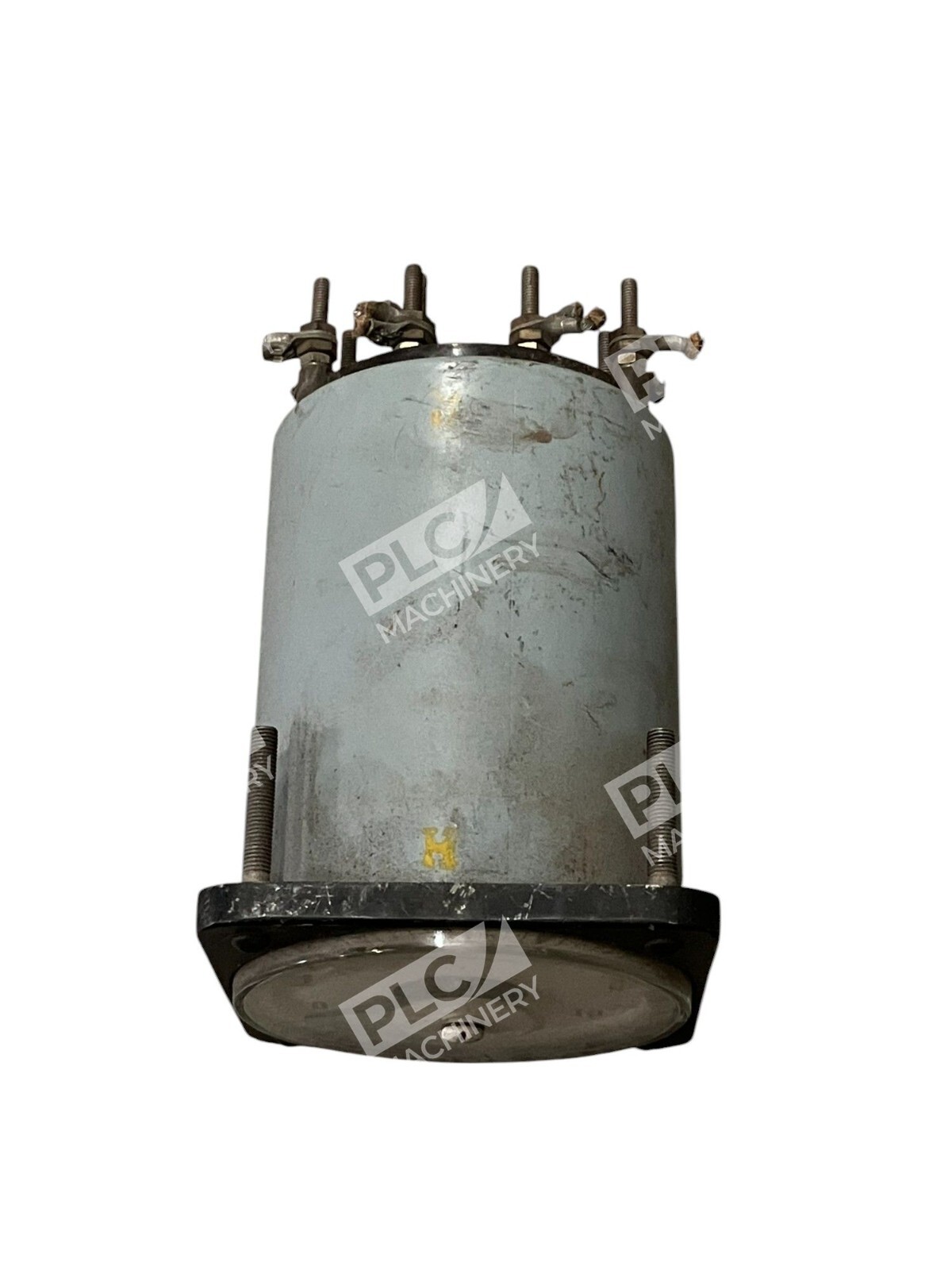

- Compact panel mount design – Fits standard DIN rail and cabinet installations
- Low maintenance – Passive analog design with no batteries or external power required (beyond the 120V measurement circuit)
Technical Specifications
- Voltage Supply: 120V AC
- Current Rating: 5A
- Measurement Type: Multiphase AC wattmeter

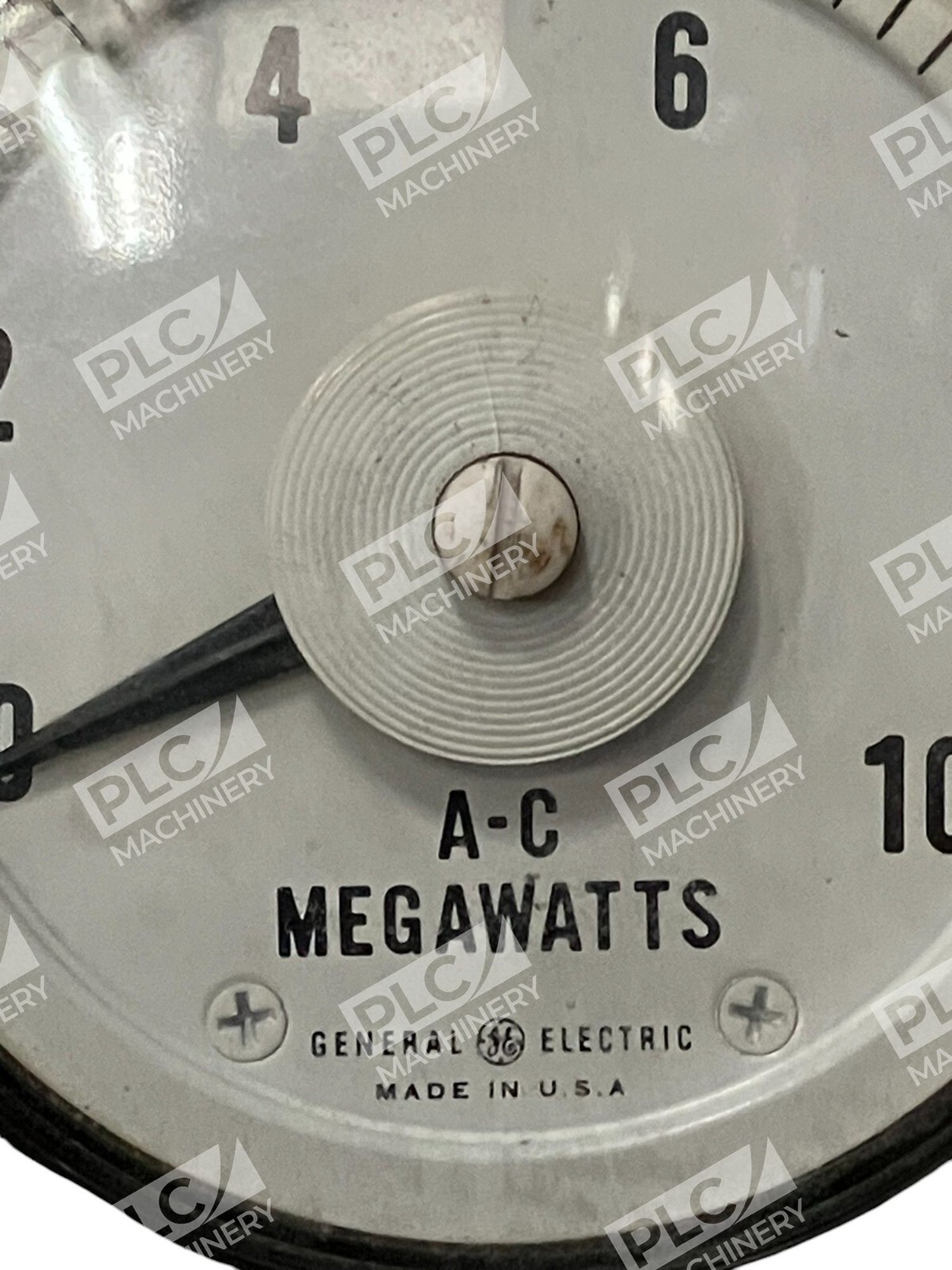

- Display: Analog pointer/dial
- Power Capacity: 4000 KW maximum

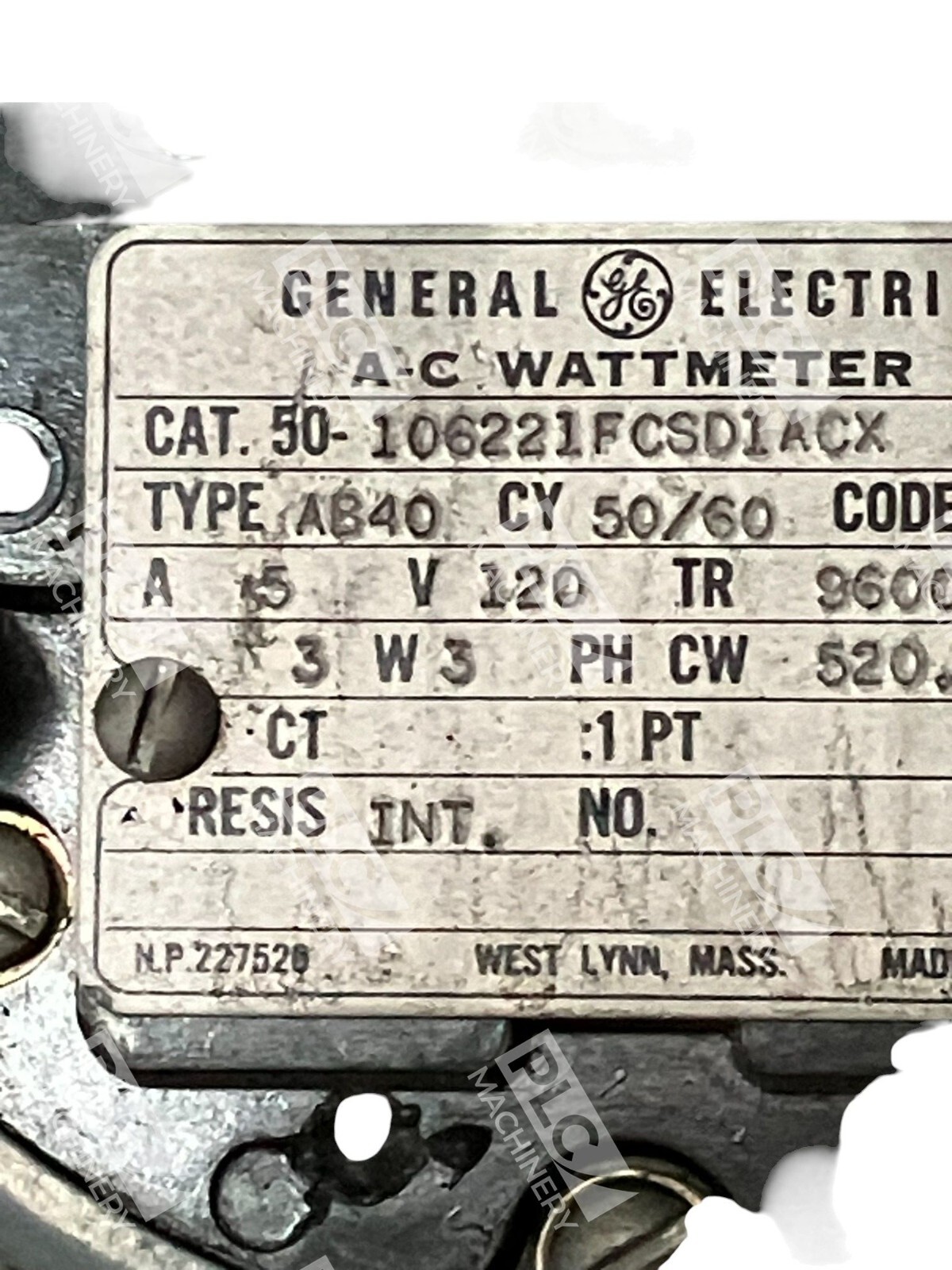

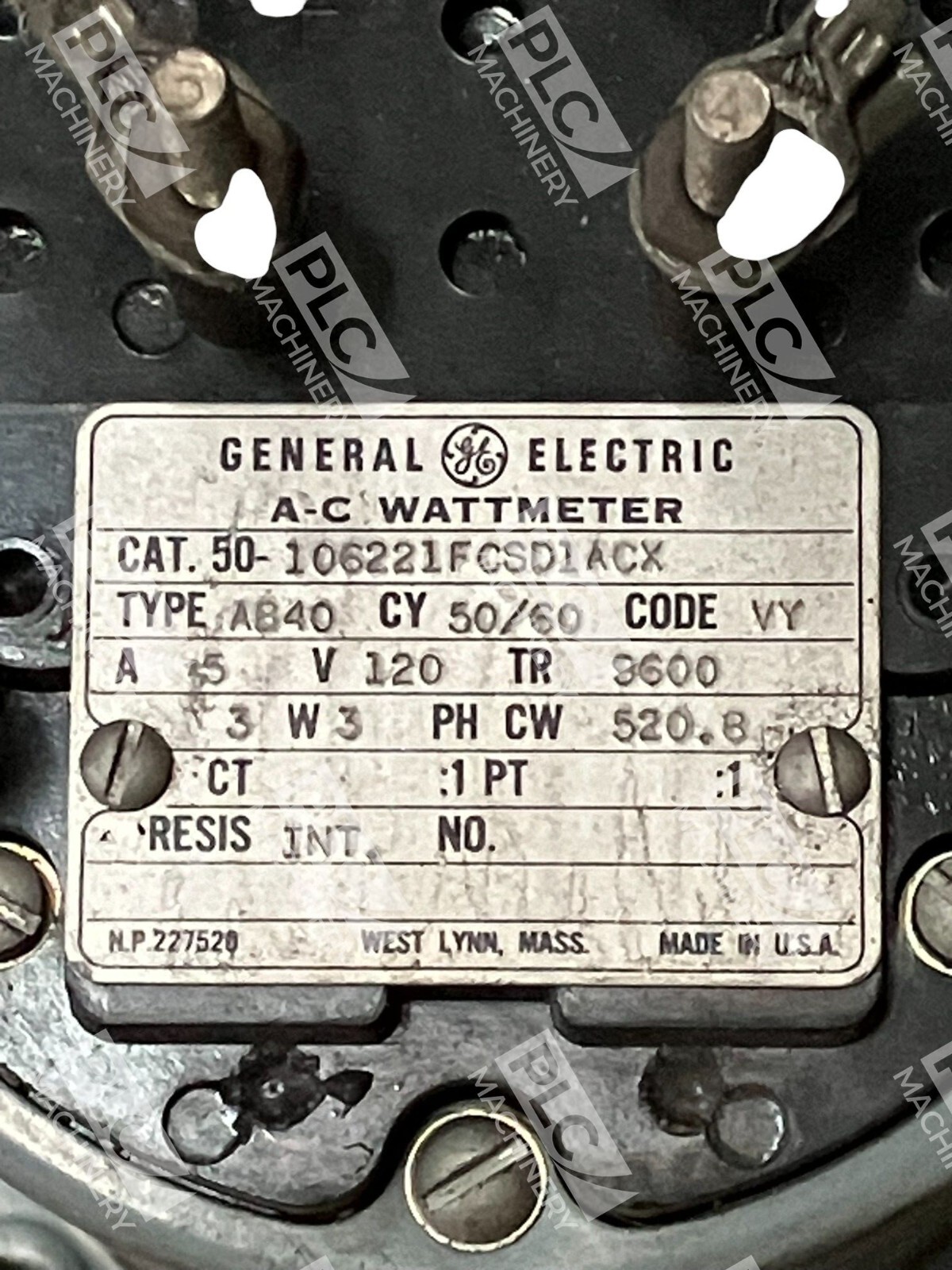

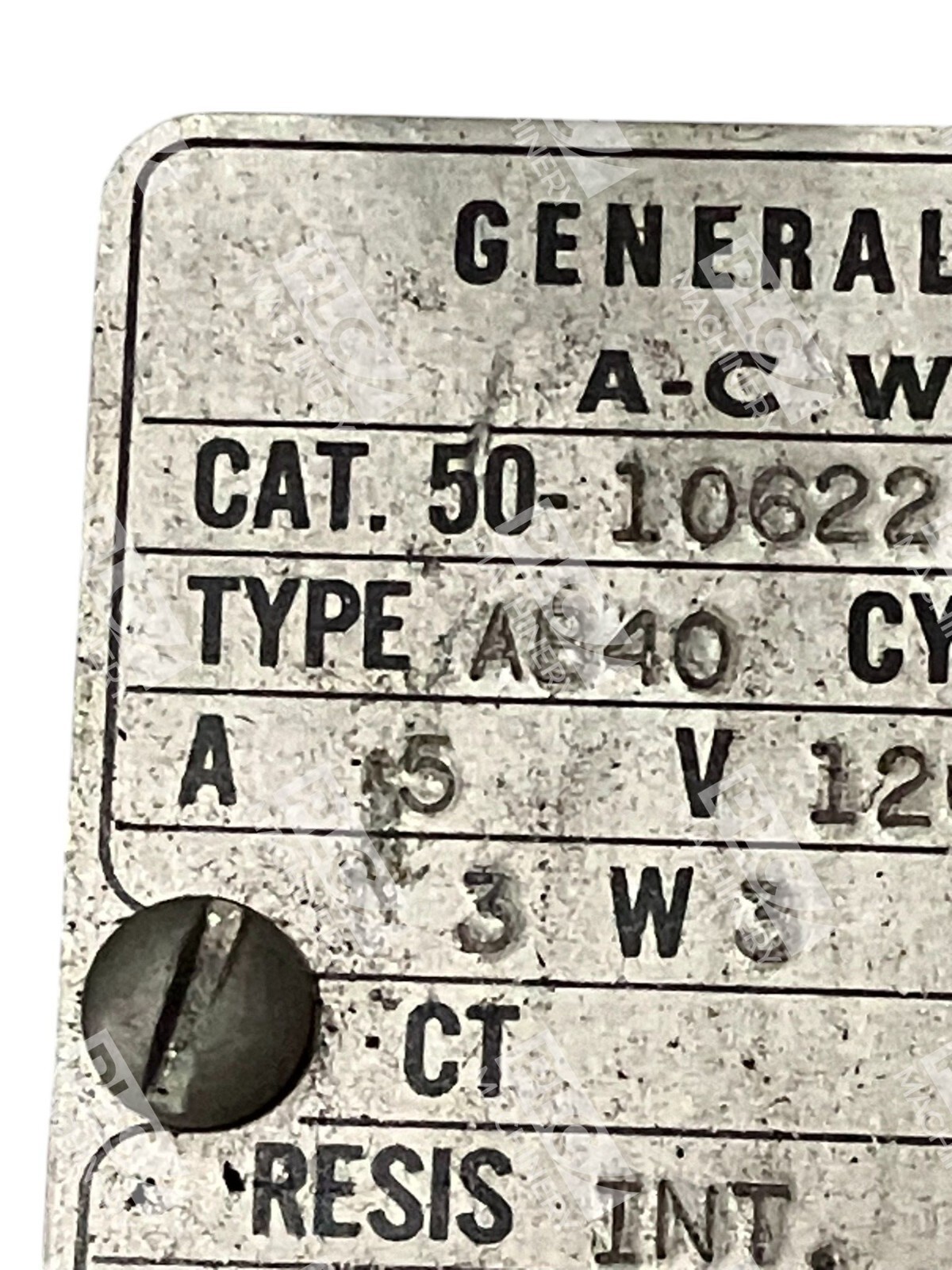

- Model Number: 50-106221FCSD1ACX
- Manufacturer Status: Discontinued by GE (surplus/used stock only)
- Part Type: Panel meter; drop-in replacement for legacy AB40 units
Typical Applications
The General Electric AB40 is commonly deployed in:
- Industrial motor control and power distribution panels
- Plant electrical infrastructure commissioning and diagnostics
- Load profiling and energy consumption monitoring on legacy systems
- Maintenance troubleshooting where precise real-time power readings are required
- Retrofit and modernization projects maintaining existing analog meter specifications
Compatibility & Replacements
Compatible With
- 120V AC power distribution systems (single-phase and three-phase)
- Standard DIN-rail and panel-mount cabinet designs
- Legacy industrial control panels and switchgear
- Any system requiring analog wattmeter feedback without digital integration
Replaces / Drop-In Replacement For
- Other General Electric AB40 wattmeter units (part number 50-106221FCSD1ACX and similar AB40 variants)
- Legacy analog wattmeters with equivalent 120V 5A multiphase specifications
Works With
- Analog power monitoring and control loops
- Manual electrical diagnostics and troubleshooting workflows
- Existing analog panel meter assemblies and switchgear
- No software or digital protocol integration required – pure analog instrumentation
