Overview

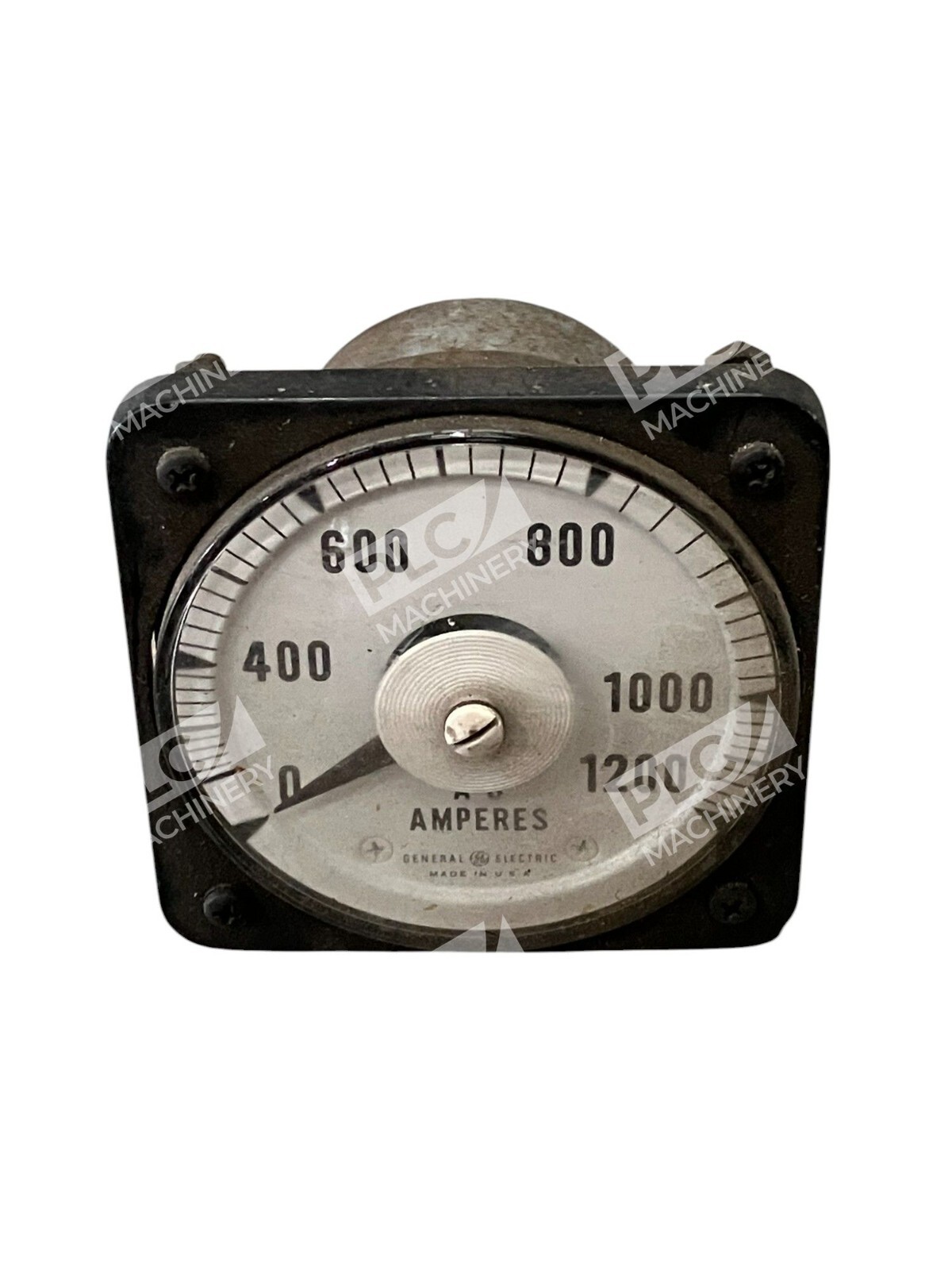

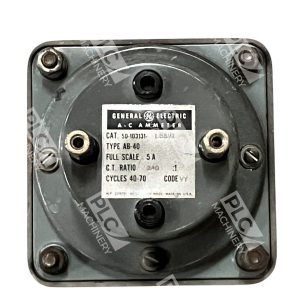

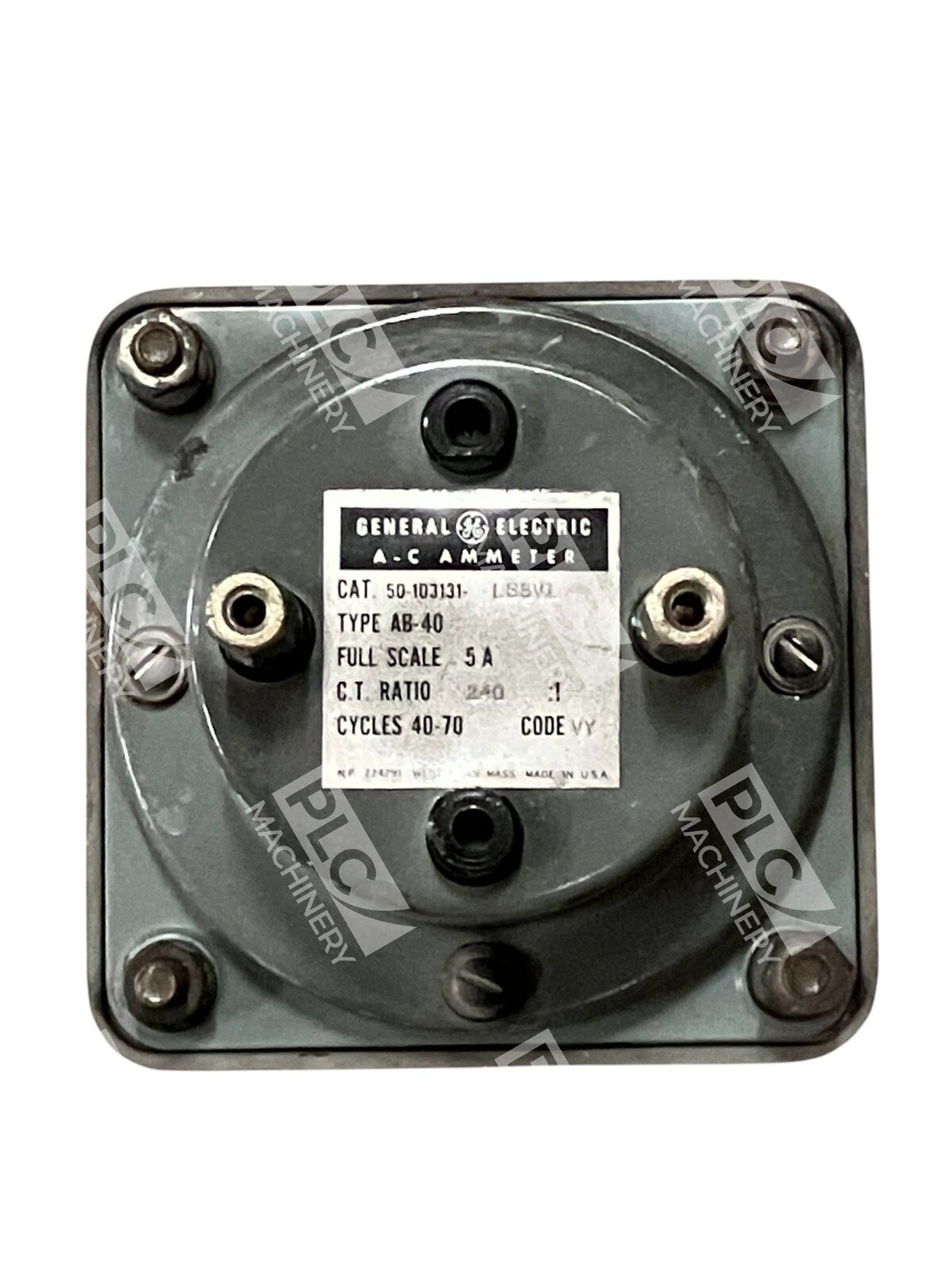

The General Electric 50-103131-LSSV1 is a panel-mounted AC ammeter designed for precise current measurement in industrial and utility applications. With a 240:1 current transformer (CT) ratio, this AB-40 meter provides a 5A full-scale deflection that corresponds to 0–1200A on the primary circuit. The instrument features a robust zero-left scale design typical of GE switchboard instruments, enabling straightforward reading in high-current environments.
Key Features
- AB-40 type panel meter with robust industrial construction
- 5A full-scale deflection with 240:1 CT ratio for high-current applications
- 0–1200A dial range for easy interpretation of primary circuit current
- Operates at 40–70 Hz AC frequency for standard utility and industrial power systems
- Zero-left configuration for intuitive operator interface
- Meets industry standards for switchboard instruments and panel integration

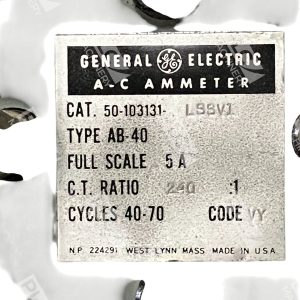

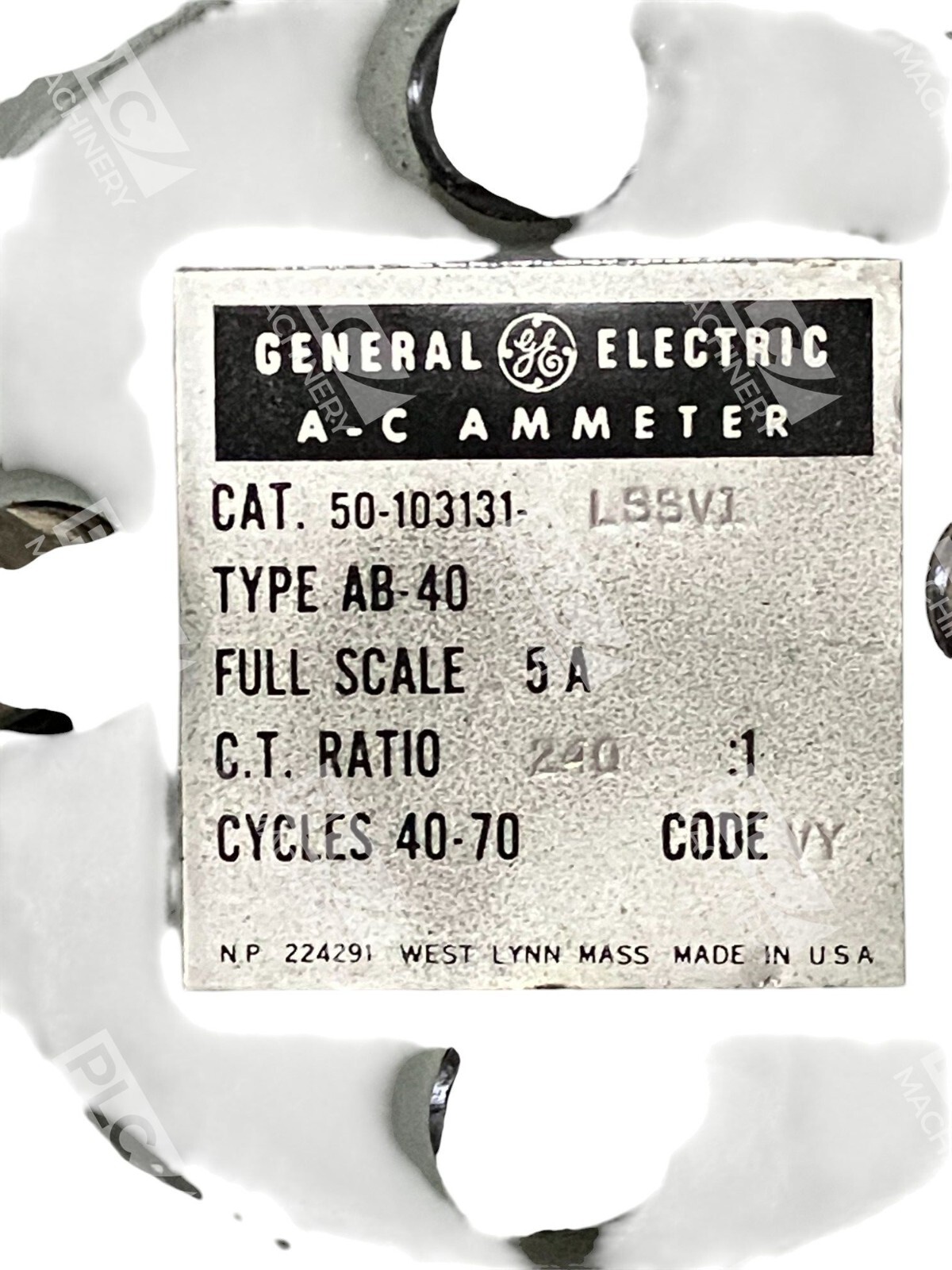

Technical Specifications
- Manufacturer: General Electric (GE)
- Model Number: 50-103131-LSSV1
- Instrument Type: AB-40 AC Ammeter
- Full Scale Deflection: 5A secondary
- CT Ratio: 240:1
- Primary Measurement Range: 0–1200A
- Frequency Range: 40–70 Hz
- Scale Configuration: Zero-Left
- Mounting: Panel-mounted switchboard instrument
- Accuracy: ±1.0% of full scale (ANSI C39.1 Class 1)
- Approximate Weight: 2 lbs
- Approximate Dimensions: 4.5″ × 4.5″ × 4.5″
Typical Applications
- Utility distribution panels and switchboard monitoring
- Industrial power systems current measurement
- Electrical machinery load monitoring
- Control panels requiring real-time AC current indication
- Primary and secondary circuit current measurement via current transformers
Compatibility & Replacements
Compatible With
- Standard 4.5-inch switchboard panel cutouts
- 240:1 ratio current transformer secondary circuits
- 40–70 Hz AC power systems (North American and international standards)
- Panel-mounted control and monitoring systems
- Industrial electrical distribution networks
Replaces / Drop-In Replacement For
- Other GE AB-40 ammeters with identical 240:1 CT ratio and 5A full-scale rating
- Equivalent panel meter models requiring 0–1200A measurement range
- Verify compatibility with your specific panel cutout and terminal configuration before ordering
Works With
- Current transformer secondary circuits (5A rated)
- Standard AC power measurement systems
- Industrial control panels with panel meter mounting provisions
- General Electric switchboard and control system installations
