Overview
The KS20316L-2 analog dB panel meter is a precision instrument designed for real-time measurement of decibel levels between -0.5 and +0.5 dB. This unbranded unit features a traditional moving-needle display, making it suitable for applications requiring accurate dB monitoring in audio engineering, telecommunications, and industrial signal control. The meter’s narrow range provides fine-grain precision for applications where tight decibel tolerance is critical.
Key Features
- Precision -0.5 to +0.5 dB measurement range

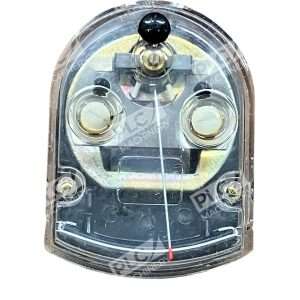

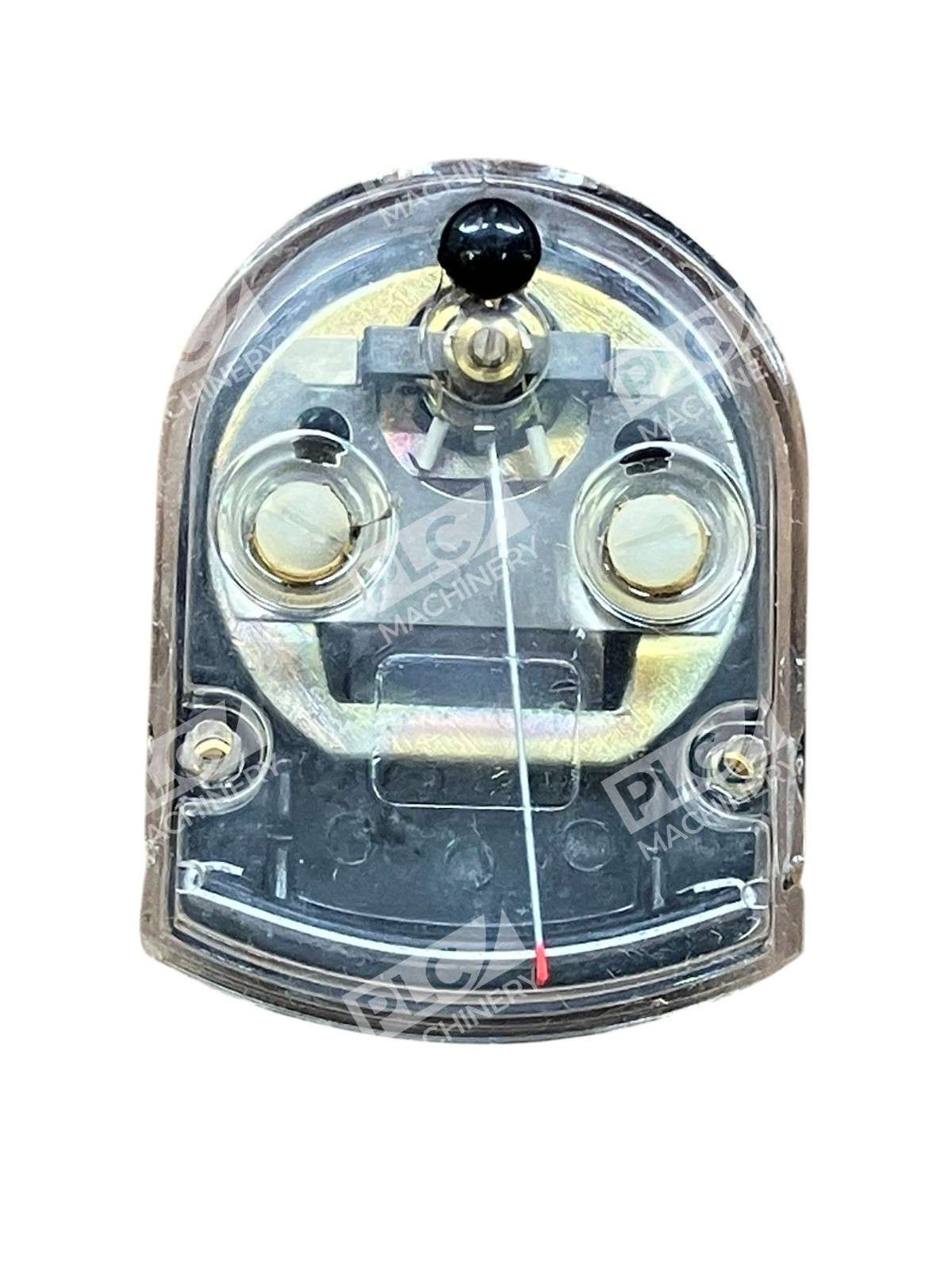

- Analog needle-type display for direct visual reading
- Compact panel-mount design
- Passive operation—no external power supply required for basic measurement

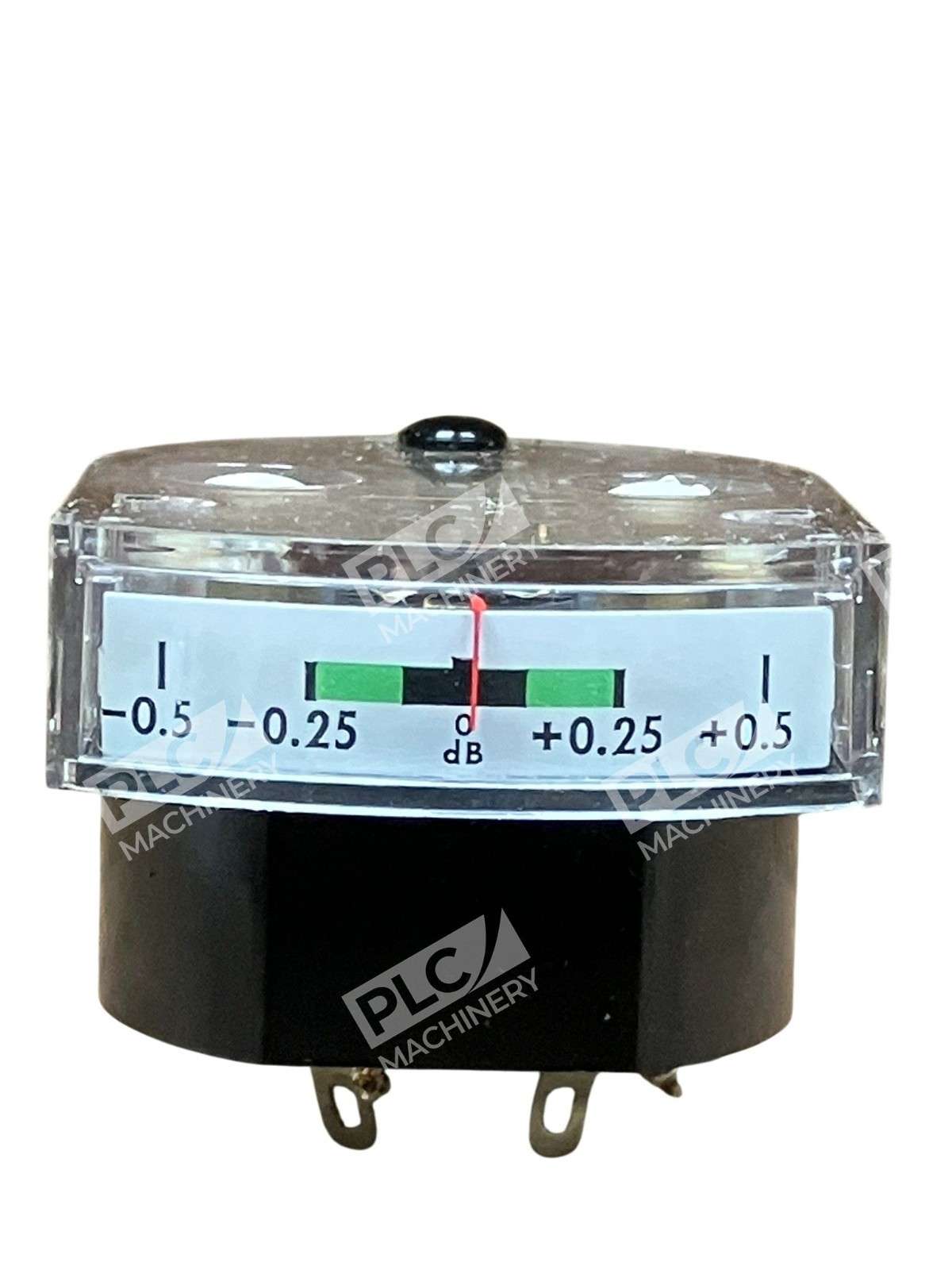

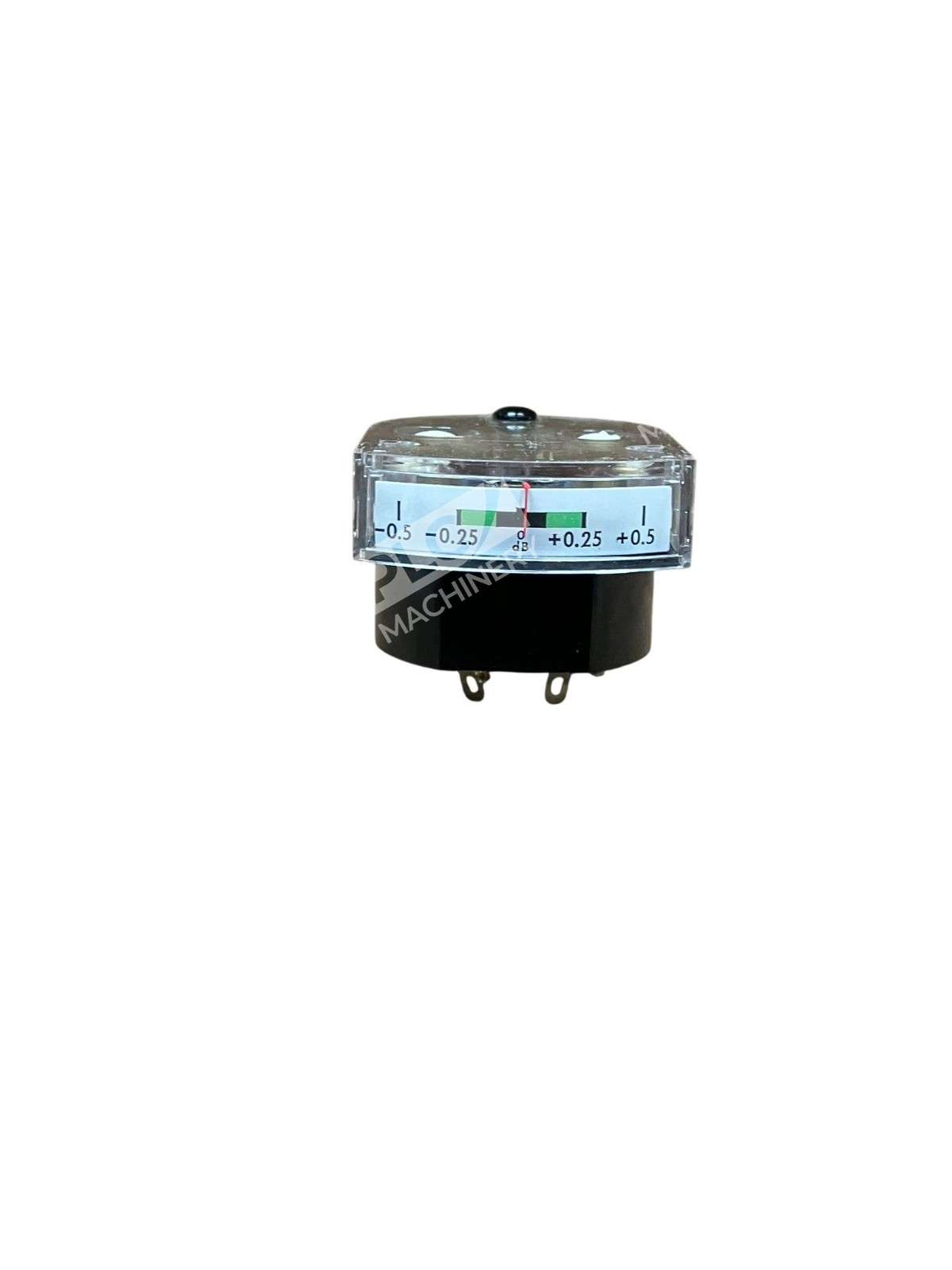

- Zero-centered scale for easy reference point detection
Technical Specifications
- Measurement Range: -0.5 to +0.5 dB
- Display Type: Analog moving needle
- Scale Center: Zero-center (0 dB midpoint)

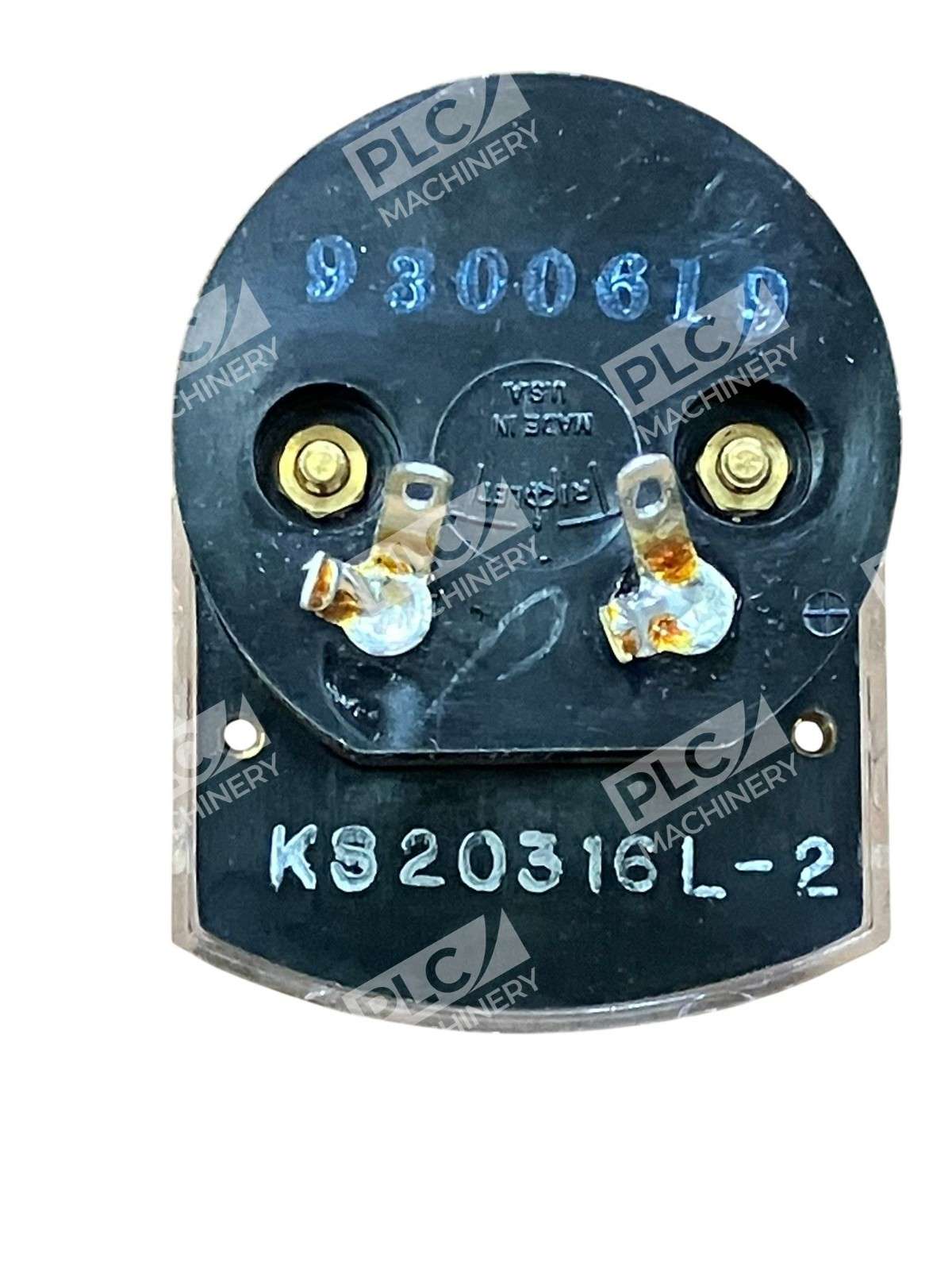

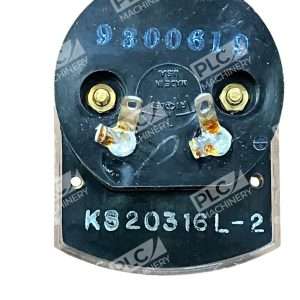

- Part Number: KS20316L-2
- Reference Number: 9300619
- Unit Quantity: 1
- Condition: New, Open Box
Typical Applications
The KS20316L-2 is well-suited for:
- Audio equipment calibration and testing
- Signal level monitoring in broadcast and telecommunications
- Acoustic and noise measurement systems
- Industrial precision level control
- Equipment setup and maintenance procedures
Compatibility & Replacements
Compatible With
- Standard 19-inch rack systems
- Bench-top test and measurement equipment
- Audio mixing and mastering consoles
- Industrial signal conditioning systems
- Telecommunications monitoring panels
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering, as direct replacement compatibility for unbranded meters requires confirmation of mechanical and electrical specifications.
Works With
- Standard dB measurement protocols (IEC 60268, AES standards)
- Audio frequency signal sources (20 Hz–20 kHz typical)
- Passive or active signal conditioning circuits
- Test and measurement software platforms
