Overview

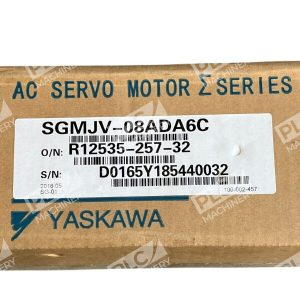

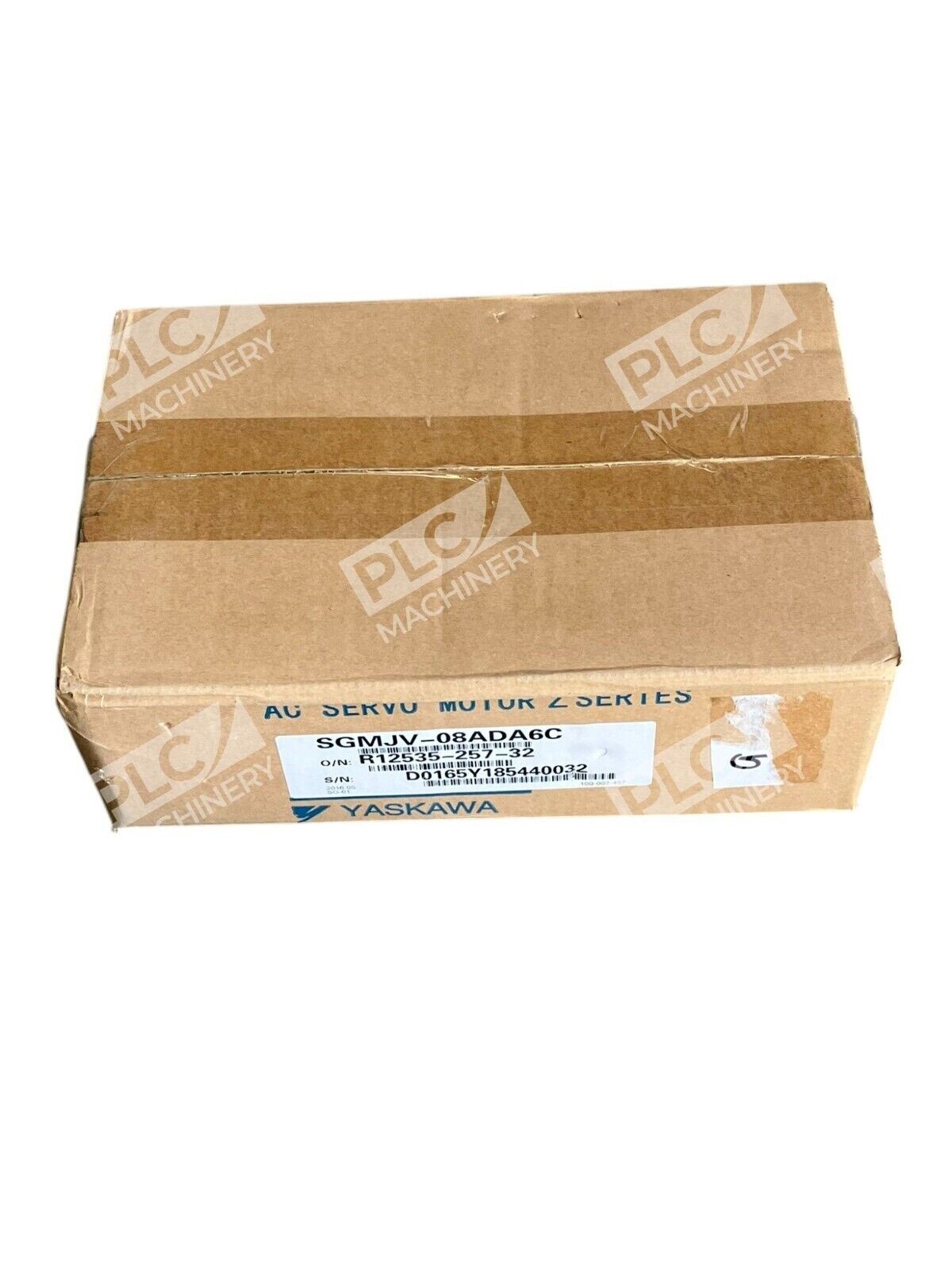

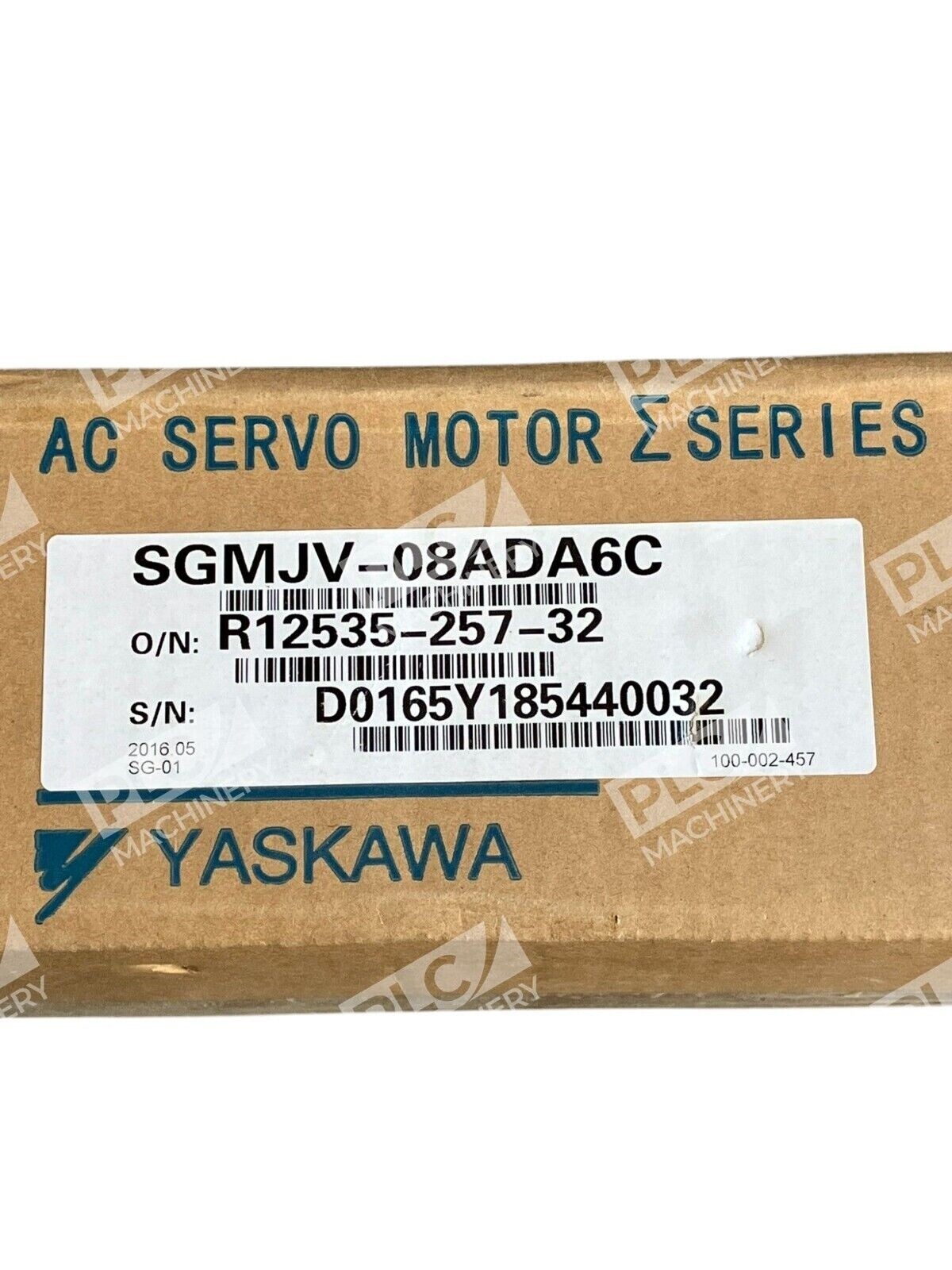

The Yaskawa SGMJV-08ADA6C is a medium-inertia brushless AC servo motor from the Sigma V series, designed for applications requiring high precision and responsive motion control. It is ideal for applications necessitating high precision and reliability, with a rated output power of 750 watts operating at 200 VAC. The SGMJV is a small capacity brushless servomotor, and is a legacy product no longer promoted, but remains available and fully functional for existing system integration.
Key Features
- 750W Rated Output: Provides adequate power for medium-duty precision applications with consistent performance.
- High Speed Capability: Rated speeds reach 3000 RPM under normal conditions, extending up to 6000 RPM for demanding tasks.
- Robust Torque Performance: Rated torque of 2.39 Nm with peak torque capacity of 8.36 Nm, essential for rapid acceleration and deceleration.
- 20-Bit Incremental Encoder: Facilitates precise motion control and accurate positioning in automated systems.
- IP65 Protection: Designed for resilience against dust and water ingress, making it suitable for challenging environments.
- Straight Shaft Design: Straight shaft with key and tap configuration for direct mechanical coupling to driven equipment.
Technical Specifications
Verify all specifications with your system integrator before implementation:
- Motor Type: Brushless AC Servo Motor (SGMJV Series)
- Rated Power: 750W
- Supply Voltage: 200VAC, 3-phase
- Rated Current: 4.7 A
- Rated Torque: 2.39 Nm (continuous at 40°C with heatsink)
- Peak Torque: 8.36 Nm
- Rated Speed: 3000 RPM
- Maximum Speed: 6000 RPM
- Encoder: 20-bit Incremental
- Shaft End: Straight with key and tap
- IP Rating: IP65
- Design: Standard, without holding brake
Typical Applications
The SGMJV-08ADA6C is suitable for:
- Precision positioning systems and pick-and-place operations
- Conveyor and material handling equipment requiring synchronized motion
- Assembly machine spindles and tool turrets
- Printing and packaging machinery
- Industrial robot actuators and joint drives
- CNC machine tool feedstock axes requiring closed-loop control
Compatibility & Replacements
Compatible With
- Servo Drives: Yaskawa SGDS, SGDV, and SGD7S series servo drives
- Drive Variants: SGDV-2R8A (@1A series for 750W motor compatibility)
- Communication: SGDV and SGD7S drives support EtherCAT and PROFINET fieldbus options
- Control Systems: Integrates with standard industrial PLCs and motion controllers supporting servo drive protocols
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SGMJV-08ADA6C has similar torque and speed characteristics to earlier Sigma V 750W servomotors (SGMJV-08A3A6C variants). Confirm motor baseline and encoder type match before substitution.
Works With
- Yaskawa SGDV ServooPack: Primary recommended drive family
- Yaskawa SGD7S Series: Next-generation Sigma series drive
- Industrial Motion Control Software: Yaskawa DriveWorksplus, Motoman.NET, and compatible engineering tools
- Protocol Support: CANopen, PROFINET, EtherCAT (via compatible drives)
