Overview

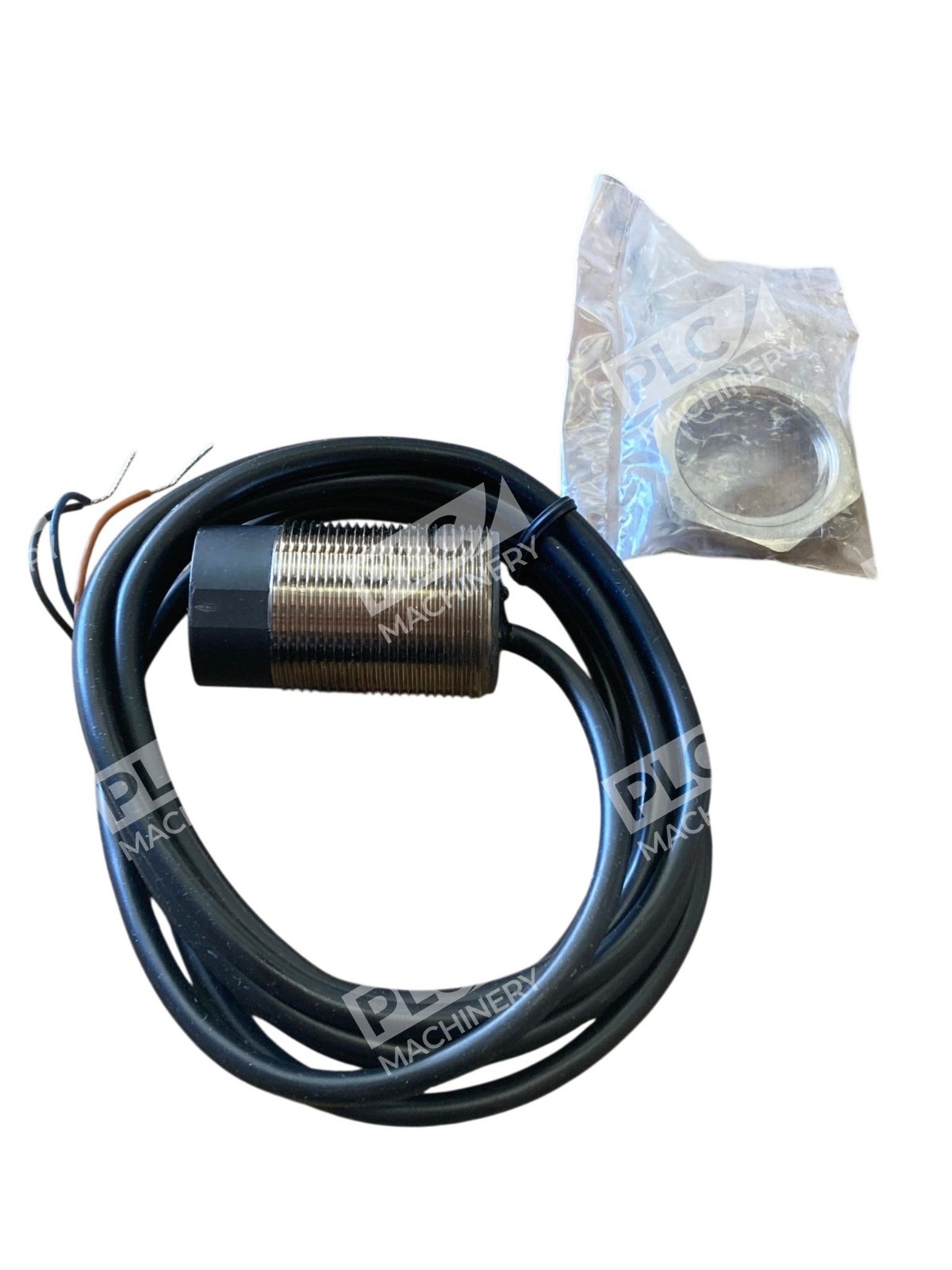

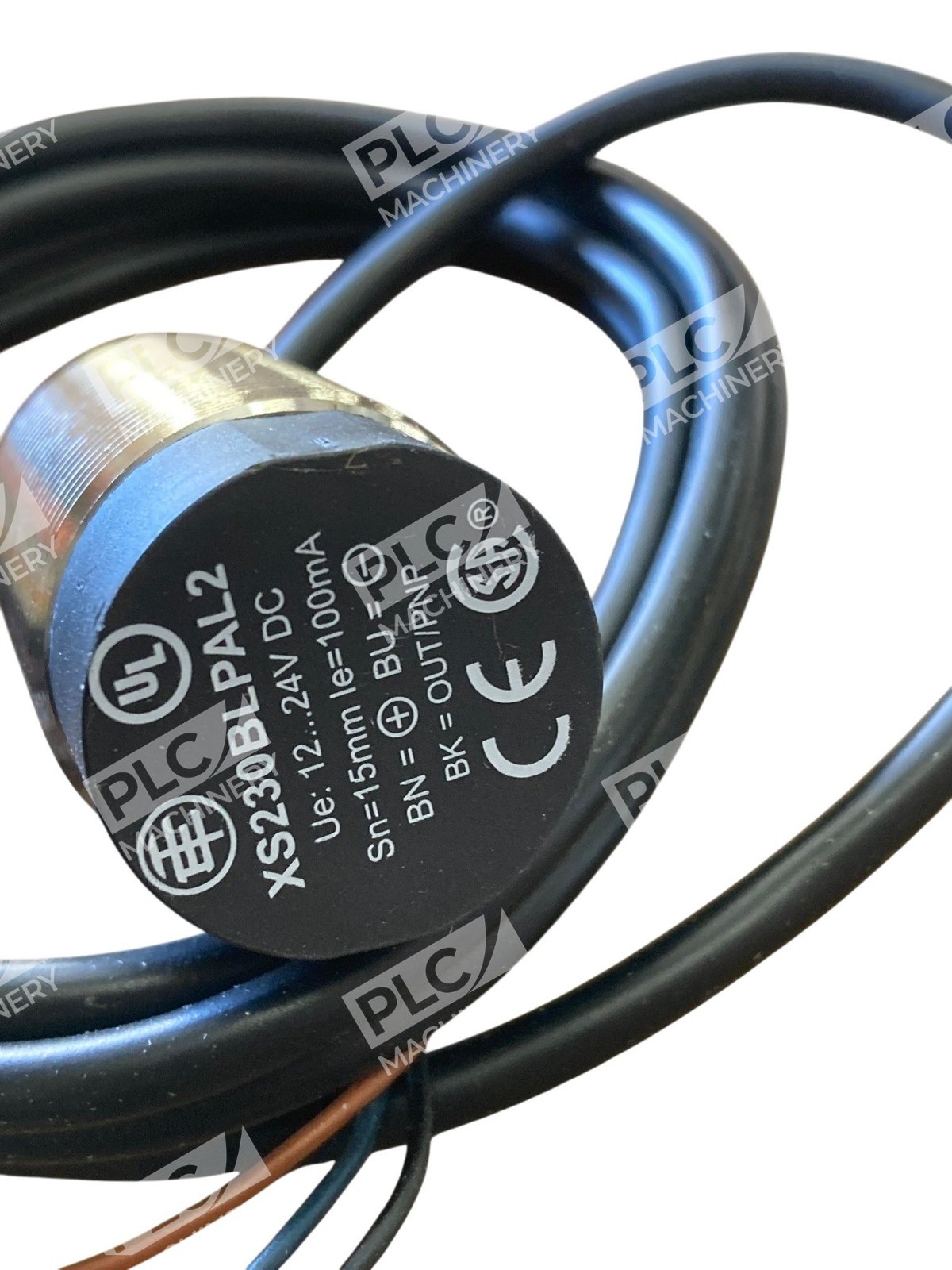

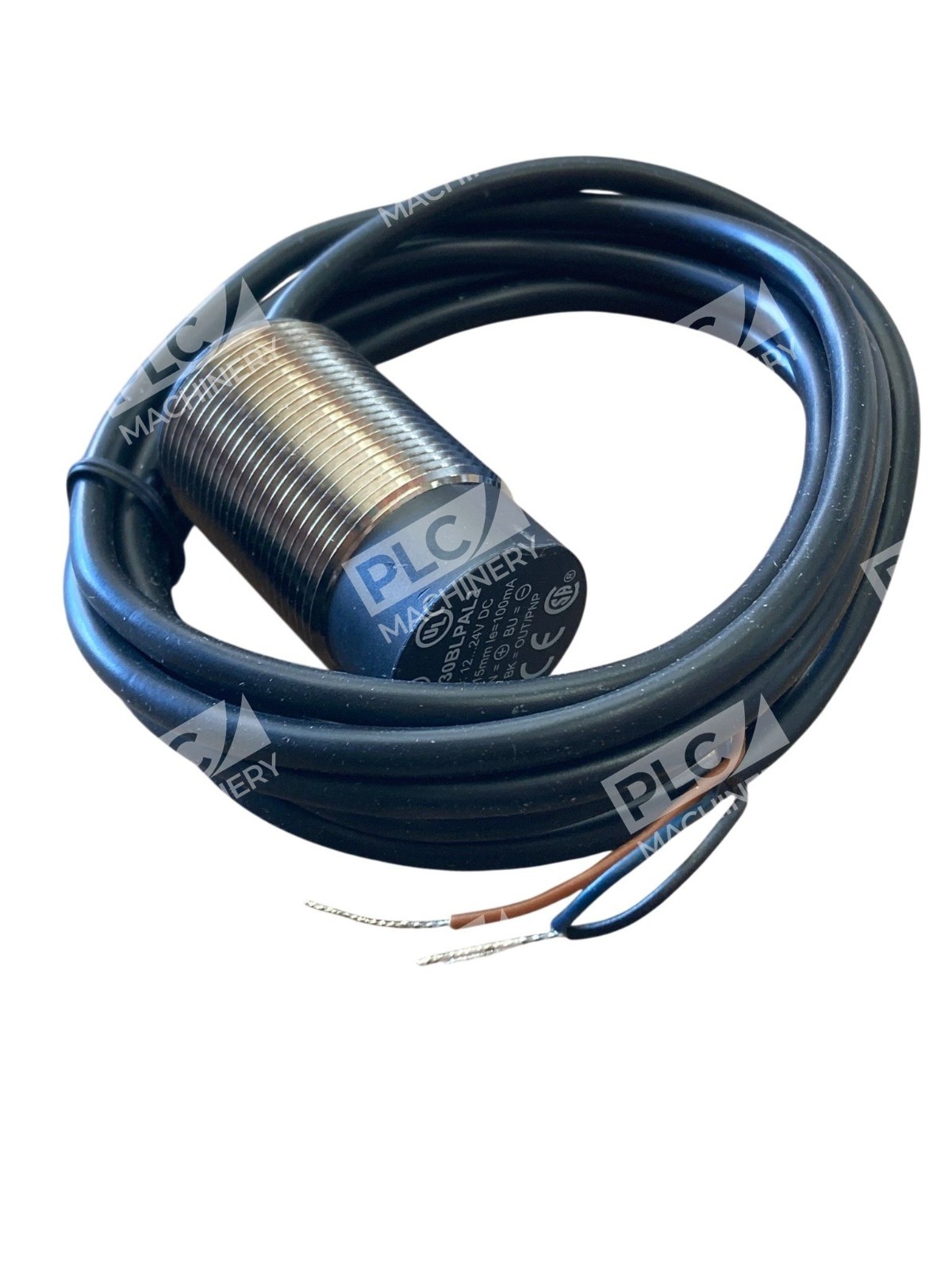

The Telemecanique XS230BLPAL2 is a fixed-mount inductive proximity sensor from the XS2 series, purpose-built for detecting ferrous and non-ferrous metals in light industrial automation. This M30 cylindrical sensor features a nickel-plated brass body with 15mm (0.591-inch) sensing distance and PNP output on a 3-wire DC topology, delivering reliable, contact-free object detection in conveyor systems, assembly lines, and positioning applications.
Key Features
- PNP 3-Wire Output: 1 NO (Normally Open) discrete output with 200mA switching capacity
- 15mm Sensing Distance: Detects ferrous and non-ferrous metal targets at Sn = 15mm for compact installations
- Dual Voltage Supply: Operates on 12–24 VDC or 10–36 VDC with integrated reverse polarity protection
- M30 Cylindrical Design: Non-flush mountable barrel fits standard M30 securing clamps; unshielded configuration ideal for close-range detection
- Rugged Construction: Nickel-plated brass sensing face and durable housing resist corrosion in demanding environments
- IP67 Rating: Sealed against dust and moisture ingress for reliable operation in washdown and wet-environment applications
Technical Specifications
- Supply Voltage: 12–24 VDC (reverse polarity protected) or 10–36 VDC range selectable
- Output Type: PNP, 1 NO discrete contact
- Switching Capacity: ≤ 200 mA (with overload and short-circuit protection)
- Sensing Distance (Sn): 15 mm (ferrous metal, nominal)
- Design: Cylindrical M30, non-flush mountable, fixed body
- Wiring: 3-wire DC (PNP topology)
- Cable: 2 m, shielded PVC
- Operating Temperature: −25 °C to +70 °C
- Protection Rating: IP67 (dust-tight, temporary water immersion)
- Body Material: Nickel-plated brass (sensing face); stainless-steel or electroless-nickel fasteners

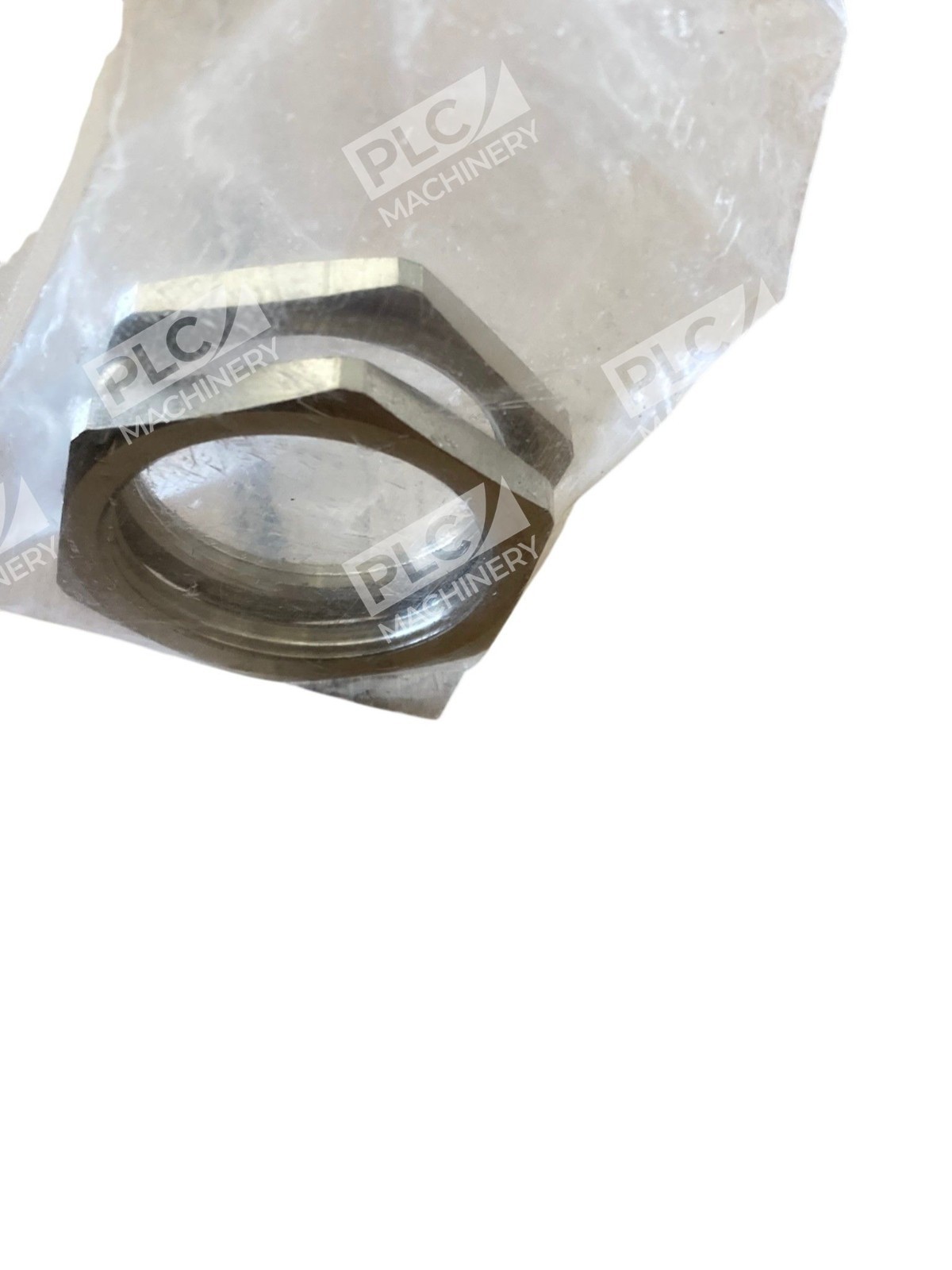

- Mounting: M30 thread with securing clamp (accessory)
- Series: Telemecanique OsiSense XS2 (General Purpose)
Typical Applications
- Conveyor & Material Handling: Detect parts, pallets, or containers on production lines for counting and monitoring
- Assembly Automation: Trigger action sequences when ferrous/non-ferrous components enter the sensing zone
- Limit Switching: Monitor position of machinery, doors, or gates in industrial control cabinets
- Logistics & Sorting: Enable automated sorting systems by detecting metal objects in packaging or part feeders
- Automotive & Light Manufacturing: Provide non-contact wear-free switching in harsh environments with reliable metal detection
Compatibility & Replacements
Compatible With
- Standard PLC inputs (24 VDC logic, sinking/sourcing configurable via external wiring)
- Industrial control systems and relay logic circuits operating at 12–24 VDC
- M30 sensor mounting brackets and clamping accessories (Telemecanique XS-series compatible)
- Legacy Telemecanique Osiprox systems (OsiSense XS range)
- Schneider Electric automation ecosystems and Modicon PLC networks
Replaces / Drop-In Replacement For
- Earlier Telemecanique XS2 M30 inductive sensors with 15mm range
- Square D OsiSense proximity switch equivalents (same electrical and mechanical envelope)
- Comparable M30 PNP inductive sensors from other manufacturers requiring 15mm sensing distance and 3-wire PNP topology
Works With
- Communication Protocols: Direct wired PNP output (no fieldbus integration); works in hardwired control architectures
- Software Platforms: Any control system supporting discrete PNP input logic (Studio 5000, TIA Portal, GX Works, EcoStruxure Machine Expert, etc.)
- Wiring Standards: 3-wire DC PNP topology per IEC 60947-5-2 industrial sensor standards
- Telemecanique/Schneider Ecosystems: Integrates into EcoStruxure and Modicon-based factory automation setups
