Overview

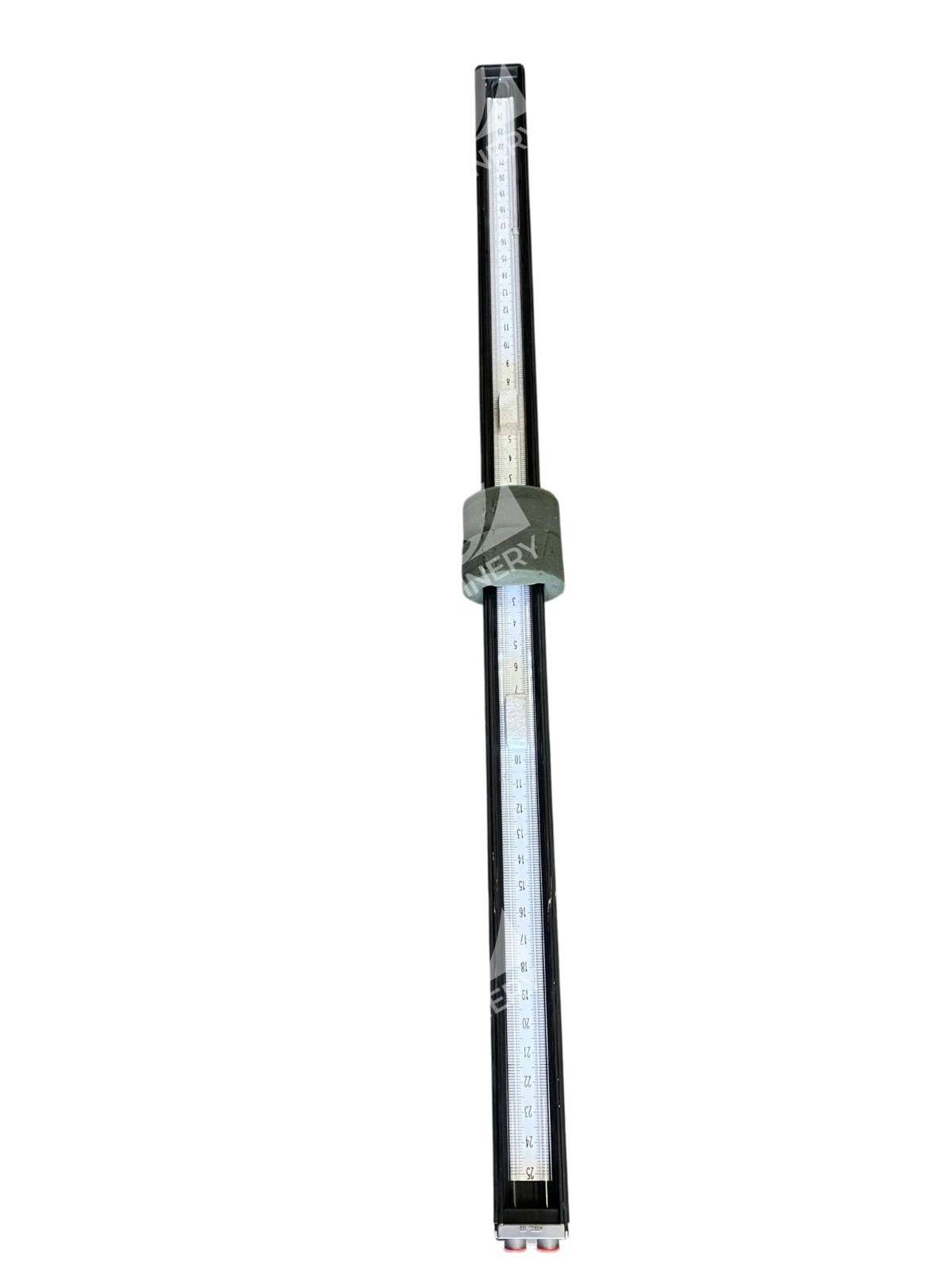

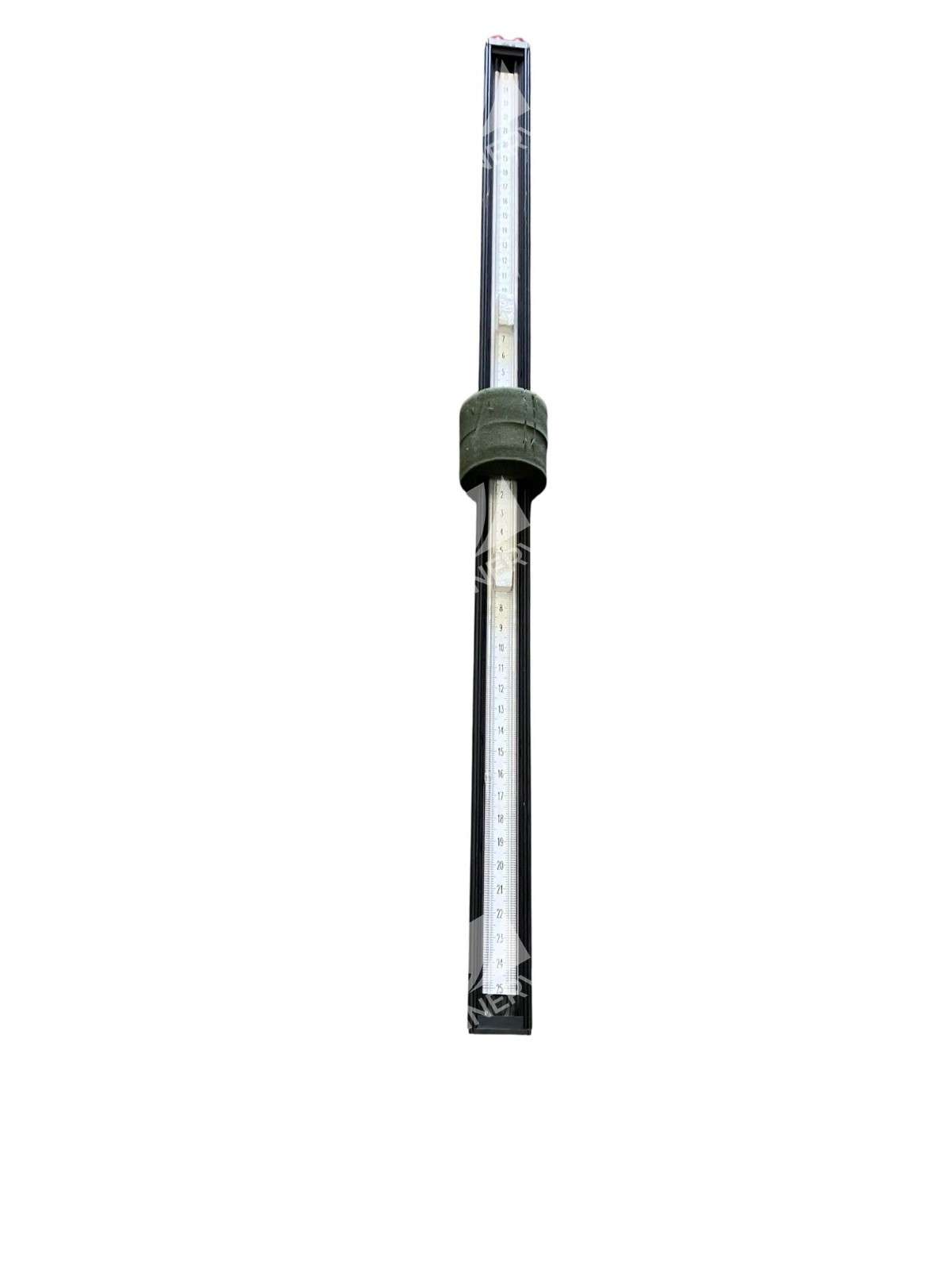

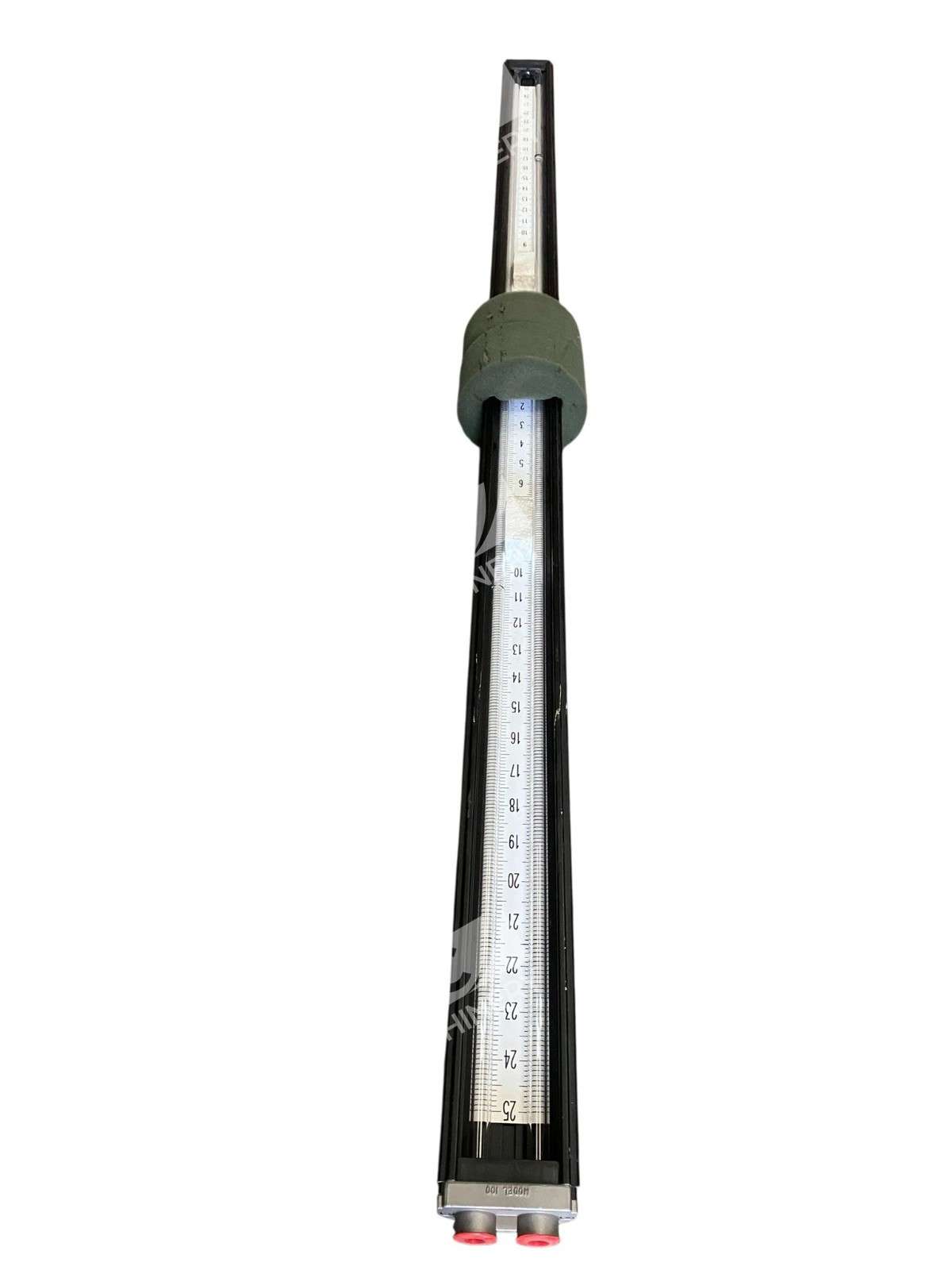

The Wodel 100 variable area flow meter is a precision rotameter instrument engineered for direct visual measurement and monitoring of fluid flow in industrial processes. Designed for vertical panel mounting, this gauge delivers real-time, accurate flow indication without requiring external power or complex electronics. Variable area flow meters operate on proven mechanical principles, making them ideal for applications requiring reliable, low-maintenance flow monitoring across a wide range of industrial settings.
Key Features
- Vertical panel-mount design for convenient installation and easy operator viewing
- Direct visual flow indication with calibrated scale for immediate readability
- No external power supply required—fully mechanical operation
- Durable, corrosion-resistant construction suitable for industrial environments
- Simple, proven rotameter technology for reliable long-term performance
- Low maintenance requirements with straightforward operation
Technical Specifications
- Type: Variable Area Rotameter (Float-type)
- Measurement Principle: Float position in tapered tube indicates flow rate
- Installation: Vertical panel mount
- Power Requirement: None (mechanical operation)
- Float Design: Metal float guided by tube geometry

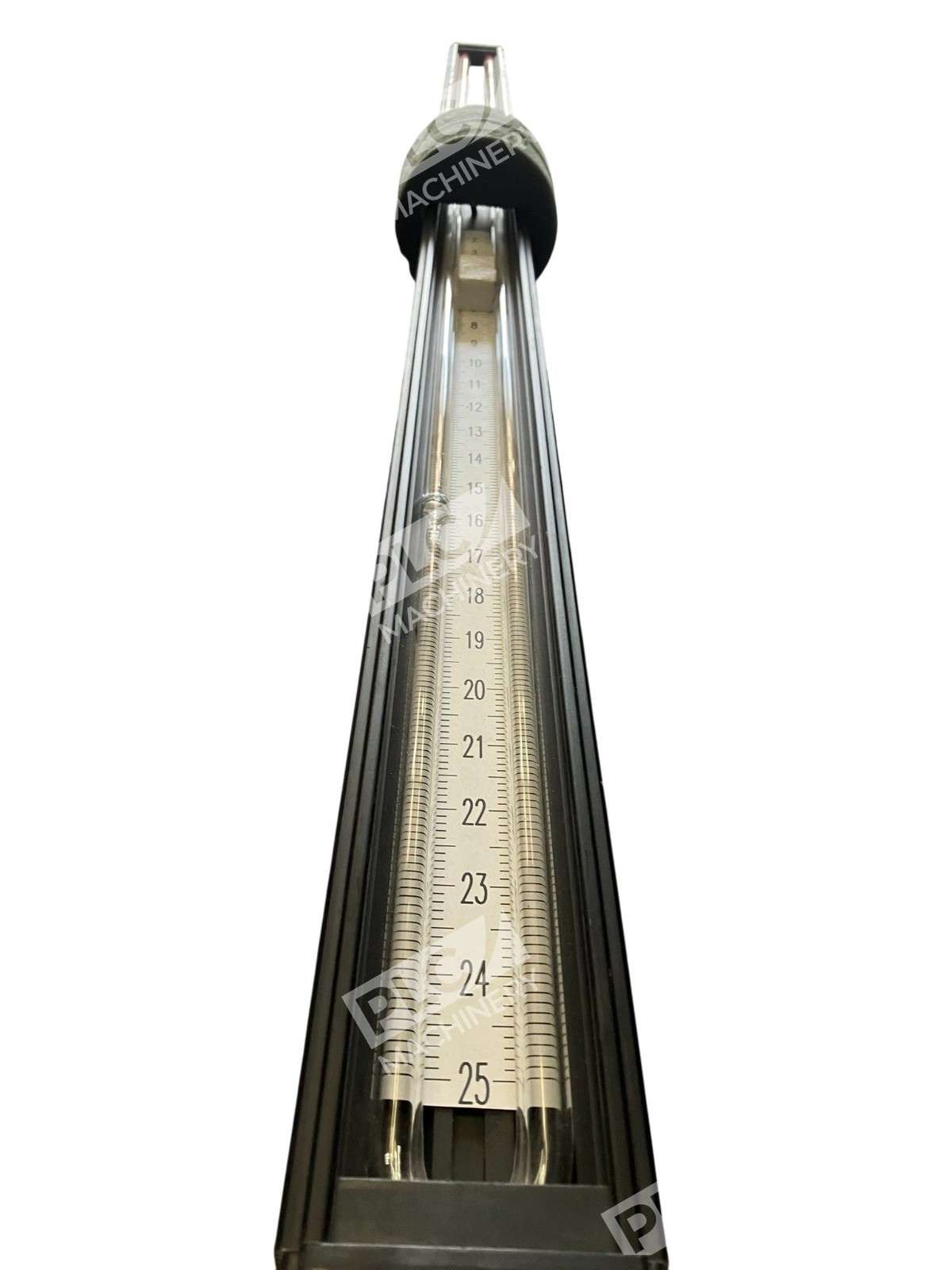

- Scale: Calibrated direct-reading scale on meter tube
- Unit Quantity: 1
Typical Applications
- Industrial fluid flow monitoring and control
- Process liquid measurement in manufacturing systems
- Panel-mounted flow indication for production lines
- Liquid flow measurement in industrial piping systems
- Low-maintenance flow metering in utility and industrial settings
Compatibility & Replacements
Compatible With
- Standard industrial piping systems
- Vertical panel-mounted installation configurations
- Manual flow control and monitoring applications
- Industrial fluid measurement processes
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or original equipment documentation before ordering. Variable area flow meters of similar size and flow range may serve as direct replacements if specifications match.
Works With
- Manual flow control systems
- Industrial process monitoring without networked control
- Stand-alone mechanical flow indication
- Direct visual operator interface applications
