Overview

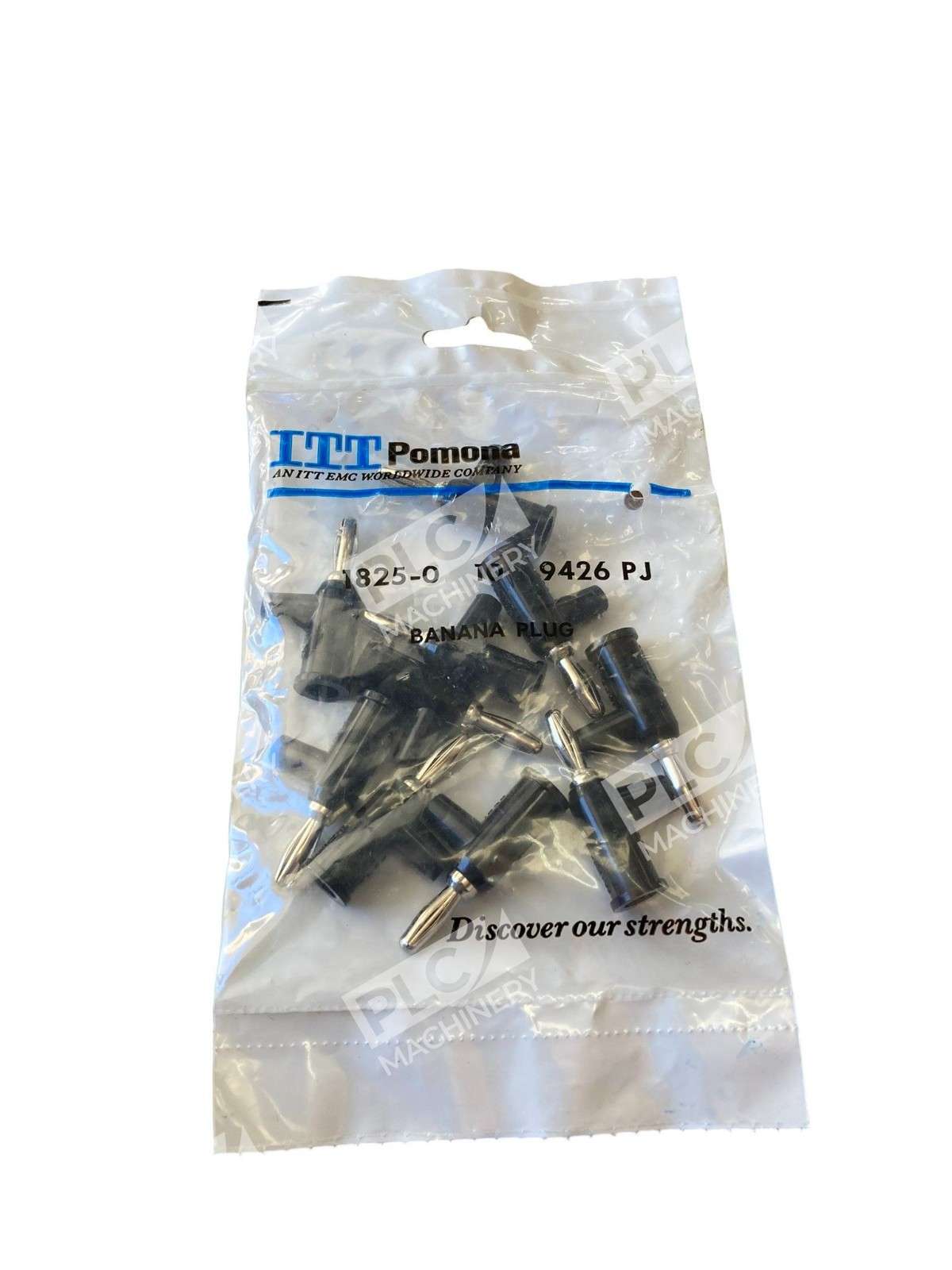

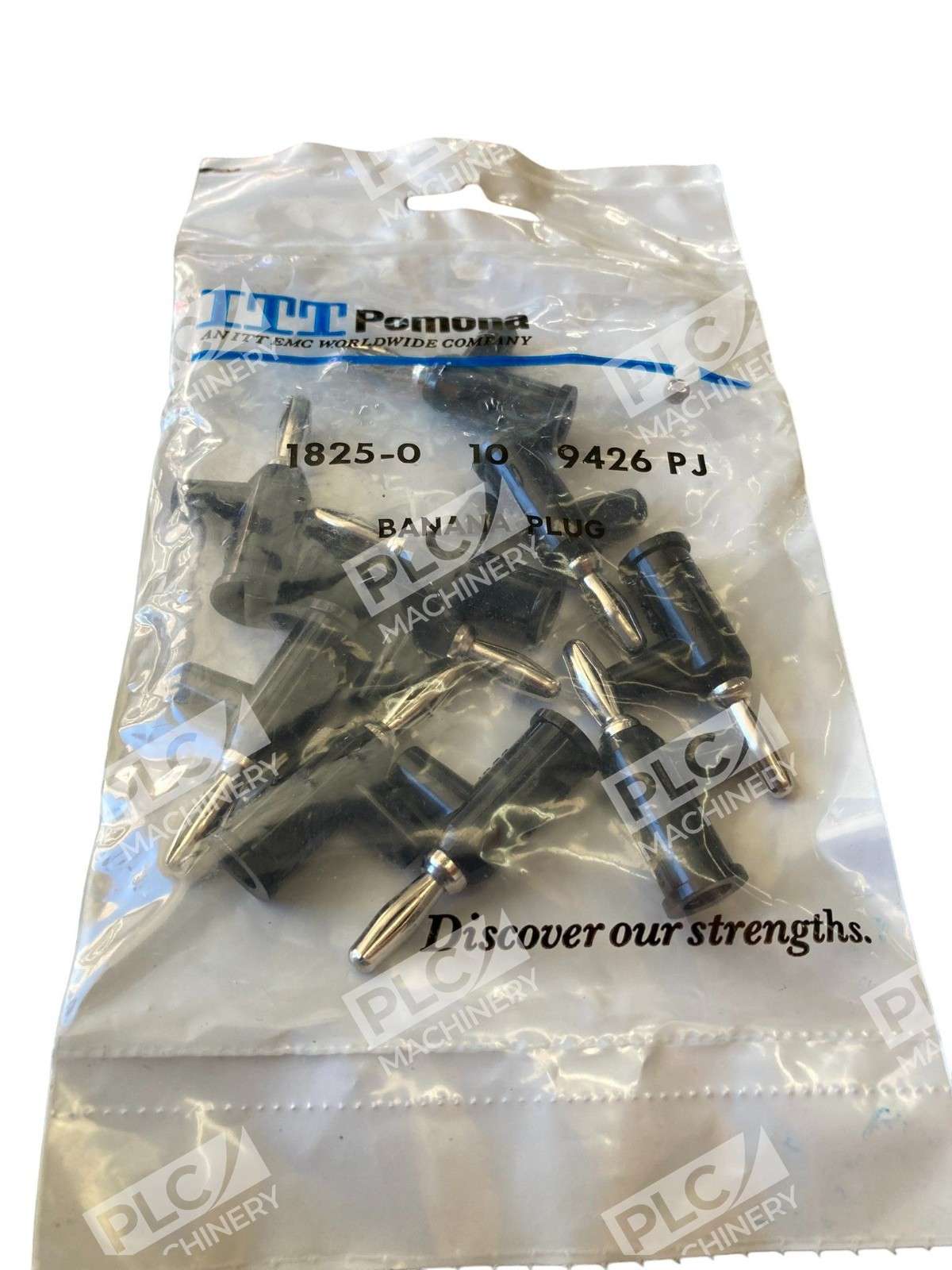

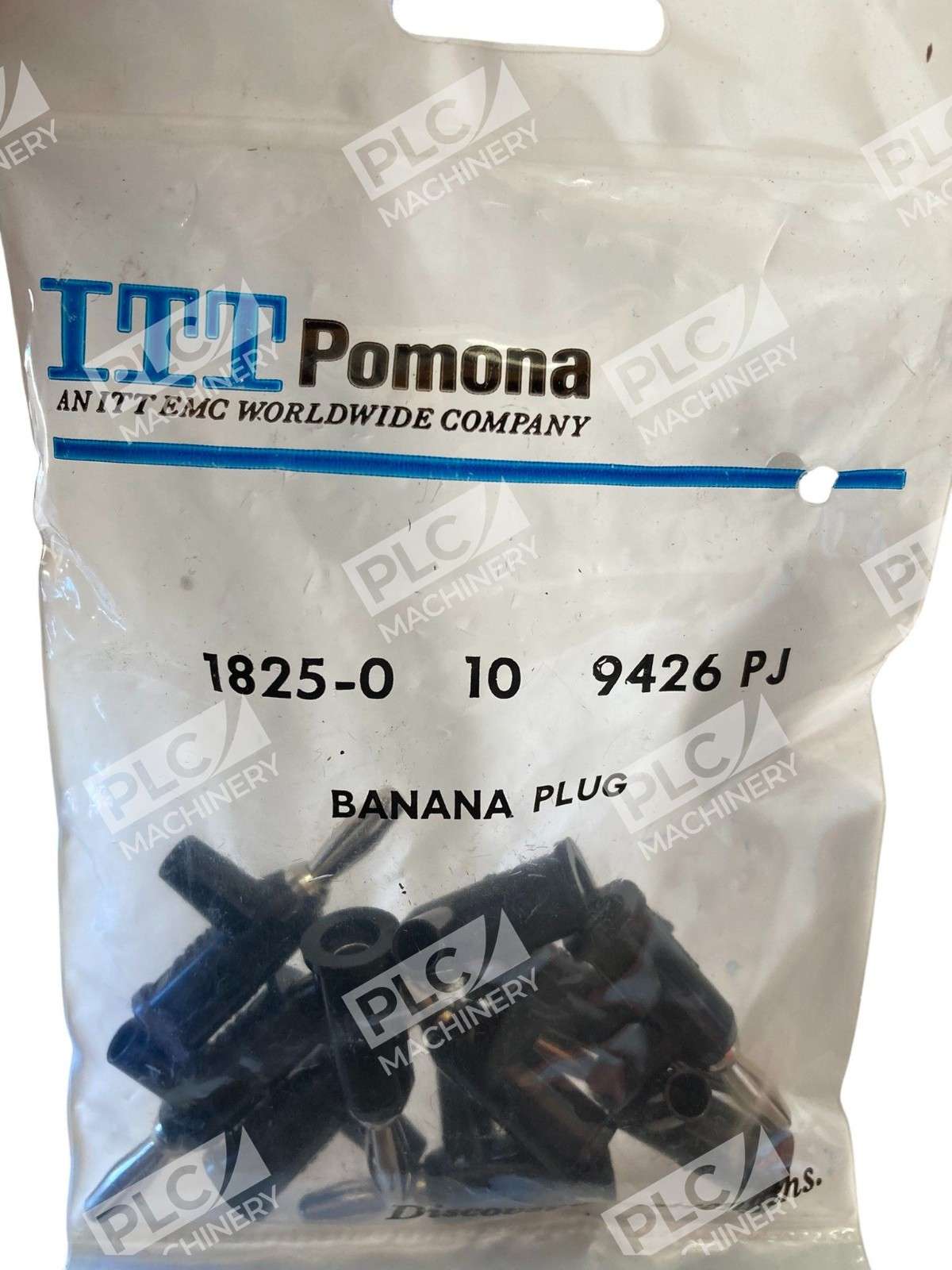

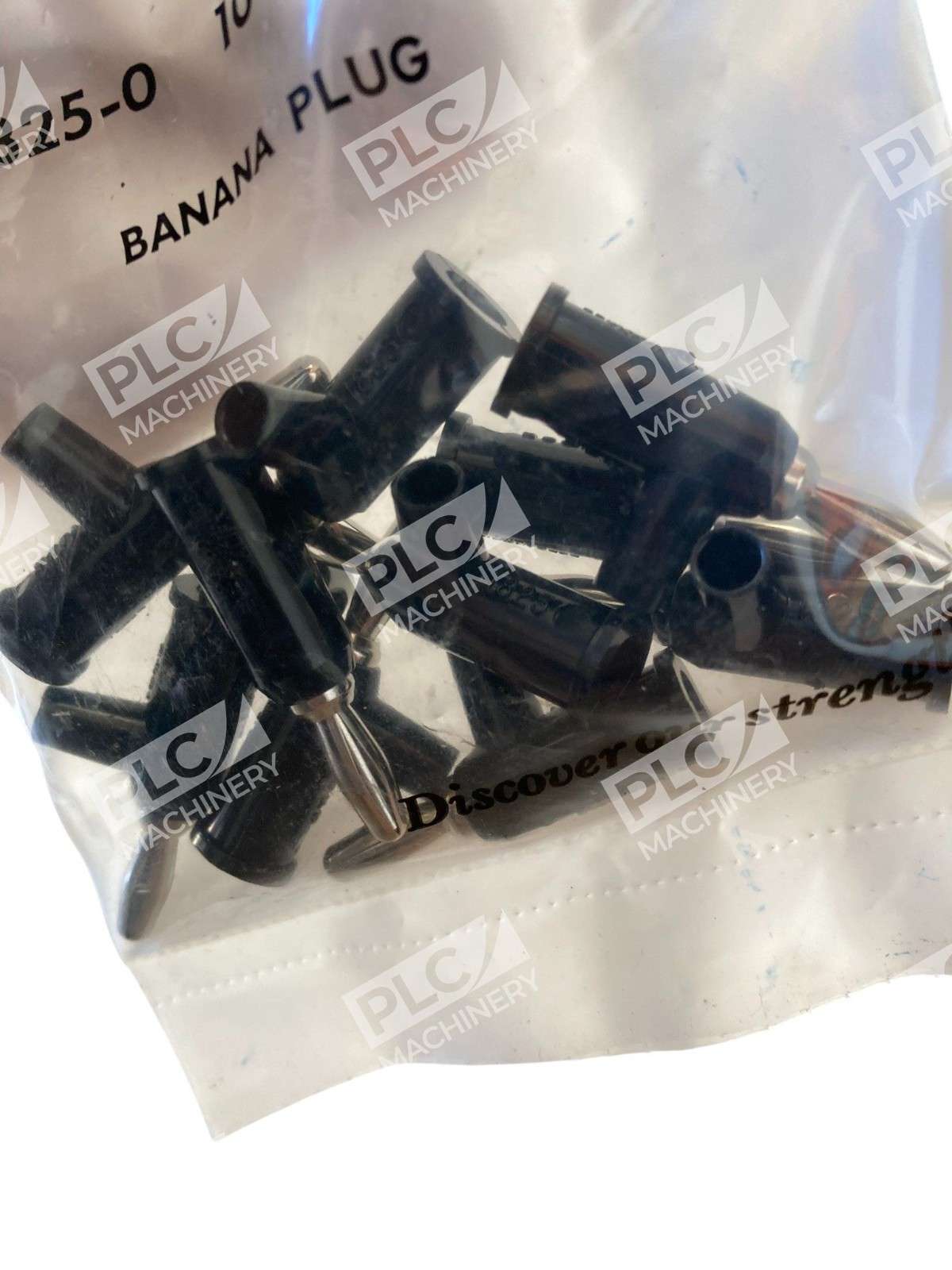

The Pomona 1825-0 is a solderless, stack-up banana plug designed for safe, dependable connections in test and measurement applications. Supplied in a pack of 10, this connector features an integral safety collar that insulates the wire conductor and provides strain relief. The nickel-plated zinc die-cast body with beryllium copper spring ensures low contact resistance and long service life, making it ideal for power supplies, multimeters, oscilloscopes, and bench test fixtures.
Key Features
- Solderless Assembly: Set screw termination with flat blade screwdriver—no soldering required
- Safety Collar: Integral insulation for wire protection and strain relief
- Stackable Design: Multiple plugs can be stacked on a single binding post for efficiency
- Low Contact Resistance: Nickel-plated beryllium copper spring and zinc die-cast body minimize signal loss
- Compact & Durable: 1.55″ length, fits standard 4 mm banana jacks (.161″–.166″ diameter)
- Factory Pack: Convenient 10-piece packaging for lab and field use
Technical Specifications
- Voltage Rating: 5000 V RMS max
- Current Rating: 15 A
- Wire Size: 18–22 AWG
- Cross Hole Entry: Fits wires up to .12″ (3 mm) diameter
- Termination Type: Solderless (set screw, 8-32 single slot)
- Body Material: Zinc die-cast, nickel plated
- Spring Contact: Beryllium copper, nickel plated
- Insulation Material: Polypropylene
- Set Screw: Steel, zinc-plated (8-32 single slot)
- Maximum Operating Temperature: 122°F (50°C)
- Color: Black
- Dimensions: 1.55″ L × 0.44″ diameter
- Connector Type: 4 mm banana plug
- Package Quantity: 10 pieces
Typical Applications
The Pomona 1825-0 is widely used in:
- Power supply to multimeter connections
- Test and measurement fixtures
- Oscilloscope probe connections
- Laboratory benchtop equipment
- Custom prototype wiring
- Early-stage circuit development and testing
- Electronics service and troubleshooting
Compatibility & Replacements
Compatible With
- Standard 4 mm banana jack sockets (.161″–.166″ diameter)
- Panel-mount binding posts
- Power supplies with banana jack input/output
- Multimeters with banana jack terminals
- Oscilloscopes and lab test instruments
- Custom test fixture assemblies
Replaces / Drop-In Replacement For
- Pomona 1825 series banana plugs in black (model 1825-0 is the standard black variant)
- Generic 4 mm banana plugs without safety collar (upgrade for added protection)
Works With
- Any equipment using standard 4 mm banana jacks
- Custom test leads and jumper assemblies
- Electronics prototyping workstations
- Bench-top measurement and diagnostic systems
