Overview
The Simpson Electric 50-MV portable electrical shunt is a precision DC current measurement instrument designed for industrial testing, inspection, and compliance applications. With a 0-25ADC current range and 0-50mV voltage drop specification, this external shunt allows panel meters to accurately indicate higher DC currents while maintaining precise measurement standards. Mounted to a phenolic base, this shunt is easy to install in a variety of locations and can be used with most digital and analog meters to suit your setup.
Key Features
- 50mV DC Voltage Drop: Standardized 50mV output for compatibility with standard panel meters
- 25ADC Current Range: Handles DC currents up to 25 amps for reliable measurement

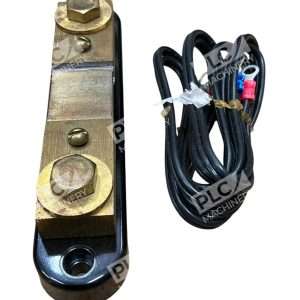

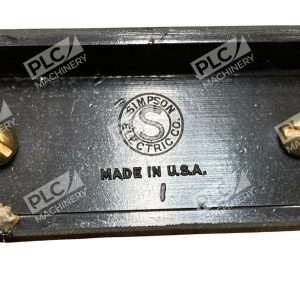

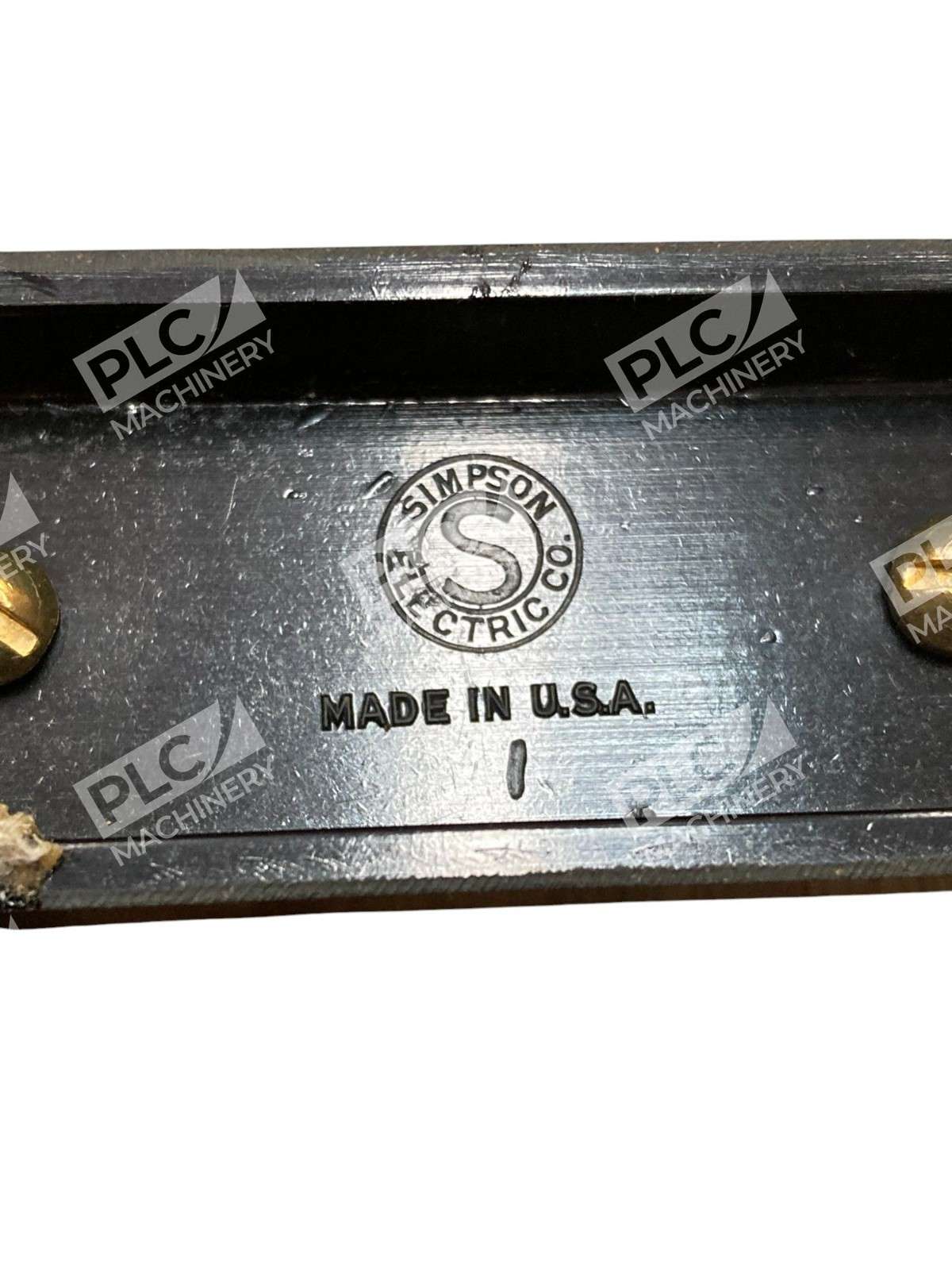

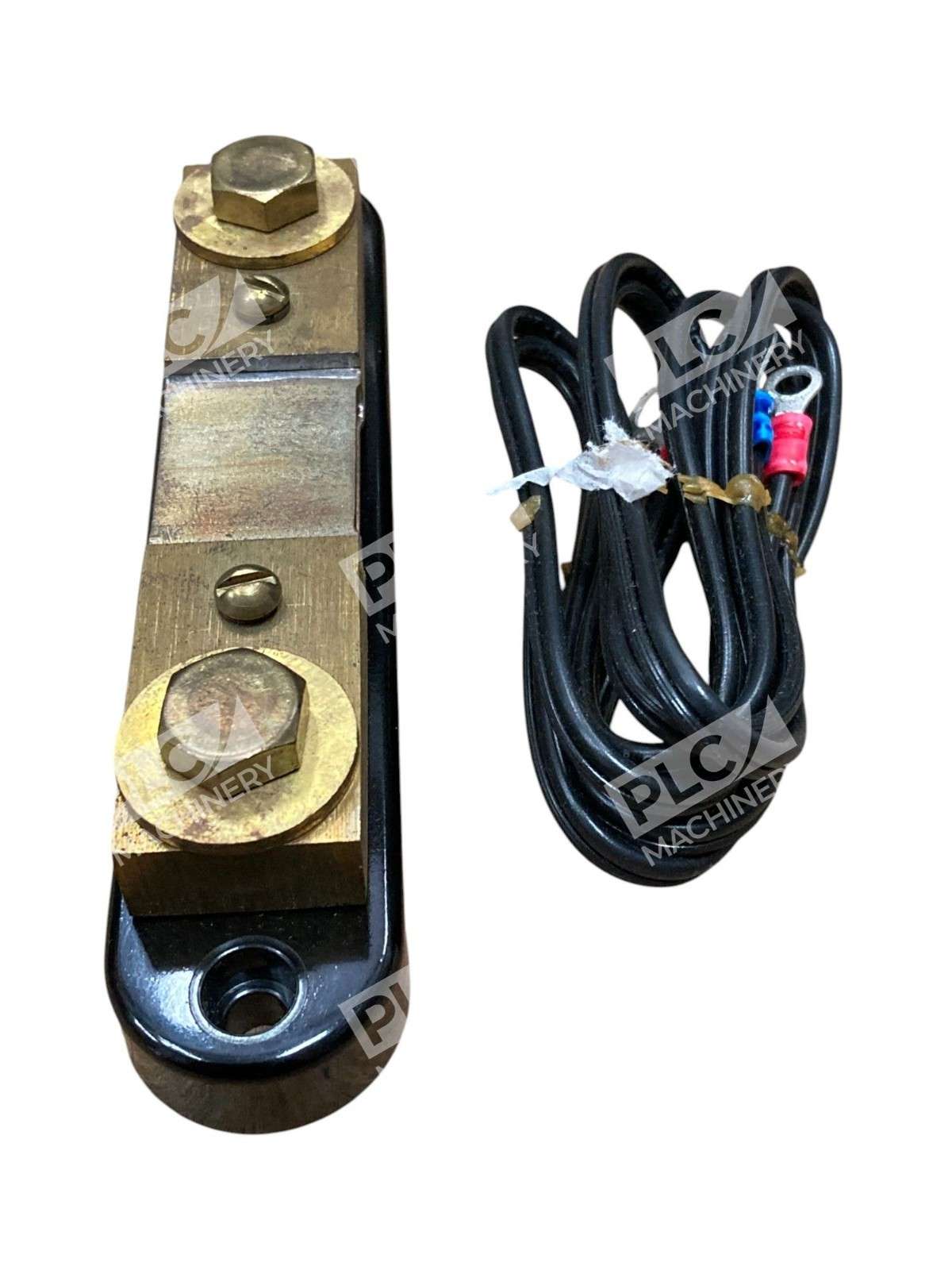

- Phenolic Base: Mounted to a phenolic base, easy installation in a variety of locations
- Included Leads: Includes 5′ (1.5 m) leads rated at 0.065 ohms resistance
- Universal Compatibility: Works with both analog and digital panel meters for flexible system integration
- Industrial-Grade Construction: Built for demanding test, measurement, and inspection environments
Technical Specifications
| Current Range | 0-25 ADC |
| DC Voltage Drop | 50 mV |
| Lead Length | 5 feet (1.5 meters) |
| Lead Resistance | 0.065 ohms |
| Base Material | Phenolic |
| Mounting Style | External Portable |
| Compatible Meter Types | Analog and Digital Panel Meters |
| Manufacturer | Simpson Electric Co. |
Typical Applications
- Industrial electrical system testing and inspection
- DC current measurement in control circuits and power systems
- Panel meter signal conditioning and range extension
- Quality assurance and compliance verification
- Equipment commissioning and troubleshooting
- Test and measurement environments where precise current indication is required
Compatibility & Replacements
Compatible With
- Analog panel meters with 50mV DC input terminals
- Digital panel meters accepting 50mV DC signals
- Standard industrial DC measurement systems
- Test equipment requiring external current shunts
Replaces / Drop-In Replacement For
The Simpson Electric 50-MV shunt is compatible with Simpson Electric external portable shunt series, including models 06700 through 06714 when used in similar 25ADC range applications. For exact replacement verification, consult your system documentation or contact a technical specialist.
Works With
- Standard analog panel meters with 50mV DC ranges
- Digital multimeters and panel meters accepting mV DC input
- Industrial control and test measurement equipment
- Custom measurement and data acquisition systems
