<h2>Overview</h2>

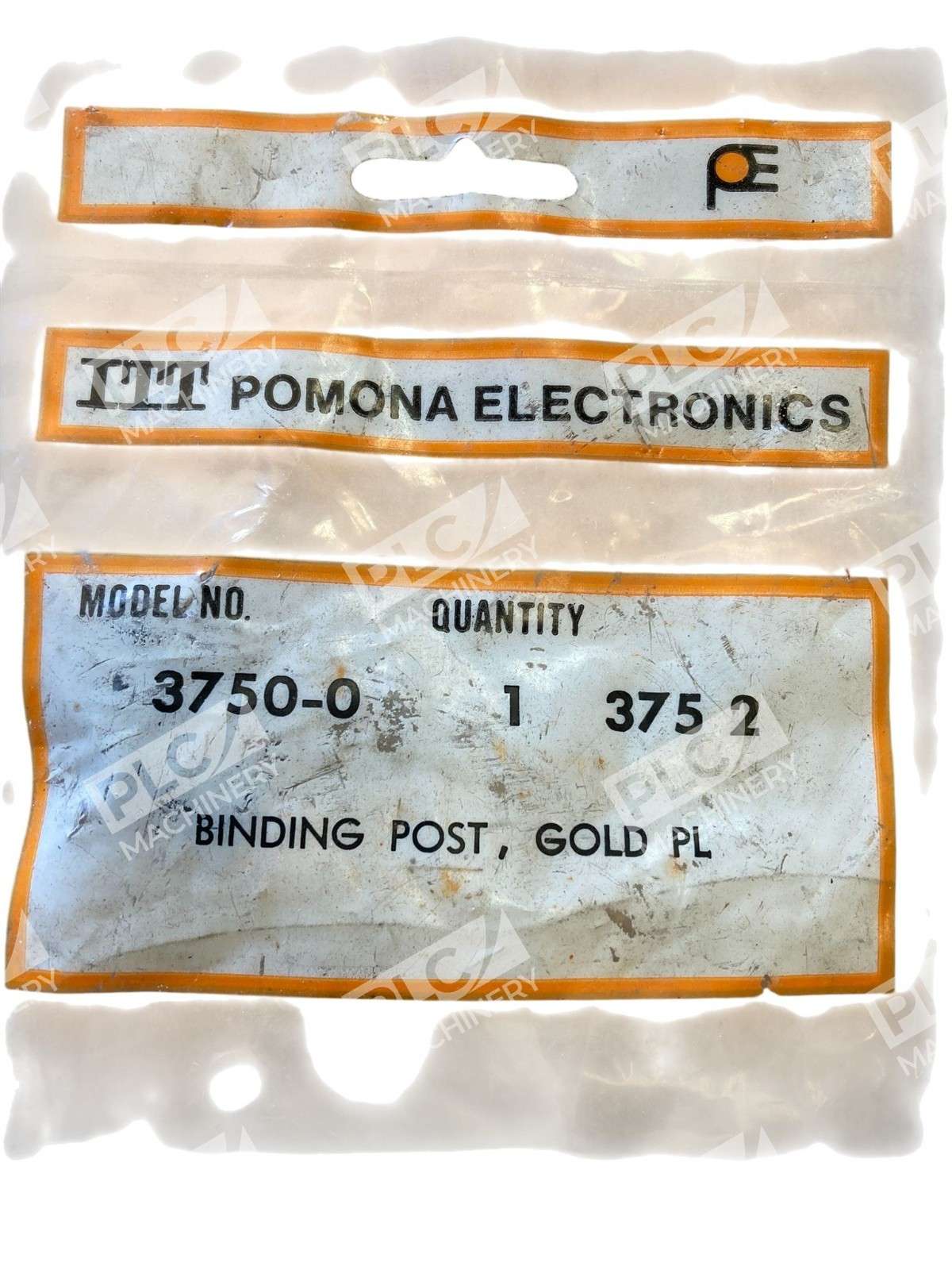

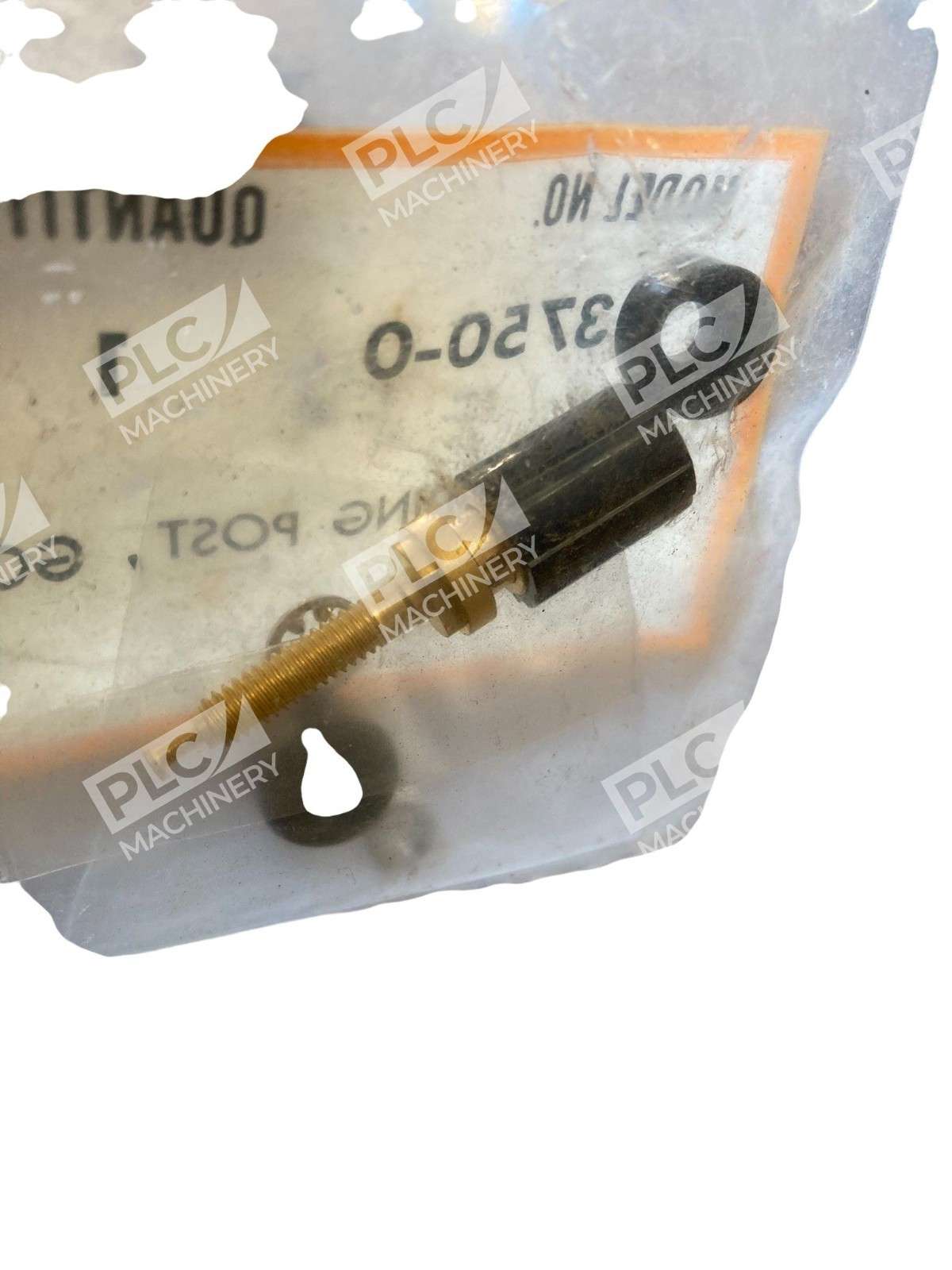

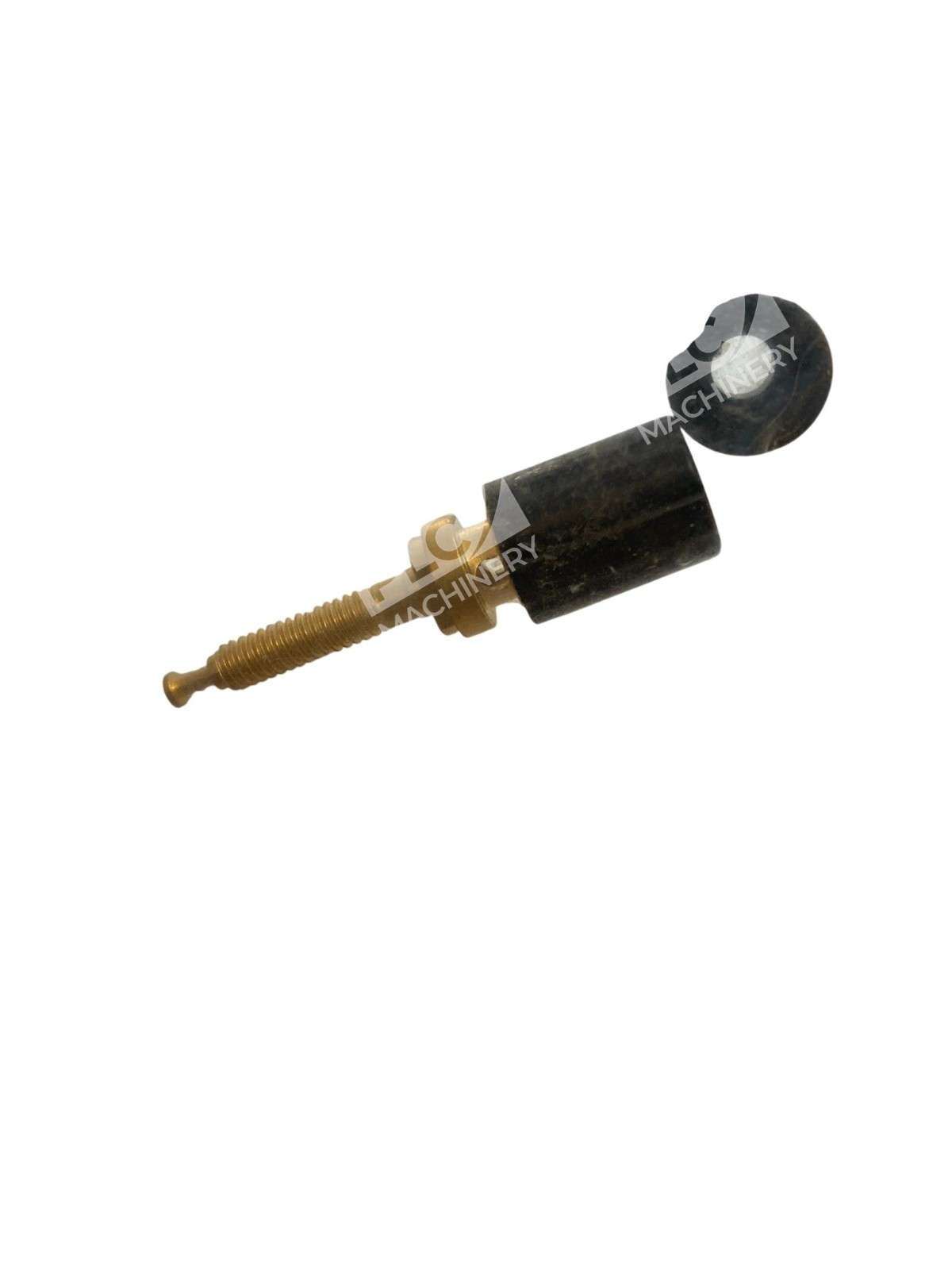

<p>The <strong>Pomona 3750-0 binding post</strong> is a standard connector designed for secure electrical connections in test, measurement, and inspection applications. With gold plating over brass construction and polycarbonate insulation, this panel mount turret connector provides reliable performance in demanding laboratory and industrial environments. The black binding post accommodates panel thicknesses from 1.57 mm to 6.35 mm (0.062 to 0.250 inches) with a perpendicular cross hole and flat mounting base for stable installation.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Gold plated brass</strong> body for superior corrosion resistance and reliable conductivity</li>
<li><strong>Accepts standard banana plugs</strong>, wire leads, and spade lugs for flexible connectivity</li>
<li><strong>8-32 threaded post</strong> with 1/4-inch mounting hole and nickel-plated hex nut and lockwasher</li>
<li><strong>Thin-line design</strong> allows high-density panel packing without sacrificing accessibility</li>
<li><strong>Polycarbonate insulation</strong> and mounting base for durability and electrical safety</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Current Rating:</strong> 15 amperes</li>
<li><strong>Voltage Rating:</strong> 2500 WVDC (hands-free usage)</li>
<li><strong>Operating Temperature:</strong> Up to +115°C (+239°F)</li>
<li><strong>Panel Thickness:</strong> 1.57 mm to 6.35 mm (0.062 to 0.250 inches)</li>
<li><strong>Mounting Hole Size:</strong> 1/4 inch diameter</li>
<li><strong>Thread Size:</strong> #8-32</li>
<li><strong>Cross Hole:</strong> 2.54 mm (0.100 inch) diameter, perpendicular to flat on insulator</li>
<li><strong>Body Material:</strong> Brass, gold plated</li>
<li><strong>Insulation Material:</strong> Polycarbonate</li>
<li><strong>Nut Material:</strong> Nickel-plated brass</li>
<li><strong>Lockwasher:</strong> Nickel-plated steel</li>
<li><strong>Color:</strong> Black</li>
</ul>
<h2>Typical Applications</h2>
<p>The Pomona 3750-0 is widely used in:</p>
<ul>
<li>Test benches and laboratory equipment</li>
<li>Oscilloscope probes and measurement instruments</li>
<li>Power supplies and voltage reference connections</li>
<li>Panel-mounted control interfaces and data acquisition systems</li>
<li>Industrial test racks and measurement systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard banana plugs and test probes</li>
<li>Wire leads and terminal lugs</li>
<li>High-voltage measurement equipment rated up to 2500V</li>
<li>Laboratory and field test instruments</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Pomona 3750-0 (exact equivalent)</li>
<li>Other 3750 series models with different finishes: 3760 (tin plated), 3770 (gold tellurium copper)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard #8-32 threaded connectors and accessories</li>
<li>1/4-inch panel mount configurations</li>
<li>Banana plug systems and test probe ecosystems</li>
</ul>
