Overview

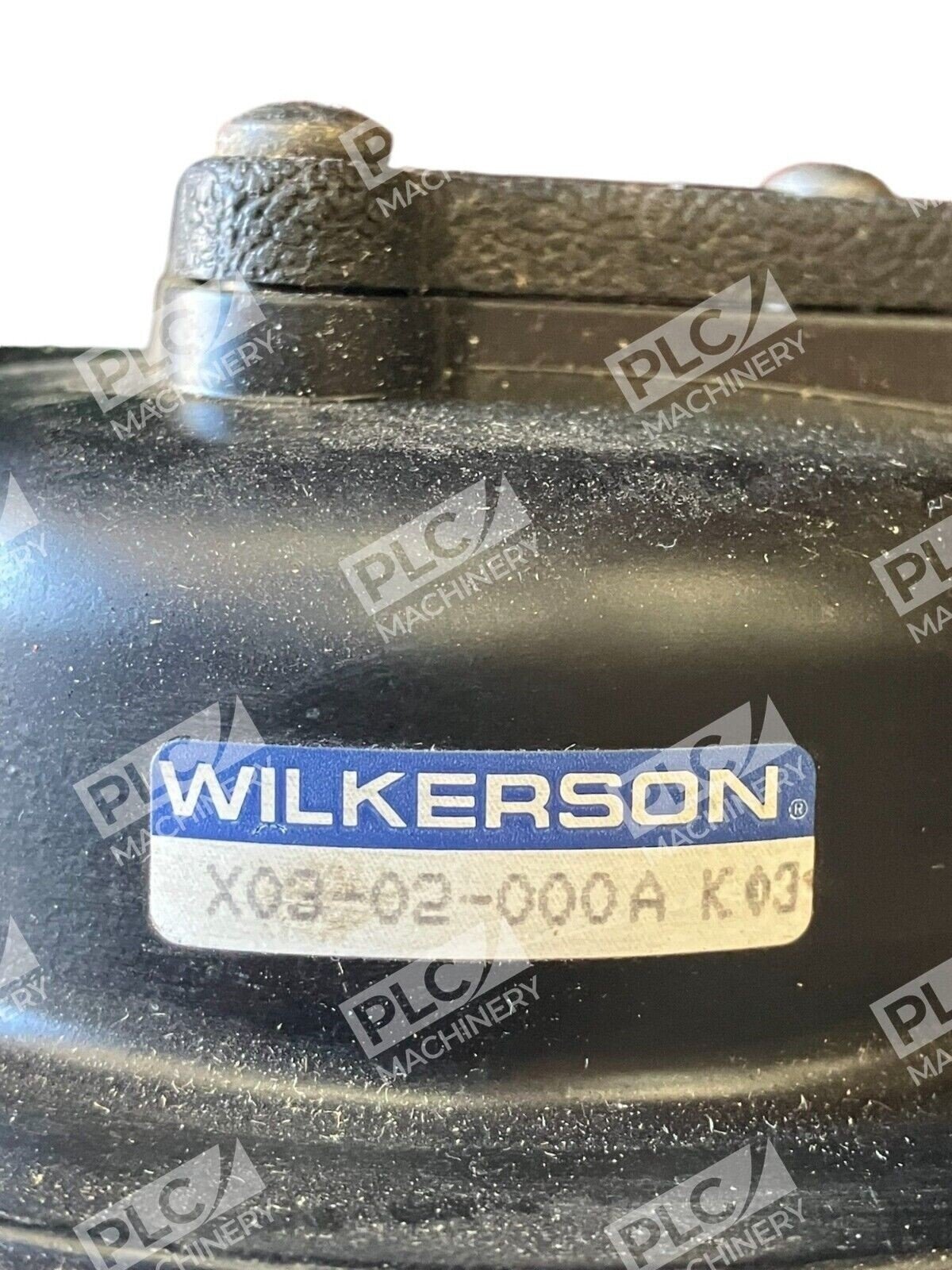

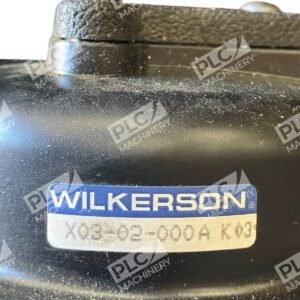

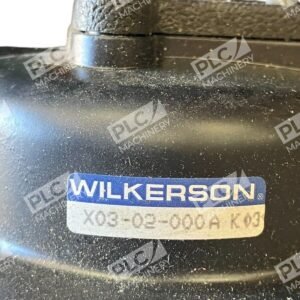

The Wilkerson X03-02-000 is a manual in-line desiccant air dryer engineered for applications requiring extremely dry, treated compressed air. Manual air dryers are used to remove water vapor from compressed air systems in applications such as paint spraying, laboratory instruments and small control air systems. This compact unit combines space-saving design with effective moisture control, making it ideal for precision pneumatic work where humidity protection is critical.
Key Features

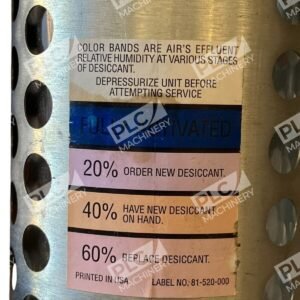

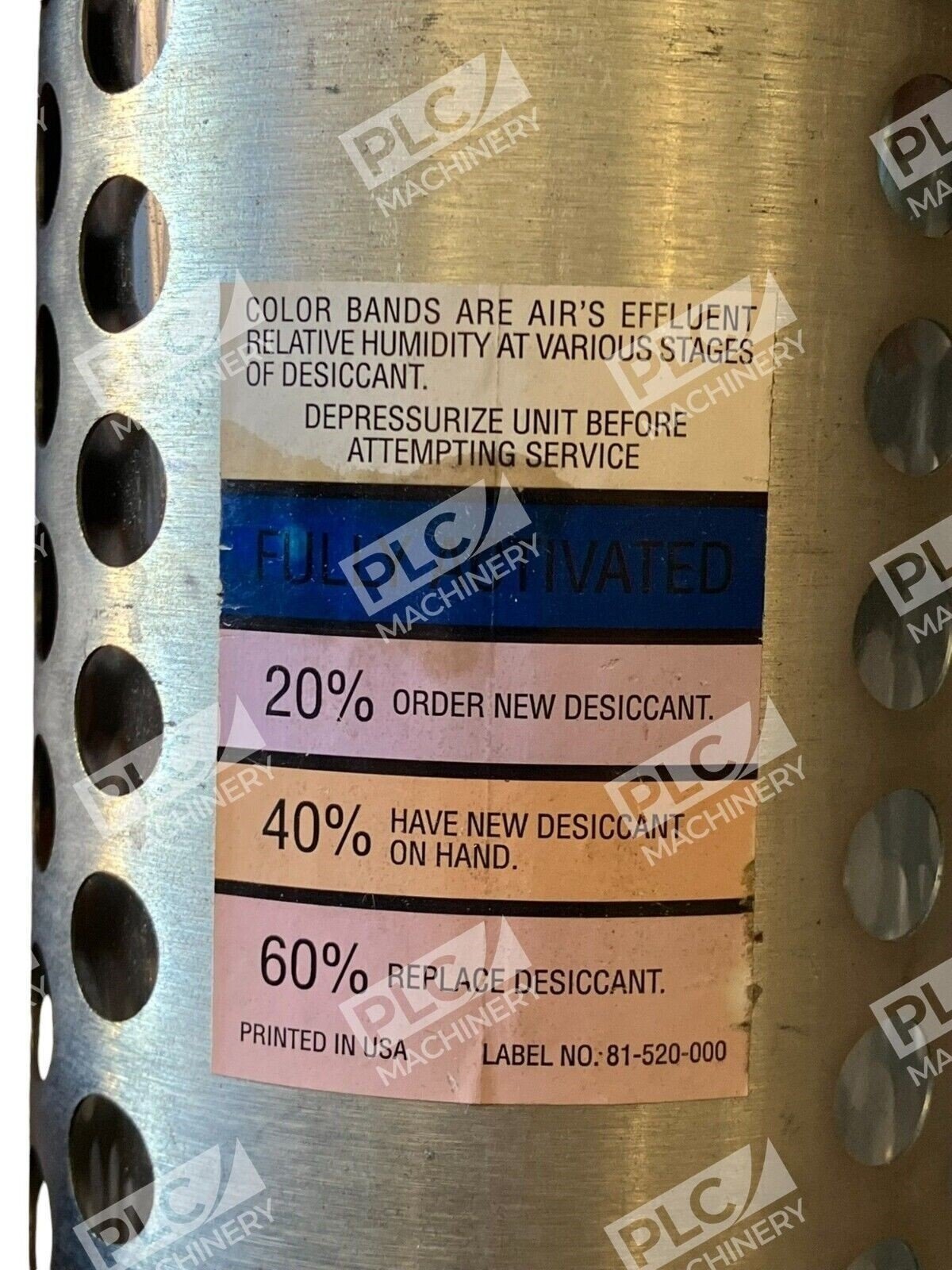

- Silica gel that changes from blue to pink to indicate when desiccant requires replacement or regeneration
- Premeasured desiccant packaged in convenient, easy-to-use bags for less waste
- Manufactured in the United States with robust zinc construction and polycarbonate bowl
- Convenient in-line mounting saves space

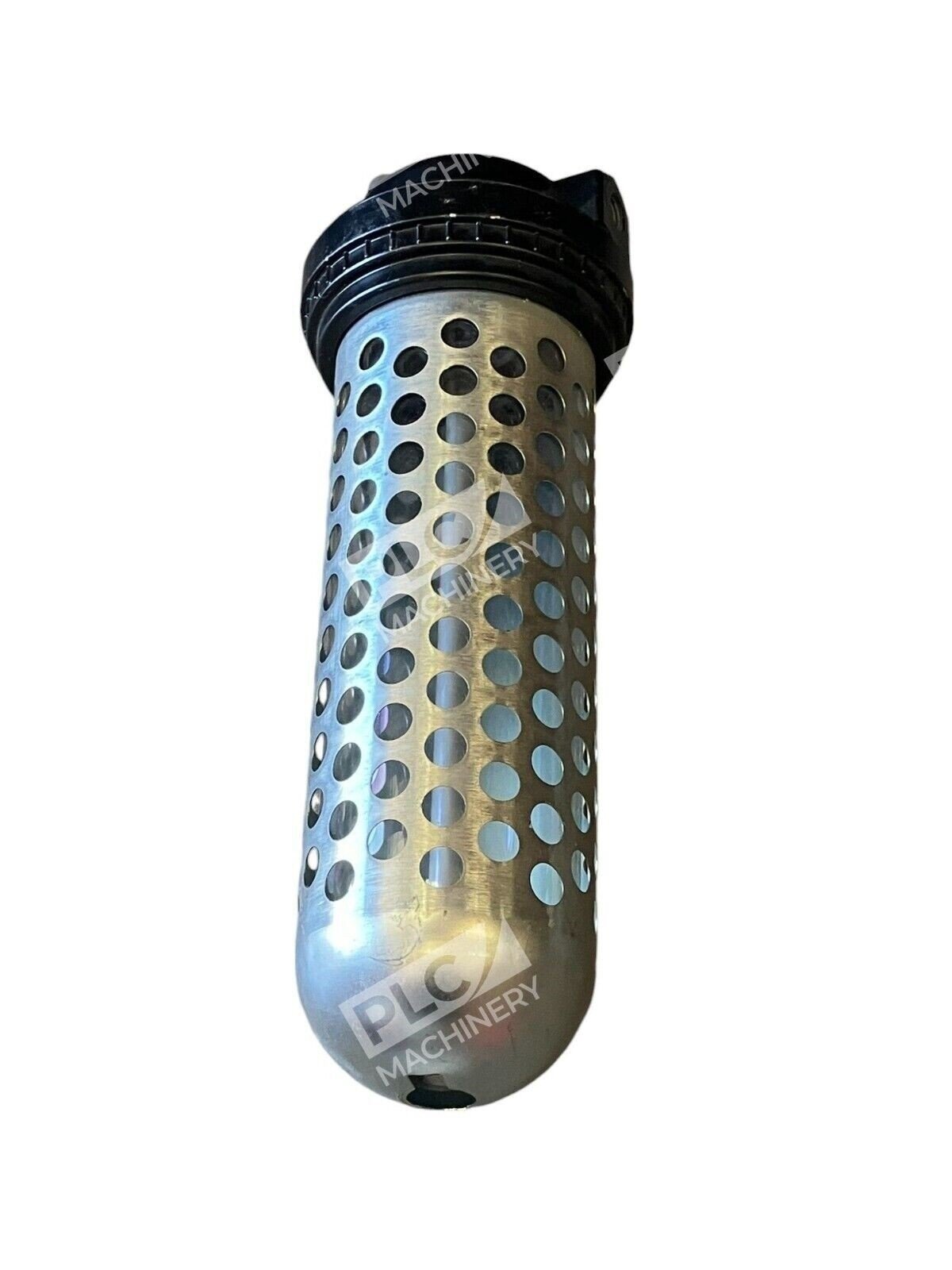

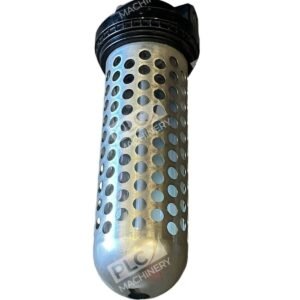

- Includes aluminum bowl guard for enhanced durability
Technical Specifications
The X03-02-000 delivers consistent ISO Class 2 air quality with industrial-grade construction:
- ISO Class 2 air outlet quality at 100°F ambient, 100 psig
- Maximum flow rate of 10 CFM at 100 psi
- Operating pressure up to 150 psi with maximum temperature of 125°F
- Dew point as low as -40°F
- 1/4″ NPT male inlet and outlet connections
- Polycarbonate bowl with 1.75 lb capacity
Typical Applications
This unit is suitable for air tools, instruments, paint spraying equipment, and applications where air lines must be protected from freeze-up. It is ideal for drying small volumes of air at the point of use and for protecting branch lines exposed to temperatures below freezing. Common uses include laboratory instrument air, precision paint spray systems, dental air supplies, and small pneumatic control circuits where moisture contamination must be eliminated.
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT compressed air piping and fittings
- Wilkerson FRL (Filter-Regulator-Lubricator) systems
- Industrial compressed air supply lines rated 100–150 psi
- Manual desiccant replacement cartridges and silica gel packets
Replaces / Drop-In Replacement For
- Earlier Wilkerson X03-series manual desiccant dryers
- Other manual in-line 10 CFM ISO Class 2 desiccant dryers with 1/4″ NPT ports
- Point-of-use dryers in equivalent flow and pressure ratings
Works With
- All standard pneumatic hose and tubing systems (1/4″ NPT)
- Compressed air treatment chains (filters, regulators, lubricators)
- Precision pneumatic instruments and control systems
- Manual desiccant regeneration workflows and silica gel replacement
