<h2>Overview</h2>

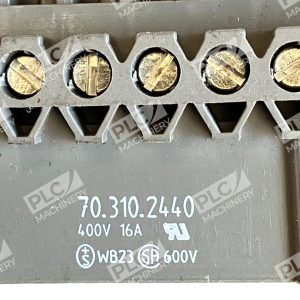

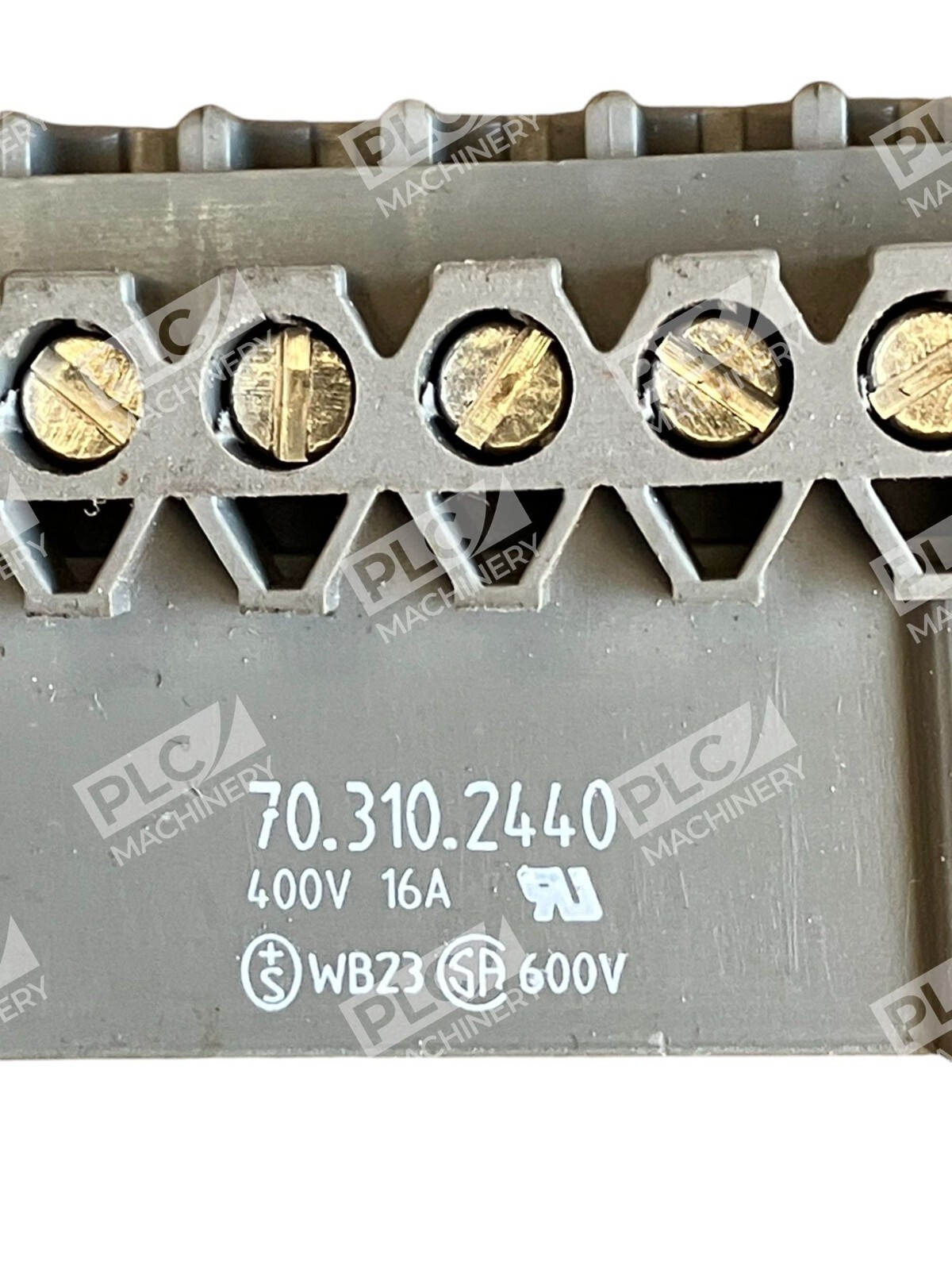

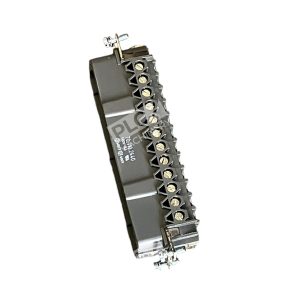

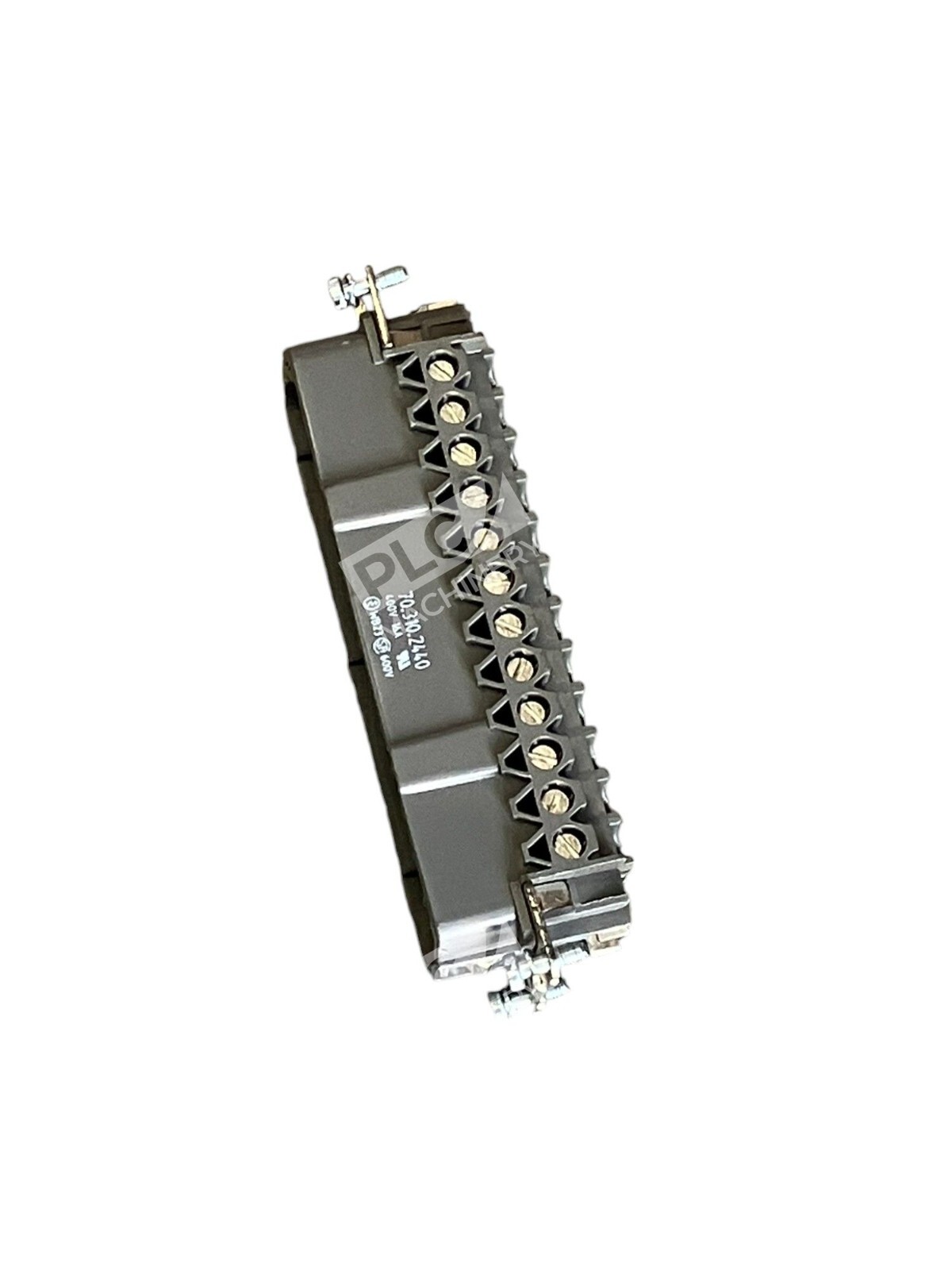

<p>The Wieland 70.310.2440 rectangular insert plug is a heavy-duty connector engineered for reliable power and signal distribution in industrial control and machinery applications. This 24-pin, 2-row male contact insert is part of Wieland’s Revos Basic series and delivers solid electrical performance in demanding manufacturing and automation environments.</p>
<h2>Key Features</h2>
<ul>
<li>24-pin, 2-row configuration for multi-signal distribution</li>
<li>Tin-plated copper alloy contacts ensure corrosion resistance and reliable conductivity</li>
<li>Gray, color-coded body for easy identification</li>
<li>Screw terminal connection (22–14 AWG wire gauge compatibility)</li>
<li>Wire protection to prevent accidental contact during installation</li>
<li>Wide operating temperature range: –40°C to +120°C</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Part Number:</strong> Wieland 70.310.2440 / 70.310.2440.0</li>
<li><strong>Connector Type:</strong> Rectangular Male Insert Plug</li>
<li><strong>Contact Count:</strong> 24 pins (24+PE configuration)</li>
<li><strong>Voltage Rating:</strong> 400V–600V (depending on variant)</li>
<li><strong>Current Rating:</strong> 16A per contact</li>
<li><strong>Contact Material:</strong> Tin-plated copper alloy</li>
<li><strong>Termination:</strong> Screw terminals (22–14 AWG)</li>
<li><strong>Operating Temperature:</strong> –40°C to +120°C</li>
<li><strong>Body Color:</strong> Gray</li>
<li><strong>Series:</strong> Revos Basic BAS STS 24 2.5 50</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>PLC and industrial control system interconnects</li>
<li>Machine tool and automation equipment signal distribution</li>
<li>Power distribution in manufacturing and assembly lines</li>
<li>Modular machinery and panel-mount systems</li>
<li>Electrical cabinet and enclosure wiring</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Wieland Revos Basic connector series and hoods</li>
<li>Standard 24-pin industrial connector ecosystems</li>
<li>IEC 61076-series connector systems</li>
<li>Machinery and control cabinet applications rated 400V–600V</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Wieland 70.310.2440.0 (variant with .0 suffix)</li>
<li>Earlier Wieland rectangular insert models with equivalent 24-pin, 2-row footprint</li>
<li>Verify exact mechanical and electrical compatibility with your system integrator before ordering.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Wieland Revos Basic connector hoods and mating inserts</li>
<li>Screw-terminal industrial wiring practices</li>
<li>Standard AWG and European (mm²) conductor sizing</li>
<li>Industrial automation and control networks (no specific protocol limit)</li>
</ul>
