Overview

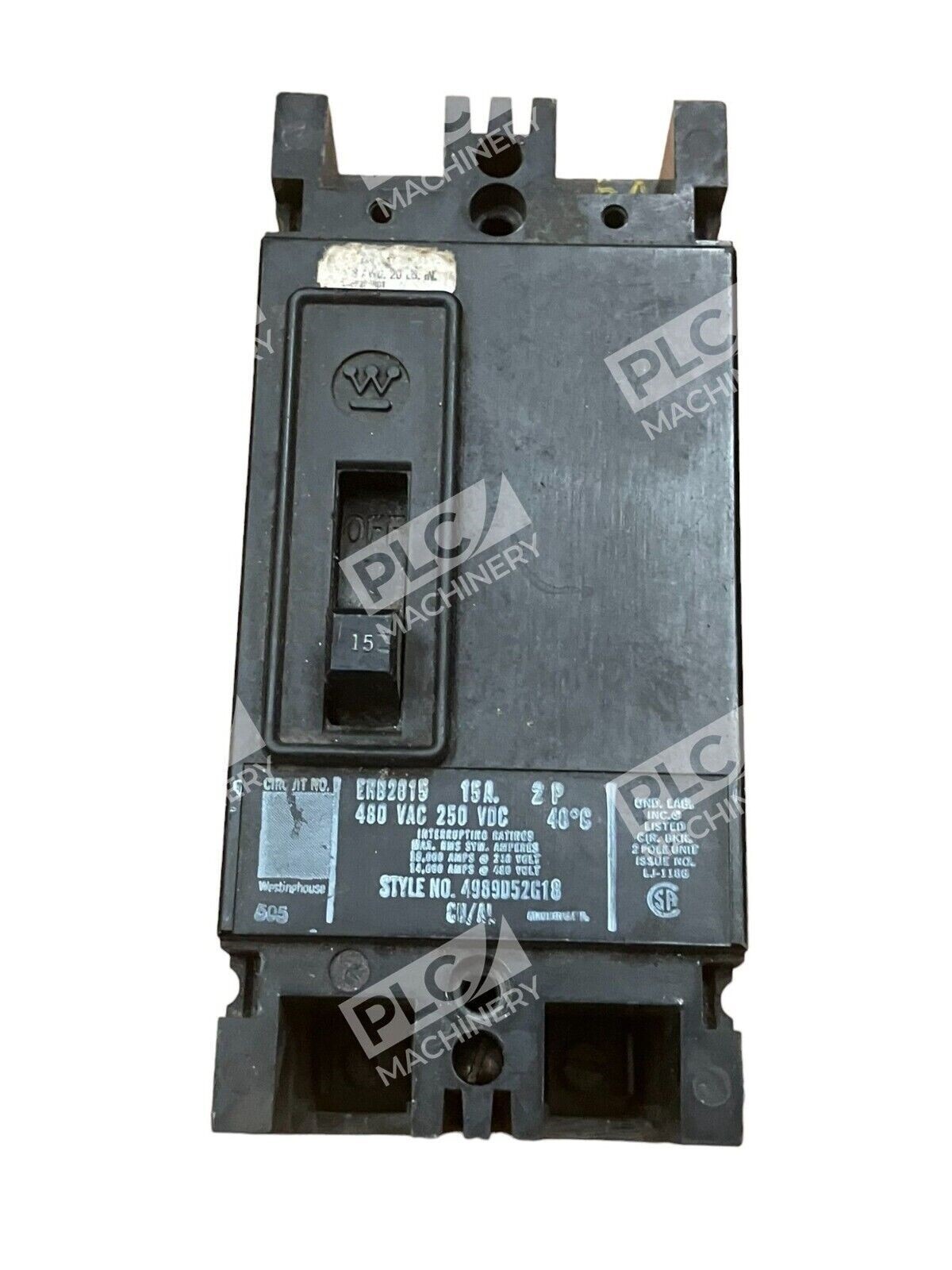

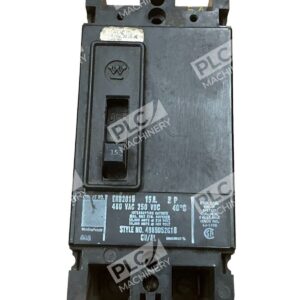

The Westinghouse EHB2015 is a thermal magnetic molded case circuit breaker designed for industrial and commercial electrical distribution. This 2-pole unit delivers reliable overload and short-circuit protection across 15A and 480VAC ratings. With bolt-on connectivity and load-side lug terminals, it integrates easily into existing panel layouts. Though discontinued by the manufacturer, the EHB2015 remains available through surplus stock channels and is suitable for replacement or retrofit applications where original specifications must be maintained.
Key Features
- 15A rated current with 480VAC maximum operating voltage
- Thermal-magnetic trip mechanism for both overload and instantaneous short-circuit protection
- 14kA interrupting capacity at 480V, standard for industrial branch circuits
- Bolt-on mounting to panelboard for secure installation
- Long-time and instantaneous trip functions (LI trip characteristic)
- Load-side lug terminals for simplified field wiring
Technical Specifications
- Ampere Rating: 15A
- Pole Configuration: 2-Pole (2P)
- Voltage Rating: 240/480VAC, 250VDC
- Interrupting Capacity: 14kA @ 480V
- Trip Type: Thermal Magnetic (Long-Time + Instantaneous)
- Mounting Style: Bolt-On
- Terminal Type: Load-Side Lug
- Operating Temperature: 40°C ambient rated
- Series/Frame: EHB (Eaton/Cutler Hammer)
- Status: Obsolete (manufacturer discontinued)
Typical Applications
The EHB2015 is suitable for branch circuit protection in industrial control panels, motor starter centers, and commercial distribution boards. Common applications include machine tool circuits, HVAC branch protection, lighting panel feeders, and general industrial loads requiring 15A protection at 480V.
Compatibility & Replacements
Compatible With
- Molded case circuit breaker panelboards accepting EHB frame bolt-on breakers
- Industrial electrical distribution systems rated 480VAC, 250VDC
- Eaton/Cutler Hammer EHB series compatible enclosures
- Panels designed for 2-pole thermal magnetic protection
- Standard industrial branch circuit wiring (Cu/Al cable compatible)
Replaces / Drop-In Replacement For
The EHB2015 directly replaces other EHB2015 units. Verify compatibility with OEM panel documentation before substituting alternative breakers. Cross-compatibility with non-EHB frame breakers requires panel verification.
Works With
- 480VAC / 240VAC industrial distribution systems
- 250VDC rated control circuits (where applicable)
- Standard load terminals and field wiring methods (NEC compliant)
- Thermal magnetic trip protection (no electronic controls required)
