Overview

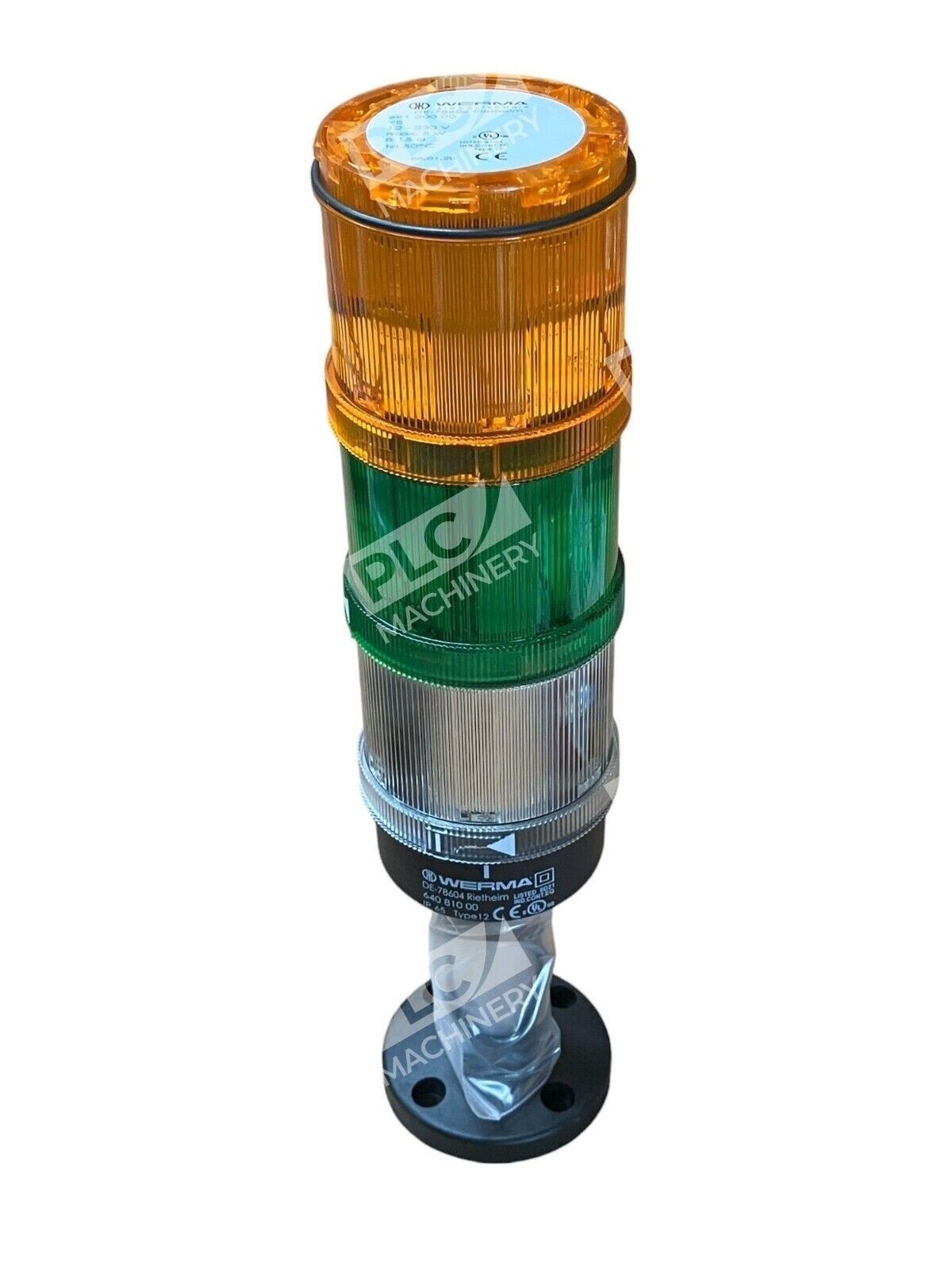

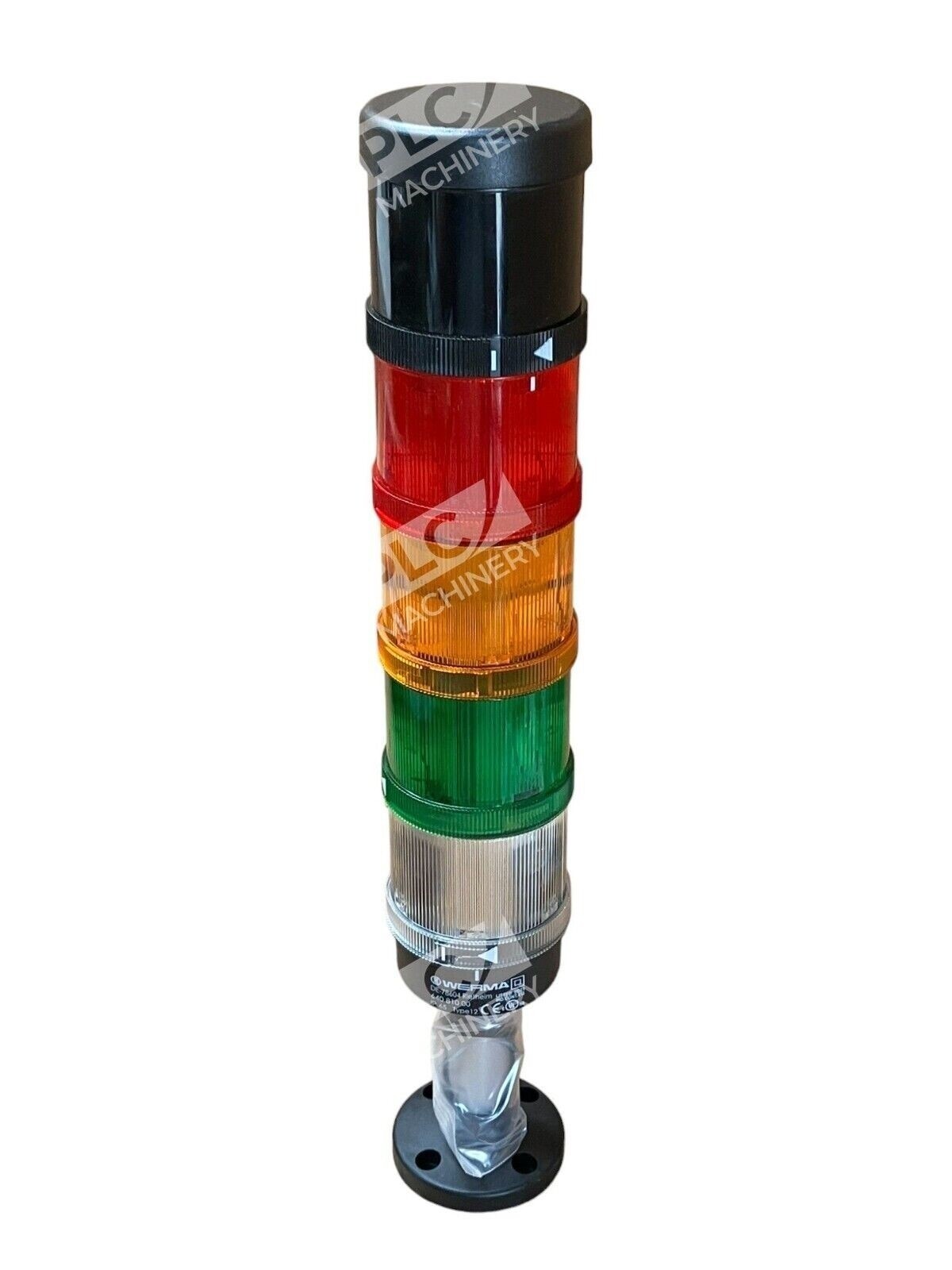

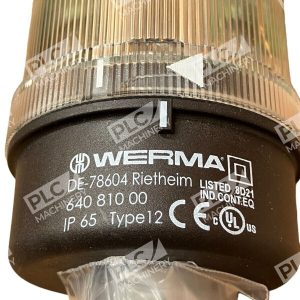

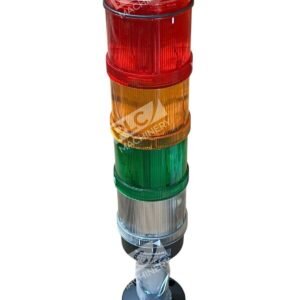

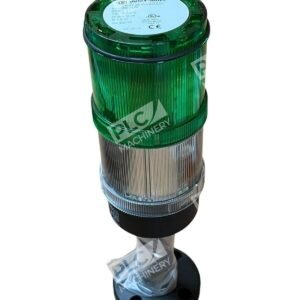

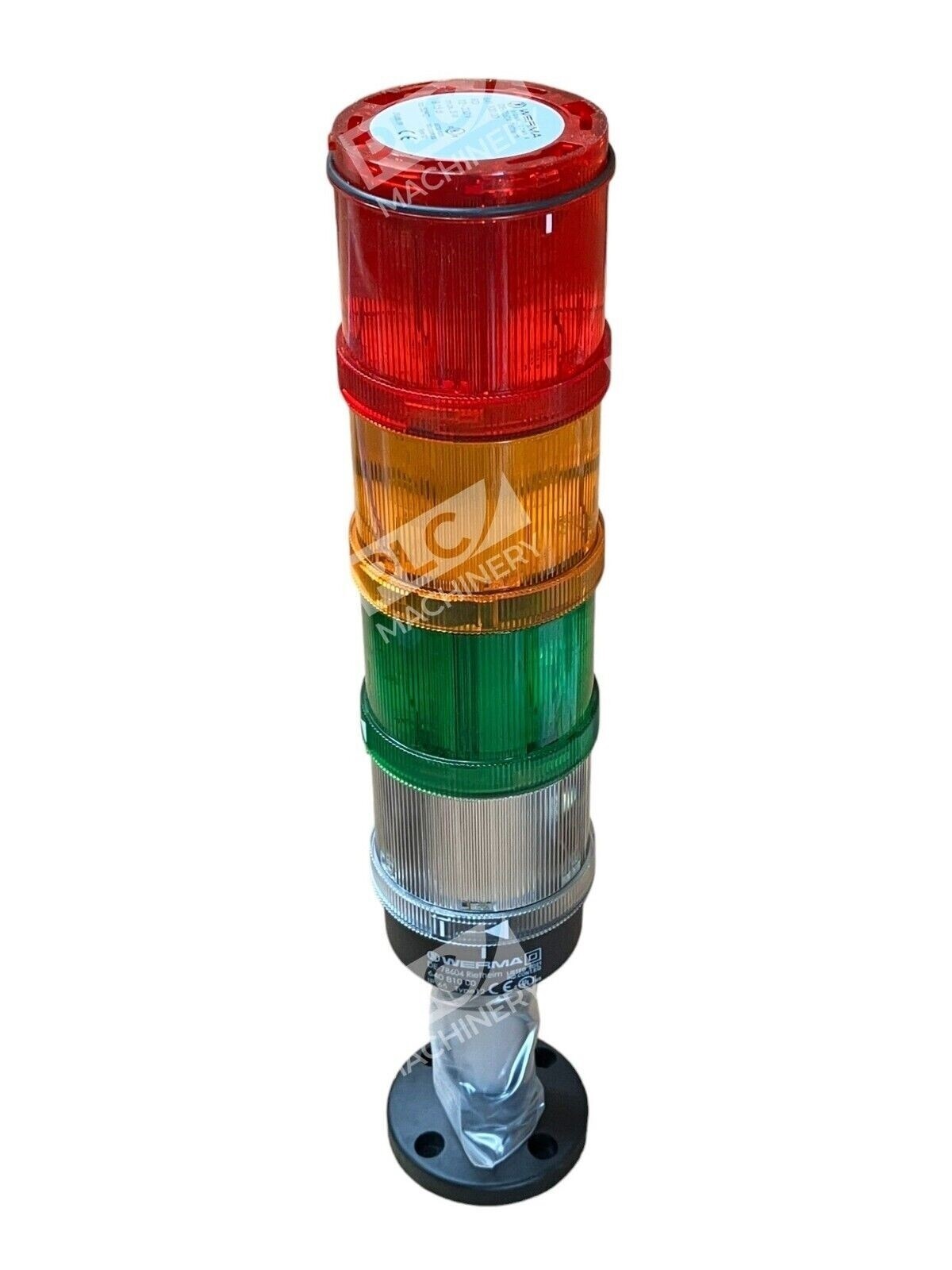

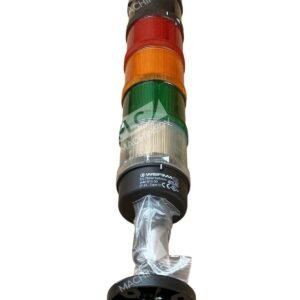

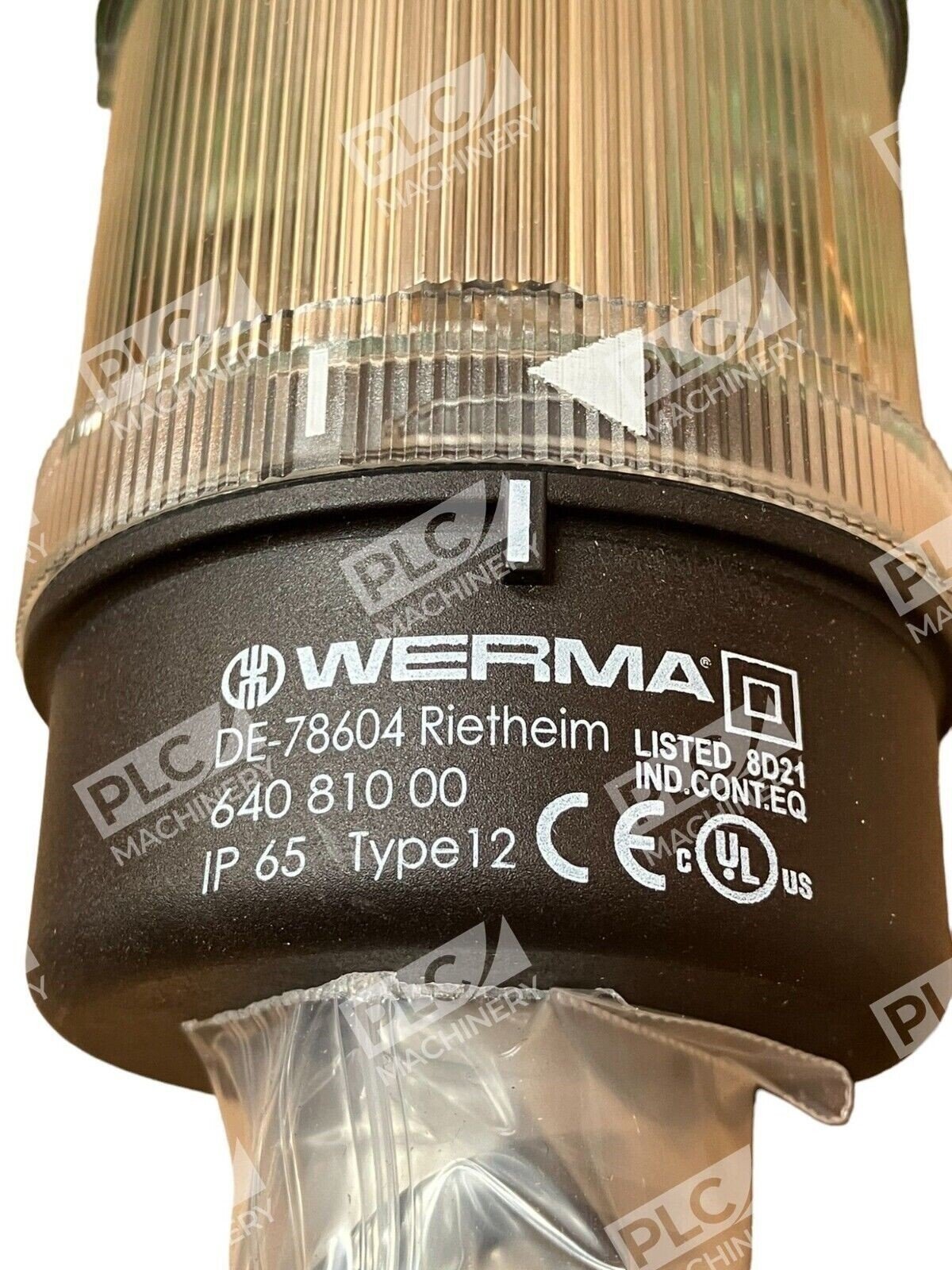

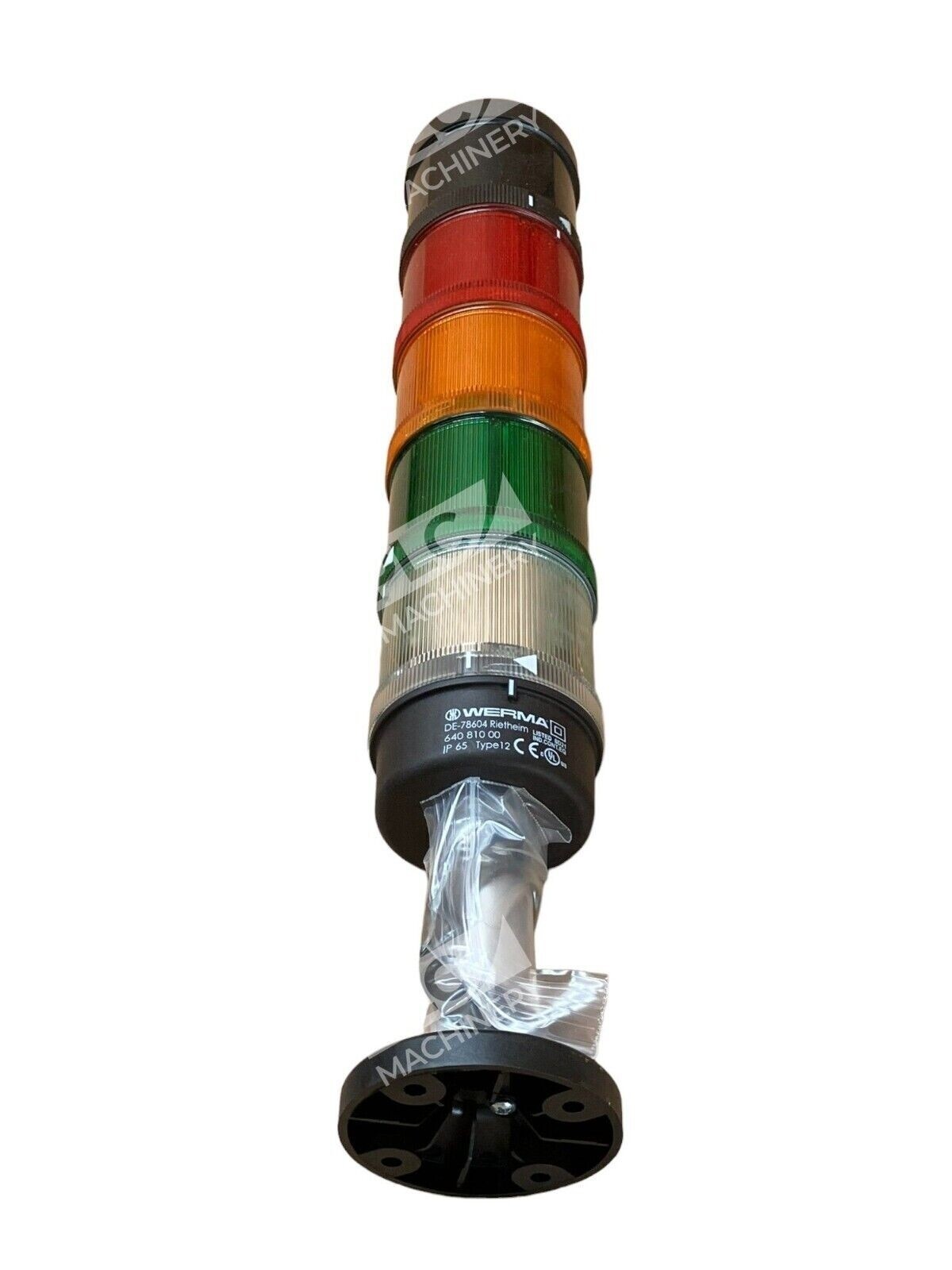

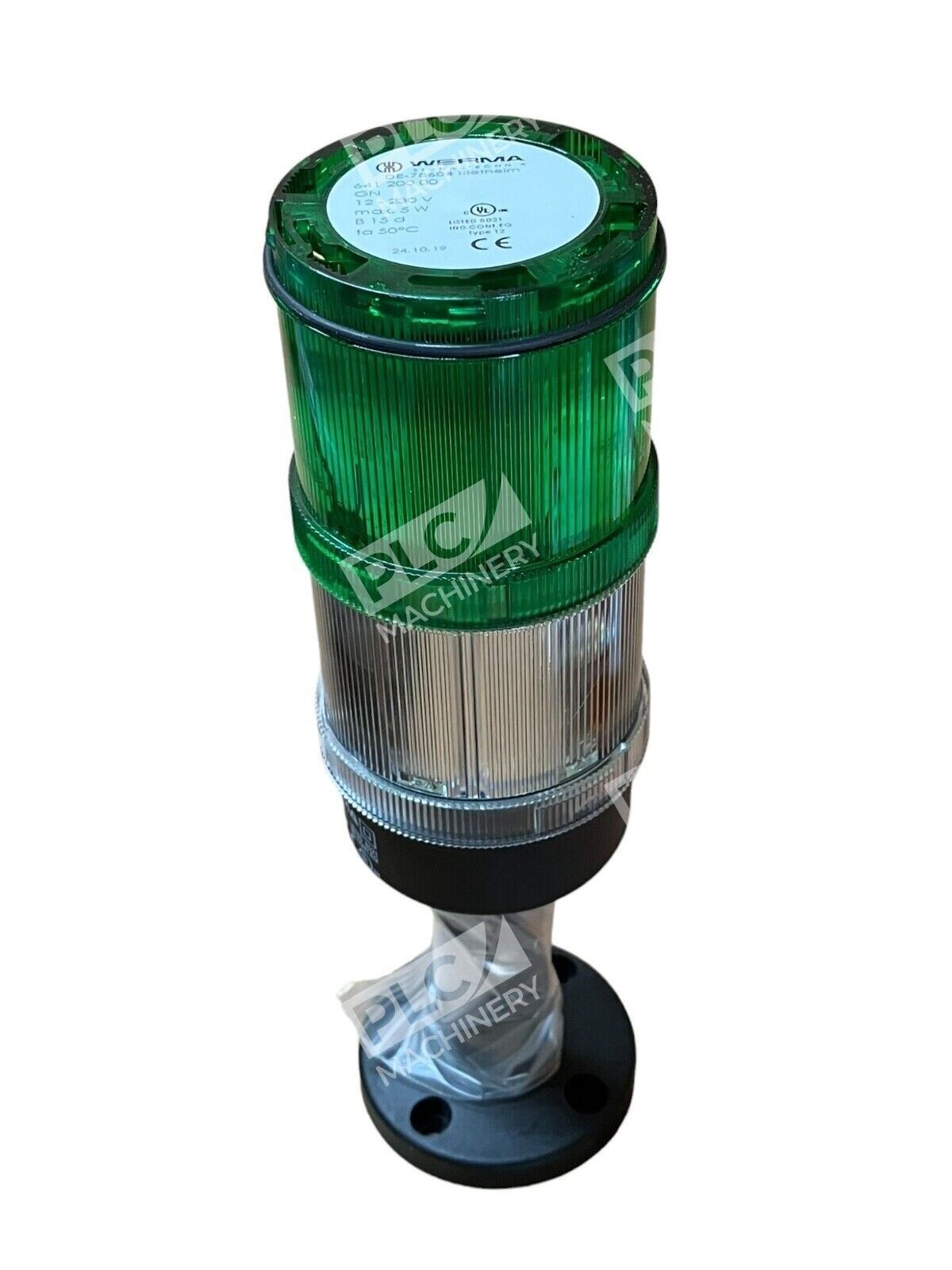

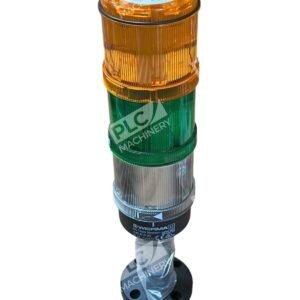

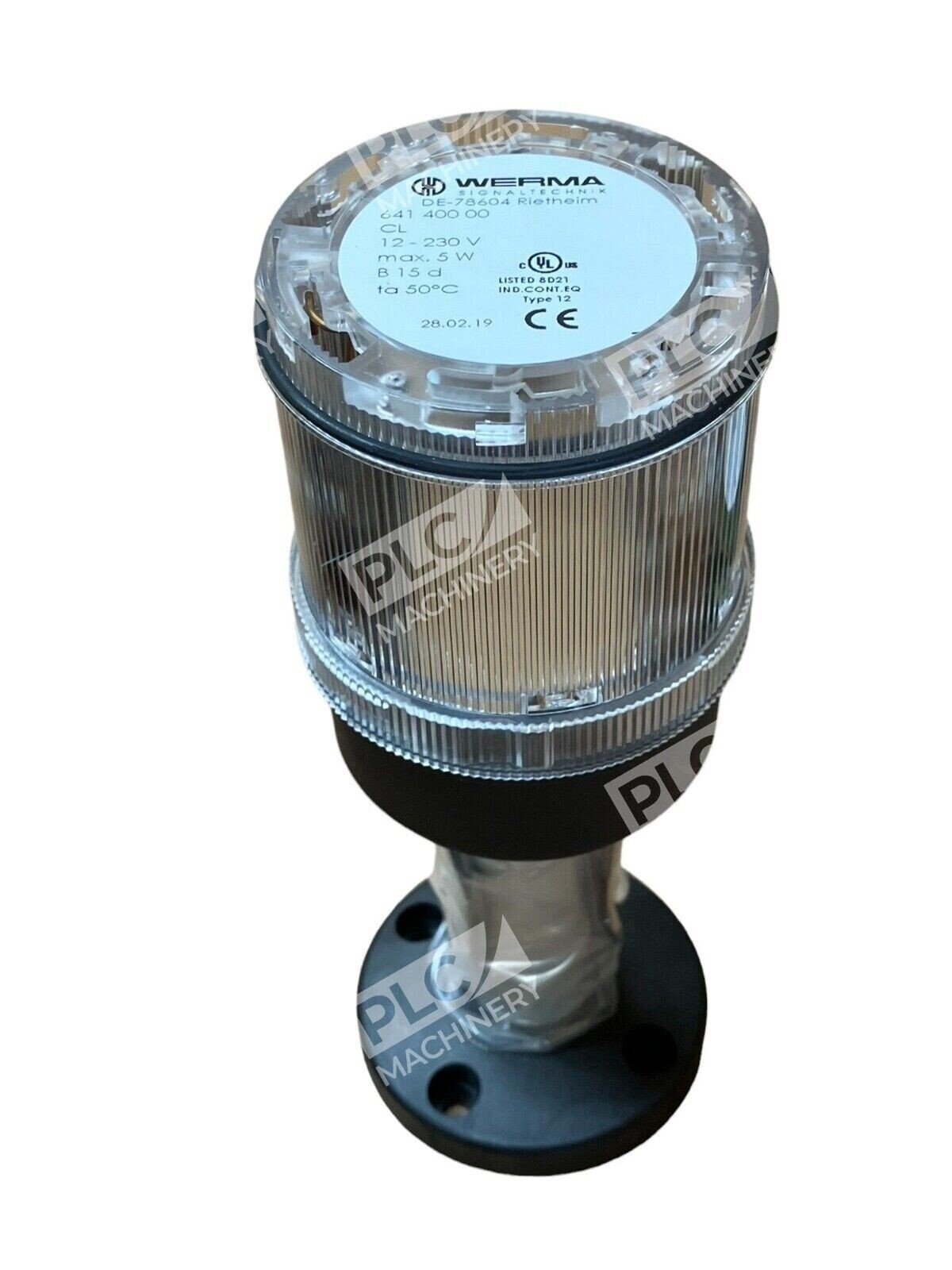

The Werma 640 810 00 is a terminal element base designed as the foundation for modular signal tower systems. This component accepts individual light modules and accessories, allowing engineers to configure multi-light stack towers with custom color combinations and siren options. The 640 810 00 provides centralized electrical termination and control for all mounted modules.
Key Features
- Modular design supports 1–5 stacked light modules
- IP65 rating provides reliable dust and moisture protection
- Spring-type CAGE Clamp terminal connection for safe, secure wiring
- Bayonet fixture enables quick mounting and removal of signal elements
- Supports 12–230 VAC/DC input voltages
- Cylindrical black housing, 70mm diameter
Technical Specifications
- Operating voltage: 12–230 VAC/DC
- Housing diameter: 70mm (2-3/4″)
- Height: 36mm
- IP rating: IP65, UL Type 12
- Terminal connection: Spring-type CAGE Clamp
- Housing material: Black polycarbonate (PC) / glass-filled polyamide (PA-GF)
- Mounting style: Tube mount or pole mount
- Operating temperature range: –20°C to +50°C (–4°F to +122°F)
- Weight: 0.25 lbs
Typical Applications
- Manufacturing facility status indication and warning systems
- Machine state signaling in production environments
- Warehouse and logistics visual alert systems
- Assembly line process status display
- Equipment maintenance and safety notifications
- Multi-stage process monitoring and andon systems
Compatibility & Replacements
Compatible With
- Werma modular signal light modules (KombiSIGN 71/72 series)
- Werma colored light elements (red, amber, green, blue, clear)
- Werma siren and buzzer modules
- Andon control systems (AndonCONTROL, AndonSmartBOX)
- Pole and base mounting brackets from Werma 640-series
Replaces / Drop-In Replacement For
- Part number 64081000 (alternative format)
- Verify compatibility with your system integrator before ordering for OEM part substitution.
Works With
- Werma KombiSIGN 71 and KombiSIGN 72 modular tower systems
- 12–230V AC and DC industrial control circuits
- PLC and automation controller signal outputs
- Relay and contactor switching networks
