Overview

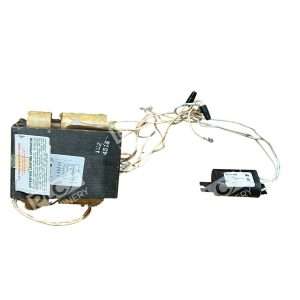

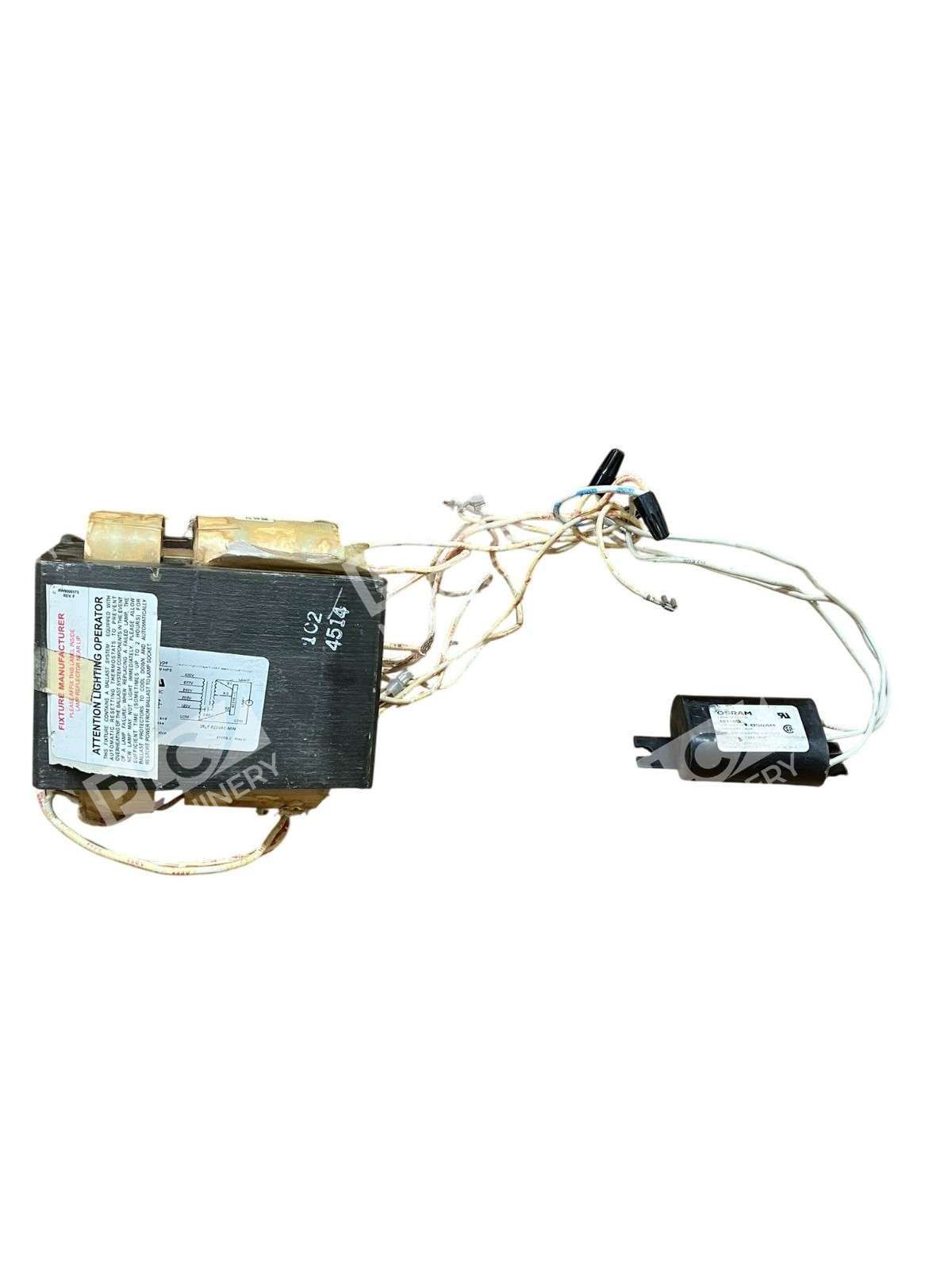

The Sylvania LU1000/SUPER5-KIT (part number 47659) is a magnetic core and coil ballast kit engineered to operate 1000W LU1000 high-pressure sodium lamps. This 5-tap design accommodates multiple input voltages—120, 208, 240, 277, and 480V—making it suitable for a wide range of industrial and commercial lighting installations. The unit uses pulse ignitor starting technology for reliable lamp ignition across operating conditions.
Key Features
- 5-Tap voltage configuration — operates at 120/208/240/277/480V without modification
- Pulse start ignition — reliable, consistent lamp striking
- Complete ballast kit — includes core, coil, capacitor, and ignitor
- ANSI Code S52 — compatible with standard LU1000 HPS lamps
- Compact footprint — 6″ L × 6″ W × 4.25″ H
- Operates at -40°F minimum — suitable for cold-weather applications
Technical Specifications
- Lamp Type: LU1000 (1000W High-Pressure Sodium)
- Input Voltage: 120/208/240/277/480V, single-phase
- Wattage Rating: 1000W lamp, 1100W ballast
- Current Ratings: 9.5A @ 120V, 5.5A @ 208V, 4.8A @ 240V, 4.1A @ 277V

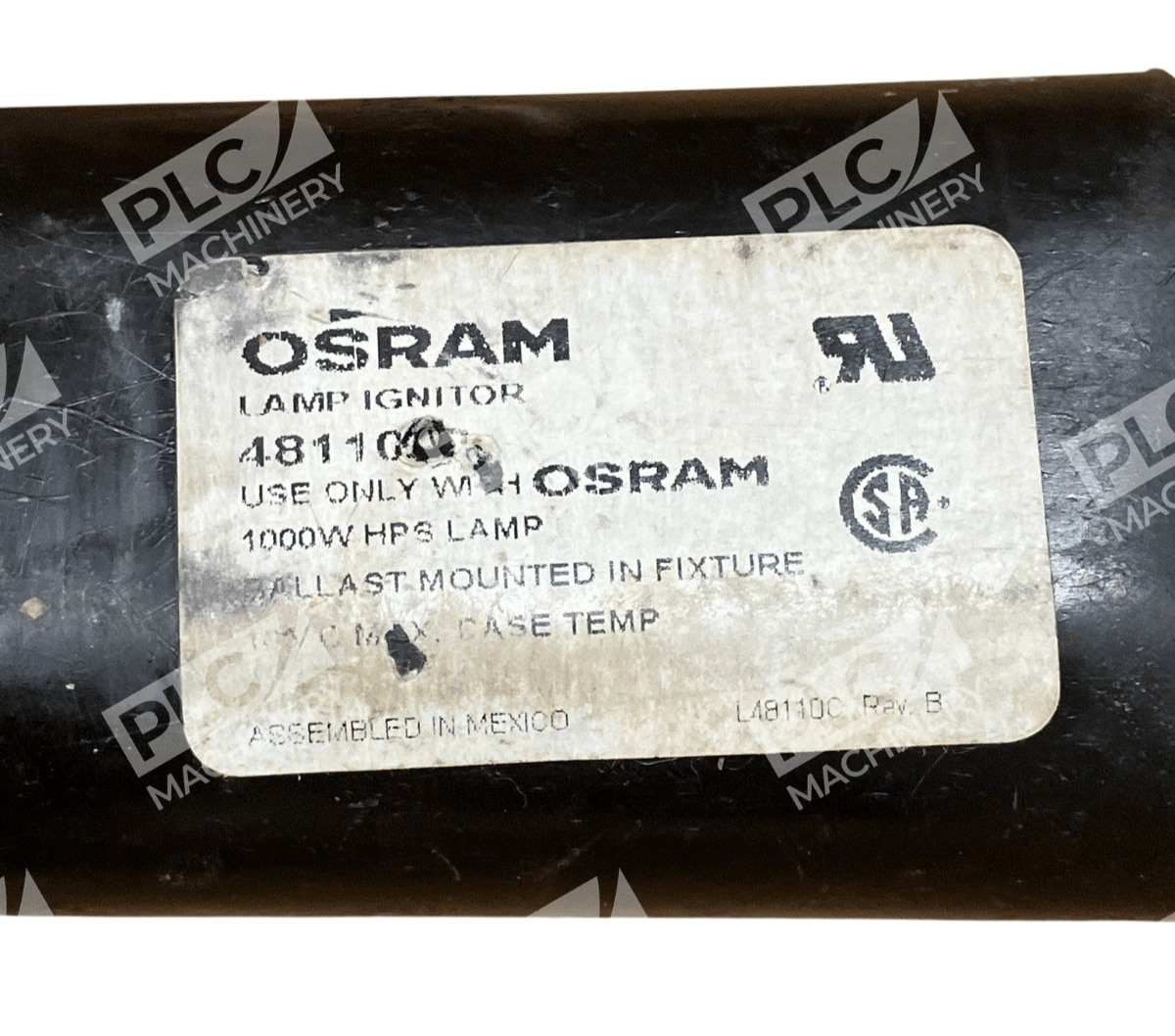

- Starting Method: Pulse Ignitor

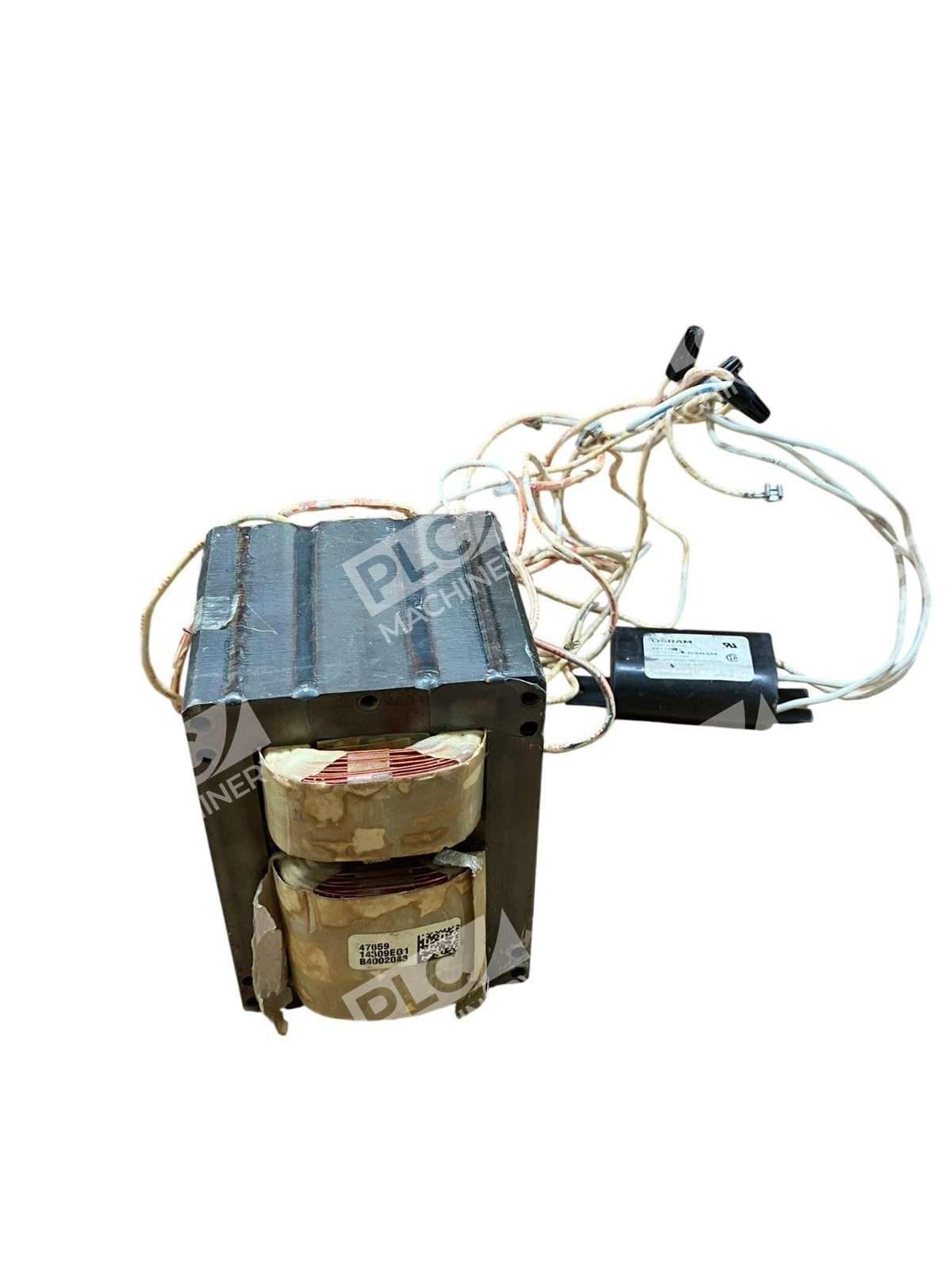

- Circuit Type: Core & Coil (CWA)
- ANSI Code: S52
- Ballast Factor: 1.0
- Minimum Operating Temp: -40°F / -40°C
- Dimensions: 6″ L × 6″ W × 4.25″ H
- Catalog Number: 47659
Typical Applications
- High-bay industrial lighting
- Warehouse and distribution center lighting
- Outdoor area and security lighting
- Horticultural and greenhouse grow-light systems
- Street and roadway lighting
- Sports field and parking lot illumination
Compatibility & Replacements
Compatible With
- LU1000 High-Pressure Sodium lamps (ANSI code S52)
- Mogul base HPS lamp fixtures
- Standard 120/208/240/277/480V single-phase electrical systems
- Pulse ignitor ballast circuits
Replaces / Drop-In Replacement For
- Sylvania LU1000/MULTI-KIT (47389) — same wattage, different tap configuration (4-tap vs. 5-tap)
- Equivalent 1000W magnetic HPS ballasts from Venture, Advance, and Universal/MagneTek
Works With
- All standard 1000W ANSI S52 HPS lamps
- Conventional magnetic ballast fixtures and luminaires
- Manual and automatic lamp control circuits
- Indoor and outdoor rated enclosures
