Overview

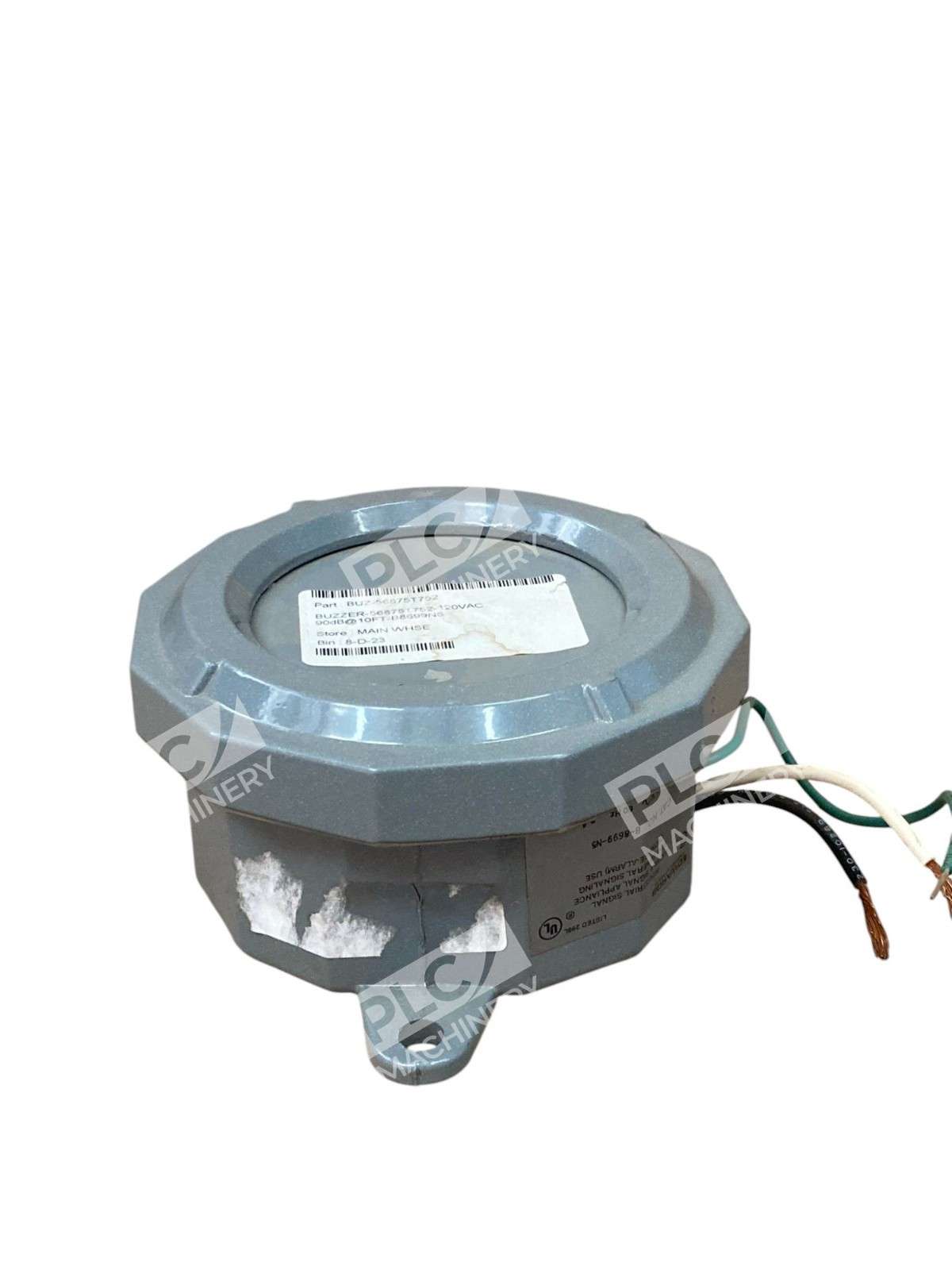

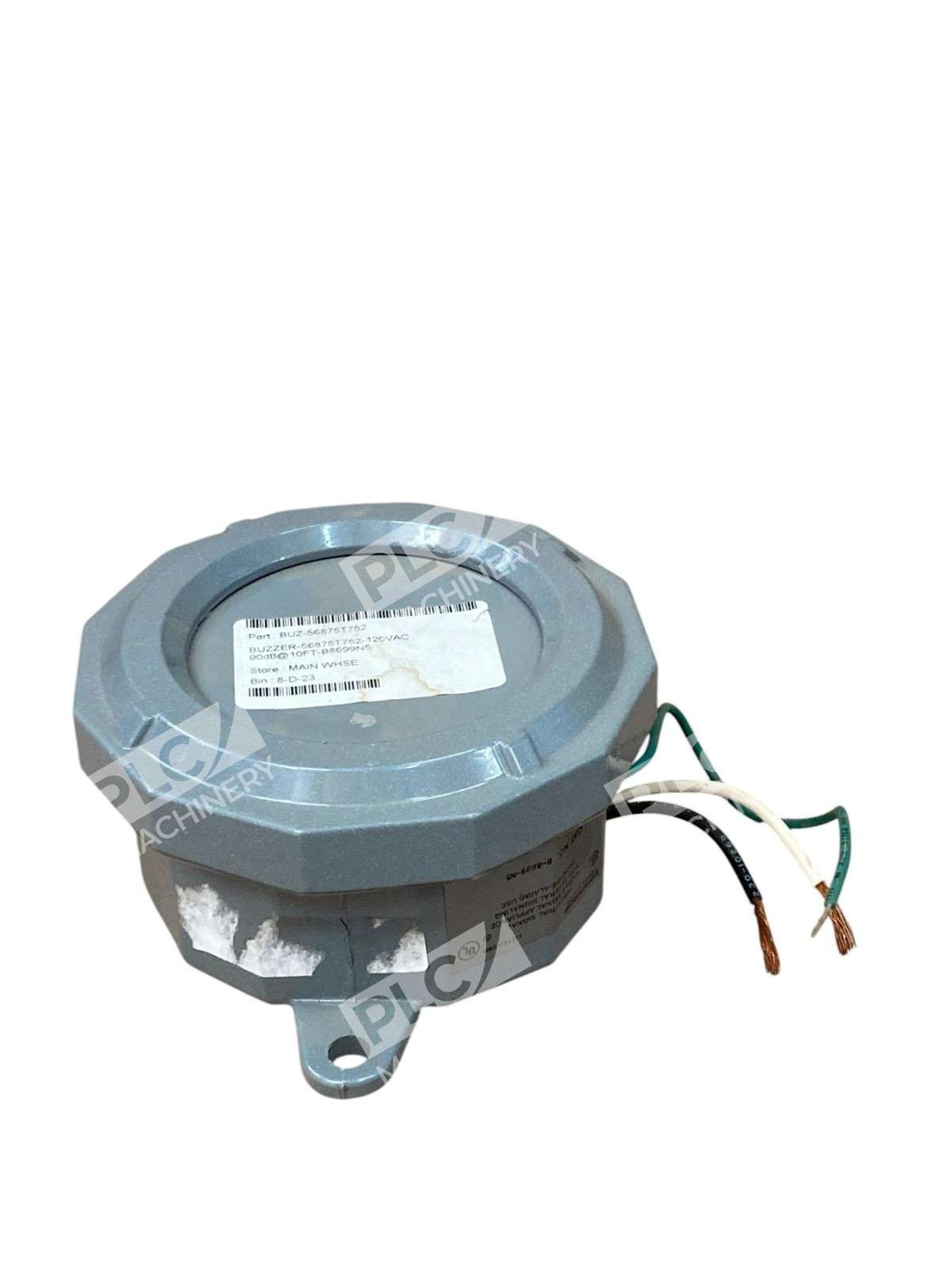

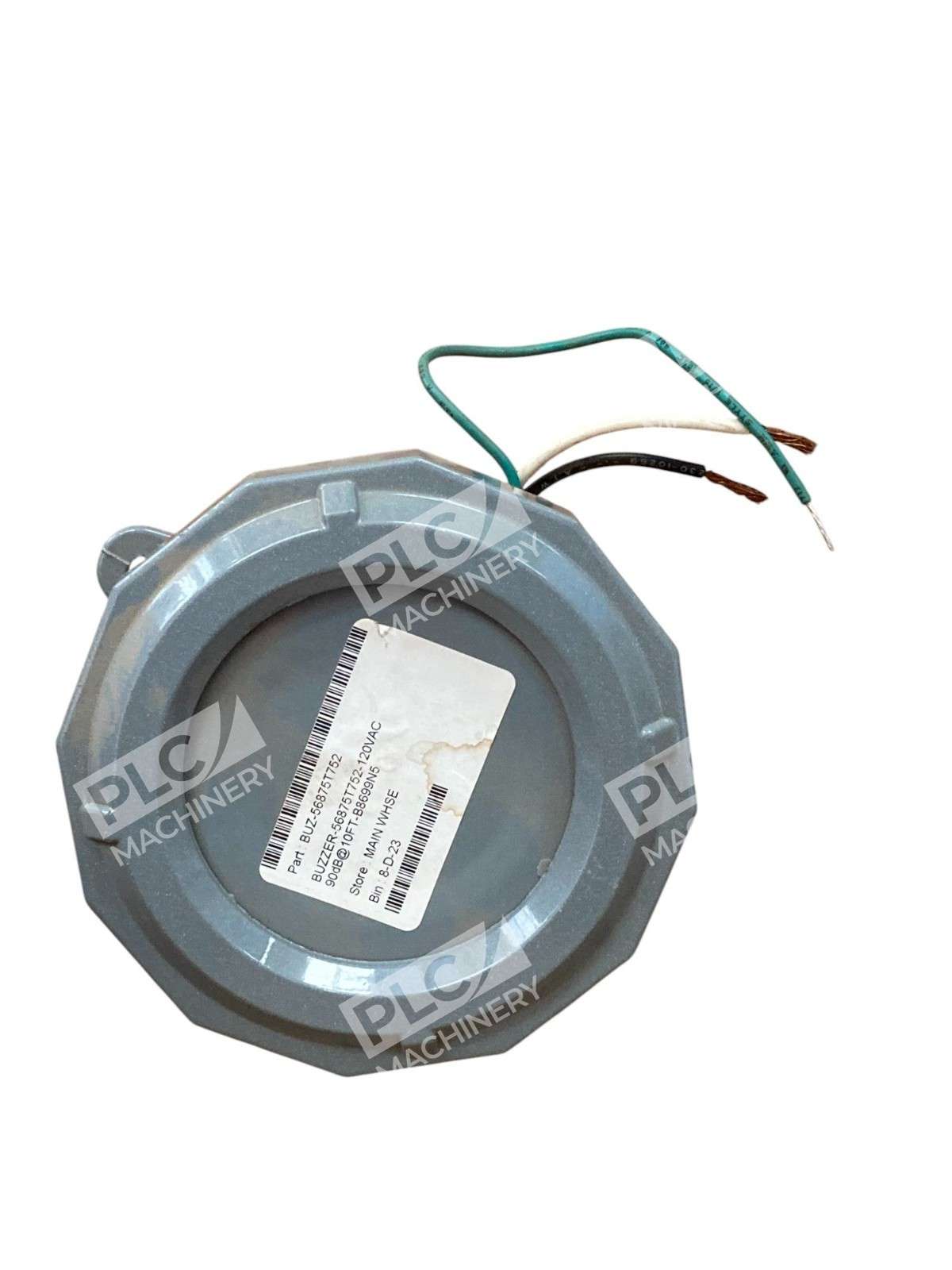

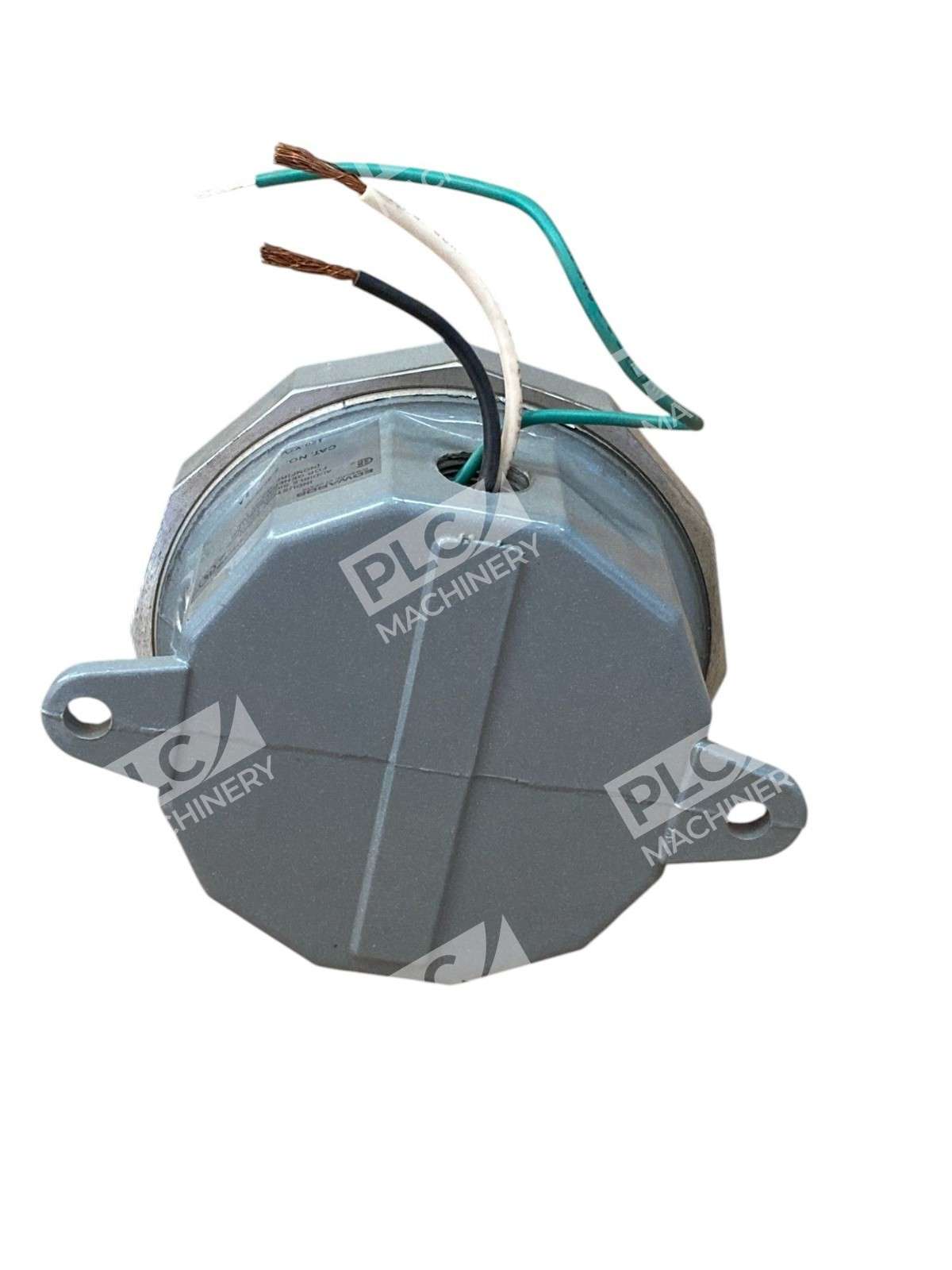

The Edwards B-8699-N5 is a rugged industrial audible signal appliance designed for fire alarm and emergency notification systems. Part of the B93 series, this vibrating buzzer is engineered for 24/7 operation in demanding industrial environments. Built with die-cast aluminum construction and a NEMA 3R weatherproof enclosure, it delivers dependable audible alerts to ensure personnel safety and regulatory compliance.
Key Features
- Heavy-duty vibrating armature for clear, consistent audible output
- NEMA 3R weatherproof enclosure with sealed gasket design
- Die-cast aluminum housing resists corrosion in harsh environments
- Heavy-gauge steel protective cover prevents accidental damage
- Wall-mounted configuration with integrated mounting lugs
- UL-listed for life safety and emergency signaling applications
Technical Specifications
- Operating Voltage: 120 VAC
- Frequency: 60 Hz
- Operating Current: 0.2 A
- Sound Intensity: 99 dB @ 1 meter; 89 dB @ 10 feet
- Coil Impedance: 146 Ohm
- Enclosure Rating: NEMA 3R (weatherproof)
- Housing Material: Die-cast aluminum, gray finish
- Dimensions: 6-3/8 in diameter × 3 in height

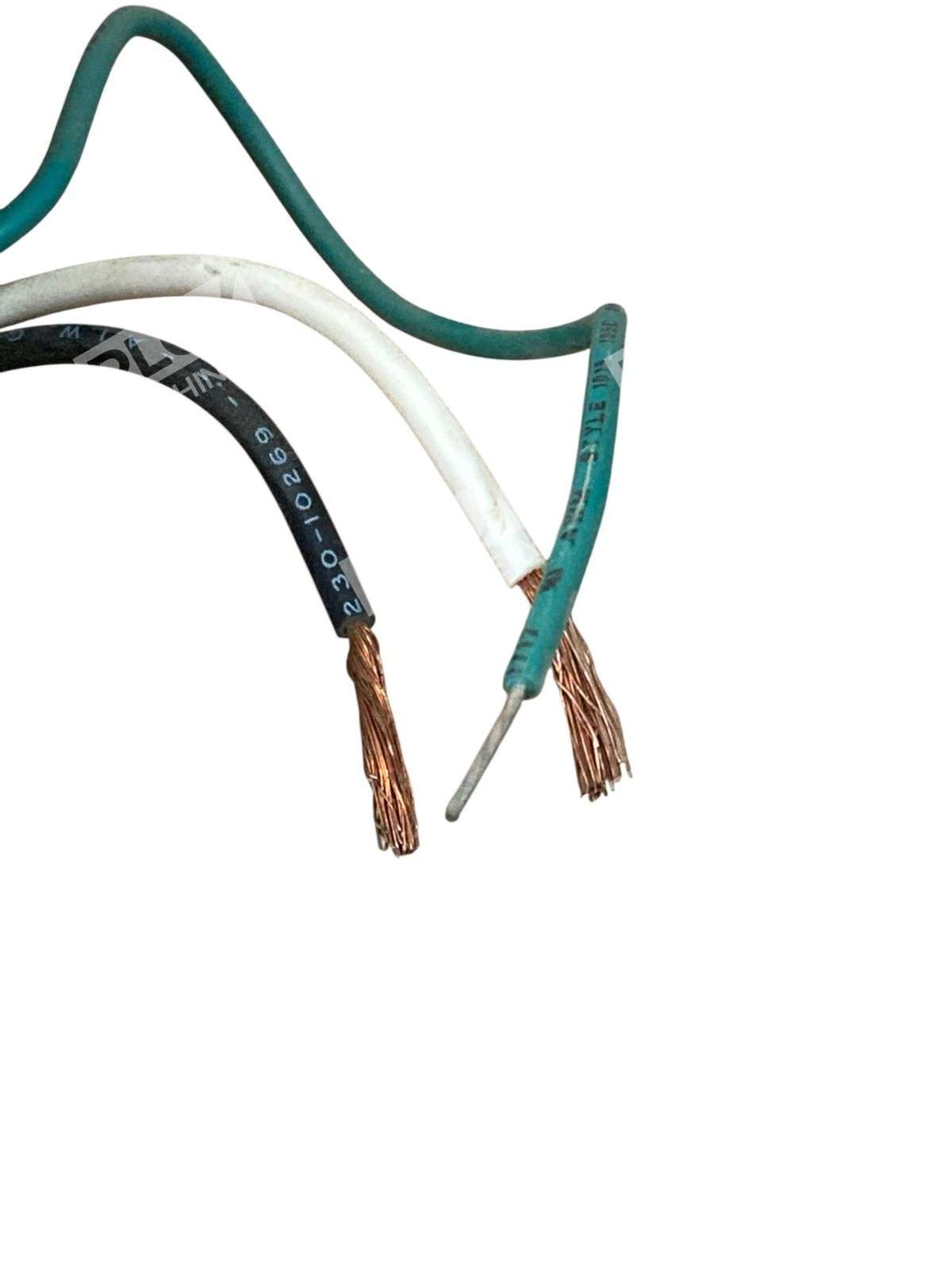

- Terminal Type: Lugs
- Certifications: UL listed
- Series: B93
Typical Applications
The Edwards B-8699-N5 is widely deployed in:
- Industrial fire alarm and life safety systems
- Building automation and emergency notification systems
- Manufacturing facilities and warehouses
- Hazardous area alarm signaling
- HVAC system emergency alerting
Compatibility & Replacements
Compatible With
- Fire alarm control panels with 120 VAC relay outputs
- Building automation systems (BAS) supporting audible signaling
- Emergency notification and evacuation systems
- Industrial safety control circuits
- Hardwired alarm signaling networks
Replaces / Drop-In Replacement For
- Previous generation B-8699 series buzzer models
- Compatible with legacy Edwards audible signaling applications requiring identical electrical and mounting specifications
- Verify with your fire alarm contractor or system integrator for existing equipment compatibility
Works With
- Edwards Signaling fire alarm control panels
- Third-party fire alarm systems with 120 VAC output modules
- Hardwired relay switching circuits
- Industrial safety relay networks
- Building fire alarm networks requiring independent audible notification nodes
