Overview
The Weidmüller ZQV 4N/10 GE (part number 1758260000) is a yellow cross-connector jumper engineered for industrial terminal block applications. This 10-pole connector accommodates WDK 4N and WDK 4NV series terminal blocks with a 6.1mm pitch spacing. Manufactured to DIN standards and RoHS-compliant, it delivers the durability required in power plants, chemical facilities, machine tool controls, and railway systems.
Key Features
- 10-pole configuration — Cross-connects terminals across WDK 4N and WDK 4NV blocks
- 32A current rating — Suitable for medium-power circuit and control lines
- Yellow color (GE designation) — Easy identification and visual organization in control panels
- Hardened steel contacts with tinned copper — Corrosion resistance and optimal conductivity
- Plugged assembly — Pre-assembled for quick installation; no crimping required
- RoHS and V-0 flammability rated — Meets environmental and safety standards
Technical Specifications
- Part Number: 1758260000
- Type: ZQV 4N/10 GE (Cross-connector, plugged)
- Number of Poles: 10
- Pitch: 6.10 mm
- Current Rating: 32 A
- Color: Yellow (GE)
- Width: 58.7 mm (2.311 inches)
- Depth: 27.95 mm (1.1004 inches)
- Height: 2.8 mm (0.1102 inches)
- Net Weight (per unit): Approx. 7.5 g
- Operating Temperature: −60 °C to +130 °C
- Storage Temperature: −25 °C to +55 °C
- Ambient Temperature (Operating): −5 °C to +40 °C
- Material: Wemid (polyamide)
- UL 94 Flammability Rating: V-0
- RoHS Compliance: Yes (no exemptions)

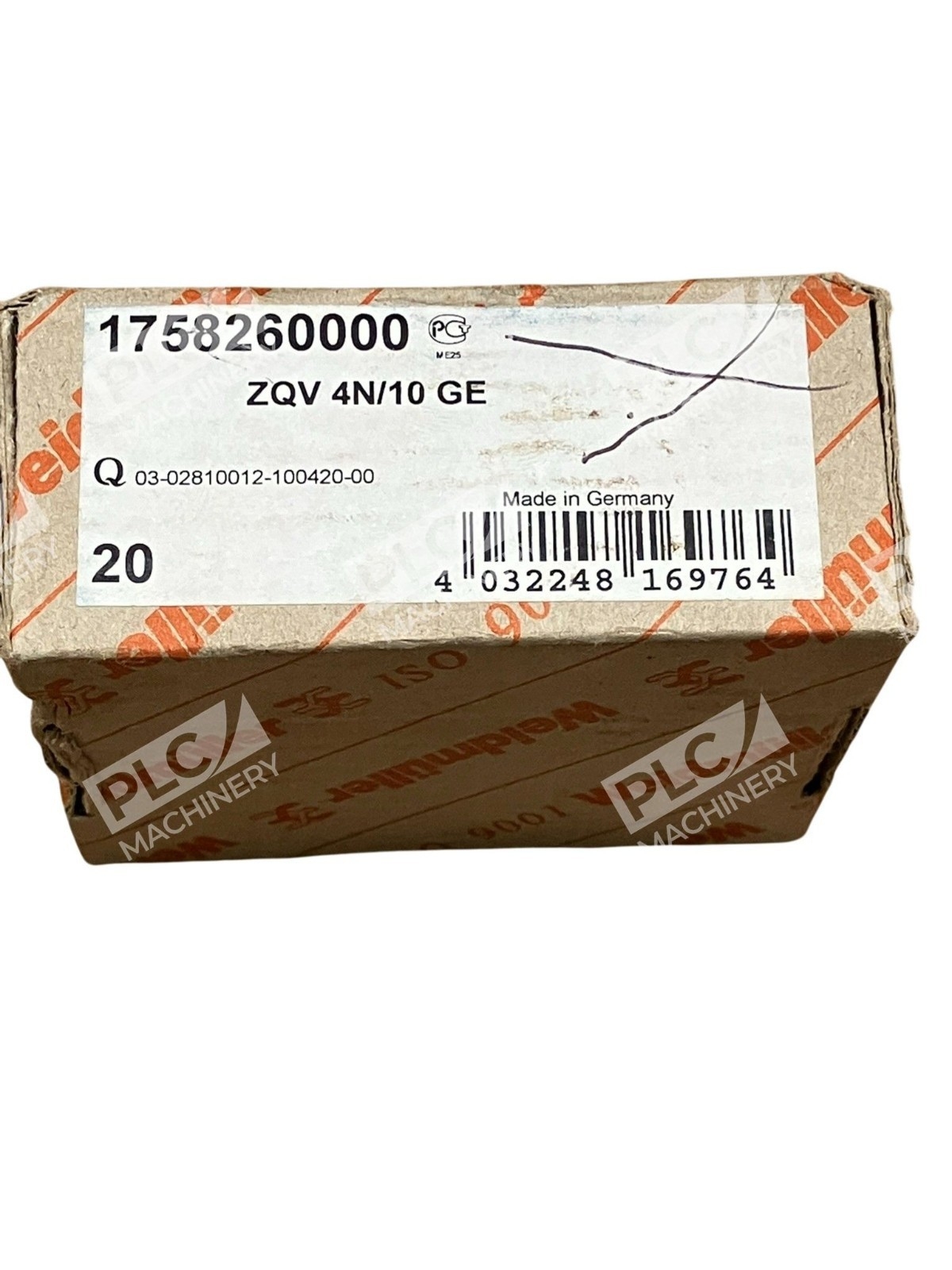

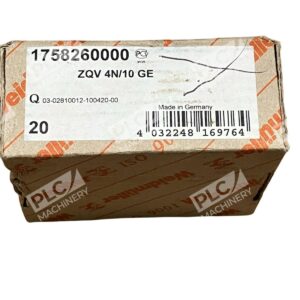

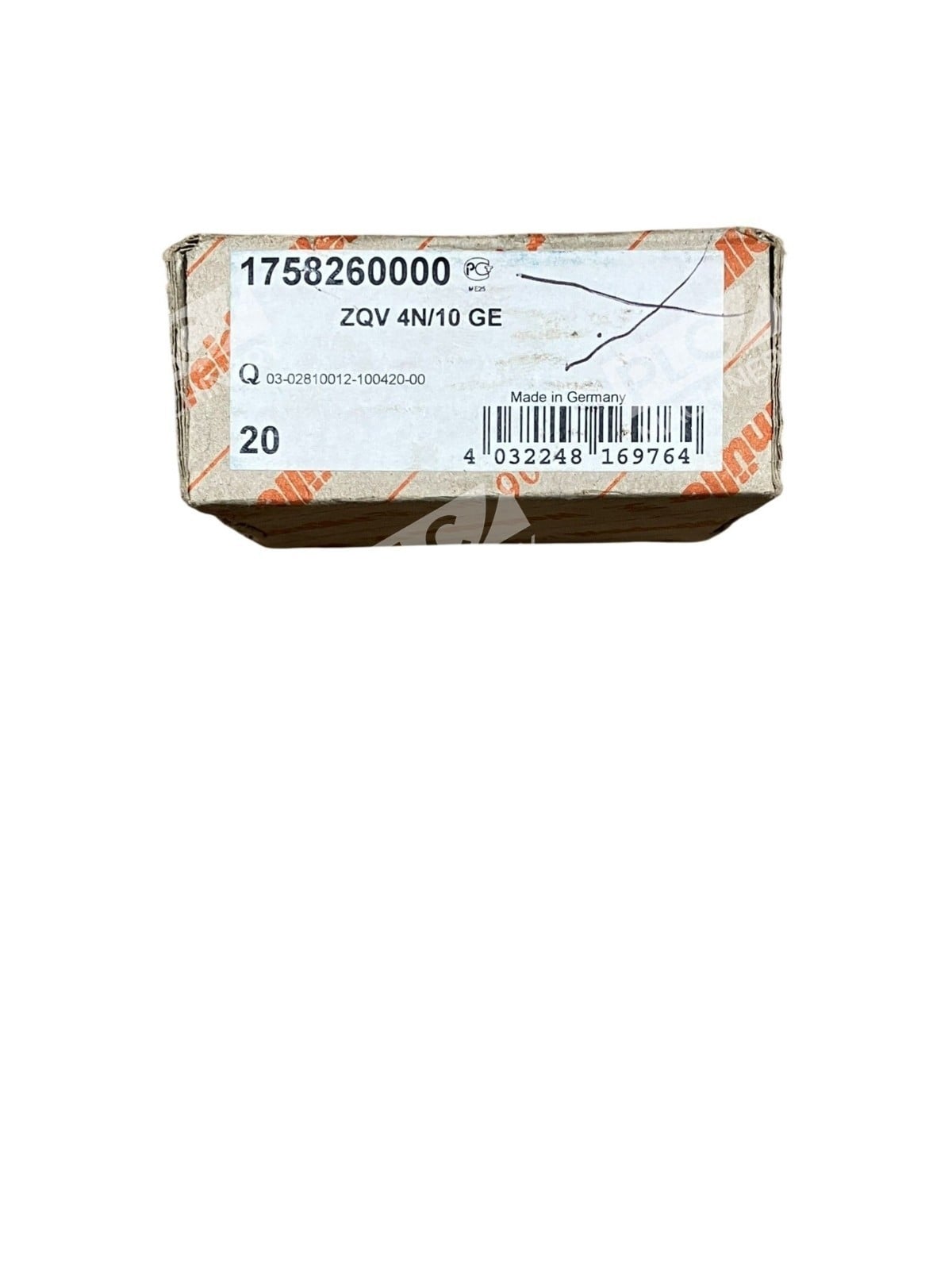

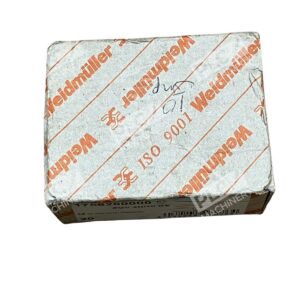

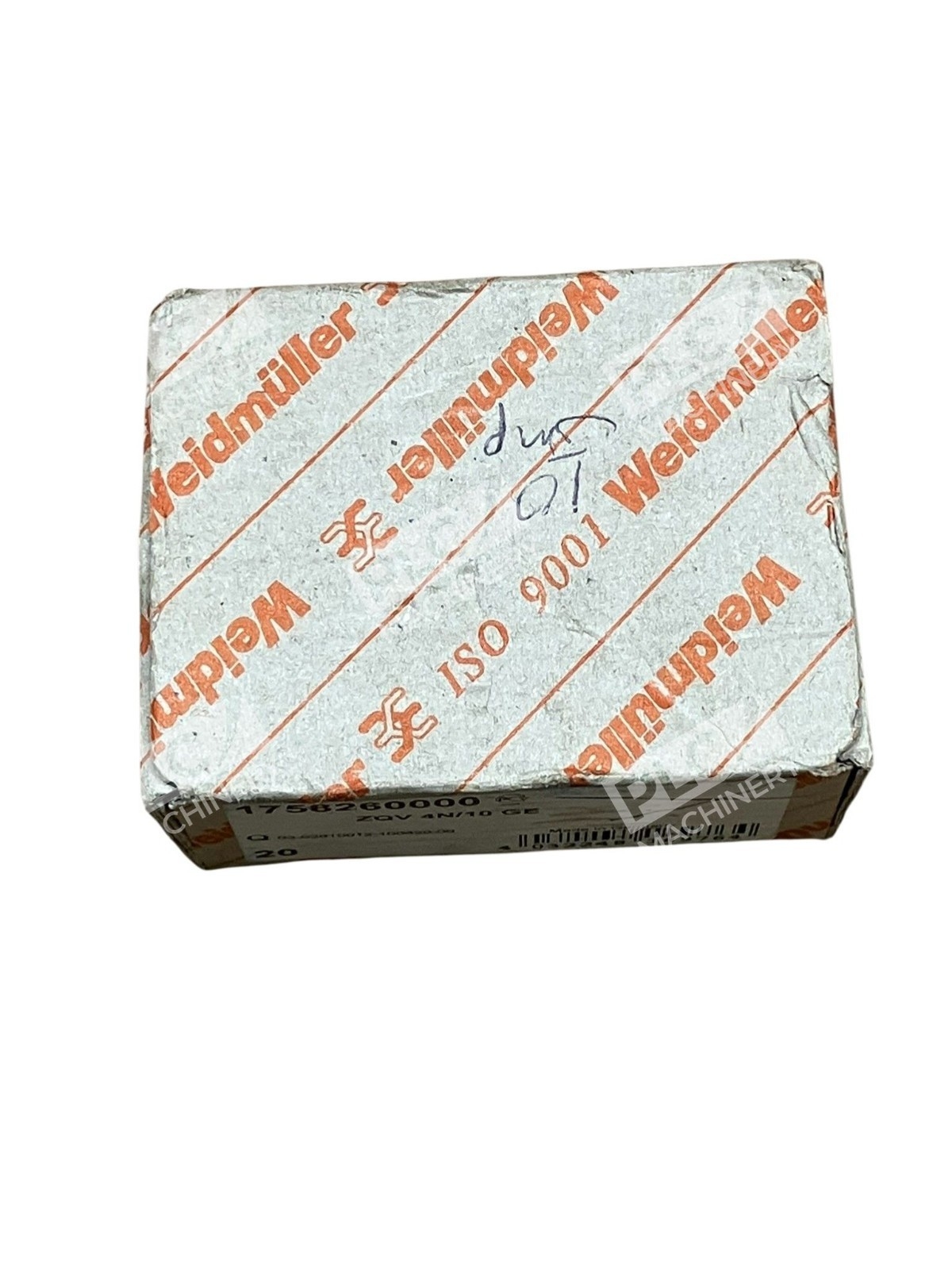

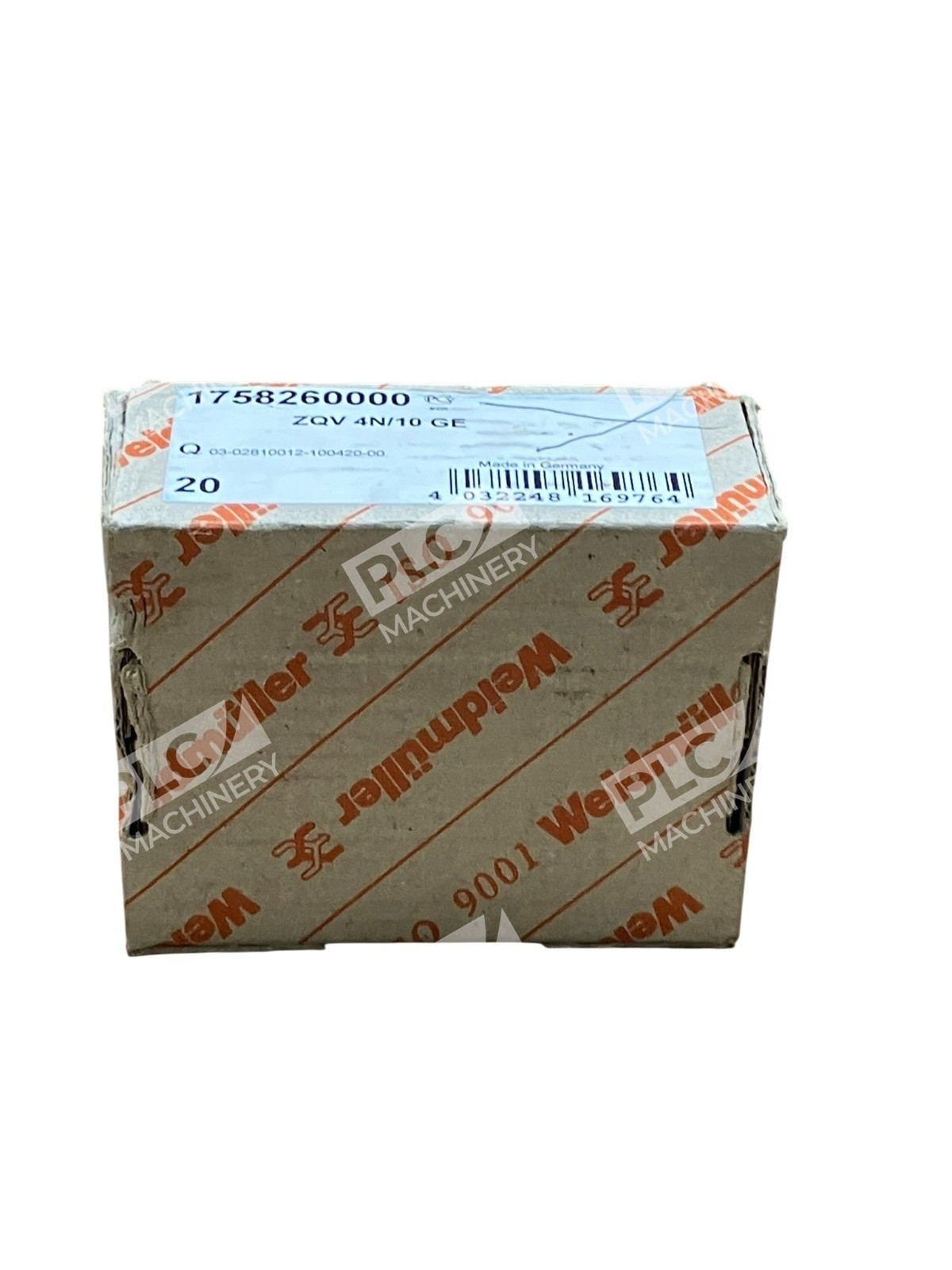

- Package Quantity: 20 units per box
Typical Applications
Cross-connector jumpers are essential for parallel circuit interconnections in industrial control and power distribution systems. Typical uses include:
- PLC and industrial automation control cabinets
- Motor starter and protection circuits
- Signal distribution and switching networks
- Power plant and chemical plant instrumentation
- Machine tool and CNC control panels
- Railway and heavy transport systems
Compatibility & Replacements
Compatible With
- Weidmüller WDK 4N terminal blocks (all pole counts)
- Weidmüller WDK 4NV pluggable terminal blocks
- DIN-43650 style industrial control systems
- 6.1mm pitch rail-mounted terminal block systems
- Industrial automation control cabinets and enclosures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The ZQV 4N/10 GE is a yellow-colored variant of the ZQV 4N/10 cross-connector family. Related color variants include ZQV 4N/10 BL (blue, 1528230000), ZQV 4N/10 BK (black, 2810830000), and ZQV 4N/10 RD (red, 2460740000).
Works With
- Weidmüller WDU series pluggable terminal blocks
- Weidmüller Z-series modular terminal block systems
- Standard DIN rail-mounted control systems
- Industrial control cabinets operating −60 °C to +130 °C
