Overview

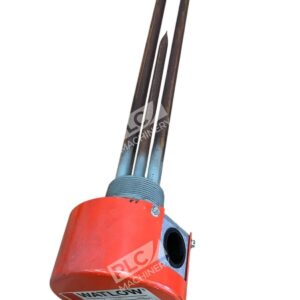

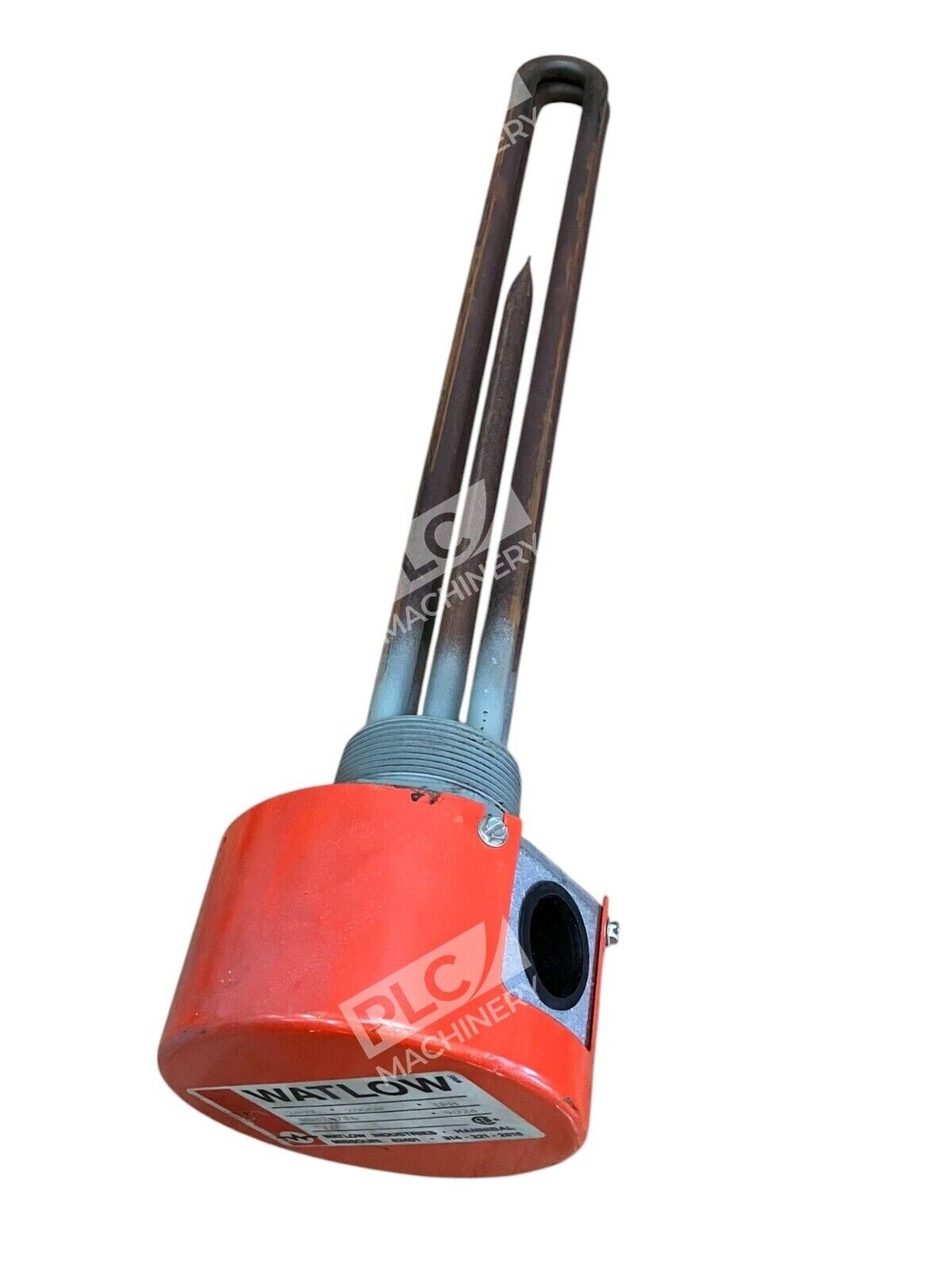

The Watlow BGS717J6 is a screw plug immersion heater rated at 2000W (2.0 kW) at 240V single-phase. This unit is engineered for direct immersion heating in tanks and vessels containing oils, heat transfer fluids, and similar process solutions. The heater features a hairpin-bent heating element that is welded or brazed into a steel screw plug, providing durable, reliable performance in industrial applications.
Key Features
- 2000W heating capacity at 240V, single-phase operation
- Screw plug design for direct immersion in tanks and vessels
- Hairpin-bent heating element for efficient heat transfer
- Steel screw plug construction compatible with oils and heat transfer fluids
- General purpose terminal enclosure standard; optional moisture and explosion-resistant enclosures available
- Optional thermostat for process temperature regulation
Technical Specifications

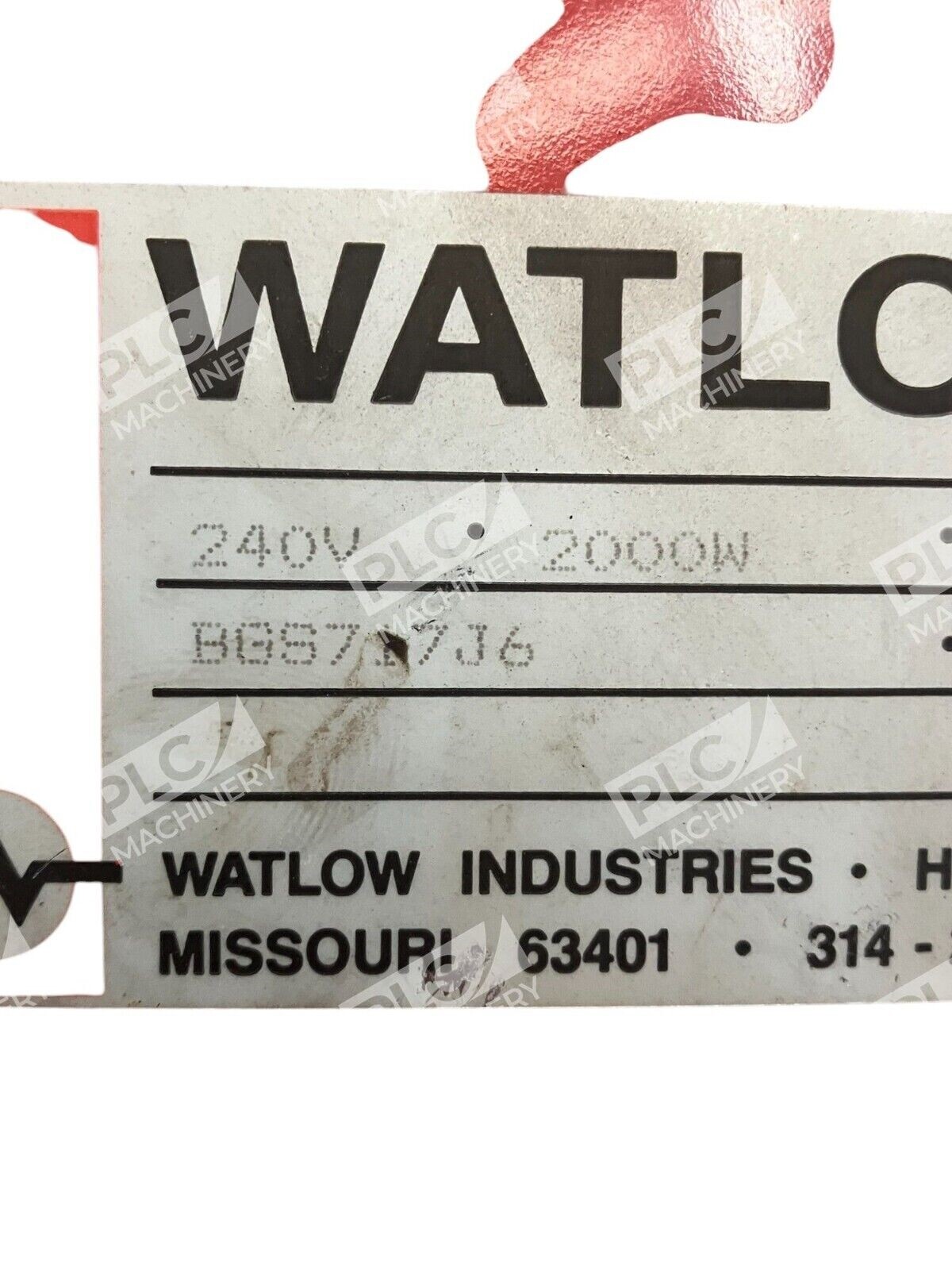

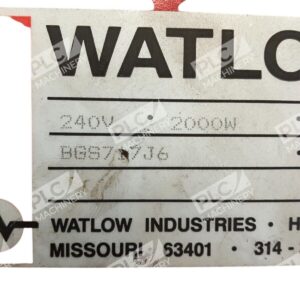

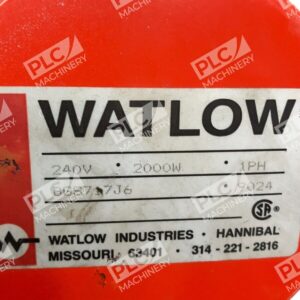

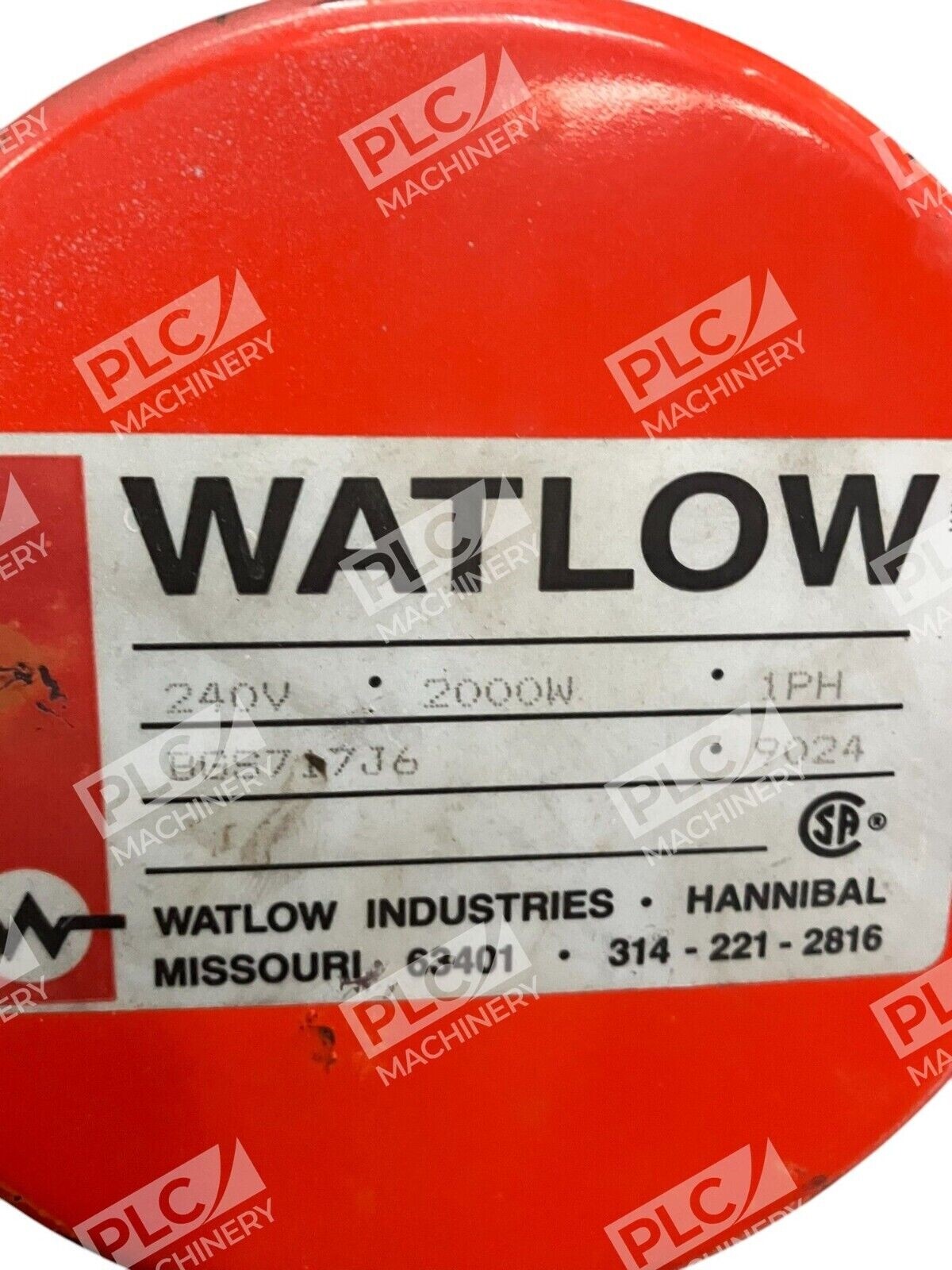

- Power Rating: 2000W (2.0 kW)
- Voltage: 240V
- Phase: Single-phase (1PH)
- Type: Screw Plug Immersion Heater
- Element Design: Hairpin-bent WATROD tubular element
- Plug Material: Steel
- Heating Medium: Oils, heat transfer fluids, industrial liquids
- Terminal Enclosure: General purpose (standard); moisture and explosion-resistant options available
- Thermostat: Optional Type J or K thermocouple
- Mounting: Vertical or horizontal per tank configuration
Typical Applications
- Industrial tank and vessel heating systems
- Heat transfer fluid circulation systems
- Lightweight oil heating applications
- Process liquid temperature control in manufacturing
- Custom heating solutions for high-volume industrial processes
- Equipment requiring precise immersion heating with optional thermostat control
Compatibility & Replacements
Compatible With
- Industrial tank and vessel systems
- Watlow optional thermostat assemblies (Type J and K)
- Custom CSA-certified enclosures for hazardous locations
- Standard NPT screw plug connections
- Direct mounting in tanks with vertical or horizontal orientation
Replaces / Drop-In Replacement For
- Other 2.0 kW, 240V single-phase Watlow screw plug models in the BGS series (verify exact specifications with Watlow or your distributor)
- Verify compatibility with your system integrator before ordering to ensure proper fit and electrical configuration
Works With
- Watlow temperature control systems and controllers
- Type J and K thermocouple temperature sensors
- Industrial process control and automation platforms
- Hazardous location enclosures (Class I, Division 1/2 on request)
- Custom pressure vessel installations (ASME certification available)
