Overview

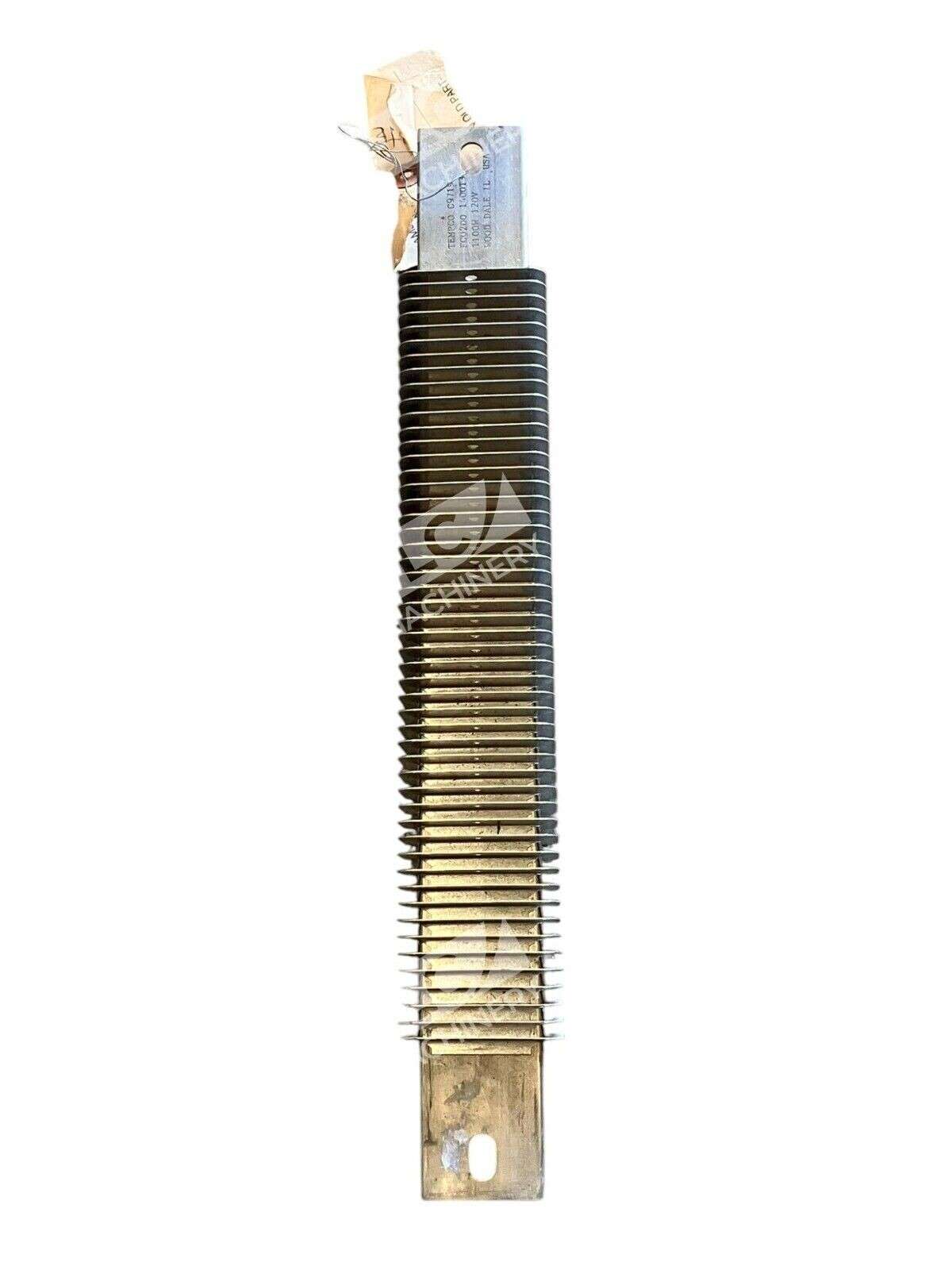

The Tempco FC0200 1400T3 finned strip heater is a high-efficiency industrial heating element rated at 1100W and 120V. This 14-inch finned strip design maximizes surface area for uniform heat distribution, making it ideal for process heating, equipment enclosure temperature control, and industrial machinery applications. The aluminum fins enhance convective heat transfer efficiency compared to bare-element heaters.
Key Features
- 1100W power rating for direct-connect 120V single-phase circuits
- Finned aluminum design for enhanced heat dissipation and efficiency
- 14-inch active heating length
- Compact form factor suitable for mounting in tight spaces
- Industrial-grade stainless steel sheath for corrosion resistance
- Drop-in replacement for compatible Tempco heating series
Technical Specifications
The unit operates at 120V AC, single-phase input with a 1100W heating capacity. The finned element design employs high-grade stainless steel construction (SS283 or equivalent) bonded to aluminum fins for durability in industrial environments. Overall weight is approximately 2 lbs, with a compact profile suitable for duct heating, cabinet heating, and air-handling applications.
Typical Applications
- Process air heating and ductwork temperature control
- Industrial equipment enclosure climate control
- Heating blanket and pad assemblies
- Emergency heating systems for machinery protection
- Laboratory and test equipment heating
- Supplemental heating in HVAC systems
Compatibility & Replacements
Compatible With
- Standard 120V AC single-phase electrical circuits (15-20A rated breakers recommended)
- Industrial temperature control systems and proportional heater controllers
- Duct-mounted or immersion heating applications
- Thermostatic control panels and solid-state relays
- HVAC equipment and air handler assemblies
Replaces / Drop-In Replacement For

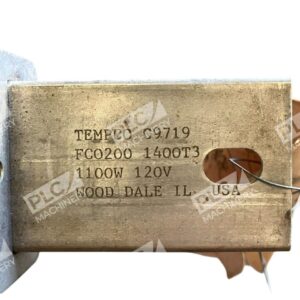

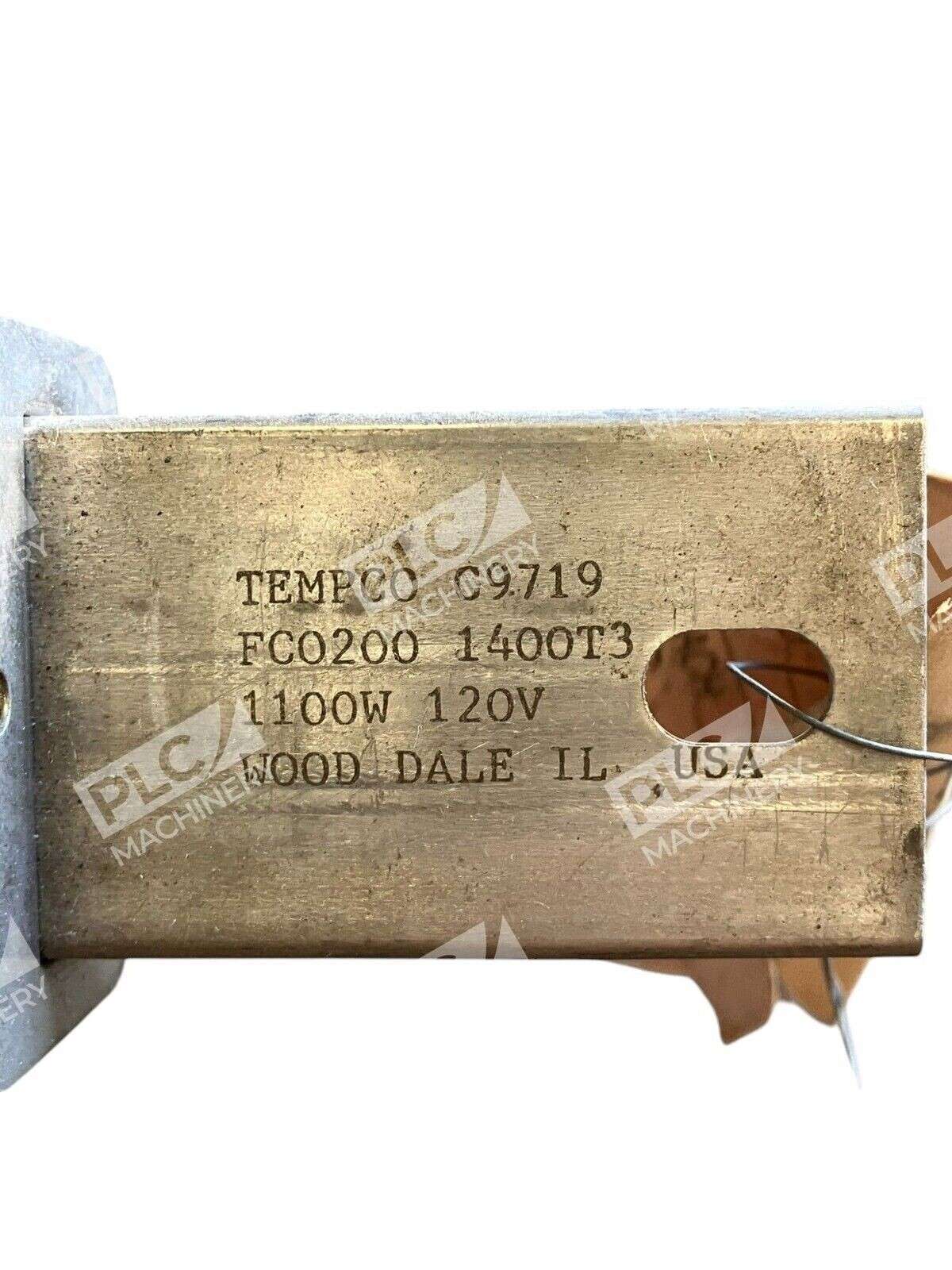

The FC0200 1400T3 directly replaces other Tempco finned strip heaters in the FC0200 series with equivalent 1100W 120V ratings. Cross-reference part number C9719 identifies alternate catalog variations. Verify screw-down terminal configuration matches your existing installation before ordering.
Works With
- Standard 120V control circuits with manual or automatic thermostats
- Proportional heater controllers (0–10V or 4–20mA input)
- Contactor-based switching and soft-start modules
- Temperature sensors and thermostat assemblies
- Industrial PLC-based heating management systems
