Overview

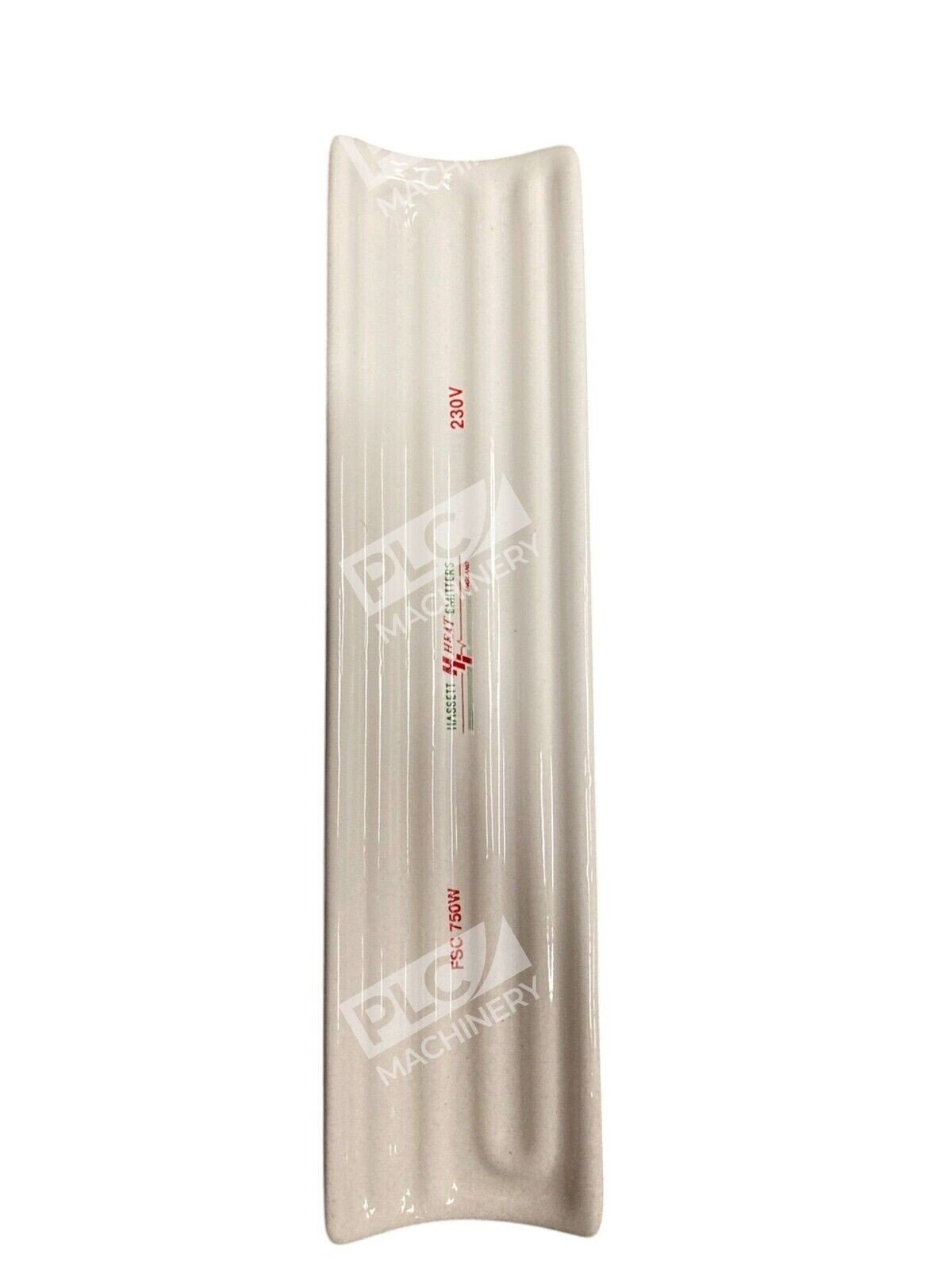

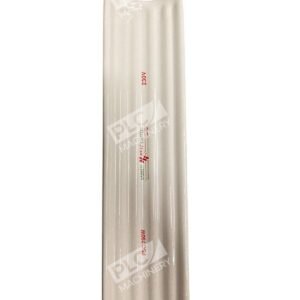

The Hassett FSC 750W 230V ceramic heating element is a robust infrared heater built for demanding industrial environments. This ceramic-based component combines a nichrome resistance wire with a ceramic substrate to deliver reliable, consistent radiant heat at 750 watts. The 230V single-phase design makes it suitable for factory floors, workshop heating systems, and portable thermal equipment where 230VAC supply is available.
Key Features
- 750-watt power output at 230V single-phase supply
- Ceramic substrate with embedded resistance wire for long operational life
- Efficient infrared emission ideal for non-contact heating applications
- Industrial-grade construction for high-temperature environments
- Compact form factor suitable for space-constrained mounting
Technical Specifications
- Power Rating: 750W
- Voltage: 230V AC, single-phase
- Element Type: Ceramic with resistance wire
- Operating Wavelength Range: Medium to long-wave infrared
- Typical Operating Temperature: 300°C to 750°C
- Expected Service Life: 5,000 to 10,000 operating hours
- Heat Transfer Method: Infrared radiation
Typical Applications
- Thermoforming and plastic heating
- Thermal processing and curing
- Non-contact material drying
- Industrial spot heating and localized heat treatment
- Infrared heating systems and radiant ovens
- Food warming and commercial heating equipment
Compatibility & Replacements
Compatible With
- 230V single-phase AC power supplies
- Industrial thermal control systems
- Thermally insulated heating enclosures and chambers
- Standard socket and bracket mounting hardware
- Temperature monitoring systems with or without integral thermocouples
Replaces / Drop-In Replacement For
- Other 750W 230V ceramic heating elements in similar FSC form factor
- Compatible with equivalent infrared heating element sizes (245×60mm standard dimension)
- Verify compatibility with your system integrator before ordering for specific applications.
Works With
- Industrial temperature controllers and PID systems
- Stand-alone thermal control relays
- Type K and Type J thermocouple monitoring (if equipped)
- Standard electrical contactors and circuit protection
