Overview

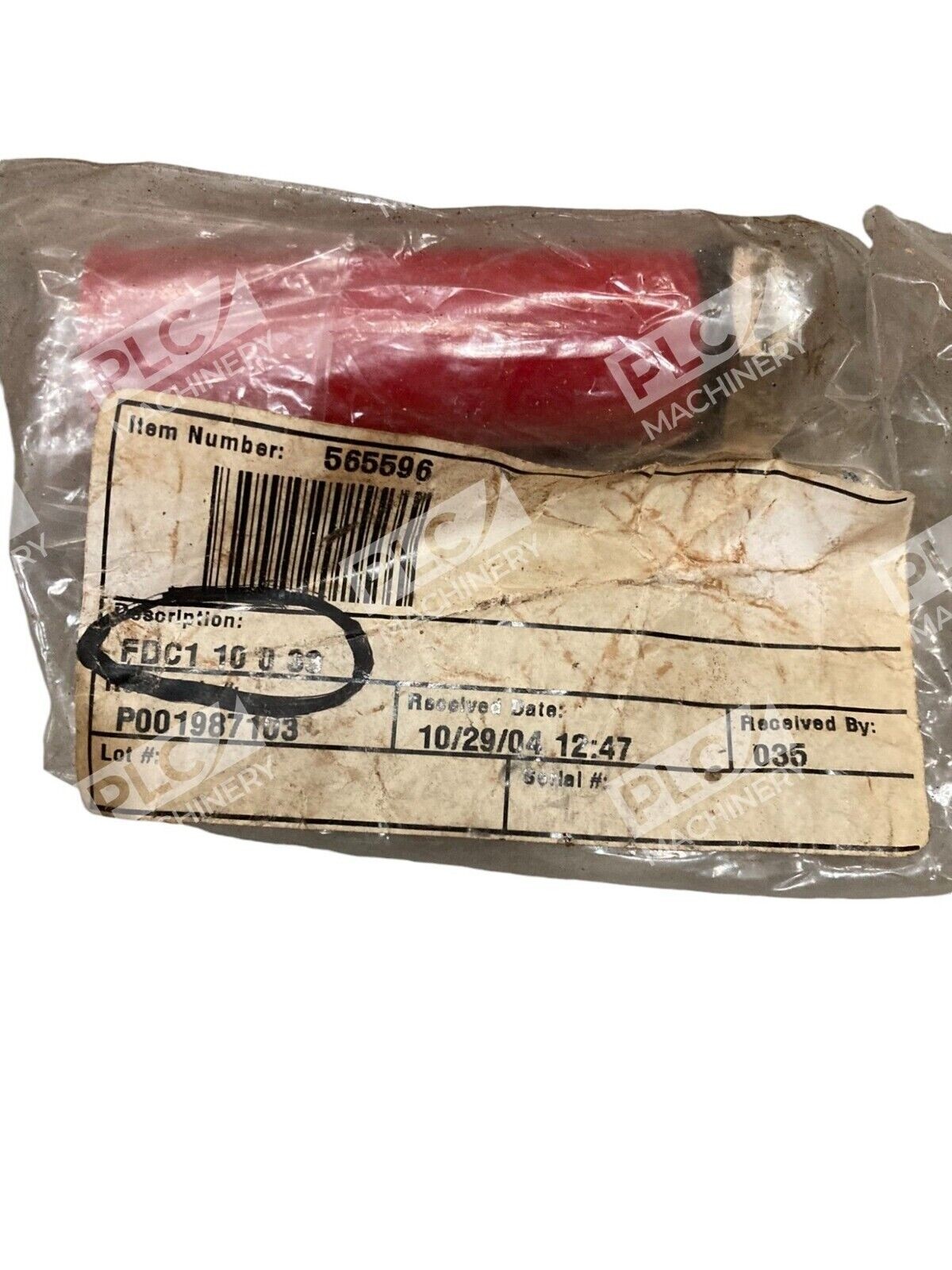

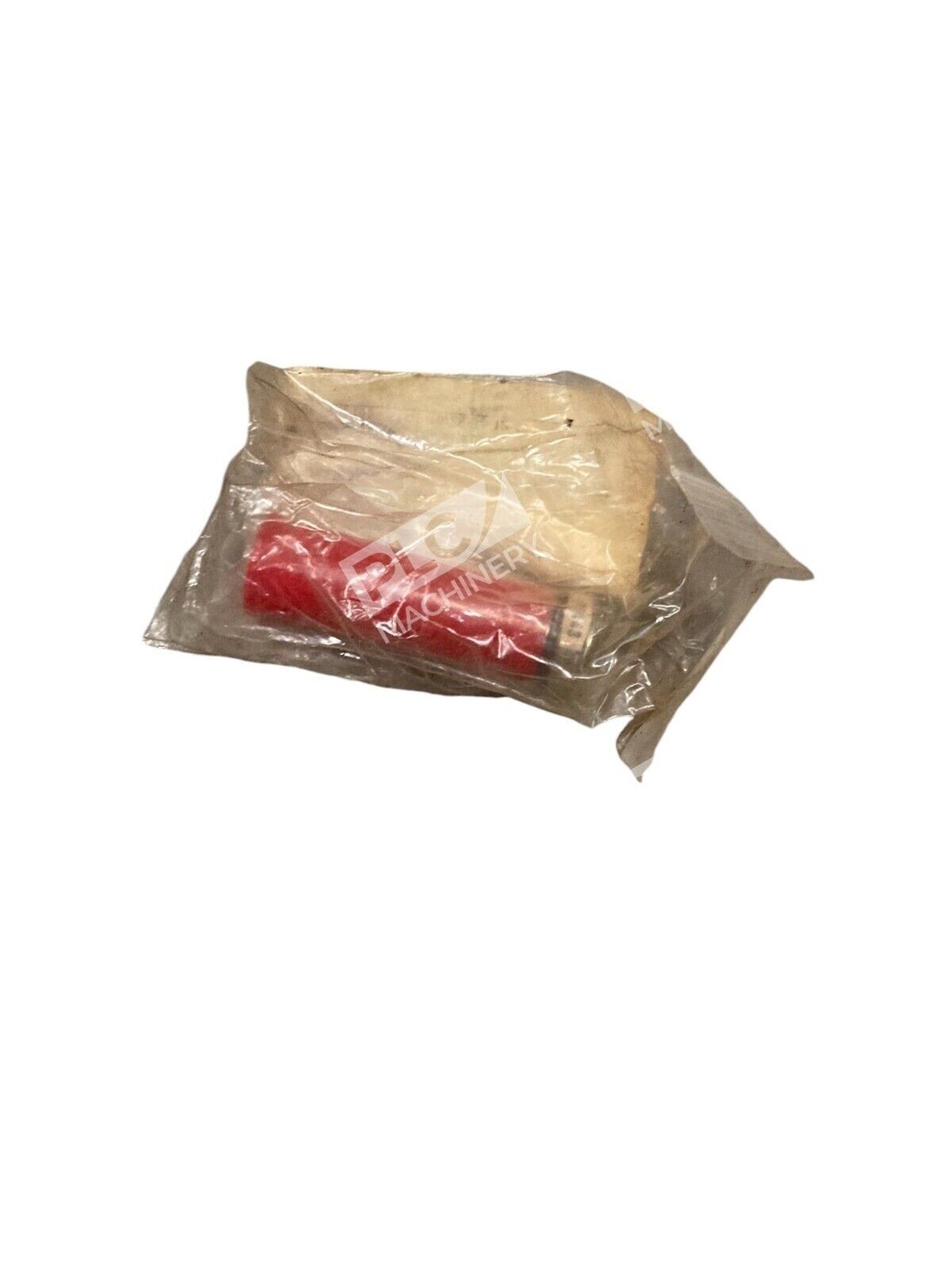

The Vickers FDC1-1-033 is a screw-in cartridge valve engineered for flow division and pressure-balanced operation in hydraulic circuits. Manufactured by Eaton (formerly Vickers), this compact, modular unit features ISO 7368 (DIN 24342) compliance and operates reliably at pressures up to 210 bar (3000 psi). The FDC1-1-033 is commonly specified in mobile equipment, industrial machinery, and OEM hydraulic systems where precise flow metering and load sensing are critical.
Key Features
- Pressure-compensated spool design — Maintains consistent flow output regardless of load variations
- ISO 7368 screw-in cartridge construction — Modular design allows integration into existing manifold systems
- Maximum operating pressure: 210 bar (3000 psi)
- Flow control functions — Supports flow division, load-sensing, and pressure-balanced applications
- Compact footprint — Reduces manifold size and system weight
- Durable construction — Proven performance in demanding hydraulic environments
Technical Specifications
| Manufacturer | Eaton (Vickers) |
| Part Number | FDC1-1-033 |
| Alternate Part Number | 565596 |
| Valve Type | Screw-in Cartridge Valve |
| Function | Flow Control / Flow Divider |
| Maximum Pressure | 210 bar (3000 psi) |
| Design Standard | ISO 7368 (DIN 24342) |
| Cavity Size | Size 10 (1 inch nominal) |
| Flow Rating | Dependent on specific configuration code |
| Series | FDC1 (Eaton Screw-in Cartridge) |
| Port Configuration | Screw-in (SAE or ISO cavity mount) |
Typical Applications
- Mobile hydraulic systems (excavators, wheel loaders, agricultural equipment)
- Industrial machine tool hydraulics
- Flow division in dual-circuit brake systems
- Load-sensing and pressure-balanced actuation
- OEM manifold integration for compact system design
- Mining and construction equipment hydraulics
Compatibility & Replacements
Compatible With
- Eaton / Vickers screw-in cavity manifolds (ISO 7368 standard)
- SAE 12 and ISO NG10 (CETOP 05) manifold blocks
- Hydraulic systems rated 210 bar (3000 psi) maximum
- Load-sensing pump systems with pressure-compensated control
- Both industrial and mobile hydraulic circuits
Replaces / Drop-In Replacement For
- Verify with your system integrator or original equipment documentation. The FDC1-1-033 is a specific cavity and configuration variant; confirm port assignments and flow rates match your application before substituting any cartridge valve.
Works With
- Eaton / Vickers proportional and directional control systems
- Load-sensing hydraulic pump controls
- Pilot-operated cartridge valve manifold stations
- Standard ISO 7368 screw-in cavity test ports and instrumentation
- Hydraulic fluid compatible with standard industrial mineral oil (ISO VG 32–46)
