Overview

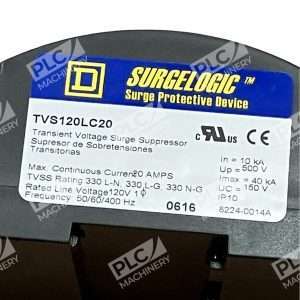

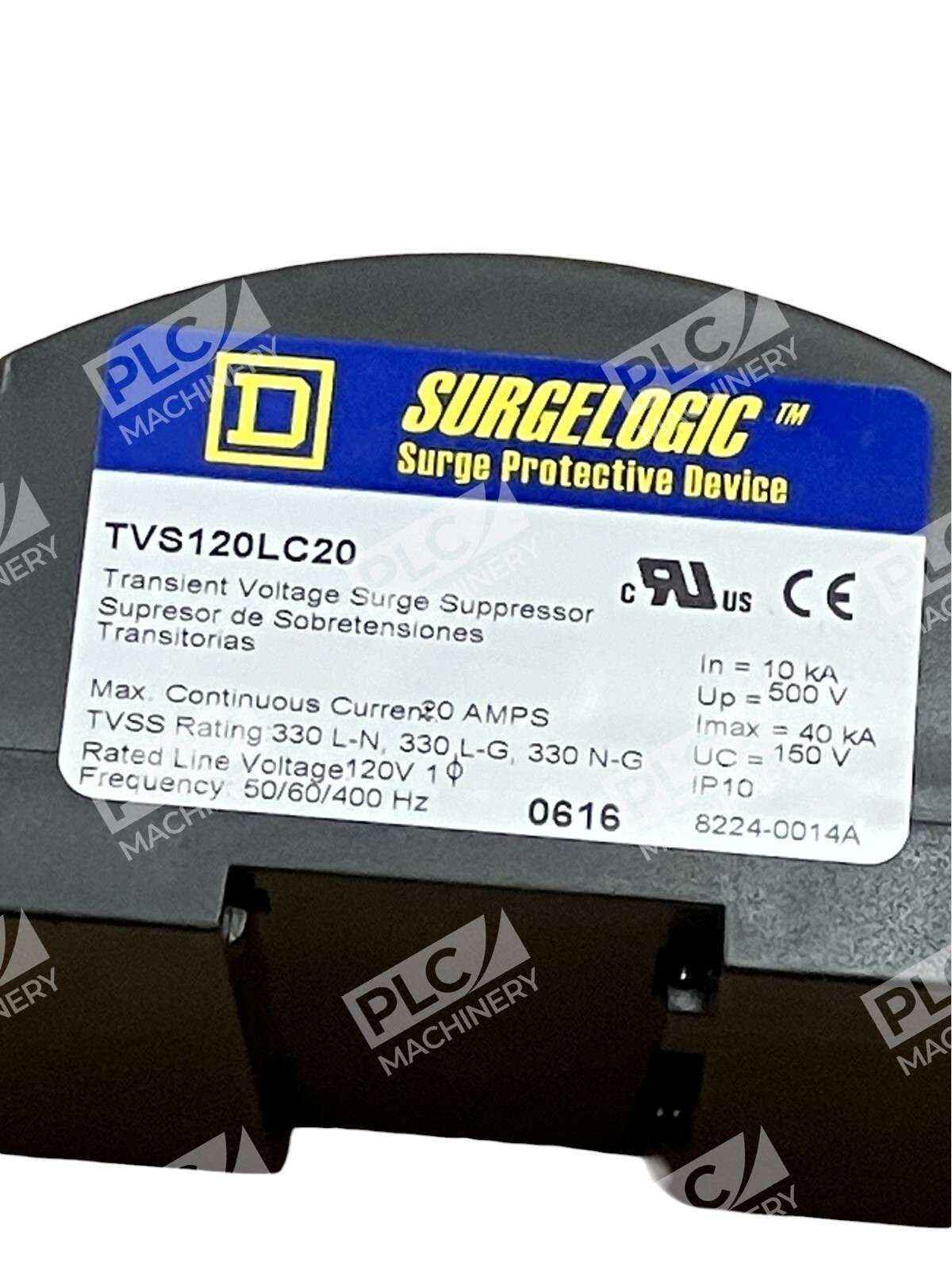

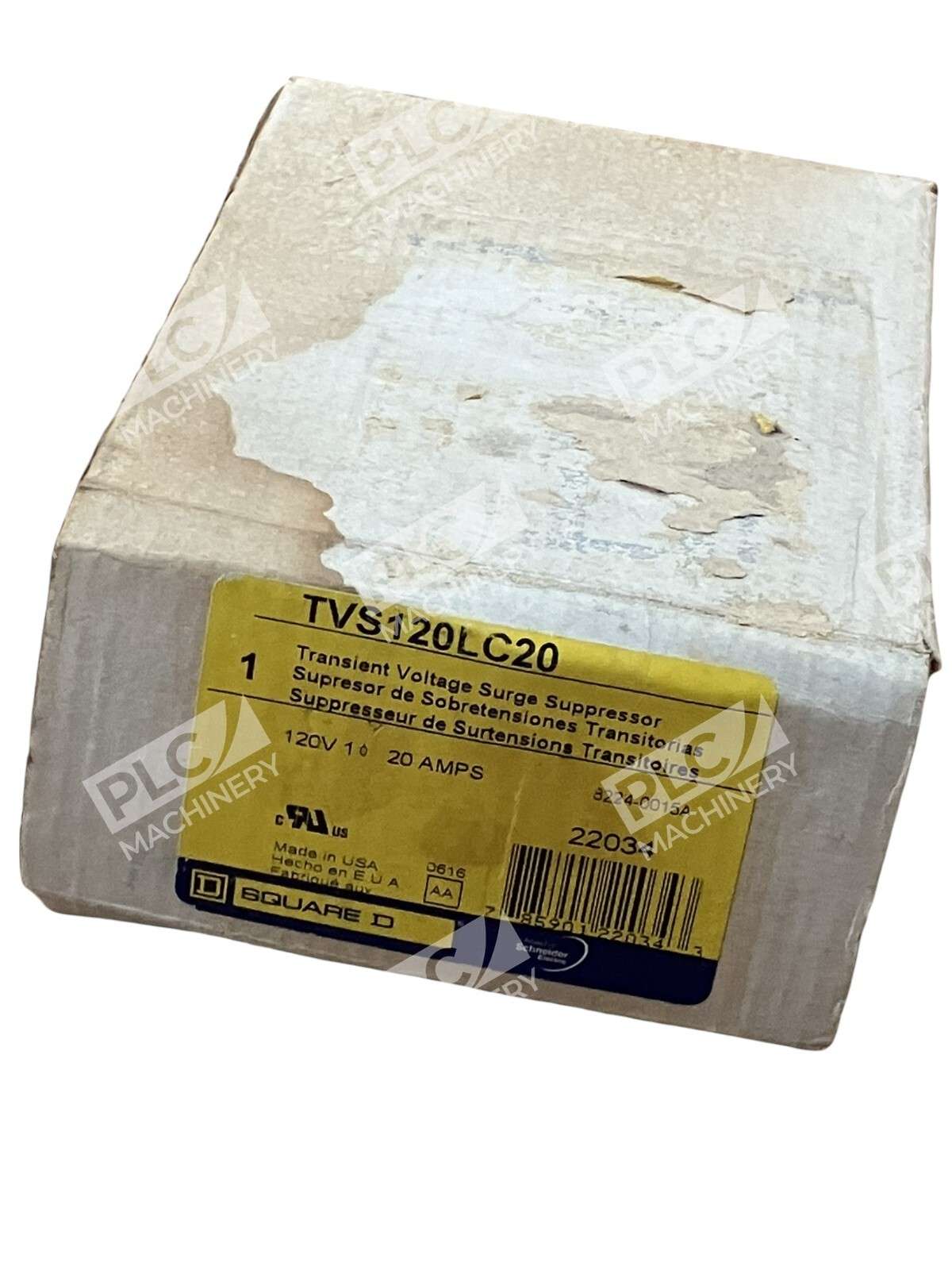

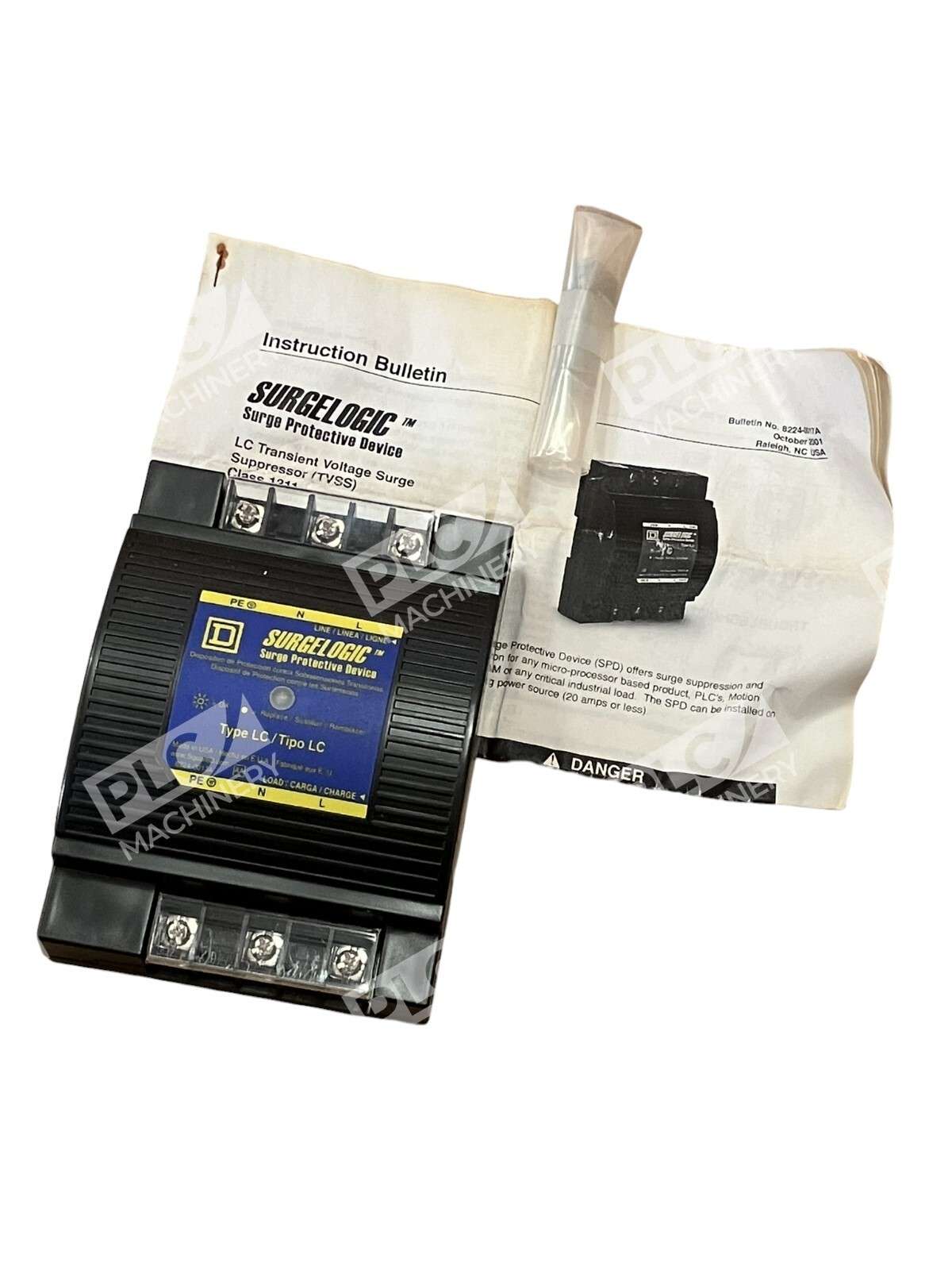

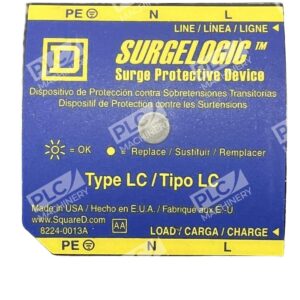

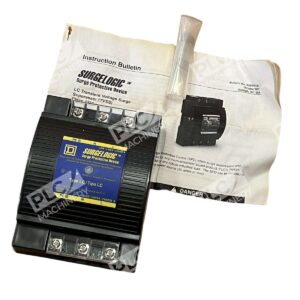

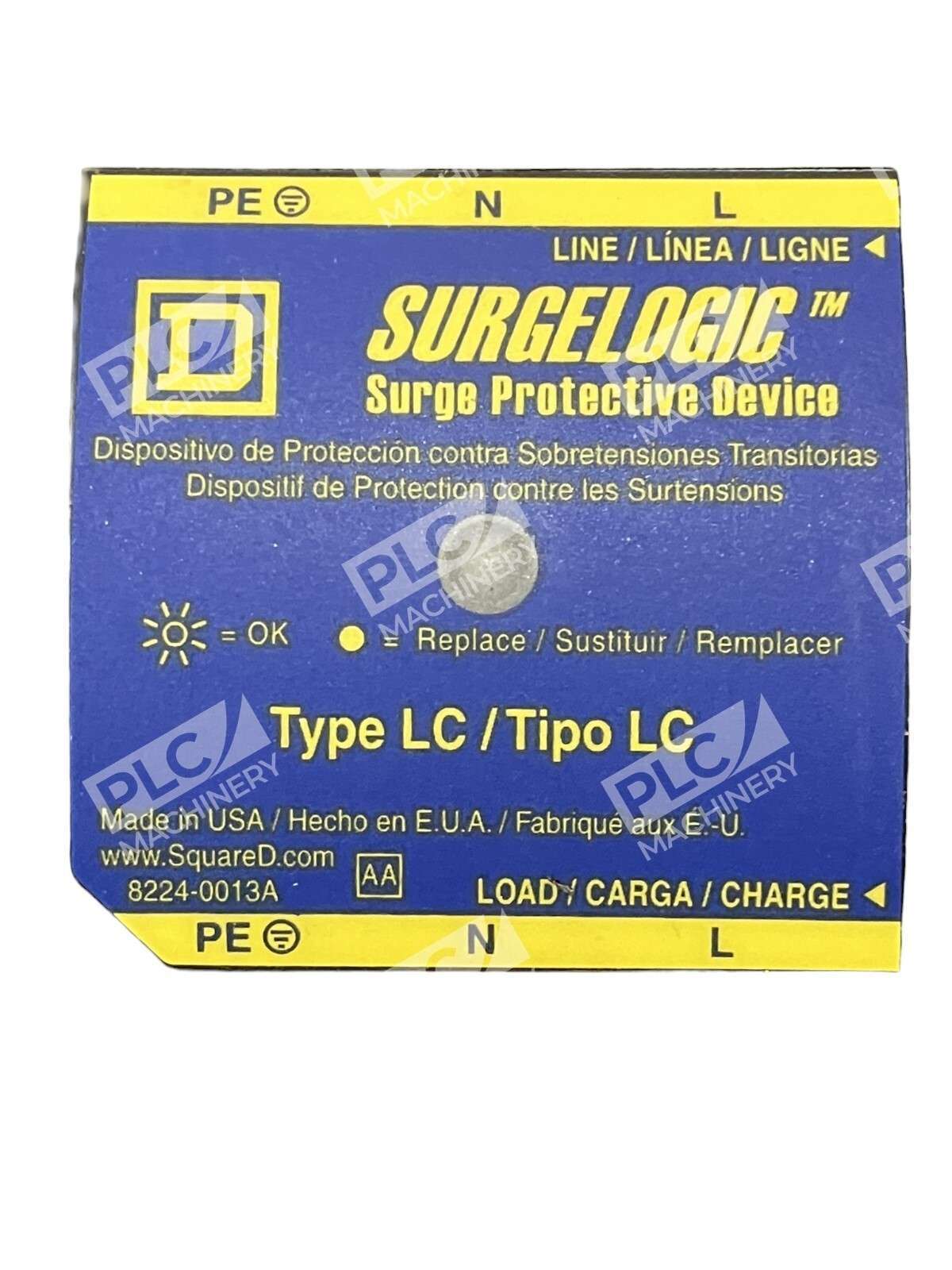

The Square D TVS120LC20 Surgelogic Transient Voltage Surge Suppressor (TVSS) is a single-phase surge protective device (SPD) designed to shield microprocessor-based equipment, PLCs, motion controllers, and industrial instrumentation from transient overvoltages. The LC Series is a surge protection filter that offers high-quality surge protection and noise filtration, and can be connected to the incoming power source (20 A or less) to protect the control panel components from the outside environment.
Key Features
- Series Hybrid Protection: Uses series hybrid circuit type with three surge suppression paths (line-to-neutral, line-to-ground, neutral-to-ground)
- High Surge Current Rating: 40 kA maximum surge current capacity
- Compact Type 1 Enclosure: Type 1 enclosure design with 1 lb product weight
- Flexible Connection Options: Spade lug terminals sized for 22 to 12 AWG wire and DIN rail or flange mounting
- Industrial-Grade Protection: Ideal for panel builders as well as manufacturers and integrators of instrumentation cabinets for industrial, medical, and commercial applications
Technical Specifications
- Rated Load Current: 20 A
- Nominal Line Voltage: 120 VAC
- Maximum Surge Current: 40 kA
- Circuit Type: Series Hybrid

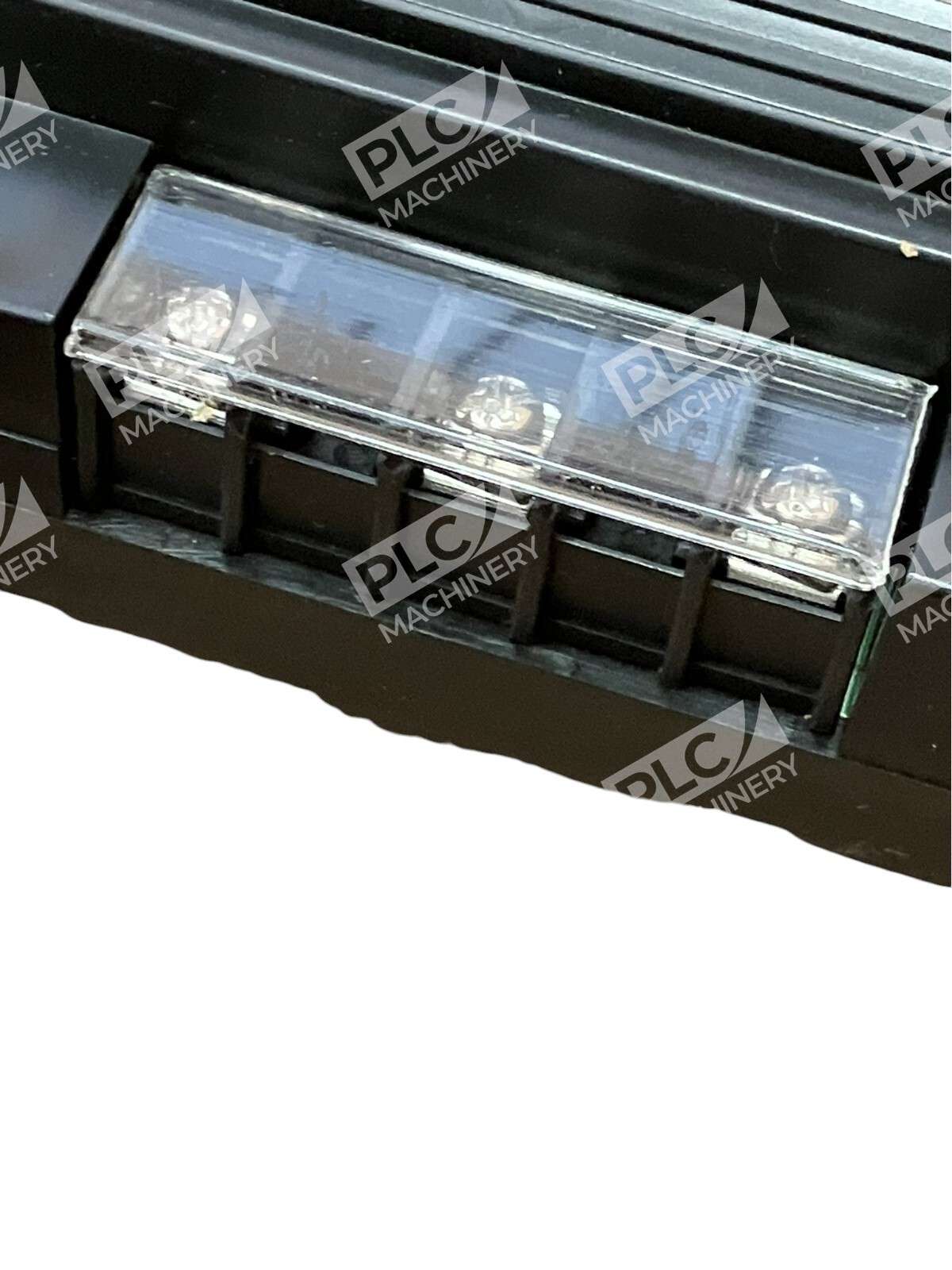

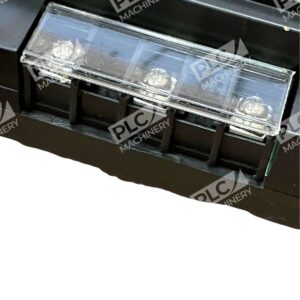

- Connection Method: Terminals/Spade lugs
- Wire Gauge: 22 to 12 AWG
- Terminal Capacity: 22 to 14 AWG Stranded
- Terminal Torque: 30 lb-in (3.39 N•m)
- Enclosure Type: Type 1
- Mounting: DIN rail or flange mounting
- Product Weight: 1 lb
Typical Applications
The TVS120LC20 is suitable for single-phase 120V control circuits requiring surge protection up to 20 A. Common applications include:
- Programmable Logic Controller (PLC) protection
- Motion control and servo drive circuits
- Industrial instrumentation and measurement systems
- Commercial lighting and power distribution panels
- OEM equipment integration and panel-mount installations
Compatibility & Replacements
Compatible With
- Single-phase 120 VAC control systems
- Industrial control panels and enclosures
- DIN rail and flange-mounted panel configurations
- PLCs and microprocessor-based equipment
- Industrial and commercial electrical distribution systems
Replaces / Drop-In Replacement For
The TVS120LC20 is part of the Square D Surgelogic LC Series. Verify compatibility with your system integrator or panel design before ordering, as direct drop-in replacements depend on mounting style and circuit configuration.
Works With
- Square D control panels and enclosures
- Standard 120 VAC industrial power systems
- DIN rail-mounted control equipment
- Flange-mounted panel installations
- Industrial cabinet wiring and termination systems
