Overview

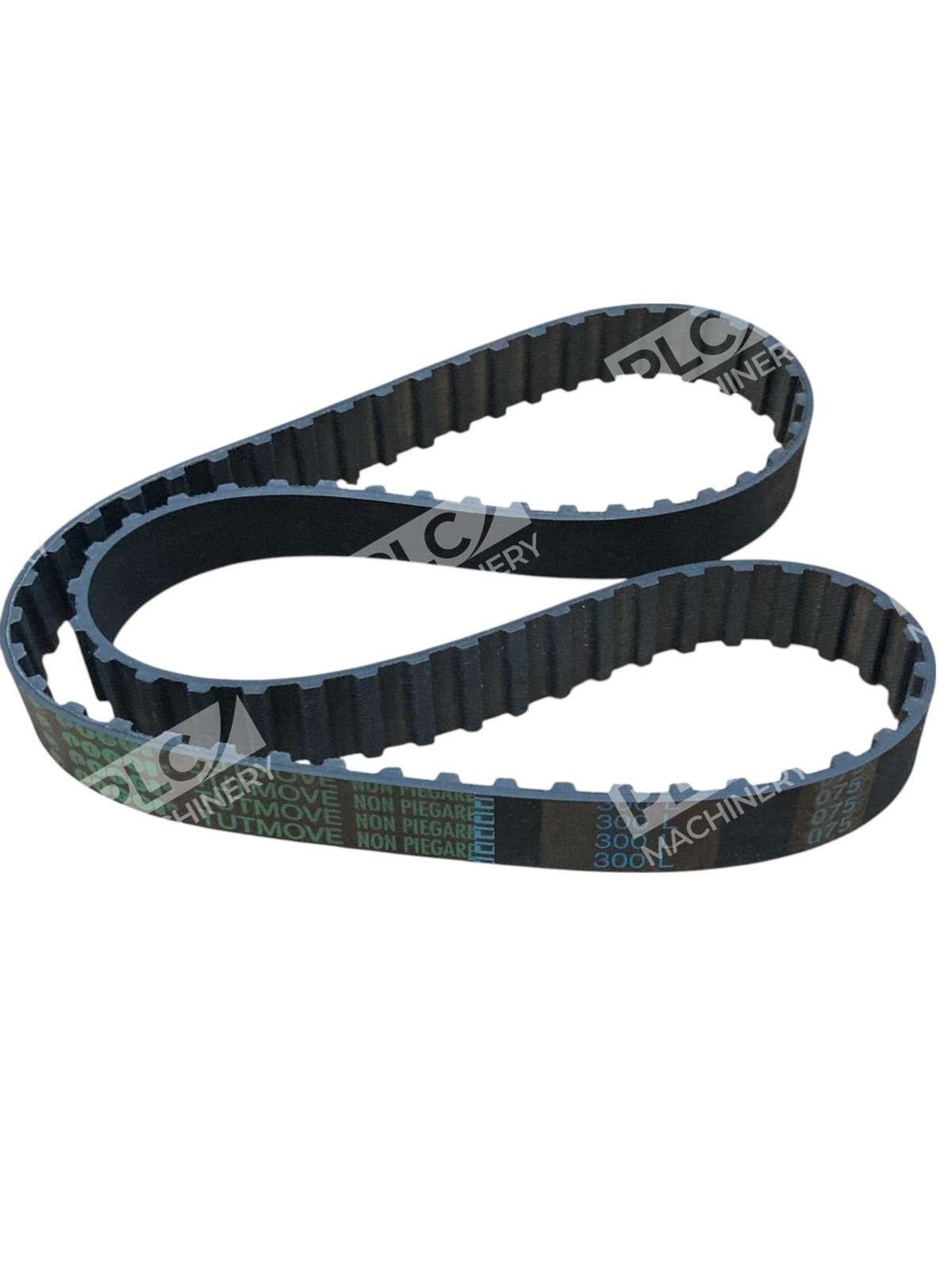

The Poggi 300L075 is a precision-engineered L-series timing belt designed for synchronous power transmission in industrial automation, manufacturing equipment, and mechanical drive applications. This closed-loop timing belt combines durability with low-maintenance operation, making it an economical alternative to chain drives while delivering consistent, slip-proof engagement across a range of industrial machinery.
Key Features
- Neoprene Construction: Resistant against grime, grease, oil, and moisture, enhancing the belt’s longevity
- Fiberglass Reinforcement: Fiberglass tensile cords deliver high strength, excellent flex life, and minimal elongation over time
- Trapezoidal Tooth Profile: Well-suited for positioning applications and ensuring positive, slip-proof engagement
- Maintenance-Free: Eliminates the need for lubrication and re-tensioning, reducing maintenance time and costs
- Precision Ground Backing: Ensures smooth, uniform running with minimal vibration
Technical Specifications
- Pitch Length (Nominal): 30 inches (762 mm)
- Belt Width: 3/4 inch (19.05 mm)
- Pitch: 3/8 inch (0.375″)
- Number of Teeth: 80
- Belt Height: 0.14 inch (3.6 mm)
- Tooth Height: 0.075 inch (1.9 mm)
- Weight: 0.11 lb
- Belt Material: High-temperature chloroprene polymer (neoprene)
- Reinforcement: Fiberglass tensile cord
- Operating Temperature Range: −30°C to +90°C
- Profile Type: L-series trapezoidal tooth
Typical Applications
The Poggi 300L075 is well-suited for:
- Industrial automation and conveyance systems
- Precision machinery and light-load positioning
- Power tools, woodworking equipment, and lathes
- Printing and sorting machines
- Pump and motor drive systems
- Low-speed, high-torque mechanical transmission
Compatibility & Replacements
Compatible With
- Standard L-series timing pulleys (9.525 mm / 0.375″ pitch)
- Industrial equipment designed for 3/4″ width timing belt drives
- Equipment requiring 30-inch nominal pitch length synchronous belts
- Systems operating within −30°C to +90°C temperature range
Replaces / Drop-In Replacement For
- Goodyear 300L075 OEM timing belts
- Gates 300L075 synchronous drive belts
- Mitsuboshi Belting 300L075 L-series belts
- Standard-duty L-series belts designated 300L075 across manufacturers
Works With
- Any equipment fitted with L-series (9.525 mm pitch) timing pulleys
- Industrial automation platforms requiring synchronous belt drive
- Precision motion control systems and positioning machinery
- Legacy and OEM equipment using standard L-profile timing belts
