Overview

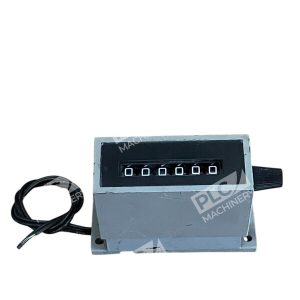

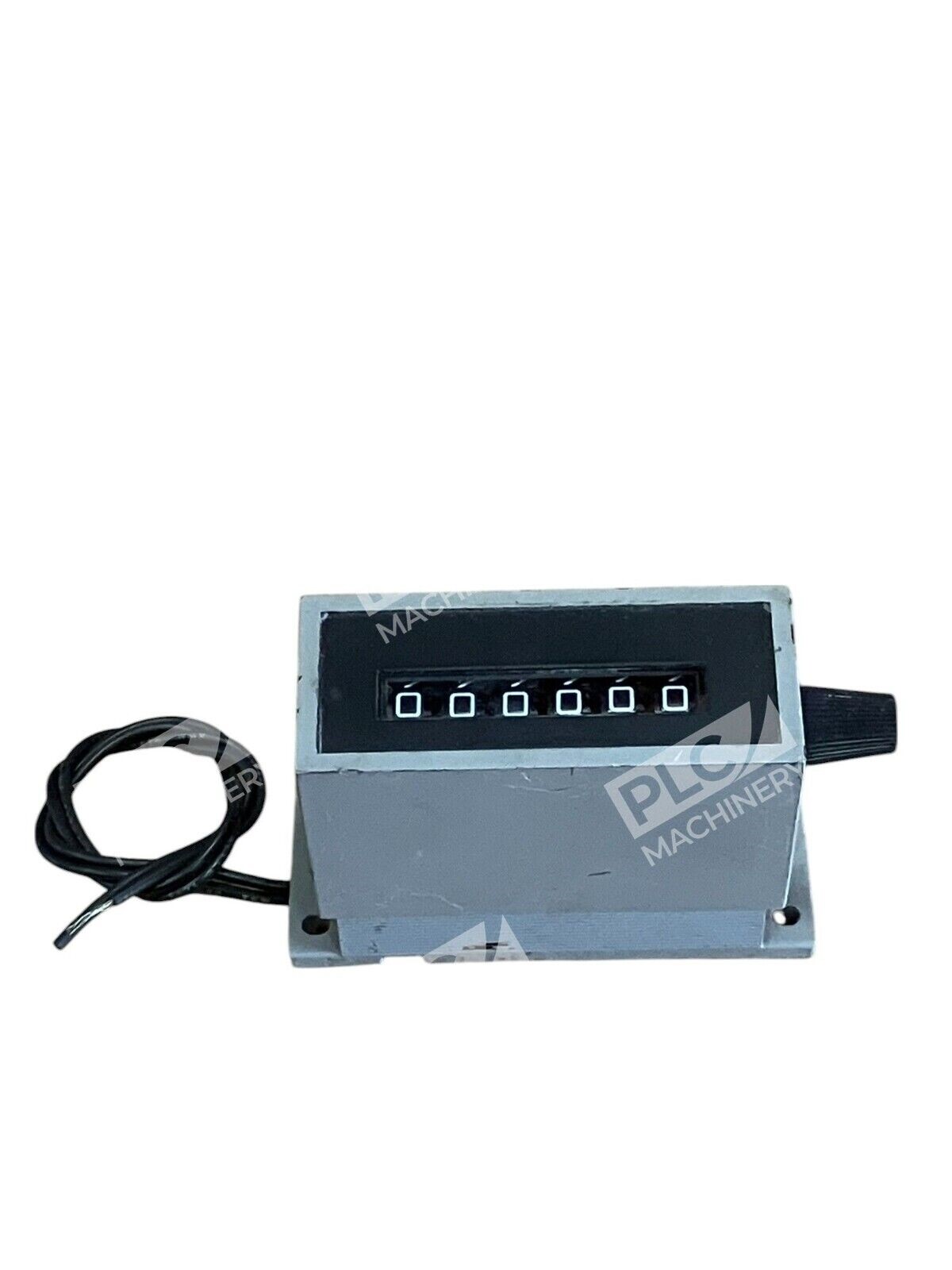

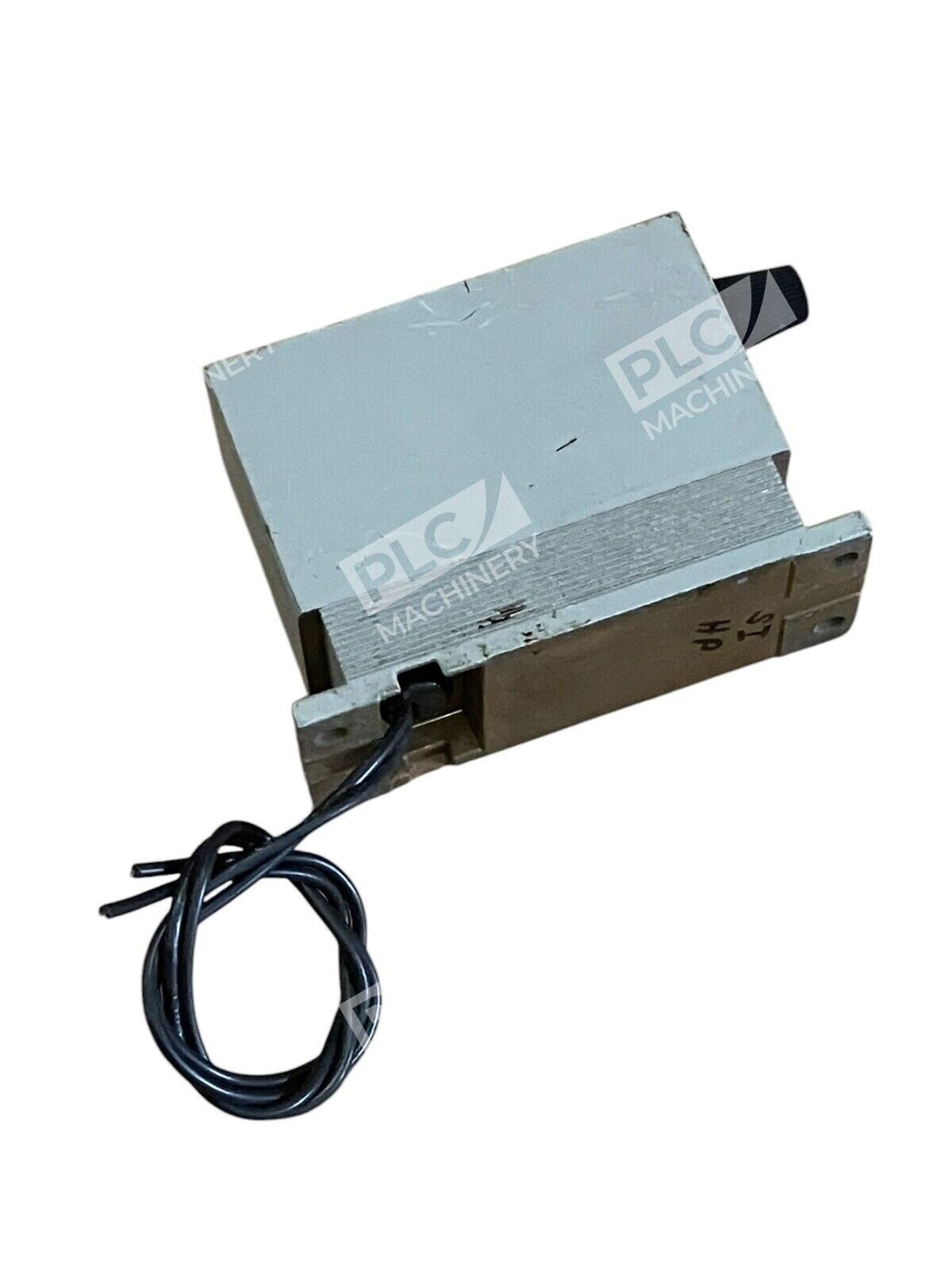

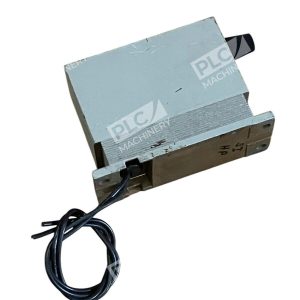

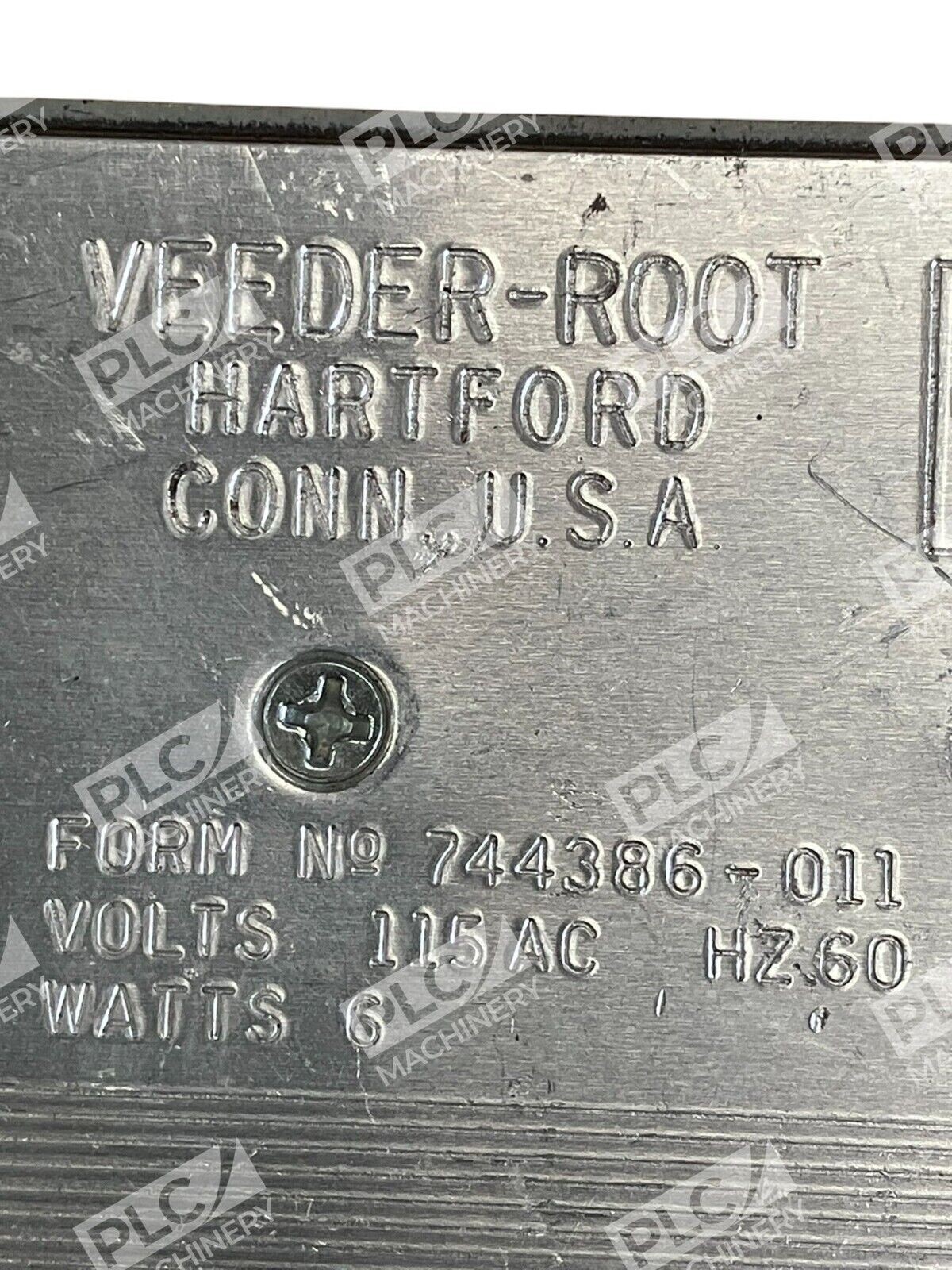

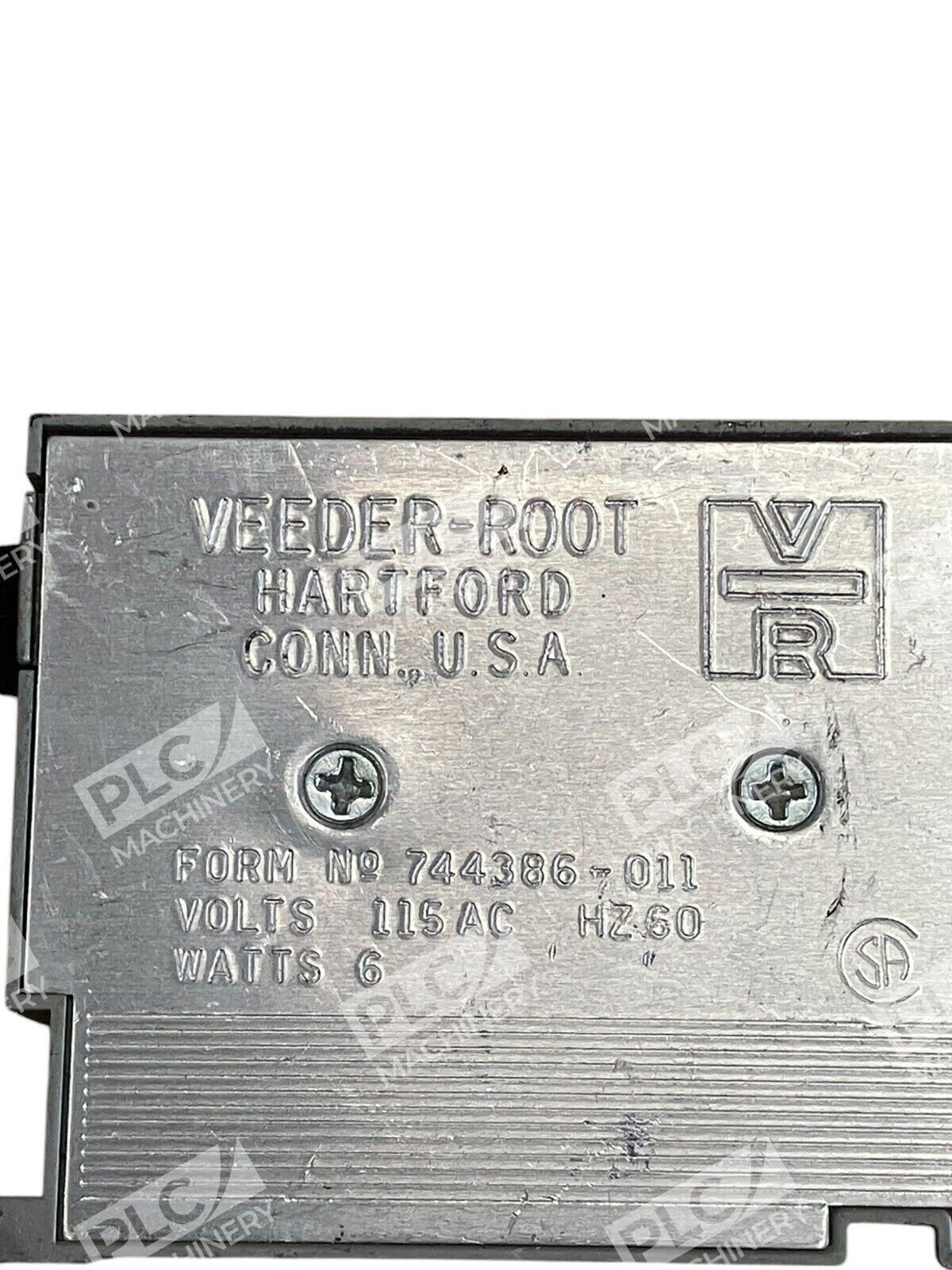

The Veeder Root 744386-011 is a 6-digit base-mount counter engineered for industrial totalization and counting applications. This mechanical and electric counter combines proven reliability with a robust die-cast frame and heavy-duty enclosure that protects internal precision components. The unit operates on 115VAC 60Hz at 6W power consumption and includes a knob reset mechanism for manual counter adjustment.
Key Features
- 6-digit display capacity for high-count applications
- Base-mount configuration with knob reset control
- Precision-wound coil driver—no rectifiers subject to power surges
- Die-cast frame and heavy-duty enclosure for industrial durability
- Suitable for applications with poorly conditioned AC power lines
- UL/CSA certified for North American industrial use
Technical Specifications
- Input Voltage: 115VAC
- Frequency: 60Hz
- Power Consumption: 6W
- Display: 6-digit mechanical
- Reset Type: Knob reset (non-automatic)
- Mounting Style: Base mount
- Enclosure Material: Die-cast aluminum
- Certifications: UL, CSA
- Series: 7443
Typical Applications
The 744386-011 is ideal for production line counting, batch totalization, machinery cycle monitoring, conveyor belt counting, and fluid/material flow measurement in manufacturing and process automation. The robust construction makes it suitable for equipment retrofitting and new industrial installations requiring long-term, maintenance-free operation in electrically noisy environments.
Compatibility & Replacements
Compatible With
- Industrial AC power systems (115VAC 60Hz)
- Mechanical and magnetic counting applications
- Factory automation control circuits requiring pulse counting
- Retrofit installations in legacy manufacturing equipment
Replaces / Drop-In Replacement For
- Earlier Veeder Root 7443 series base-mount counters
- Similar 115VAC 60Hz 6-digit counters from legacy industrial inventory
Works With
- Standard AC power distribution and motor control circuits
- Relay logic and mechanical counting systems
- Magnetic reed switches and proximity-based pulse inputs
- Industrial relay panels and hardwired automation logic
