Overview

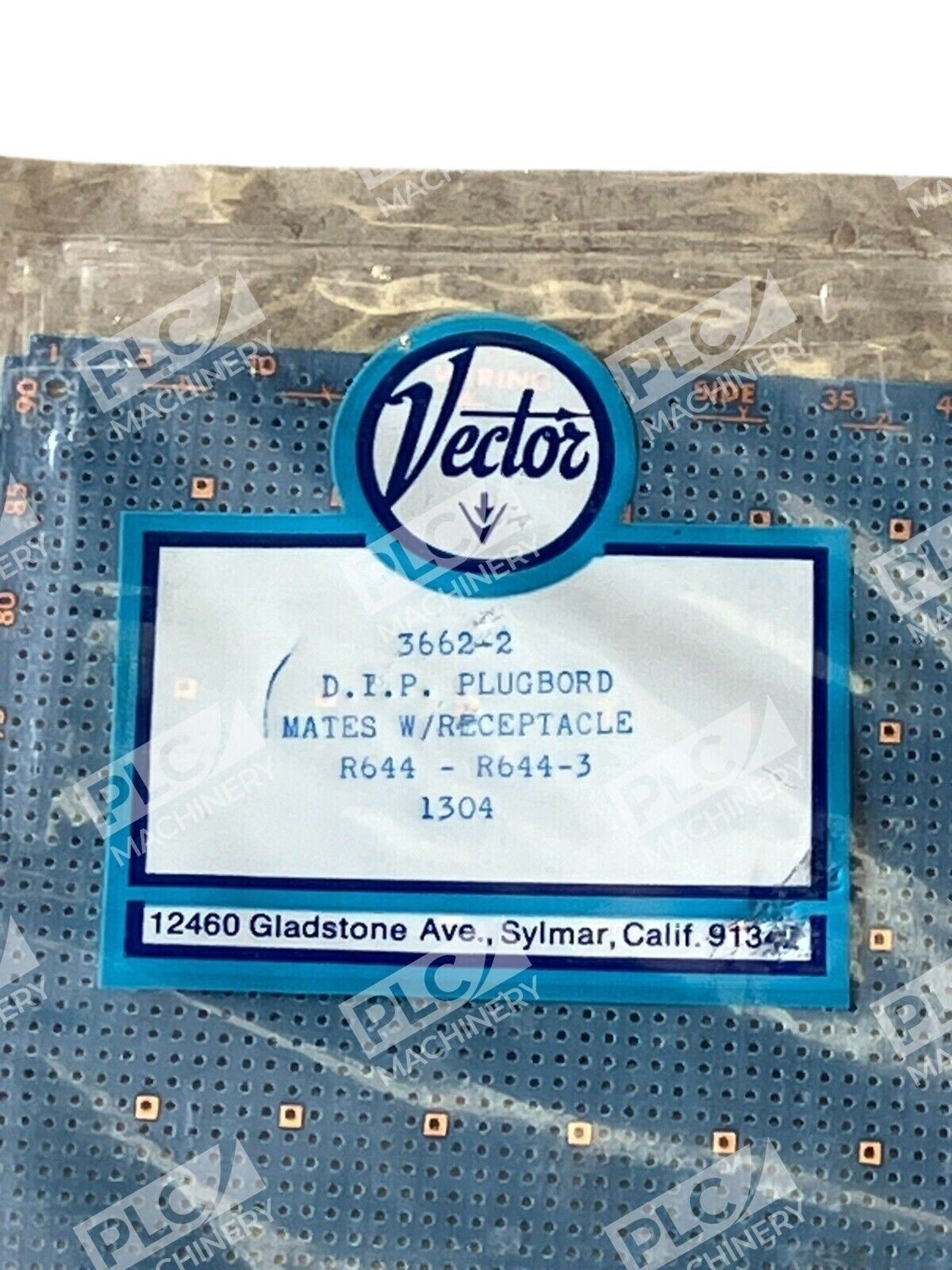

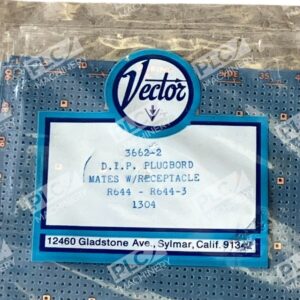

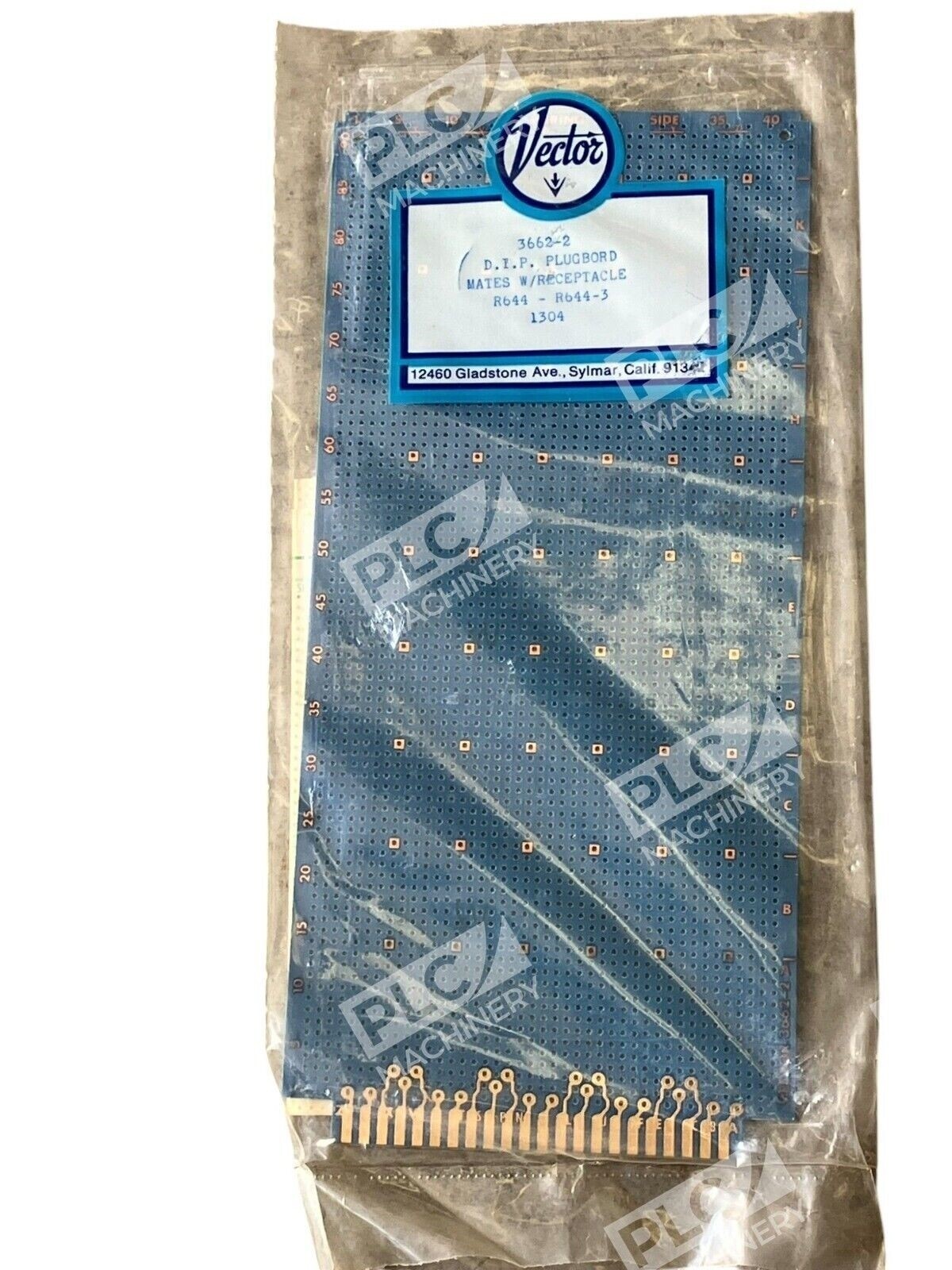

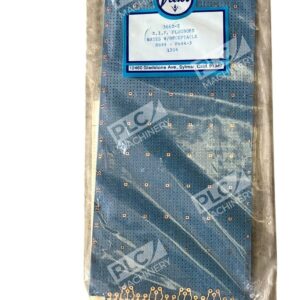

The Vector 3662-2 DIP plugboard is a professional-grade prototyping card designed for circuit development and breadboarding applications. This card edge plugboard features non-plated through holes on a standard 0.1″ (2.54mm) grid and is engineered to mate with Vector R644 and R644-3 wire-wrap connectors, making it ideal for prototyping, testing, and developing discrete and integrated circuits.
Key Features
- Card edge non-plated through hole (NPTH) design for compatibility with Vector connectors
- 0.1″ (2.54mm) grid spacing for standard DIP component layouts
- CEM-1 epoxy glass composite construction for durability
- Mates with R644 solder connectors and R644-3 wire-wrap connectors
- Gold-plated contact edges for reliable connection integrity
- Supports up to 50 standard 16-pin DIP integrated circuits
Technical Specifications
- Board Material: CEM-1 epoxy glass composite
- Grid Spacing: 0.1″ (2.54mm) center-to-center
- Hole Type: Non-plated through holes (NPTH)
- Board Dimensions: 4.5″ × 6.5″ (114.3 × 165.1 mm)
- Board Thickness: 0.042″ (1.067mm)
- Connector Type: Card edge, 44-pin
- Hole Diameter: 0.042″ (approximately 1.0mm)
- Compatible Connectors: R644 solder, R644-3 wire-wrap
- Approximate Weight: 1 lb
Typical Applications
- Electronic circuit prototyping and breadboarding
- PCB testing and validation during design phase
- Educational laboratory circuits and student projects
- Hardware debugging and troubleshooting
- Small-scale electronics manufacturing and assembly
- Research and development environments
Compatibility & Replacements
Compatible With
- Vector R644 solder-tail edge connectors
- Vector R644-3 wire-wrap edge connectors
- Vector R32 wire-wrap socket pins
- Vector 3690 card extender
- Standard 16-pin DIP circuit packages
- Vector wire-wrap terminals (T44, T46, T49, T68)
Replaces / Drop-In Replacement For
- Vector 3662 (original plated variant)
- Vector 3662-5 and other 3662-series variants
Works With
- Vector CIRCBORDâ„¢ ecosystem and prototyping systems
- Standard wire-wrap and solder-tail assembly techniques
- Manual and semi-automated circuit assembly processes
