Overview

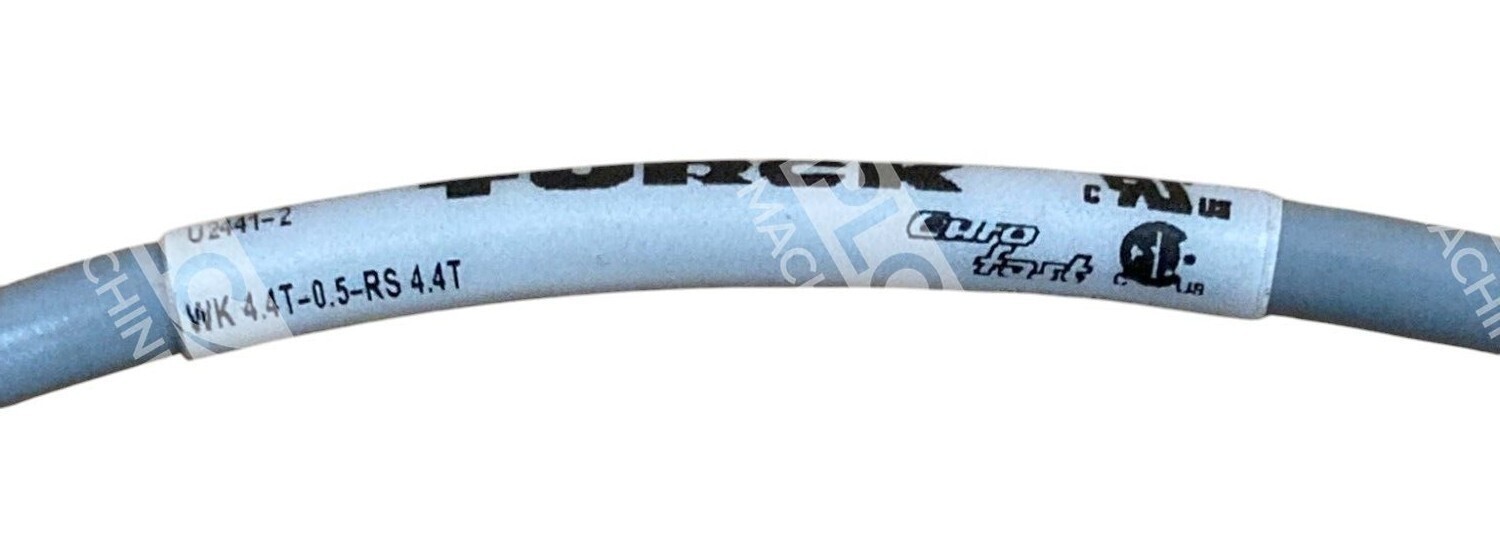

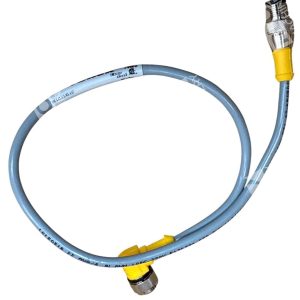

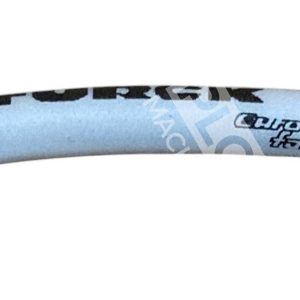

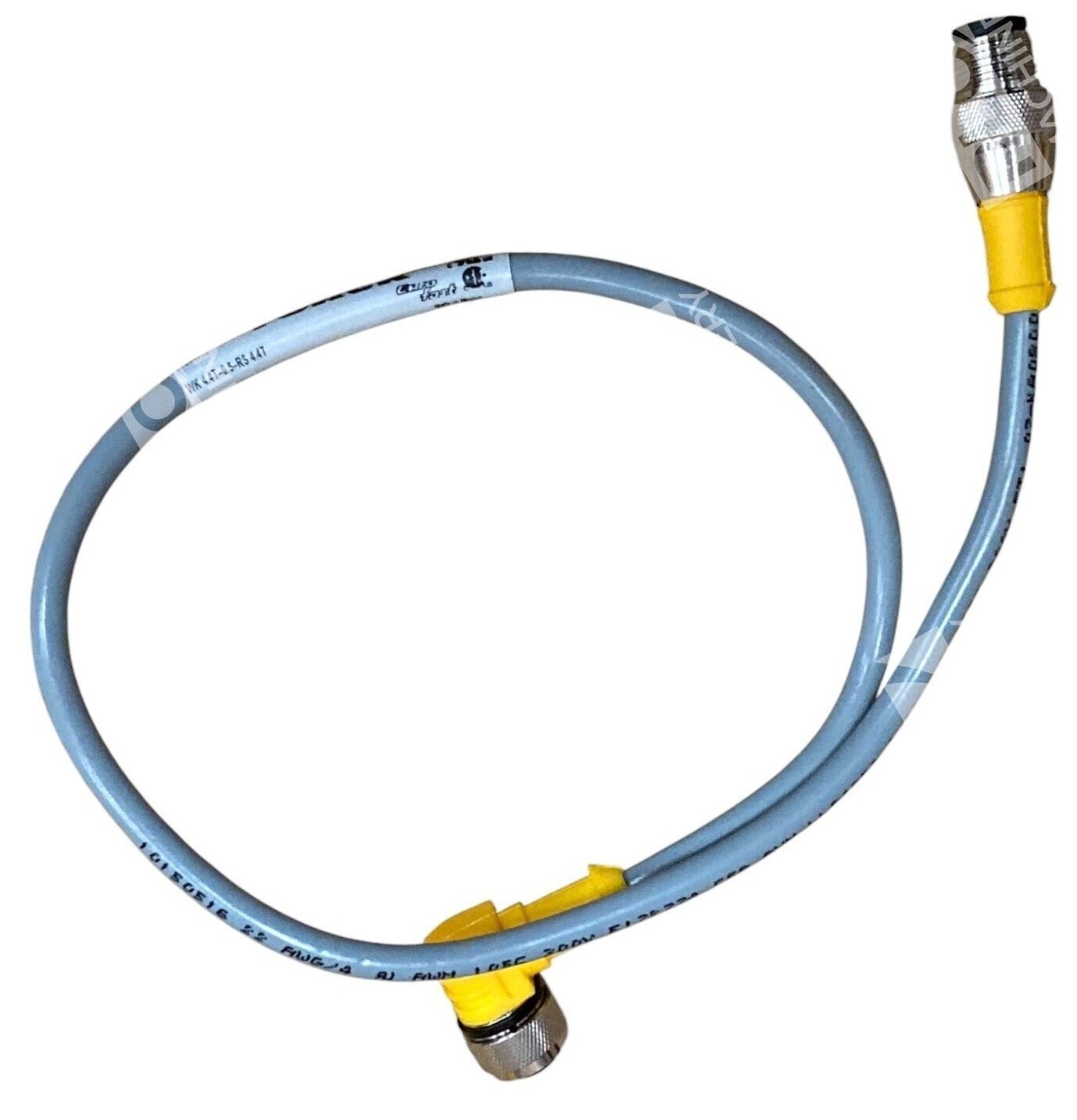

The Turck U2441-2 WK 4.4T-0.5-RS4.4T is a double-ended M12 Eurofast cordset engineered for rapid, secure connections in industrial automation systems. This 0.5-meter extension cable bridges sensor and actuator connections with minimal line loss and reliable mechanical engagement. The compact cable length makes it ideal for panel-mount and closely-spaced component configurations.
Key Features
- Double-ended M12 Eurofast connectors (4-pin A-coded)
- Right-angle female to straight male connector orientation

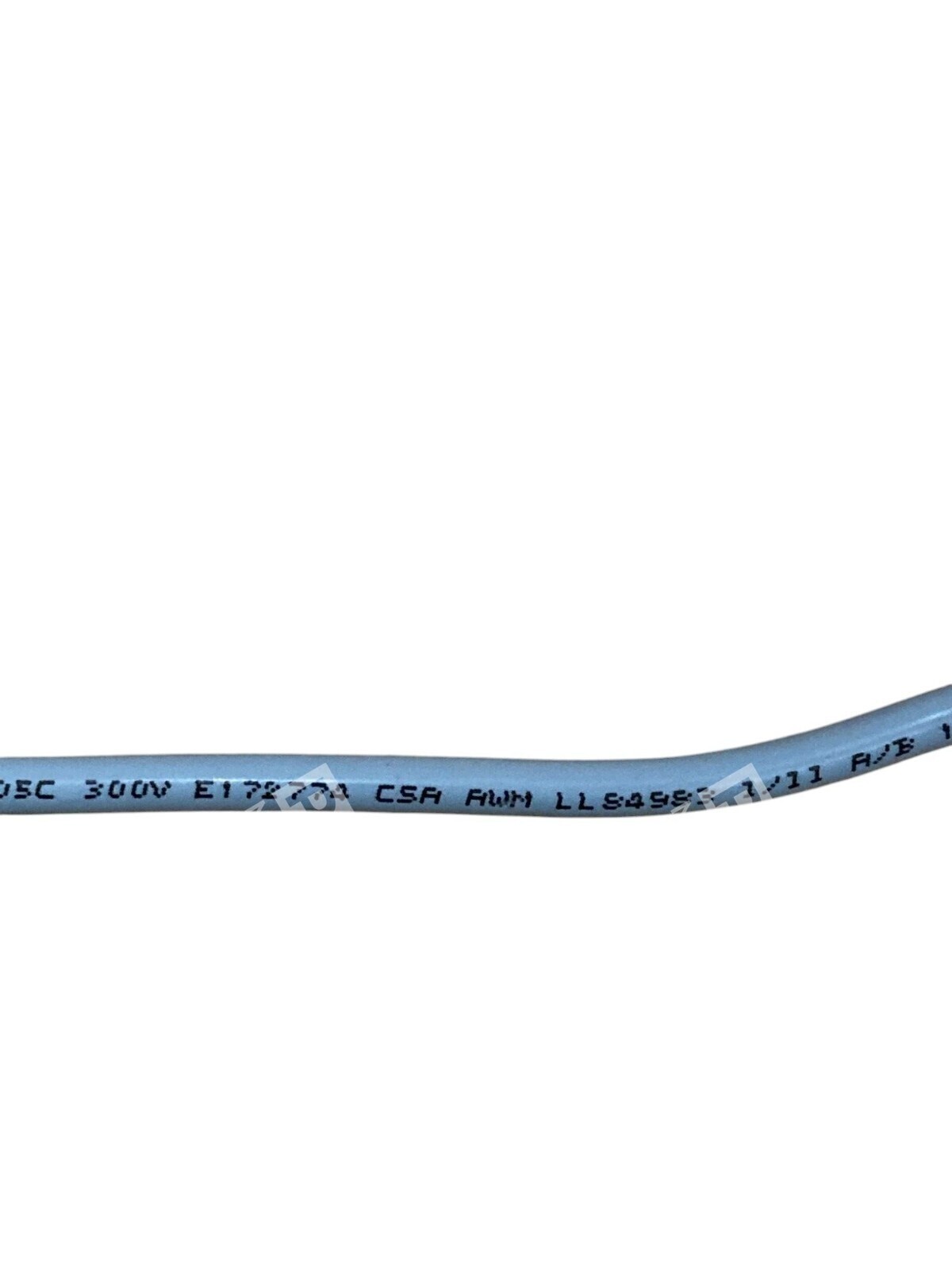

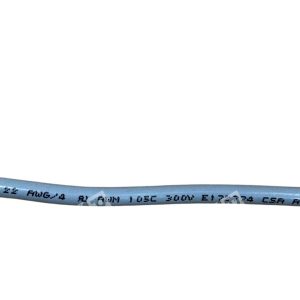

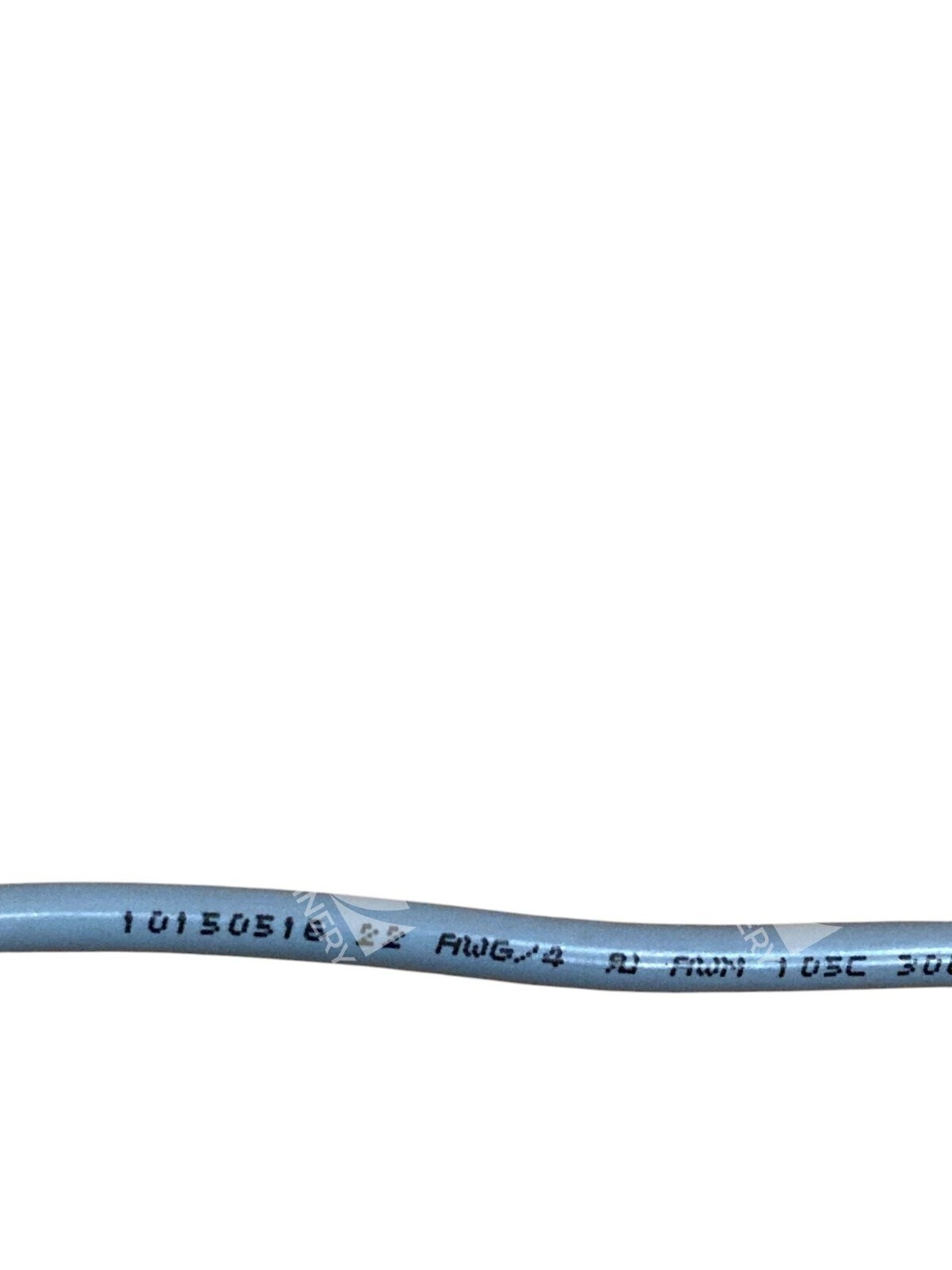

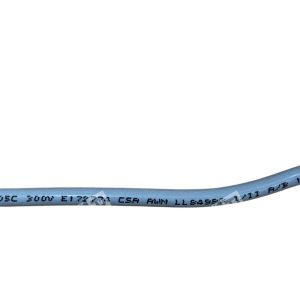

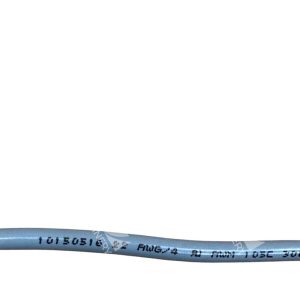

- 0.5-meter PVC-jacketed cable with 4 conductors (22 AWG)
- Gray PVC jacket with oil and flame resistance
- Nickel-plated brass coupling for corrosion resistance
- Tool-free quick-disconnect design for field serviceability
Technical Specifications
- Connector Type: M12 Eurofast
- Pin Count: 4-pin (A-coded)
- Cable Length: 0.5 meter
- Cable Gauge: 4×22 AWG
- Rated Voltage: 250 V AC
- Rated Current: 4.0 Amps
- Jacket Material: PVC (gray)
- Connector Gender: Female to Male
- Connector Orientation: Right-angle Female / Straight Male
- Operating Temperature: -40°C to +80°C
- Certifications: UL 1685 FT4, UL1061, CSA FT4
Typical Applications
- Sensor and actuator interconnect cables in manufacturing equipment
- Machine vision and proximity sensor systems
- Pneumatic and hydraulic automation systems
- Industrial control panels with space constraints
- Plug-and-play field replacement for M12 A-coded systems
Compatibility & Replacements
Compatible With
- Turck M12 Eurofast compatible sensors and actuators
- Any equipment with M12 A-coded female or male connector inlets
- Industrial automation platforms using IEC 61076-2 M12 connectors
- PLC, motion controller, and I/O module M12 ports
Replaces / Drop-In Replacement For
- Turck U2441-1 (1-meter version)
- Turck WK 4.4T extension cordsets with similar 0.5m length
- Generic M12 A-coded Eurofast cordsets rated 250V/4A
Works With
- M12 Eurofast (Turck proprietary quick-disconnect connector)
- IEC 61076-2-109 A-coded M12 standard connectors
- Siemens PROFINET devices with M12 connectors
- Any industrial sensor or actuator with M12 female inlet
