Overview

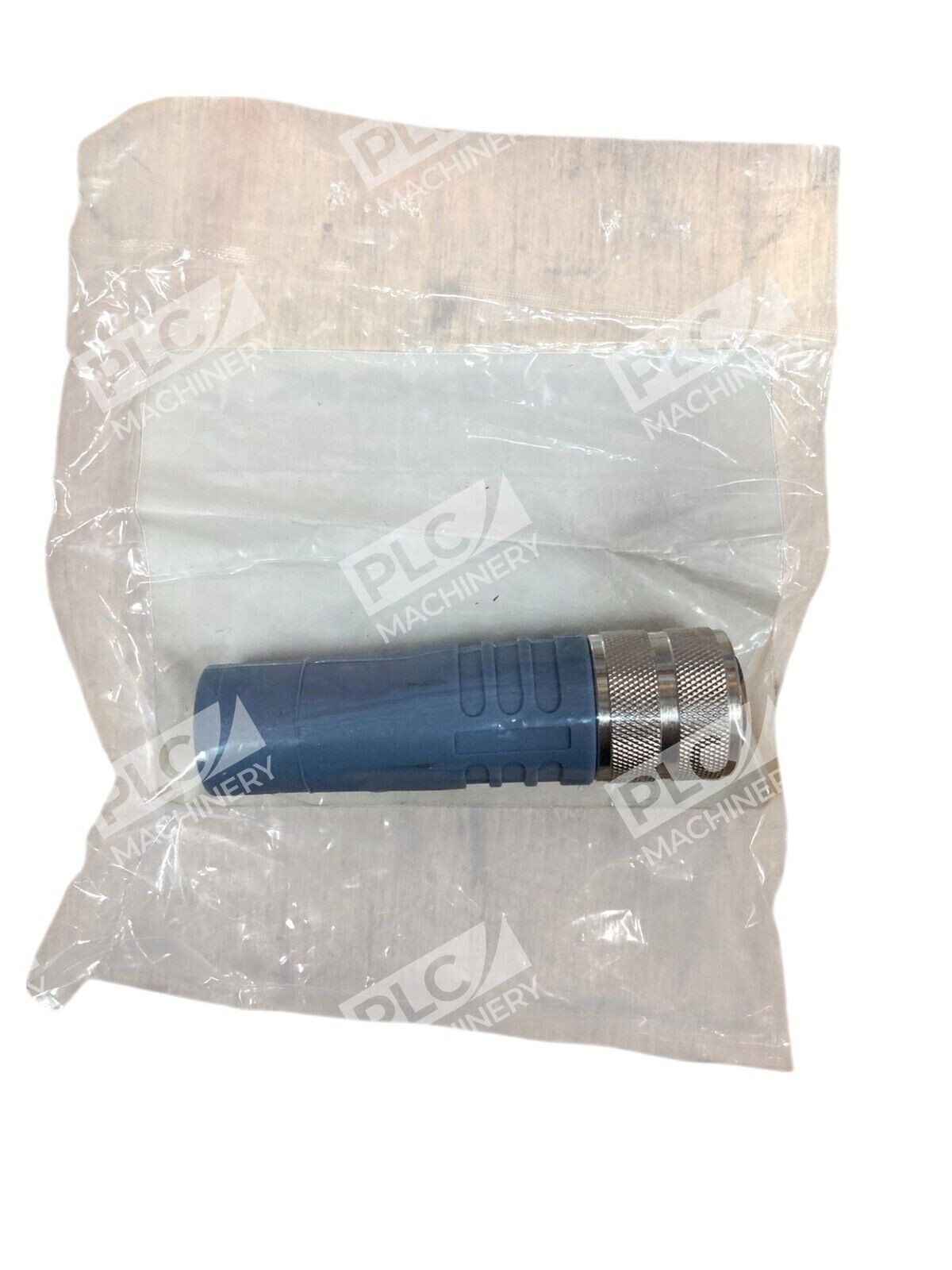

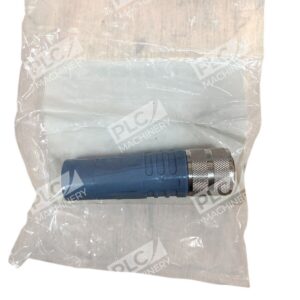

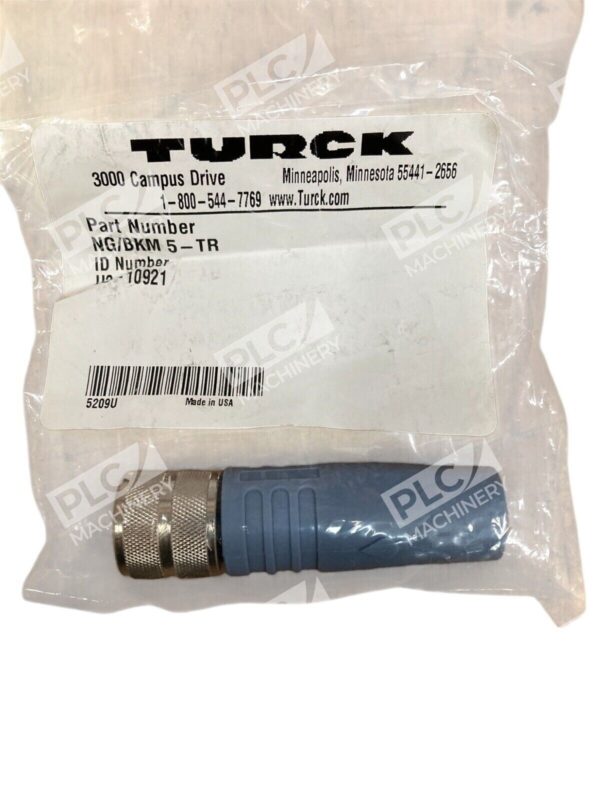

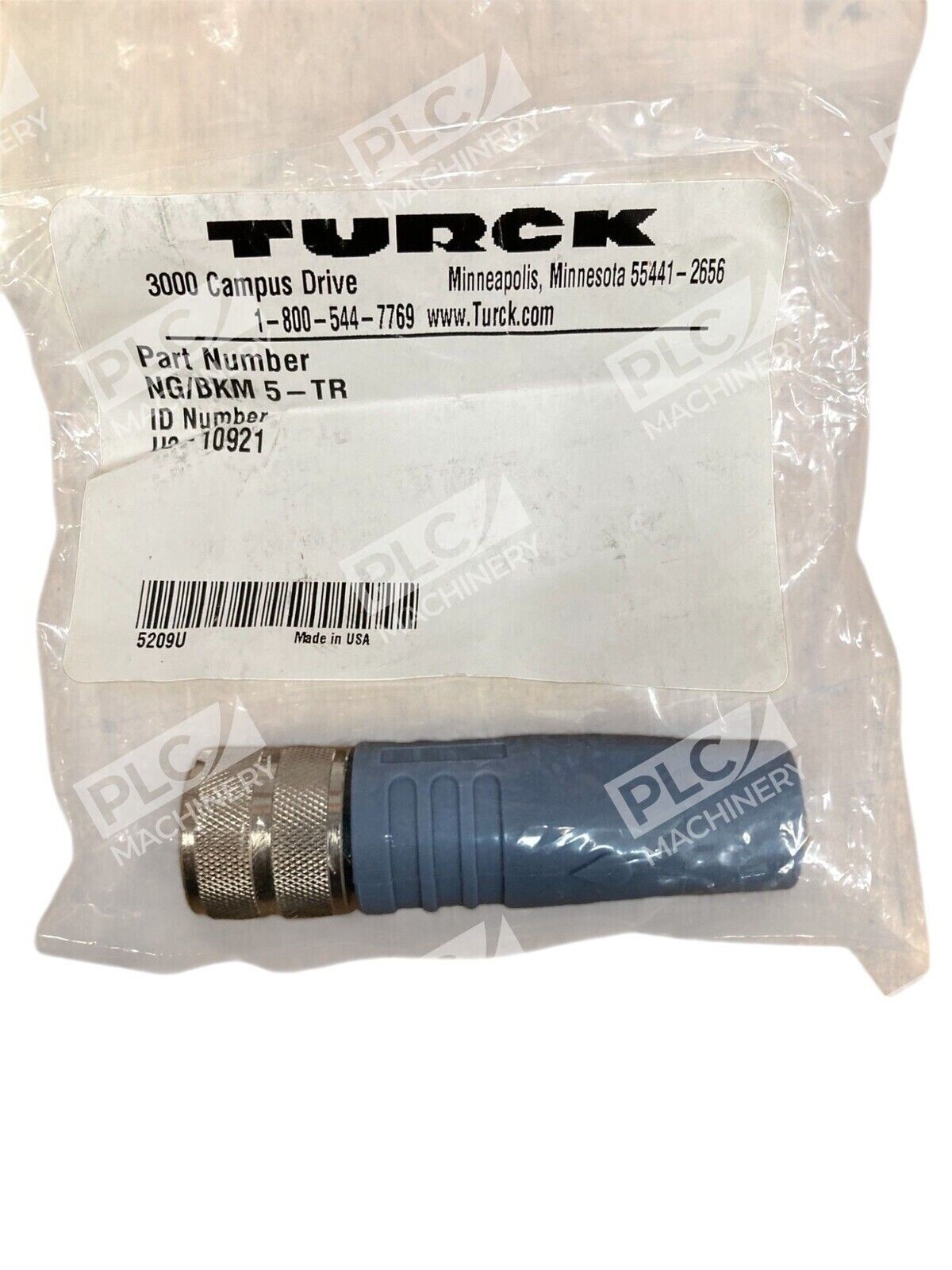

The Turck U2-10922 NG/BKM5-TR terminating resistor is a precision network accessory engineered for fieldbus applications requiring proper bus impedance matching. Designed as an M12-based connector module, this terminating resistor provides critical signal termination in CAN, CANopen, and similar serial bus networks found in distributed control systems and industrial I/O architectures.
Key Features
- M12 connector interface for easy field installation and removal
- Industrial-rated for 10–30 VDC operating voltage range
- Compact form factor suitable for panel and switch cabinet mounting
- Designed to eliminate signal reflections and noise in fieldbus topologies
- Durable construction rated for -40 to +80 °C ambient operation
Technical Specifications
| Specification | Value |
| Manufacturer | Turck |
| Model Number | U2-10922 |
| Part Number | NG/BKM5-TR |
| Connector Type | M12 Male 5-Pin |
| Rated Voltage | 10–30 VDC |
| Operating Temperature | -40 to +80 °C |
| Application | CAN, CANopen, Fieldbus Termination |
| Connector Interface | M12 x 1 Socket |
Typical Applications
- DeviceNet and CANopen network termination at branch endpoints
- Distributed I/O modules and valve terminal connections
- PLC and remote sensor network bus closure
- Industrial automation systems requiring proper signal impedance
- Factory automation and machinery control networks
Compatibility & Replacements
Compatible With
- Turck NG/BSM5 and NG/BKM5 series connectors
- M12 5-pin fieldbus networks (CAN, CANopen, DeviceNet)
- Turck IO-Link and TBEN industrial gateways
- Standard ISO 12098 M12 infrastructure
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering specific replacement applications to ensure proper pin configuration and bus protocol matching.
Works With
- CAN and CANopen protocols
- DeviceNet networks
- Turck field wiring and M12 connection systems
- Standard fieldbus diagnostic tools and analyzers
