Overview

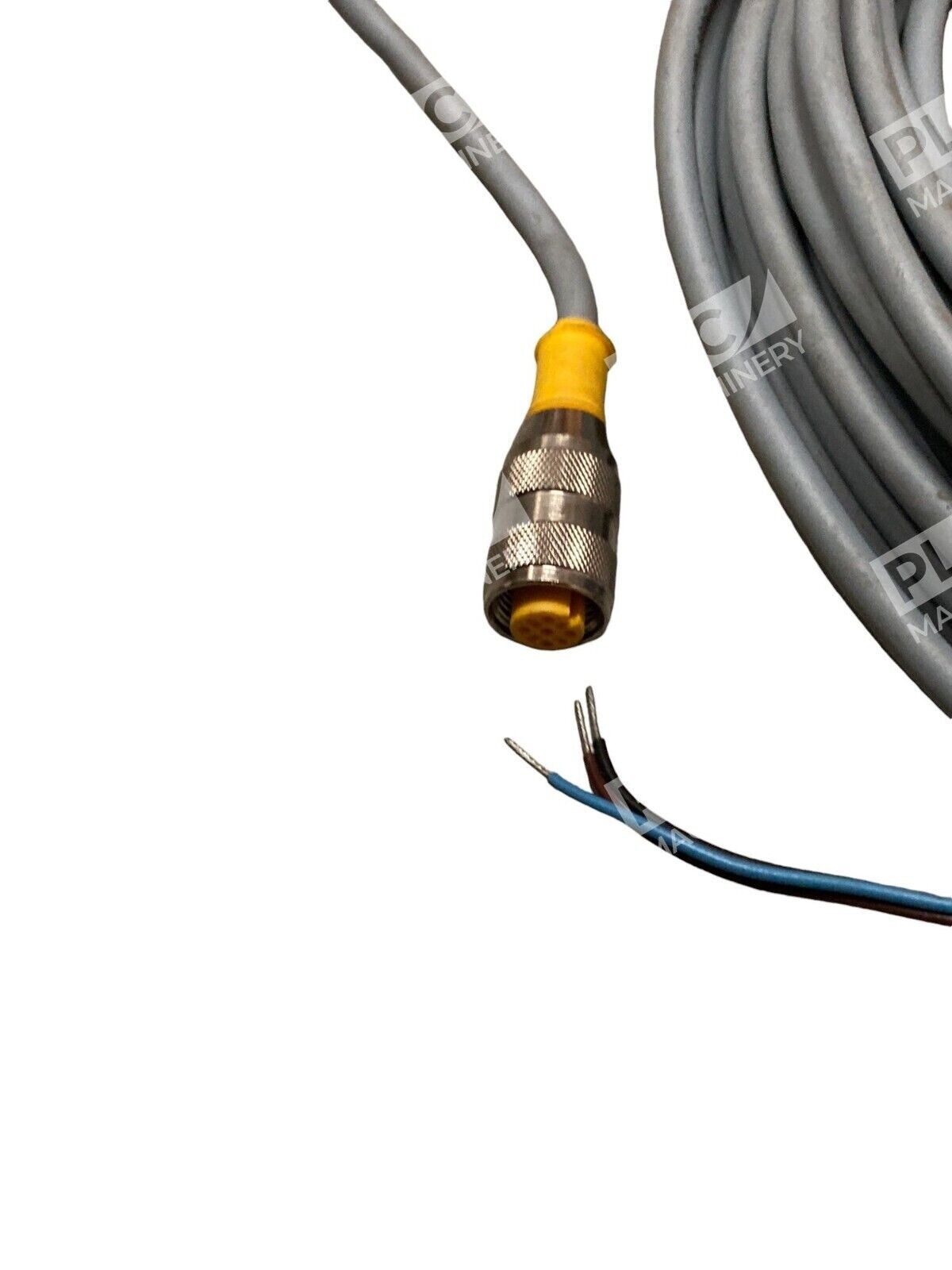

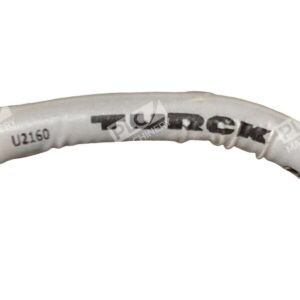

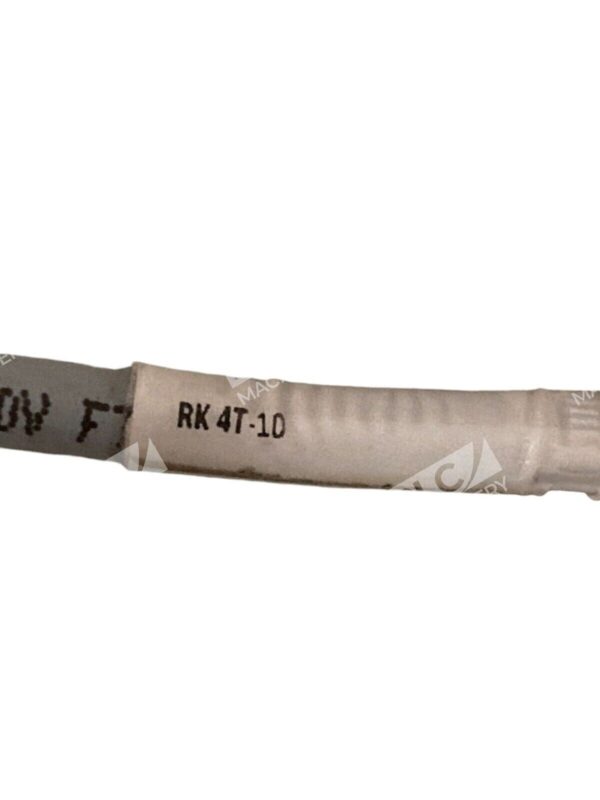

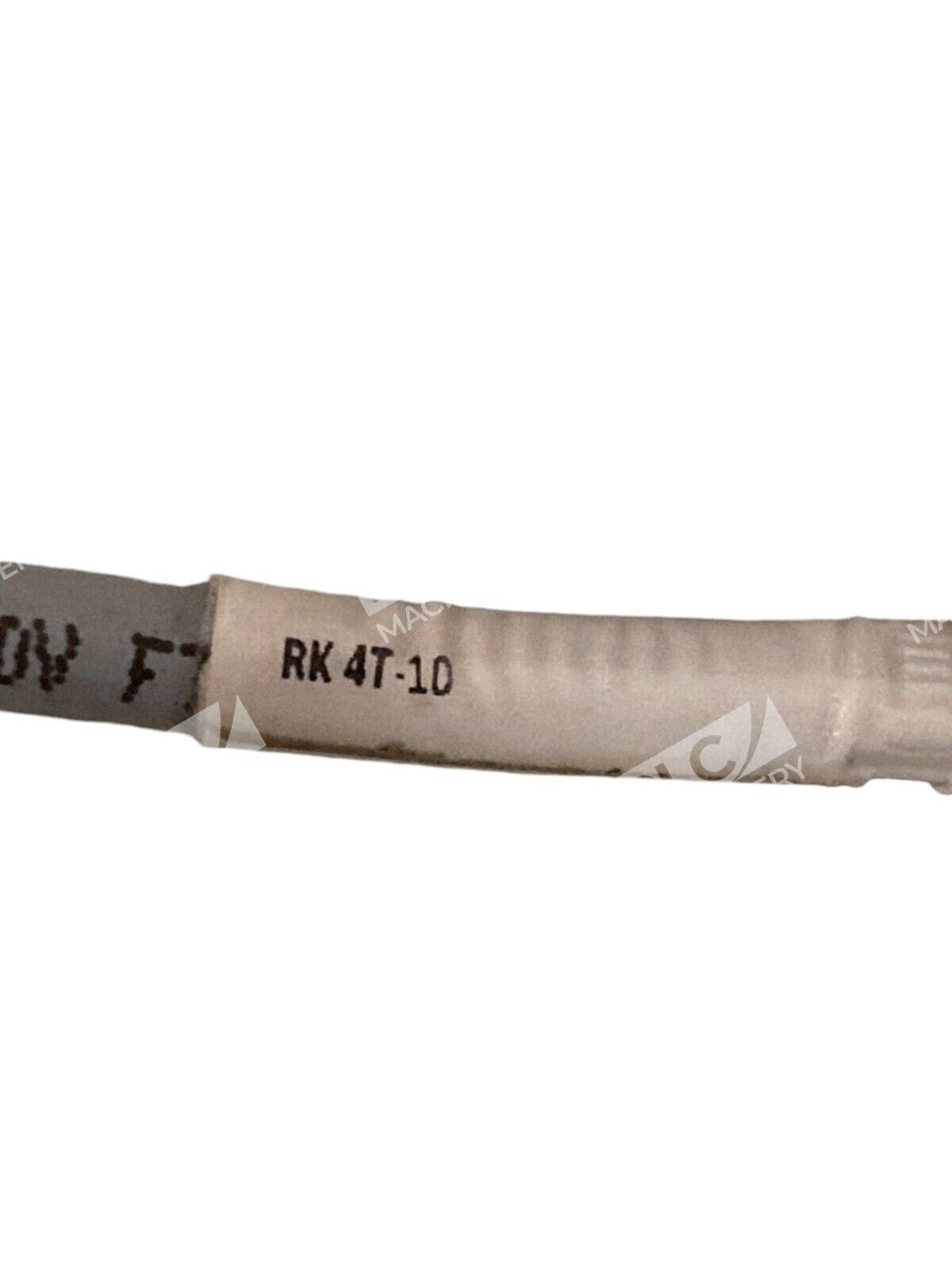

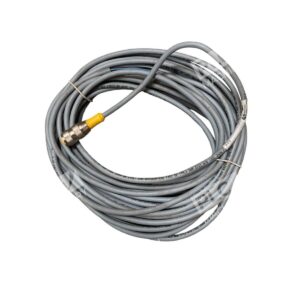

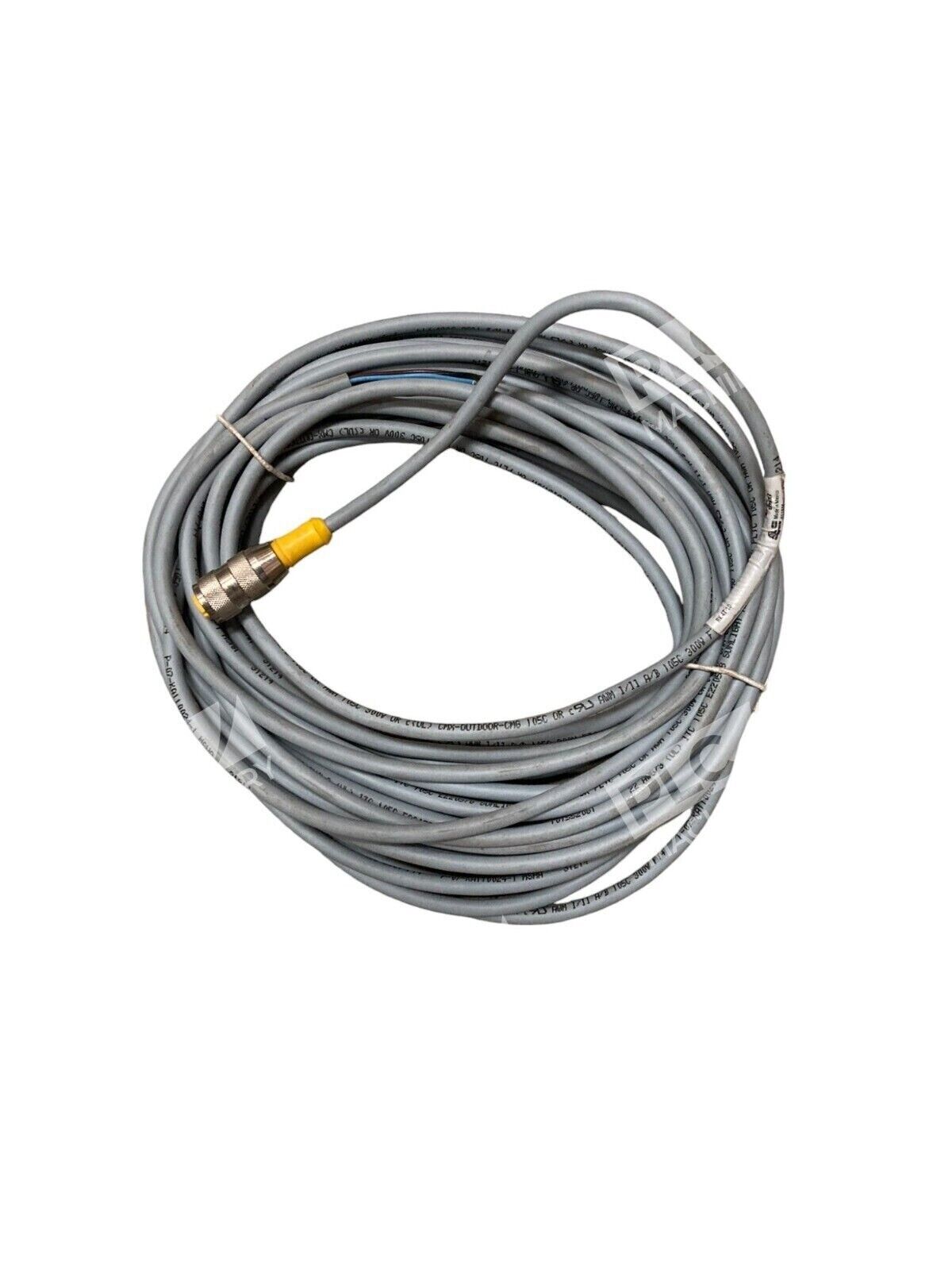

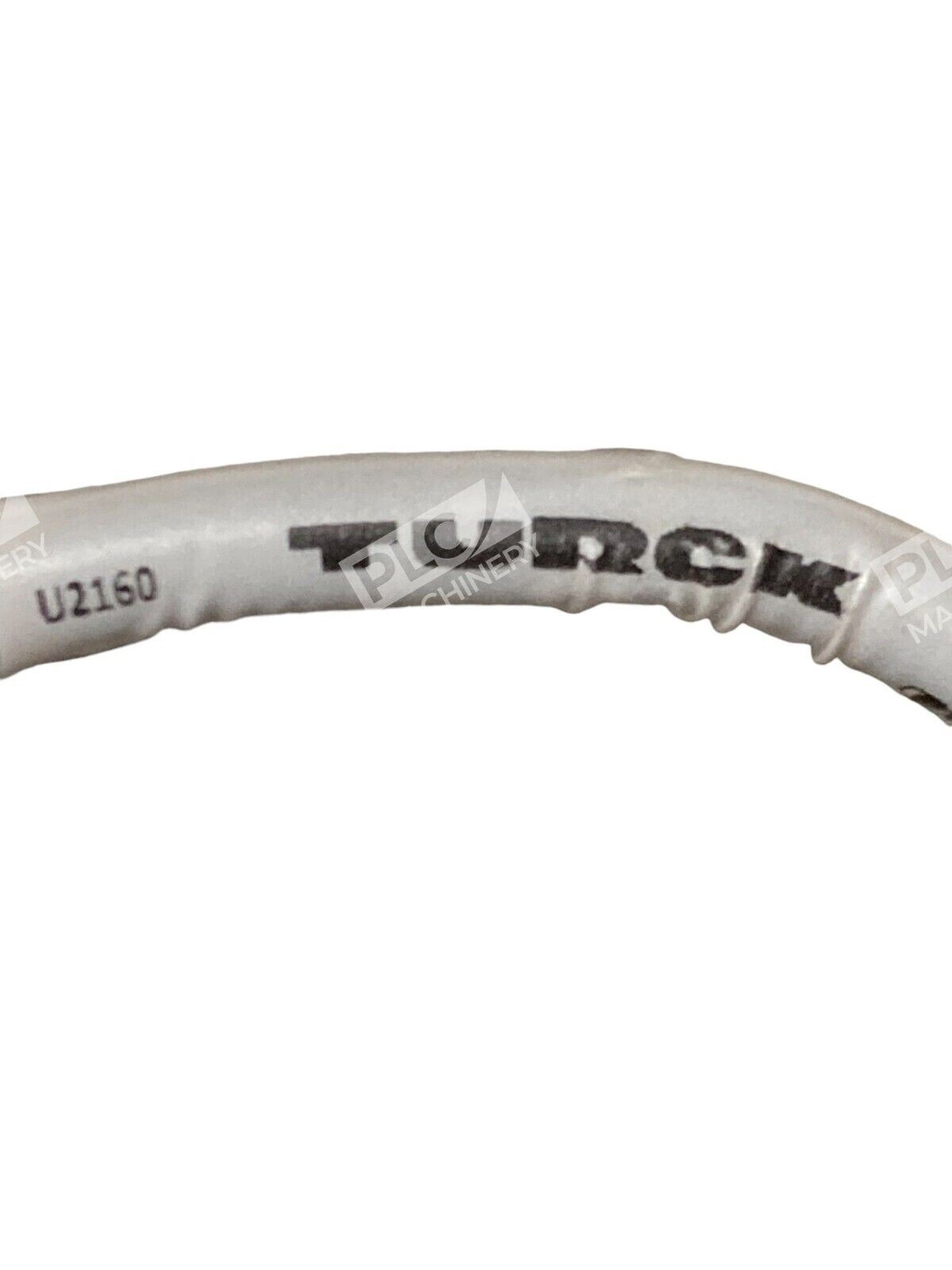

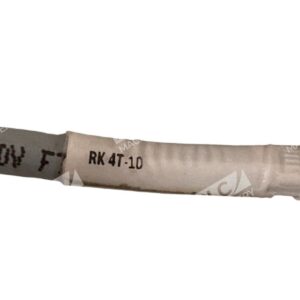

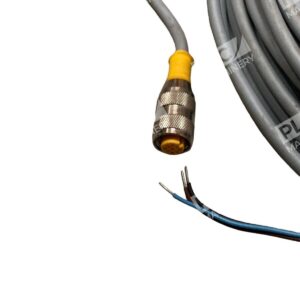

The Turck RK 4T-10 (ID U2160) is a single-ended mating cable engineered for actuator and sensor connectivity in automation systems. With 10 meters of cable and a pre-equipped 4-pin M12 Eurofast female connector, this cordset delivers dependable signal and power transmission to industrial field devices. The cable terminates in bare flying leads for direct integration into control panels or junction boxes.
Key Features
- Single-ended cordset with straight female M12 Eurofast connector
- 10-meter (32 ft) cable length with gray PVC jacket
- 3-wire configuration (3 × 22 AWG, brown/blue/black)
- T-barb fitting for secure mating
- Nickel-plated brass coupling nut for corrosion resistance
- -40°C cold bend rating and oil-resistant sheath
- UL 1685 FT4, UL1061, and CSA FT4 flame certifications
- IP68 environmental protection rating
Technical Specifications
- Rated Voltage: 250 VAC
- Rated Current: 4 A
- Cable Length: 10 m (32 ft)
- Connector Type: 4-pin M12 Eurofast female, straight
- Wire Configuration: 3 × 22 AWG
- Cable Sheath O.D.: 5.1 mm
- Jacket Material: PVC
- Coupling Nut: Brass (CuZn), nickel-plated
- Operating Temperature: -40°C cold bend rating
- Environmental Rating: IP68, NEMA 1/3/4/6P
- Tightening Torque: 0.8–1.0 Nm
- Certifications: UL 1685 FT4, UL1061, CSA FT4, Flexlife®, C-Track Approved
- Weight: 1.0 lb
Typical Applications
The Turck RK 4T-10 is ideal for:
- Sensor-to-controller hardwired connections (proximity, pressure, temperature)
- Solenoid valve and actuator coil wiring
- Process control and instrumentation tray cabling
- Factory automation and robotics integration
- Applications requiring IP68 submersion protection
- Harsh industrial environments requiring oil and flame resistance
Compatibility & Replacements
Compatible With
- Any M12 Eurofast male connector (straight or angled) with 4-pin configuration
- Turck M12 connector interface modules and hubs
- Standard industrial sensor and actuator devices with Eurofast coupling
- Control systems using Eurofast signal distribution networks
Replaces / Drop-In Replacement For
- OEM sensor and actuator cables requiring M12 Eurofast female connectivity
- Legacy 10m cordsets with equivalent 3-wire, 4-pin M12 Eurofast configuration
- Verify your original connector orientation and pin configuration before substitution
Works With
- M12 Eurofast connector panels and distribution blocks
- Turck TCS (Turck Connector System) compatible field devices
- Generic 4-pin, 3-wire M12 sensor/actuator ecosystems
- Industrial Ethernet gateways and junction boxes using M12 Eurofast bridging
