Overview

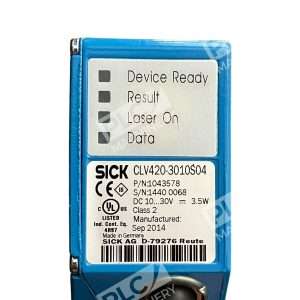

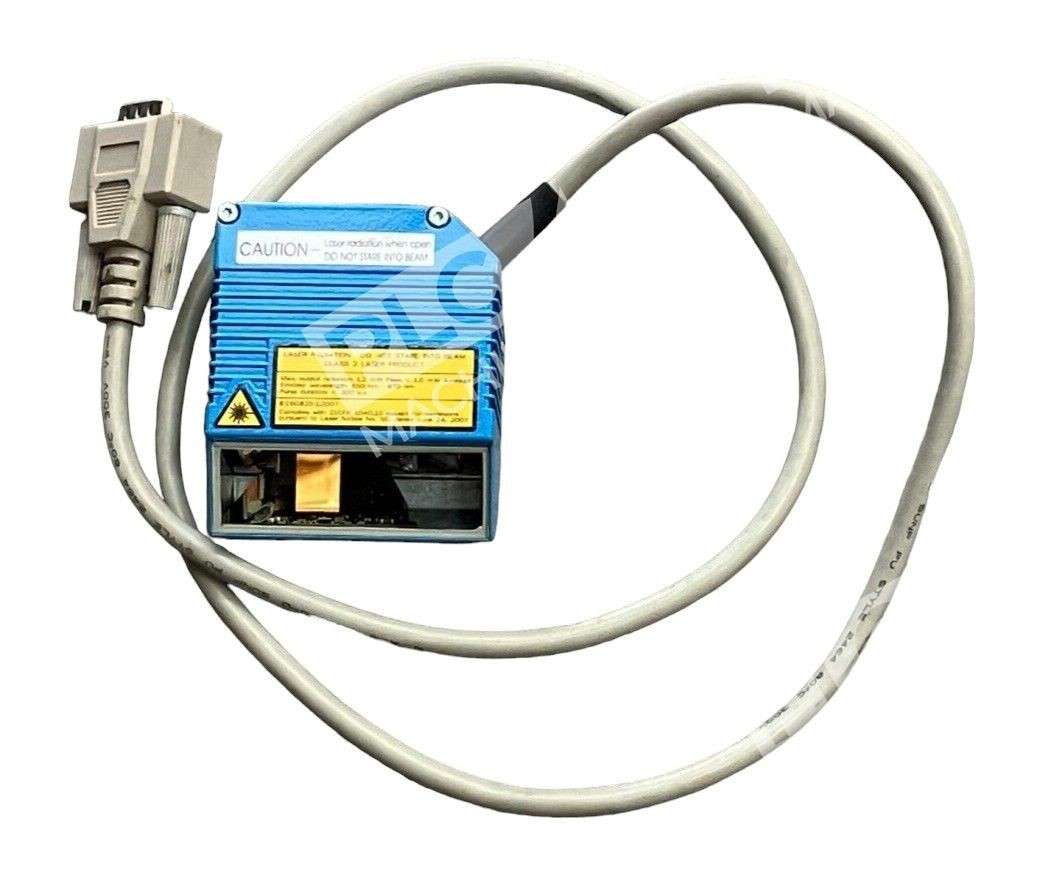

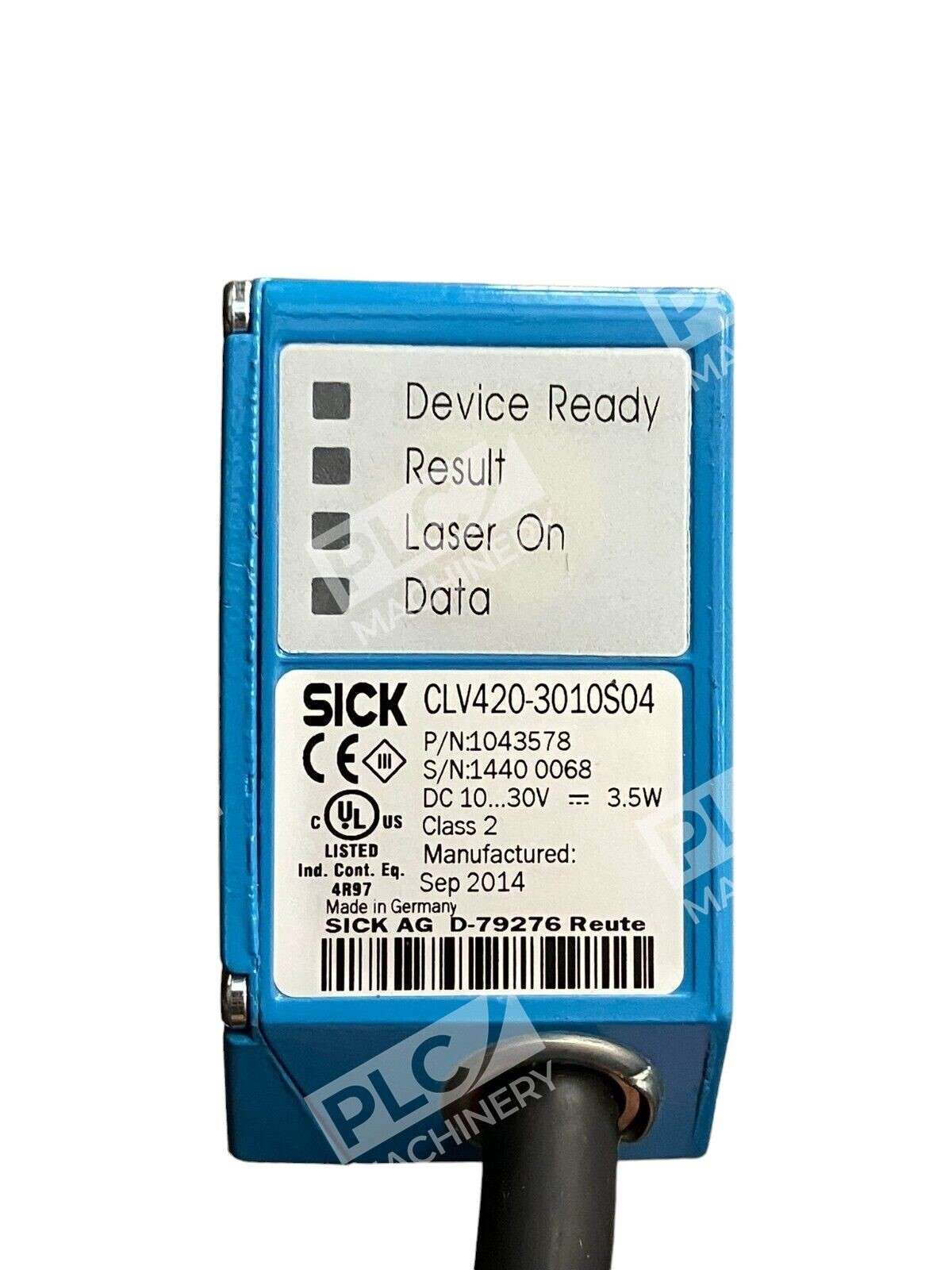

The Sick CLV420-3010S04 is a fixed mount raster barcode scanner designed for demanding industrial production environments. This code reader combines fast decode times with excellent depth of field performance, making it ideal for high-velocity conveyor systems where consistent barcode identification is critical. The CLV420-3010S04 supports CAN-bus networking, RS-232/485 connectivity, and optional Profibus DP, Interbus-S, DeviceNet, and Ethernet integration for flexible system architecture.
Key Features
- Raster scan technology with fast read times and wide depth of field
- CAN-bus compatible for multi-scanner networked applications

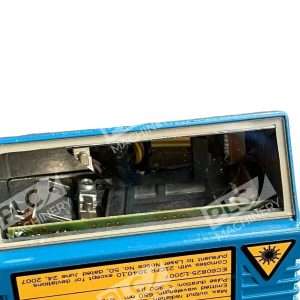

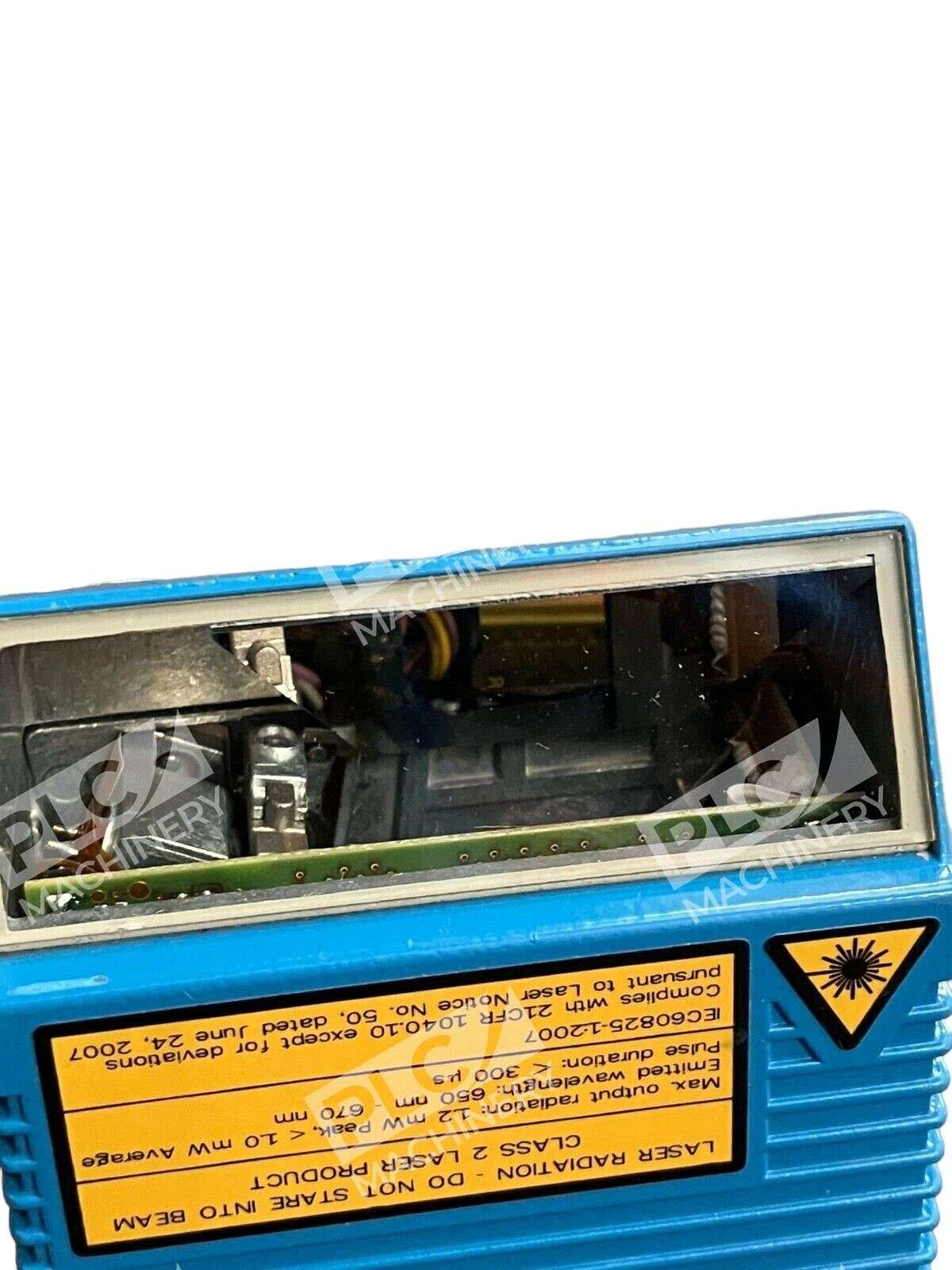

- Fixed mount configuration with right-angle mirror exit window

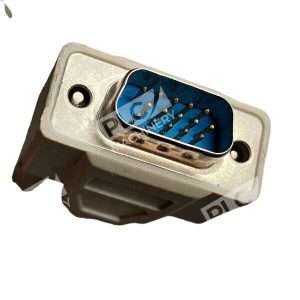

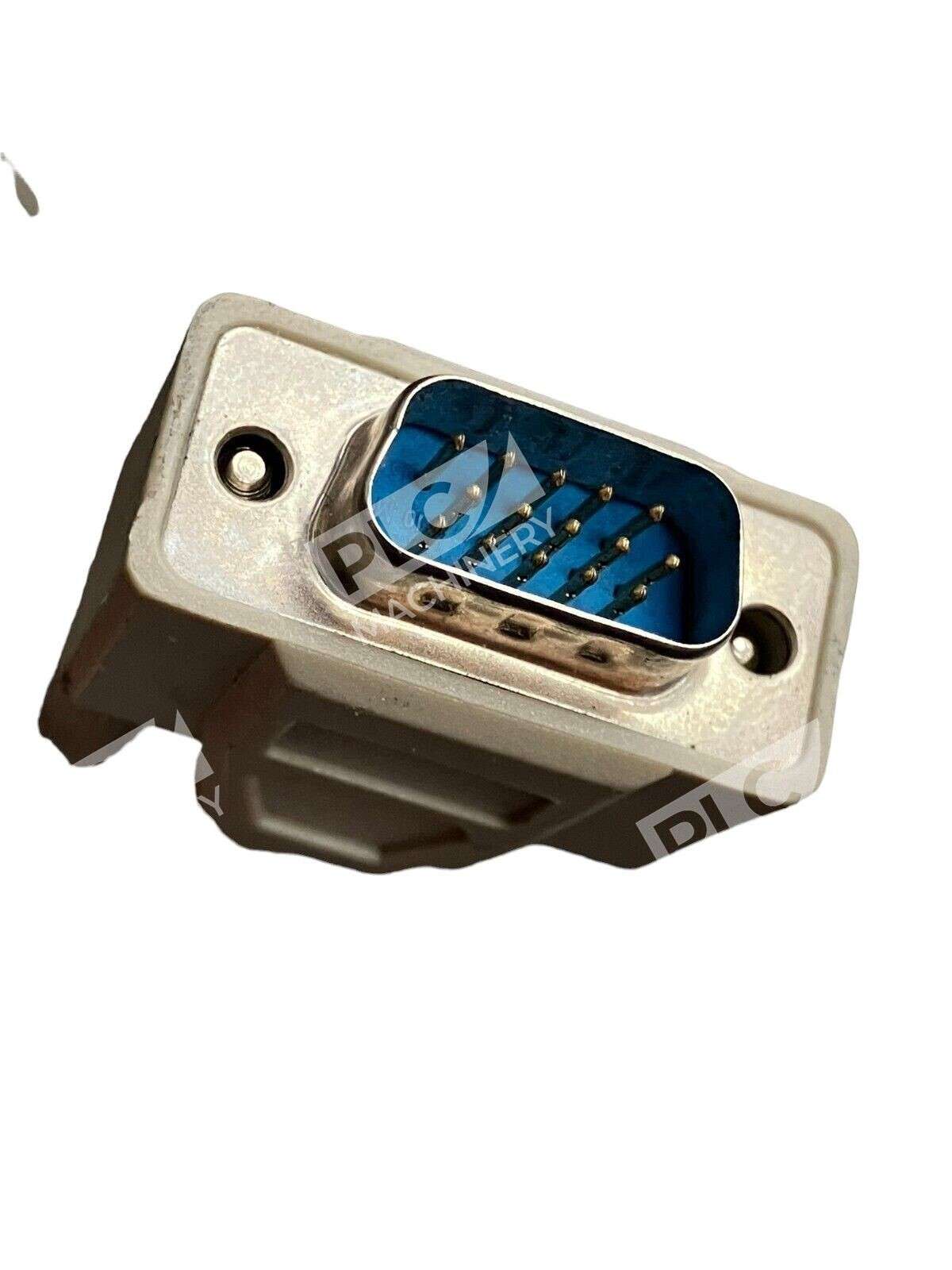

- RS-232/485 host interface standard; RS-232 auxiliary port for external devices
- Supports external switching modules for Profibus DP, Interbus-S, DeviceNet, Ethernet
- Efficient auto-setup and profile code programming software tools
- Built-in diagnostics and visualization for system monitoring
Technical Specifications
- Input Voltage: 10–30 VDC
- Power Consumption: 3.5 W
- Communication Protocols: RS-232, RS-485, CAN-bus; optional Profibus DP, Interbus-S, DeviceNet, Ethernet
- Scan Type: Raster (fixed lens)
- Exit Window: Right-angle mirror (side-view mounting)
- Certifications: CE marked
- Operating Temperature: 0 to 40 °C (standard range)
- Weight: Approx. 250 g
- Housing Rating: IP65 (dust and moisture resistant)
- Series/Model: CLV420 series
Typical Applications
- Parcel and package sortation systems
- Conveyor-based product tracking and traceability
- Print-and-apply labeling operations
- Quality assurance and scheduling verification
- High-speed warehouse and logistics operations
- Tote box and container identification on moving lines
Compatibility & Replacements
Compatible With
- CAN-bus industrial networks
- Profibus DP (with external switching module)
- Interbus-S (with external switching module)
- DeviceNet (with external switching module)
- Ethernet (with external switching module)
- Host systems using RS-232 or RS-485 serial communication
- Standard 24 VDC industrial power supplies (10–30 V input range)
Replaces / Drop-In Replacement For
The CLV420-3010S04 is a specific variant of the CLV420 series. For drop-in replacement applicability with other models, verify the exit window configuration (side-view vs. in-line) and communication requirements with your system integrator before ordering.
Works With
- Sick Auto-Setup and Profile Code Programming software
- Industrial PLC and automation controllers supporting RS-232/485 or CAN-bus
- Sick diagnostic and visualization tools for system monitoring
- External switching modules (Profibus, DeviceNet, Ethernet adapters)
