Overview

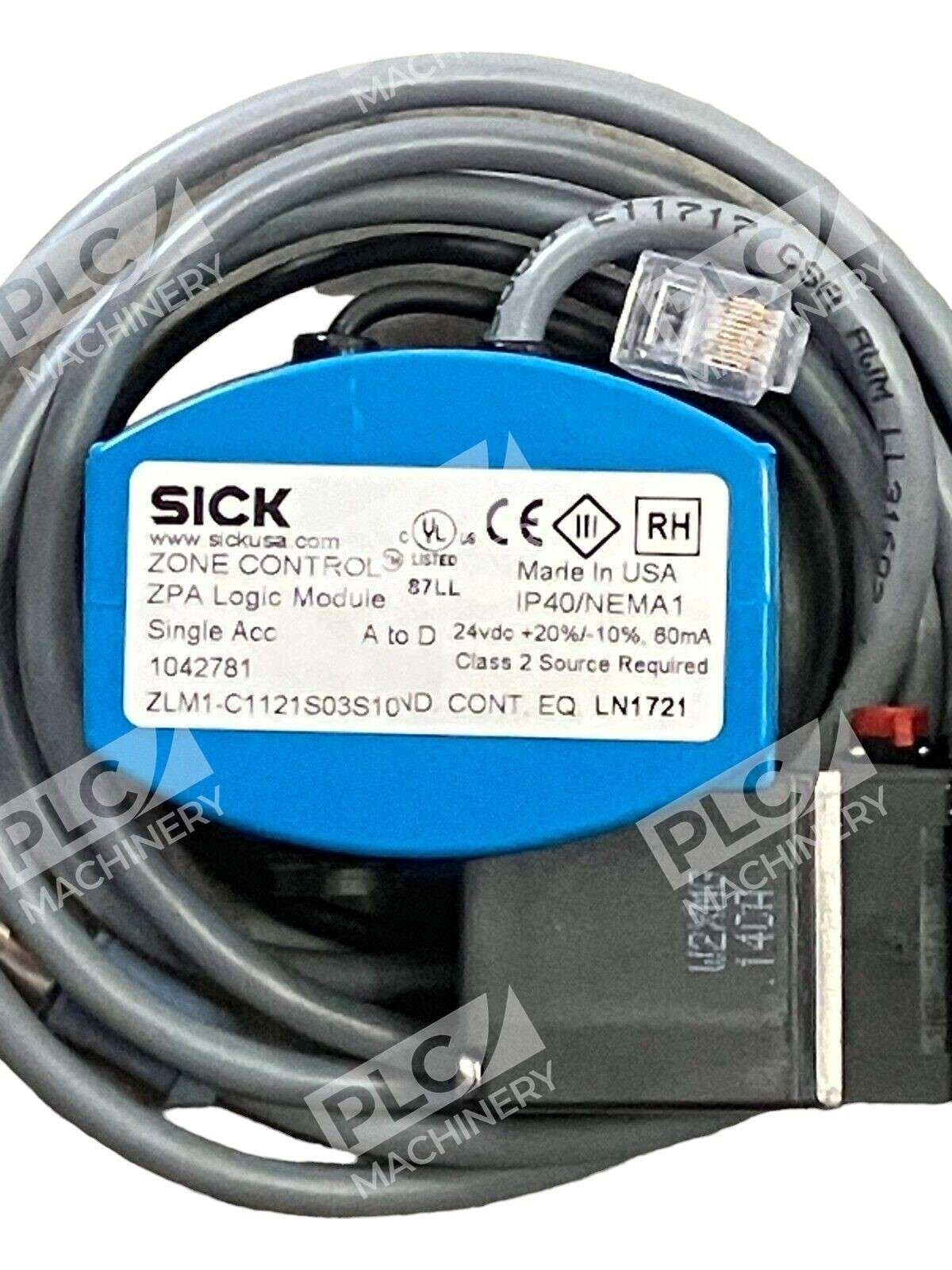

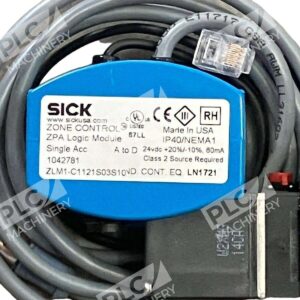

The Sick ZLM1-C1121S03S10 Zone Control ZPA Logic Module is a specialized control unit for industrial automation and process control applications. This module integrates Sick’s ZoneControl™ technology with zero pressure accumulation (ZPA) logic, providing reliable sensor-to-valve switching for pneumatic and electro-pneumatic systems. The unit interfaces with Sick photoelectric sensors and valve outputs, making it essential for zone-based detection and containment systems in manufacturing and logistics environments.
Key Features
- ZoneControl™ Technology: Provides zone-based detection with integrated logic control
- Zero Pressure Accumulation (ZPA): Prevents backpressure buildup while maintaining control logic
- 24 VDC Operation: Standard industrial voltage supply with built-in safety compliance

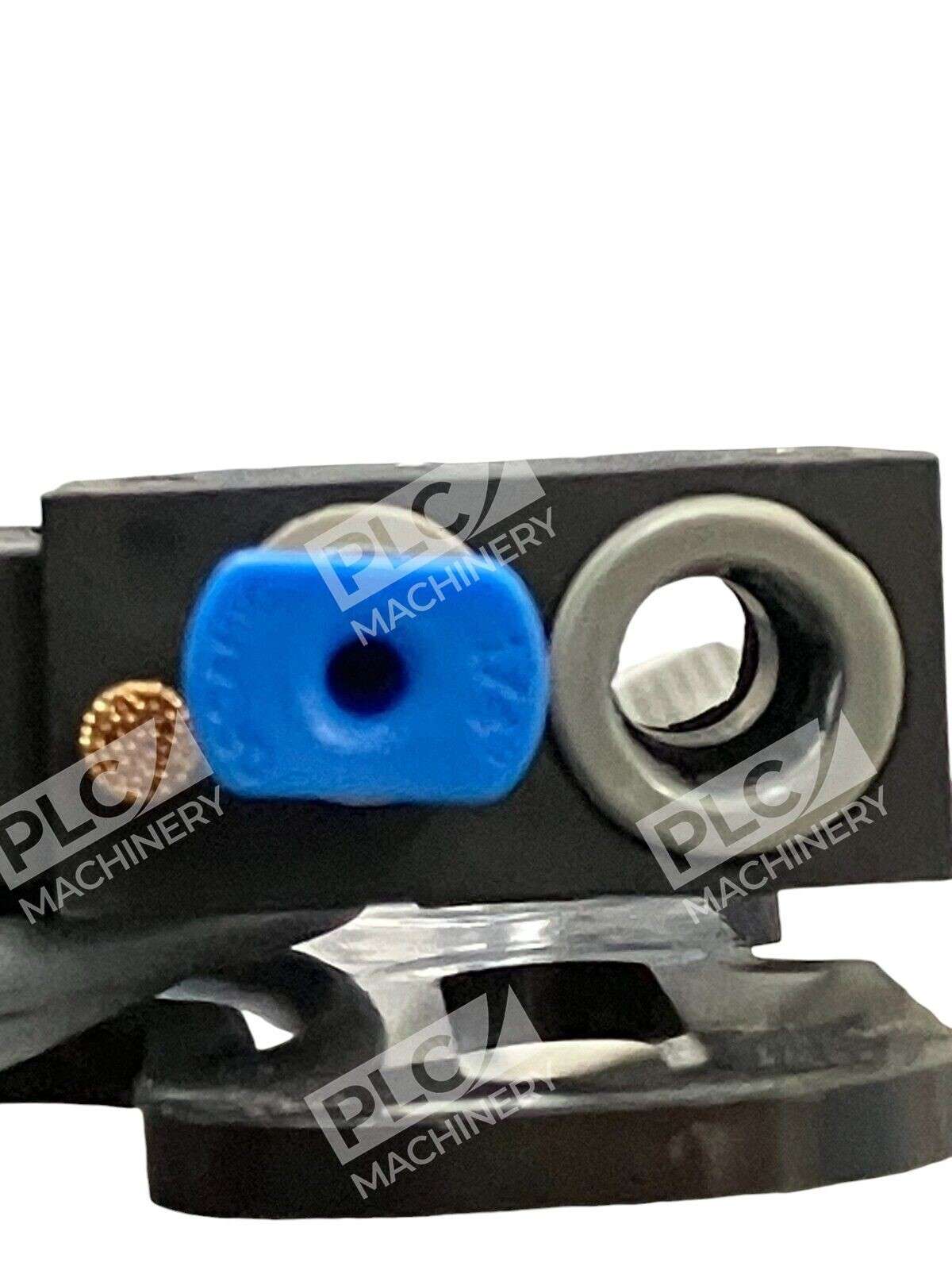

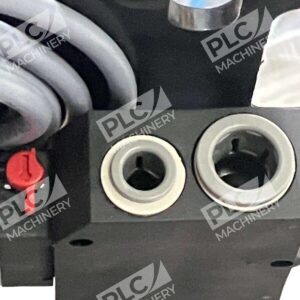

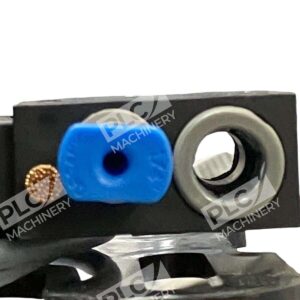

- Pneumatic Valve Interface: Direct control of A-to-D solenoid valves and single/slug release functions
- M12 and M8 Connectors: Industrial-grade connectors for sensor and valve integration
- Compact Modular Design: Lightweight, space-efficient housing for easy integration into control panels
Technical Specifications
- Part Number: ZLM1-C1121S03S10
- Manufacturer: Sick
- Product Category: Logic Module / Control Module
- Supply Voltage: 24 VDC ±20% / -10%
- Output Current: 60 mA typical
- Switching Frequency: 200 Hz maximum

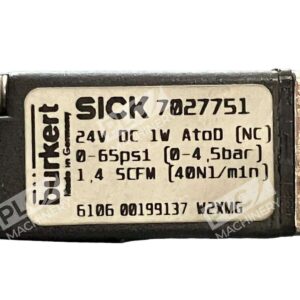

- Valve Type: A-to-D pneumatic solenoid valve

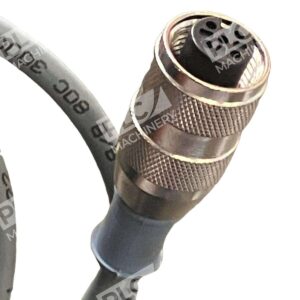

- Connectors: M8 sensor input, M12 valve output with daisy-chain capability
- Weight: Approximately 1.0 lb
- Safety Certification: Class 2 power source required
- Condition: New, Open Box
Typical Applications
- Zone-based presence detection in conveyor and material handling systems
- Pneumatic valve control for accumulator-based automation
- Production line containment and zone isolation
- Sensor-to-solenoid valve logic interfaces in industrial automation
- Multi-zone detection systems requiring zero pressure accumulation
- OEM equipment retrofits and system upgrades
Compatibility & Replacements
Compatible With
- Sick WTR1 and WTR2 photoelectric sensors (ZoneControl™ series)
- Sick WLR2100-D and WLR2100-M ZoneControl™ sensors
- Standard 24 VDC industrial power supplies (Class 2 certified)
- Pneumatic solenoid valves with A-to-D configuration
- M8 and M12 industrial sensor/actuator connectors
- Sick zone control and detection system architectures
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The ZLM1-C1121S03S10 is a specific configuration; related ZLM1 models may include different valve outputs or connector types.
Works With
- Sick ZoneControl™ sensor ecosystem (WTR, WLR series)
- Pneumatic control systems with 24 VDC logic signal levels
- Standard M12 A-coded and M8 sensor connectors
- Class 2 power distribution and safety systems
- Industrial automation integration platforms requiring 200 Hz switching frequency
