Overview

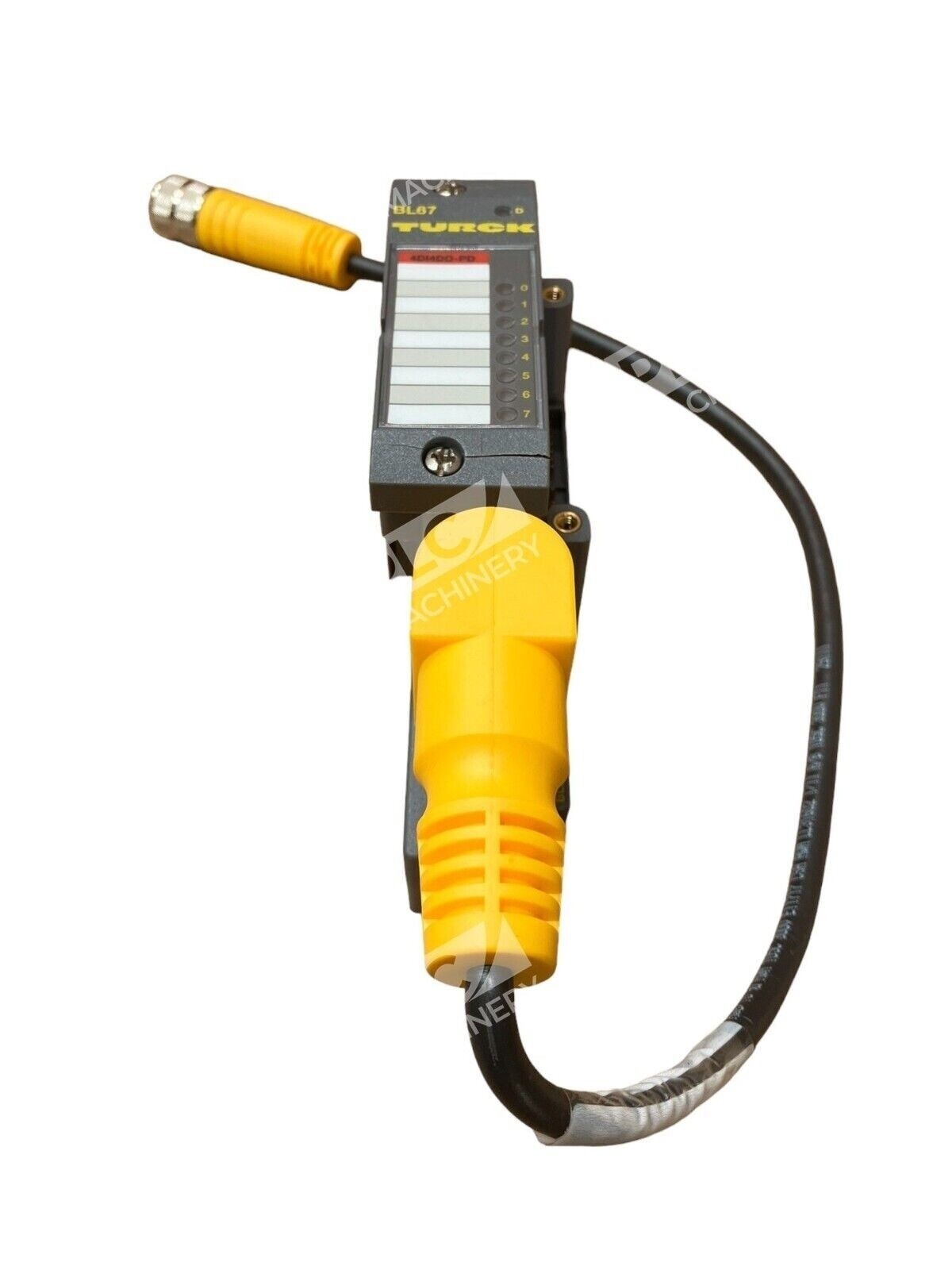

The Turck BL67-4DI4DO-PD is a modular I/O solution designed for industrial automation and distributed control applications. This BL67 electronic module provides 4 digital inputs with integrated channel diagnostics and 4 digital outputs (PNP) in a compact, rugged form factor. The module operates at 24 VDC and is protected to IP67, making it suitable for harsh factory environments and field-mounted installations.
Key Features
- 4 Digital Inputs: 24 VDC with channel-level diagnostics and adjustable filter times
- 4 Digital Outputs (PNP): 24 VDC, 0.5 A maximum per channel
- Galvanic Isolation: Electronics isolated from field level via optocouplers for noise immunity
- IP67 Protection: Sealed enclosure withstands dust and water ingress
- Invertible Inputs: Software-configurable input polarity

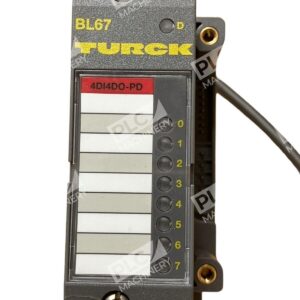

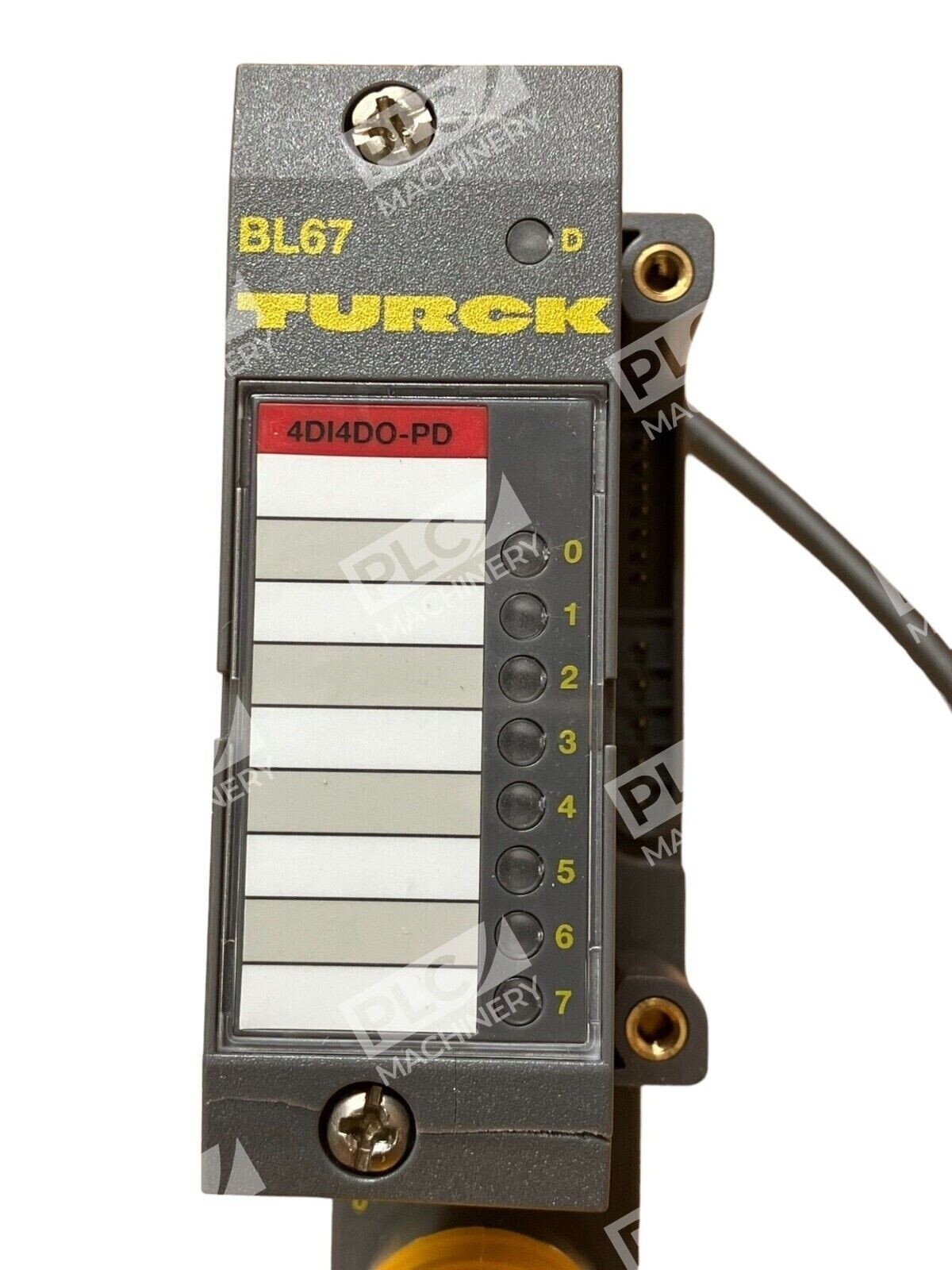

- Status & Diagnostic LEDs: Visual feedback for module state and I/O activity
- Plug-in Mount: 32 × 91 × 59 mm compact profile
Technical Specifications
- Input Voltage: 24 VDC
- Digital Inputs: 4 channels, 24 VDC logic level
- Digital Outputs: 4 channels, PNP, 24 VDC, 0.5 A max
- Protection Class: IP67
- Isolation: Galvanic, via optocouplers
- Mounting: Plug-in module
- Dimensions: 32 × 91 × 59 mm (W × H × D)
- Certification: RoHS compliant
Typical Applications
The BL67-4DI4DO-PD is ideal for:
- Distributed I/O in manufacturing and process automation
- Machine-level control and signal conditioning
- Sensor and actuator interfacing in field-mounted enclosures
- Fieldbus-independent signal acquisition and switching
- Systems requiring galvanic isolation and noise immunity in electrically noisy environments
Compatibility & Replacements
Compatible With
- Turck BL67 modular I/O platform and ecosystem
- Multi-protocol capable (Ethernet/IP, PROFINET, PROFIBUS, EtherCAT, Modbus TCP, and others via gateway modules)
- 24 VDC field power systems
- Industrial PLC and PAC systems using standard 24 VDC logic
- SCADA and HMI systems communicating via supported protocols
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This module is part of the BL67 series; similar I/O configurations may exist under different model numbers.
Works With
- Turck TLGateway (protocol conversion)
- Standard fieldbus protocols (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP)
- 24 VDC industrial control networks
- Turck configuration and diagnostic software
