<h2>Overview</h2>

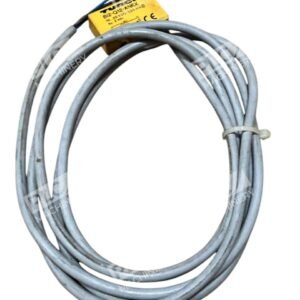

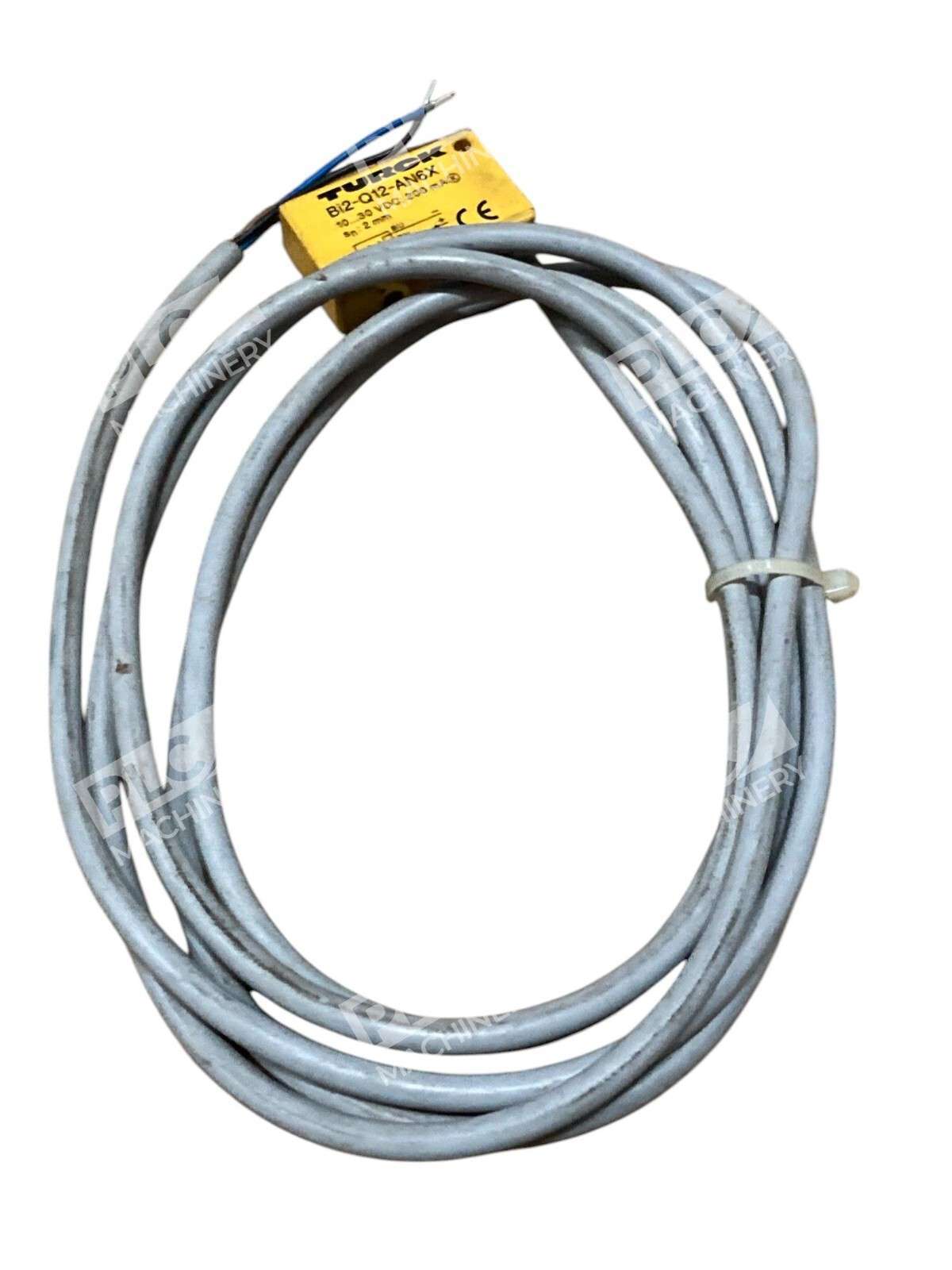

<p>The <strong>Turck Bi2-Q12-AN6X</strong> is a cylindrical inductive proximity sensor engineered for automatic, non-contact detection of ferrous and non-ferrous metal objects. Part of Turck’s reliable BI2 series, this sensor combines durability with precision sensing to support continuous operation in factories, assembly lines, and process automation systems. Its compact embeddable design and straightforward wiring make it an ideal choice for motion control, parts counting, and position detection applications.</p>
<h2>Key Features</h2>
<ul>
<li>Non-contact, wear-free metal detection principle eliminates mechanical wear</li>
<li>PNP output configuration with high switching current capacity</li>
<li>Wide supply voltage range (10–30 V DC) for flexible integration</li>
<li>Compact cylindrical housing suitable for embedded mounting</li>
<li>Short sensing range optimized for reliable close-proximity detection</li>
<li>M12 A-code connector with standard picofast termination</li>
</ul>
<h2>Technical Specifications</h2>
<p>The Turck Bi2-Q12-AN6X operates across a broad industrial temperature range and exhibits low power consumption, making it suitable for continuous-duty applications. Its sensing electronics use high-frequency electromagnetic fields to detect metal presence reliably, independent of surface condition or contamination within normal operating limits. Load current capacity accommodates standard PLC input modules without additional amplification.</p>
<h2>Typical Applications</h2>
<ul>
<li>Assembly line presence detection and part positioning</li>
<li>Conveyor system metal object counting and sorting</li>
<li>Machine tool spindle and axis position sensing</li>
<li>Packing and labeling equipment control</li>
<li>Fluid power actuator end-of-stroke verification</li>
<li>Production line safety interlocks and guards</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLC input modules</li>
<li>Siemens S7-1200, S7-1500, and S7-300 discrete input cards</li>
<li>Omron CP/CJ/CS series PLCs</li>
<li>Mitsubishi FX, Q, and iQ-R series controllers</li>
<li>Standard 24 VDC industrial control systems</li>
<li>Distributed I/O modules and remote racks</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Turck Bi2-Q12-AN6X is a direct replacement for other Turck BI2-Q12 series proximity sensors with identical M12 connector pinouts and electrical ratings. Verify connector orientation and wiring before installation. For alternative inductiveProximity sensors, consult your system integrator to confirm compatibility.</p>
<h3>Works With</h3>
<ul>
<li>RSLogix 5000 and Studio 5000 Logix Designer (discrete I/O tagging)</li>
<li>TIA Portal (Step 7) for Siemens platforms</li>
<li>EtherNet/IP networks via remote I/O adapters</li>
<li>Profibus and CANopen fieldbus gateways</li>
<li>Standard 24 V control relay logic and hardwired circuits</li>
</ul>
