Overview

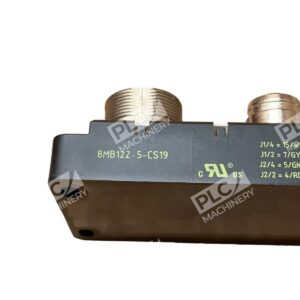

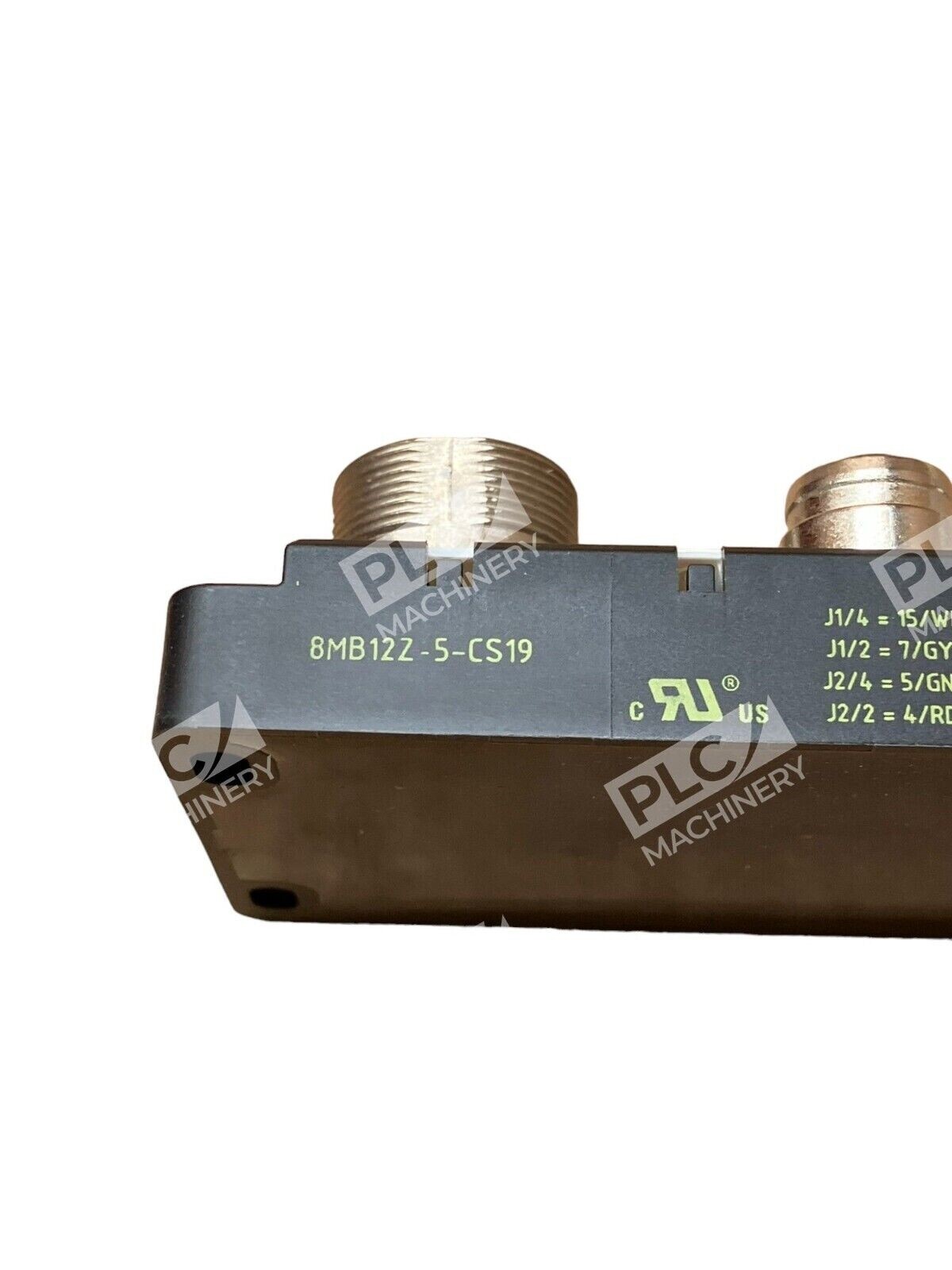

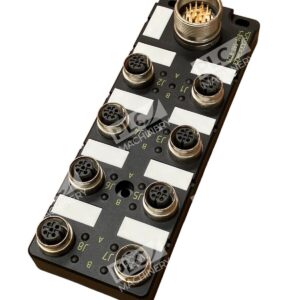

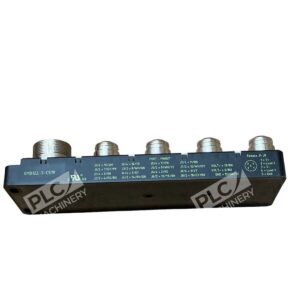

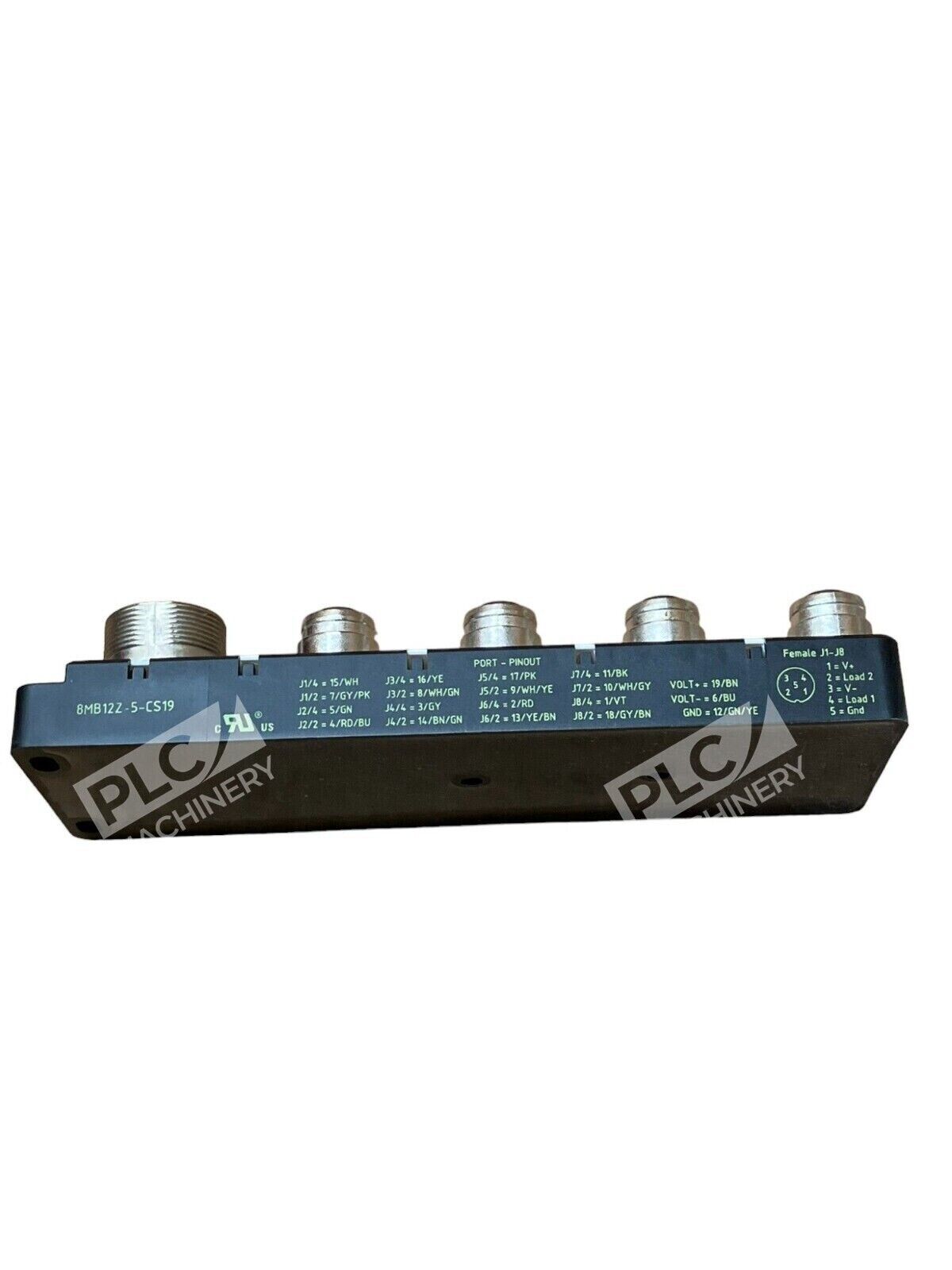

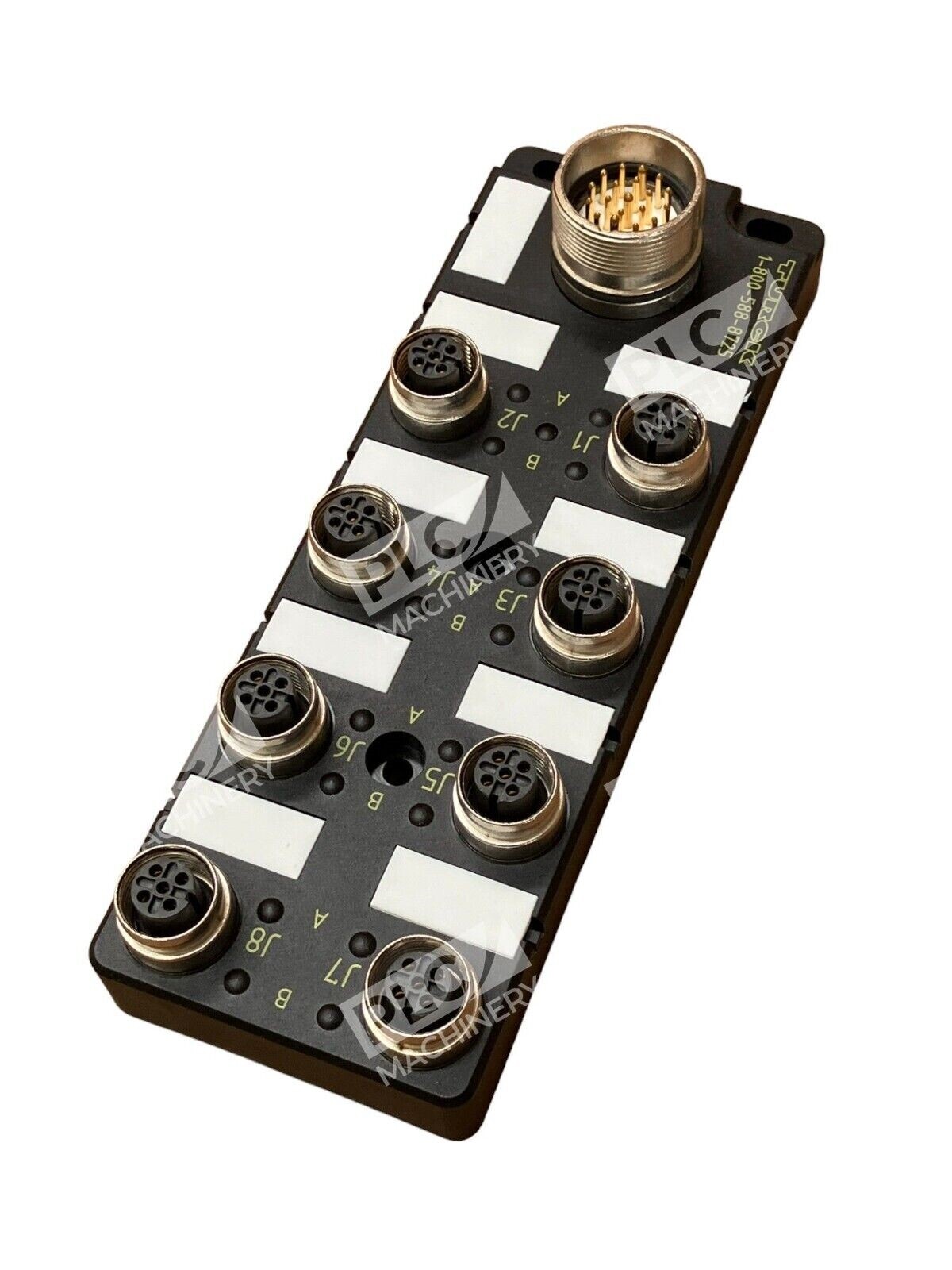

The Turck 8MB12Z-5-CS19 is an industrial-grade cordset junction box designed for sensor and actuator connectivity in automation systems. This EuroFast series unit consolidates eight M12 circular connectors into a single M23 multifast home run, simplifying cable management and reducing connection points in plant floor installations.
Key Features
- 8-port M12 EuroFast socket configuration with dual input/output channels per port
- Single M23 multifast male connector (top exit) for home run integration
- Low-profile plastic housing rated 10–30 VDC, 2A per signal line
- Supports standard wiring and signal pin configurations
- Compact, rugged design suitable for mounting in control panels or field junction applications
Technical Specifications
- Supply Voltage: 10–30 VDC
- Current Rating: 2A (per signal line)
- Input/Output Ports: 8 × M12 A-coded 5-pin sockets
- Home Run Connector: M23 19-pin multifast male (top exit)
- Housing Material: Plastic
- Signals per Port: 2 (dual input/output per M12 port)
- Wiring Configuration: Standard
- Weight: Approximately 1 lb (0.45 kg)
- Origin of Manufacture: Mexico
Typical Applications
- Sensor signal consolidation in conveyor and packaging machinery
- Proximity and photoelectric sensor connection networks
- Valve and solenoid actuator multiplexing
- PLC and industrial controller I/O expansion
- Panel-mount or machine-integrated junction consolidation
Compatibility & Replacements
Compatible With
- M12 A-coded 5-pin sensor and actuator connectors
- M23 multifast home run cable assemblies
- Industrial PLC systems requiring sensor input multiplexing
- 24VDC control systems in manufacturing and process automation
- Standard signal protocols (discrete input/output)
Replaces / Drop-In Replacement For
- Turck 8MB12Z-5-CS19H (side-exit M23 variant)
- Functionally compatible with other 8-port M12 EuroFast junction boxes using standard wiring
Works With
- Turck sensor and actuator cordsets with M12 connectors
- Third-party M12 A-coded sensor/actuator devices
- M23 multifast cable home runs and connectors
- Standard industrial relay logic and modern PLC I/O modules
