Overview

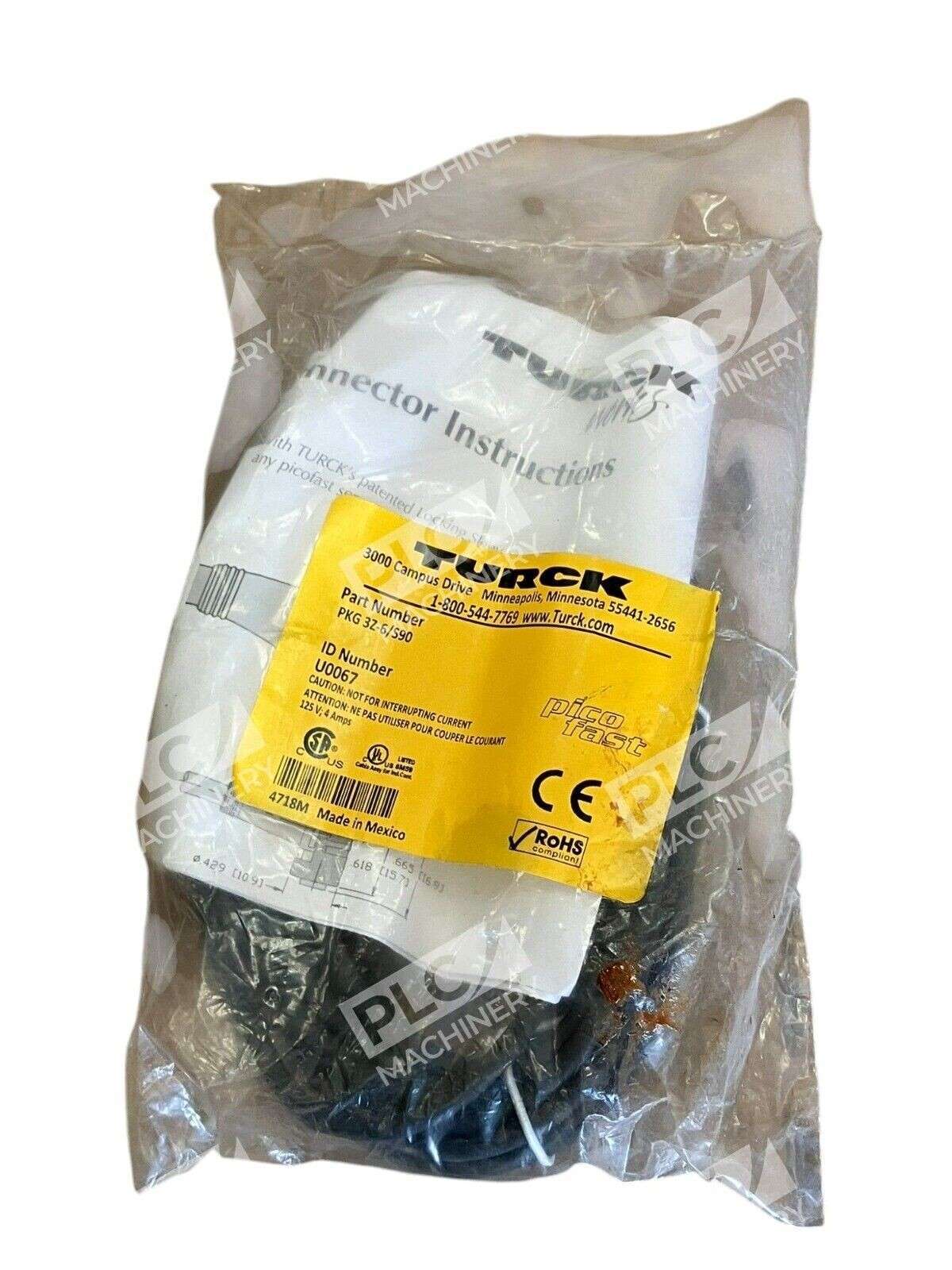

The Turck PKG 3Z-6/S90 is a single-ended industrial cordset designed for sensor and actuator applications requiring reliable, field-tested connectivity. This 6-meter cordset combines a molded 3-pin M8 picofast female connector with a cut-end cable, making it ideal for custom installation or direct wiring into control panels and equipment. The snap-lock picofast design ensures secure, tool-free mating while the bare-end flying leads allow flexible termination.
Key Features
- 6-meter pre-assembled cable with 3-pin M8 picofast female connector (straight orientation)
- Single-ended design with bare cut-end for direct soldering or terminal connection
- TPU cable jacket rated for +90°C, -40°C cold bend, providing flexibility and abrasion resistance
- RFI/EMI shielding with foil drain for noise immunity in automation environments
- Nickel-plated brass coupling nut and POM locking sleeve for corrosion resistance
- IP67-rated connector assembly, suitable for NEMA 1, 3, 4, and 6P enclosures
Technical Specifications

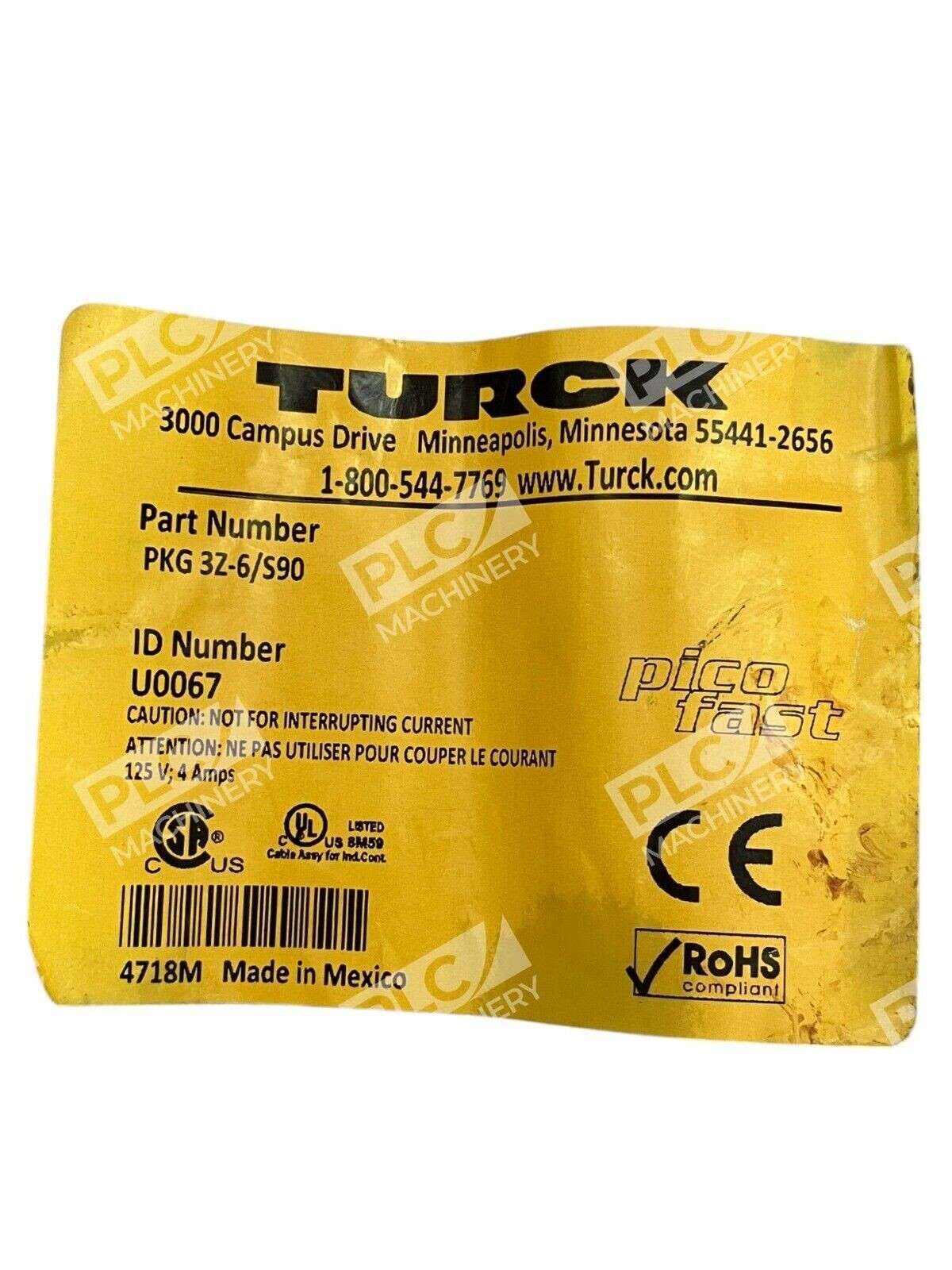

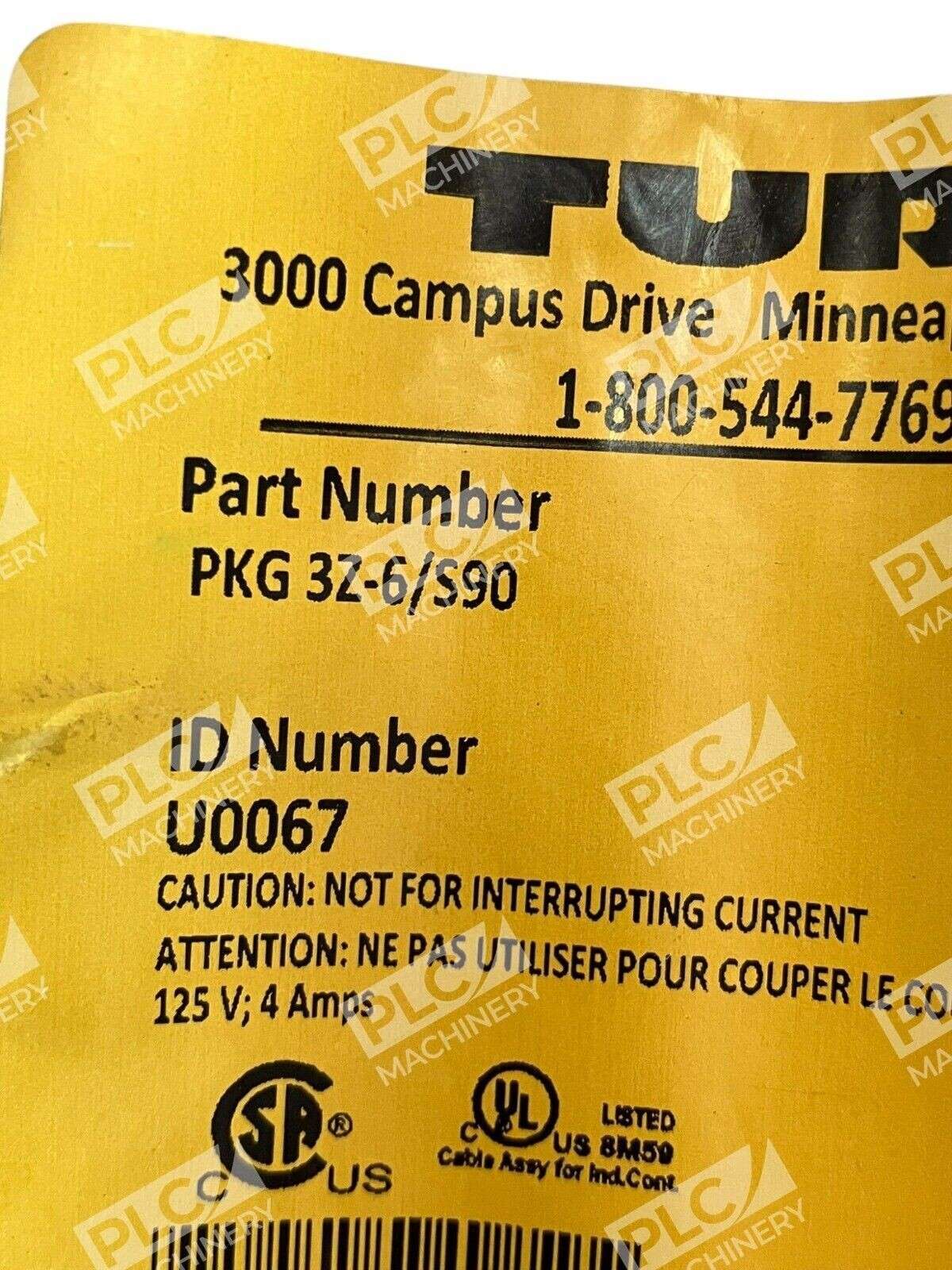

- Manufacturer Part Number: PKG 3Z-6/S90
- Cable Length: 6 meters (19.7 feet)
- Connector Type: M8 picofast, 3-pin female
- Connector Orientation: Straight
- Wire Count: 3 conductors
- Wire Gauge: 24 AWG
- Cable Diameter: 4.2 mm
- Cable Jacket Material: TPU (Thermoplastic Polyurethane)
- Cable Color: Black
- Rated Voltage: 125V AC/DC
- Rated Current: 4A per conductor
- Operating Temperature Range: -40°C to +90°C
- IP Rating: IP67
- EMI/RFI Protection: Shielded with foil drain
- Coupling Material: Nickel-plated brass
- Locking Sleeve: POM (Polyoxymethylene)
Typical Applications
The Turck PKG 3Z-6/S90 cordset is widely used in industrial automation for connecting:
- Inductive and capacitive proximity sensors
- Photoelectric sensors and light curtains
- Solenoid valve actuators and pilot controls
- Position sensors and limit switches
- Signal conditioning equipment and junction boxes
- PLC I/O modules and distributed control nodes
- Plant floor retrofit and field panel wiring
Compatibility & Replacements
Compatible With
- M8 picofast female socket connectors and receptacles
- Turck sensor and actuator product lines (TBEN, TKS, MK, Ti4, TL70, etc.)
- OEM equipment with M8-3pin female input connectors
- Standard industrial 24V DC control circuits (within 125V and 4A ratings)
- IP67/NEMA enclosures and harsh environment installations
Replaces / Drop-In Replacement For
The PKG 3Z-6/S90 is a standard catalog item with variants identified by suffix codes (S90, S101, S618, S771, S1055, etc.). These designate cable jackets, shielding, or drain configurations but maintain identical M8-3pin connector compatibility. Verify specific application requirements before substitution.
Works With
- M8 picofast connector ecosystem (IEC 61076-2-109)
- Allen-Bradley CompactLogix, ControlLogix, and Micro820 with M8 sensor inputs
- Siemens S7-1200/1500 and SIMATIC distributed I/O systems
- Mitsubishi Q-series and FX-series PLC remote I/O modules
- Omron NX-series and CJ2-series controllers with M8 peripherals
- Turck TIA Portal projects and device configuration tools
- Modbus RTU, PROFIBUS DP, EtherCAT, and EtherNet/IP gateway nodes
