Overview

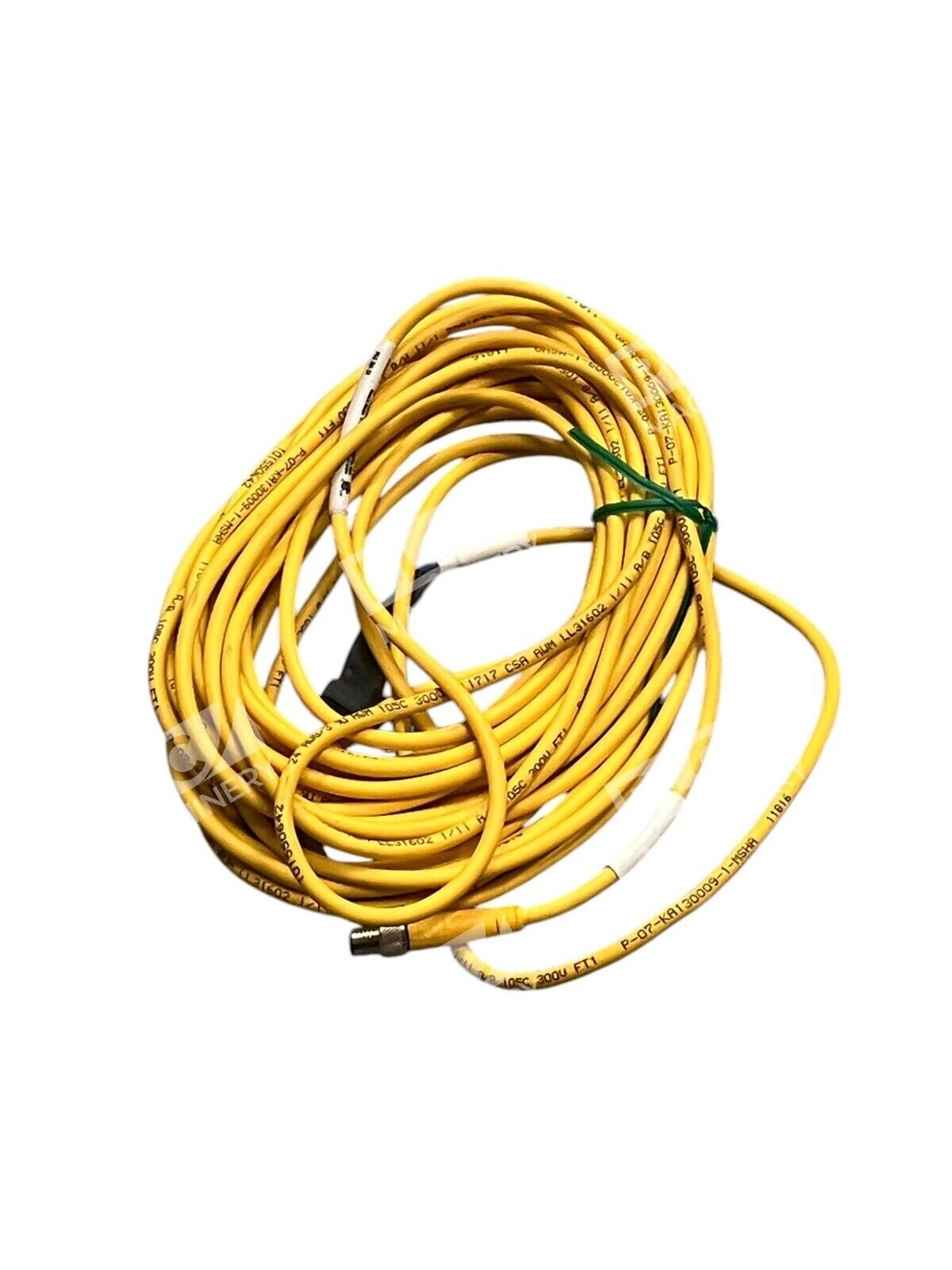

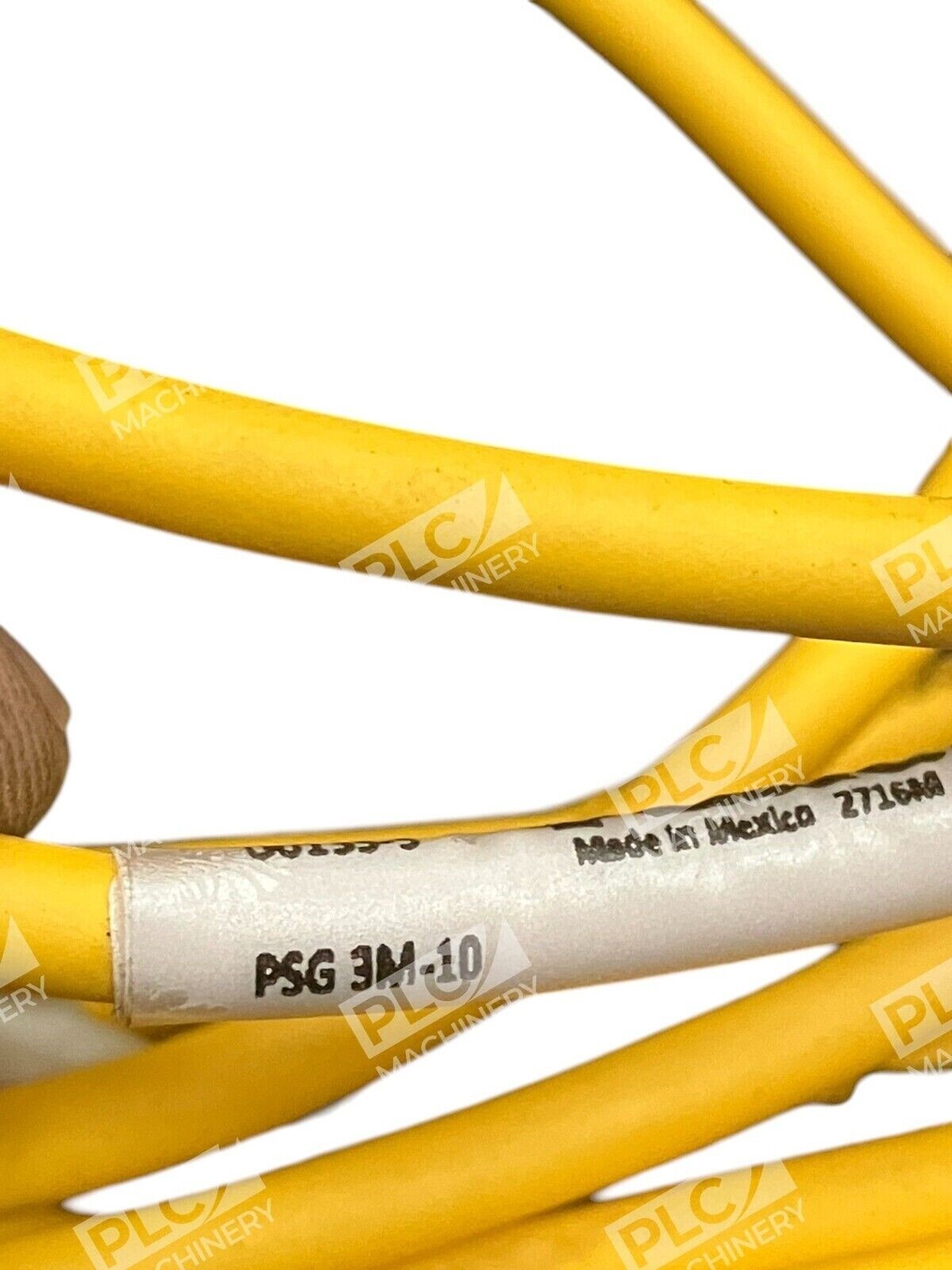

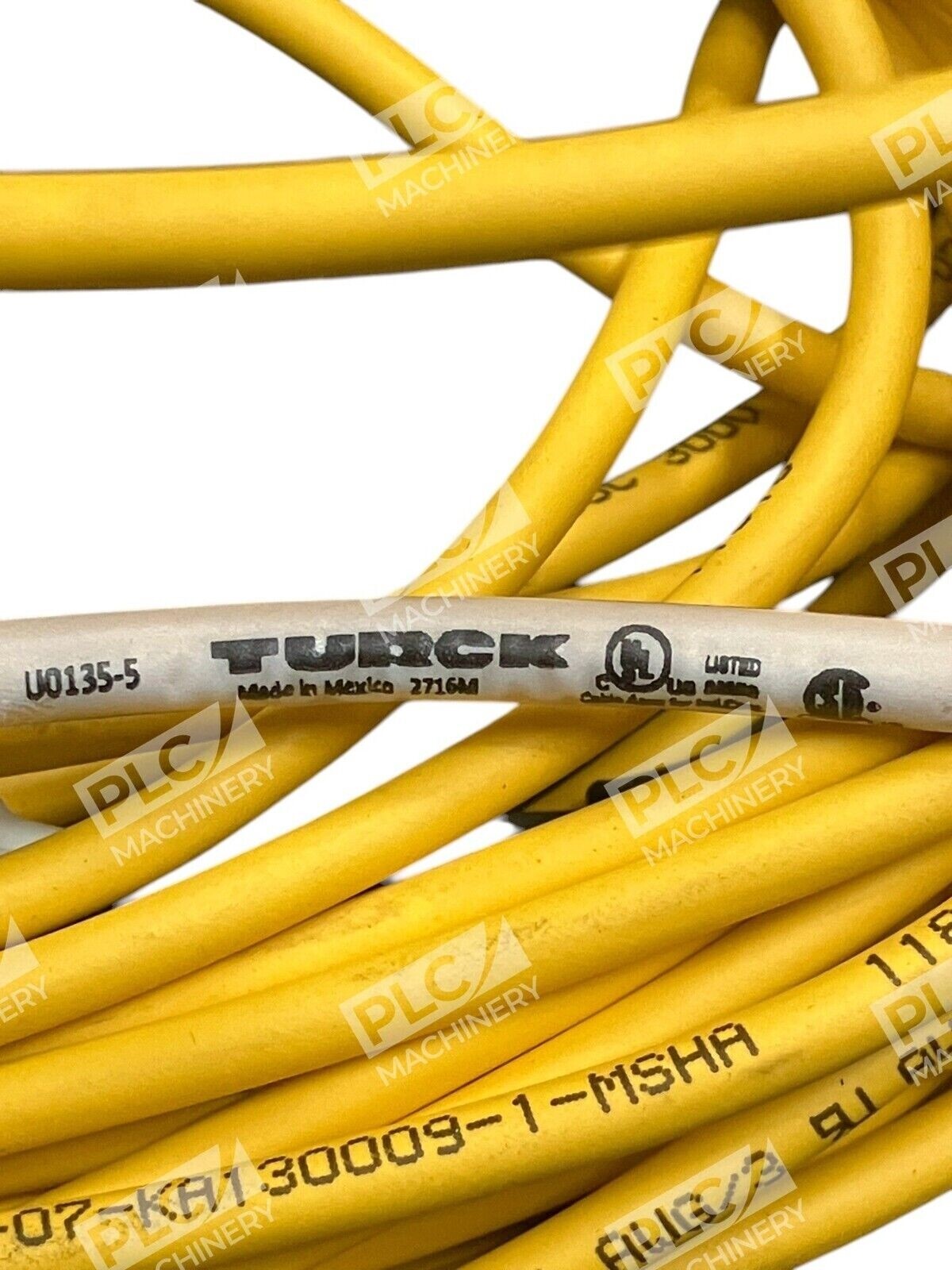

The Turck PSG 3M-10 is an industrial-grade actuator and sensor cordset designed for factory automation environments. With a 10-meter cable length and M8 male straight connector, this single-ended cable solution provides reliable connectivity for sensors, actuators, and industrial control systems. The PSG Series represents Turck’s professional-grade approach to industrial connectivity, ensuring robust performance in demanding manufacturing settings.
Key Features
- 10-meter cable length for extended reach in panel-to-device installations
- M8 male straight connector with 3-pin configuration
- 3×24 AWG conductor sizing for industrial-duty applications
- TPU (thermoplastic urethane) cable jacket for durability and flexibility
- Rated for 4A at 125VAC/DC operation
- UL1061 and CSA FT1 flame-rated for safety compliance
Technical Specifications
- Connector Type: M8 Male, Straight
- Connector Pins: 3-pin
- Cable Length: 10 meters
- Wire Gauge: 3×24 AWG
- Cable Jacket Material: TPU (Thermoplastic Urethane)
- Current Rating: 4A
- Voltage Rating: 125VAC/DC
- Cold Bend Rating: -40°C
- Flame Rating: UL1061, CSA FT1
- Connector Material: Brass with Nickel Plating
Typical Applications
- Machine tool connectivity between PLC panels and field sensors
- Factory automation sensor-to-controller wiring
- Actuator signal transmission in manufacturing processes
- Industrial equipment extension cable runs
- Production line assembly line sensor networks
Compatibility & Replacements
Compatible With
- Turck M8 male connector systems (standard industrial interface)
- Factory automation controllers and PLC systems
- Industrial sensor and actuator networks
- Standard M8 threaded connector applications
Replaces / Drop-In Replacement For
- PSG 3M-10/S90 (variant with S90 socket option)
- PSG 3M-10/S760 (variant with S760 socket option)
- Generic M8 male 3-pin cordsets in equivalent configurations
Works With
- Turck actuator and sensor product lines
- Standard M8 connector-equipped industrial devices
- Factory automation networks utilizing M8 connectivity
- IP67-rated industrial environments with proper connector sealing
