Overview

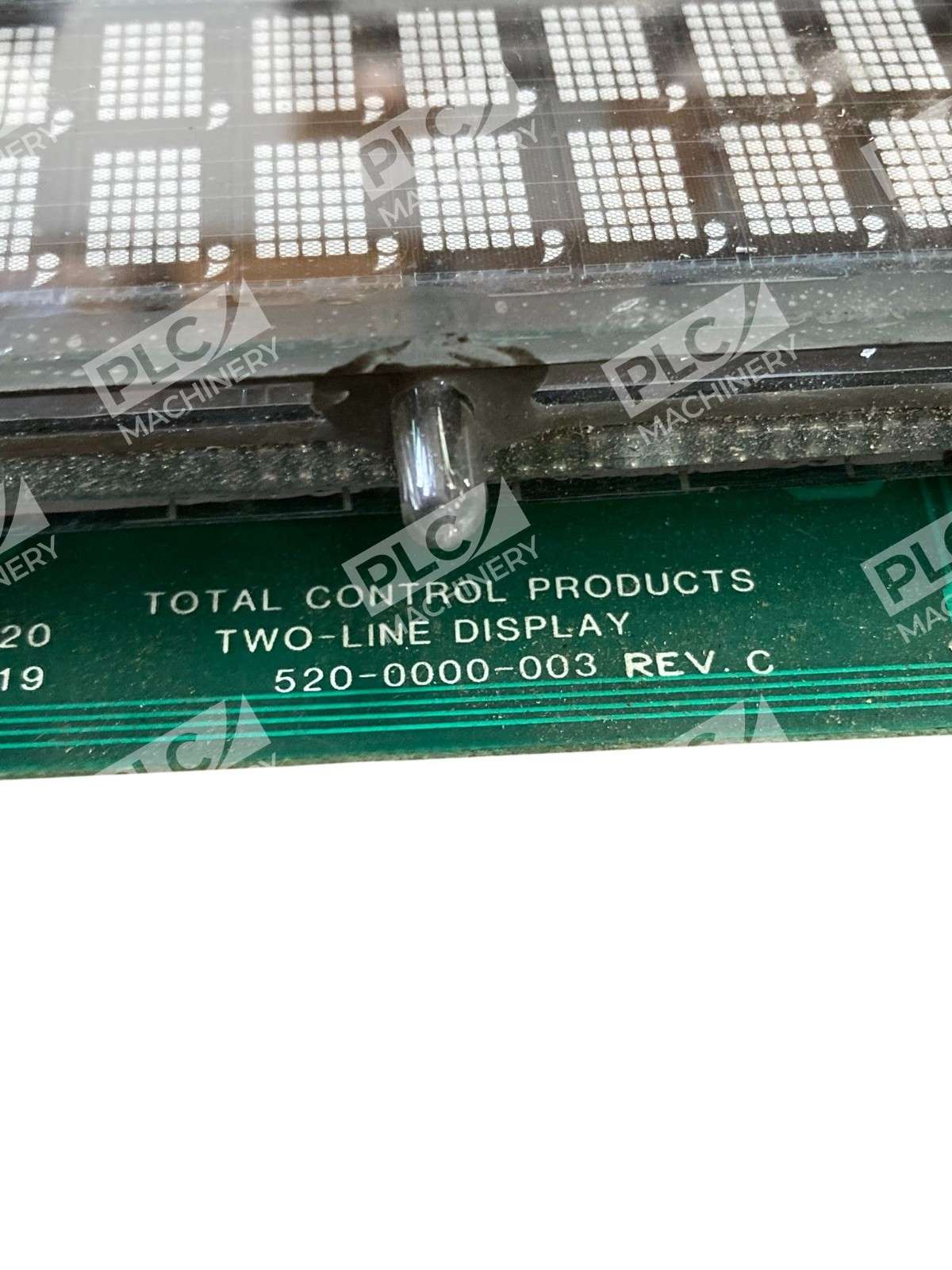

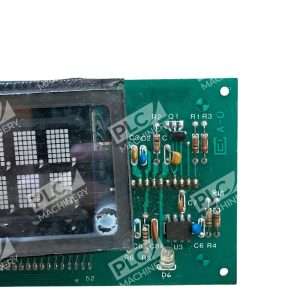

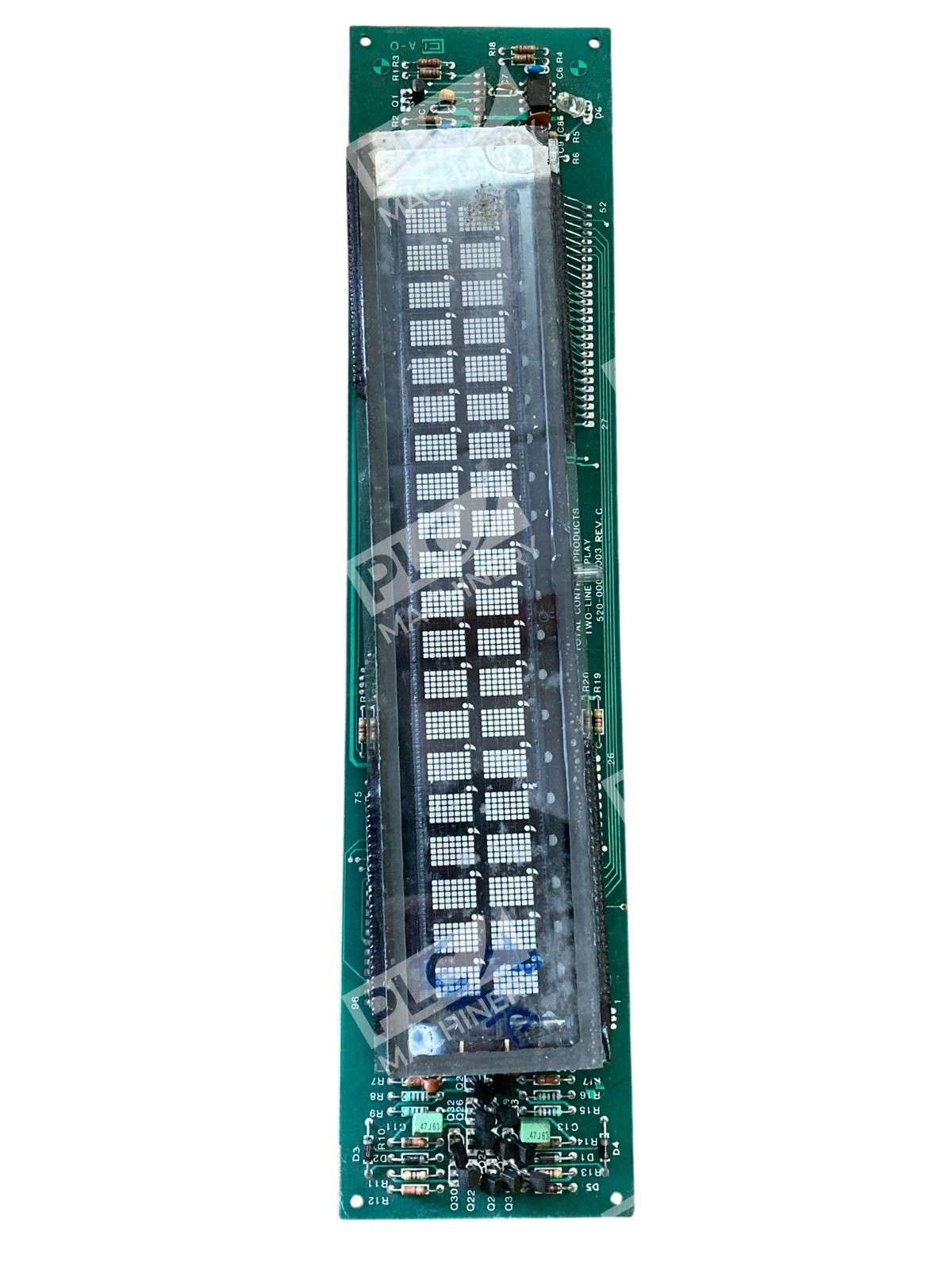

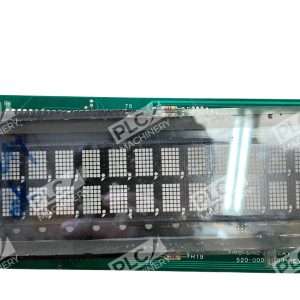

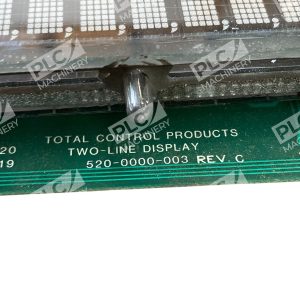

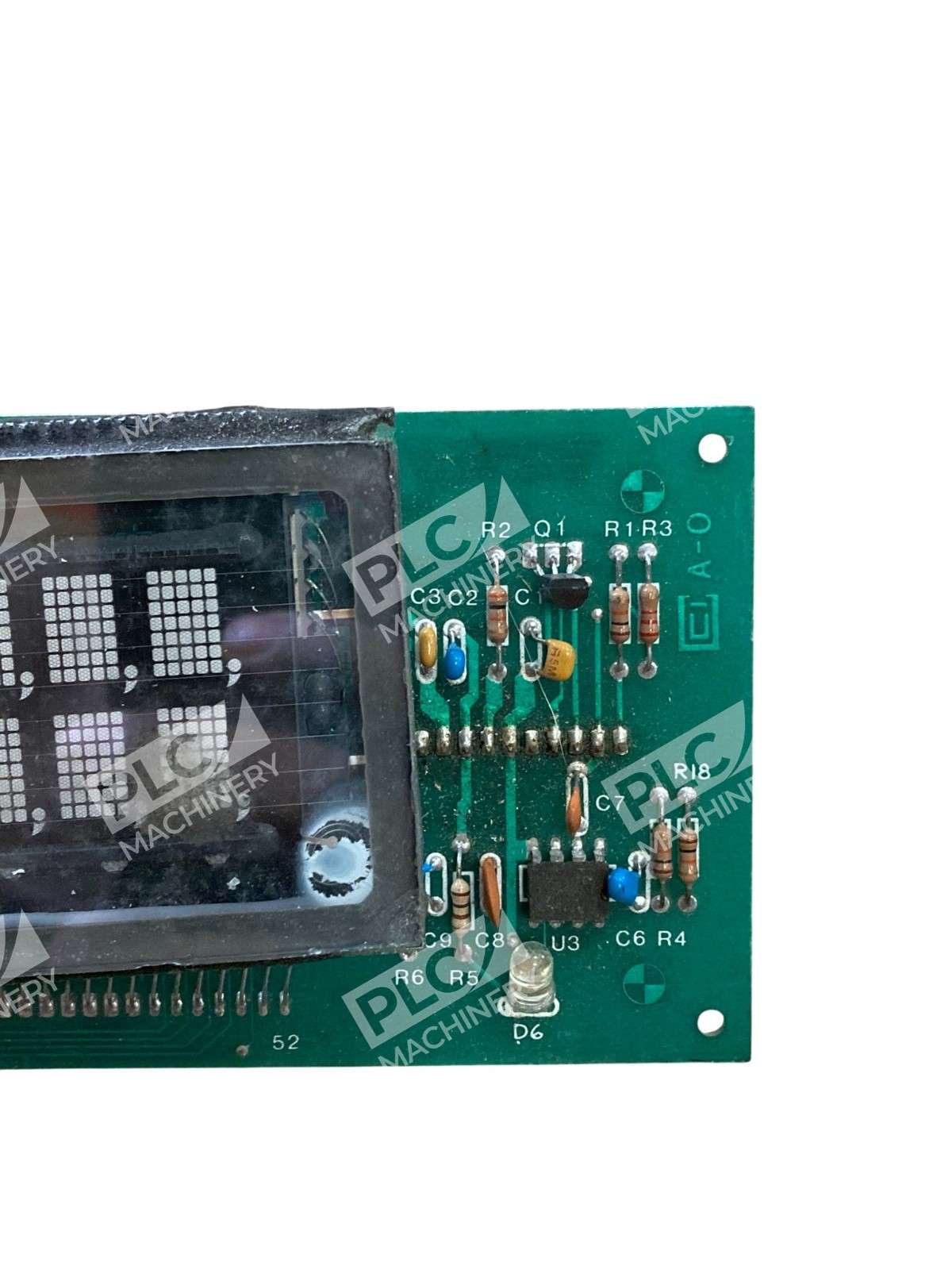

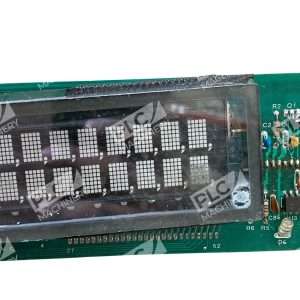

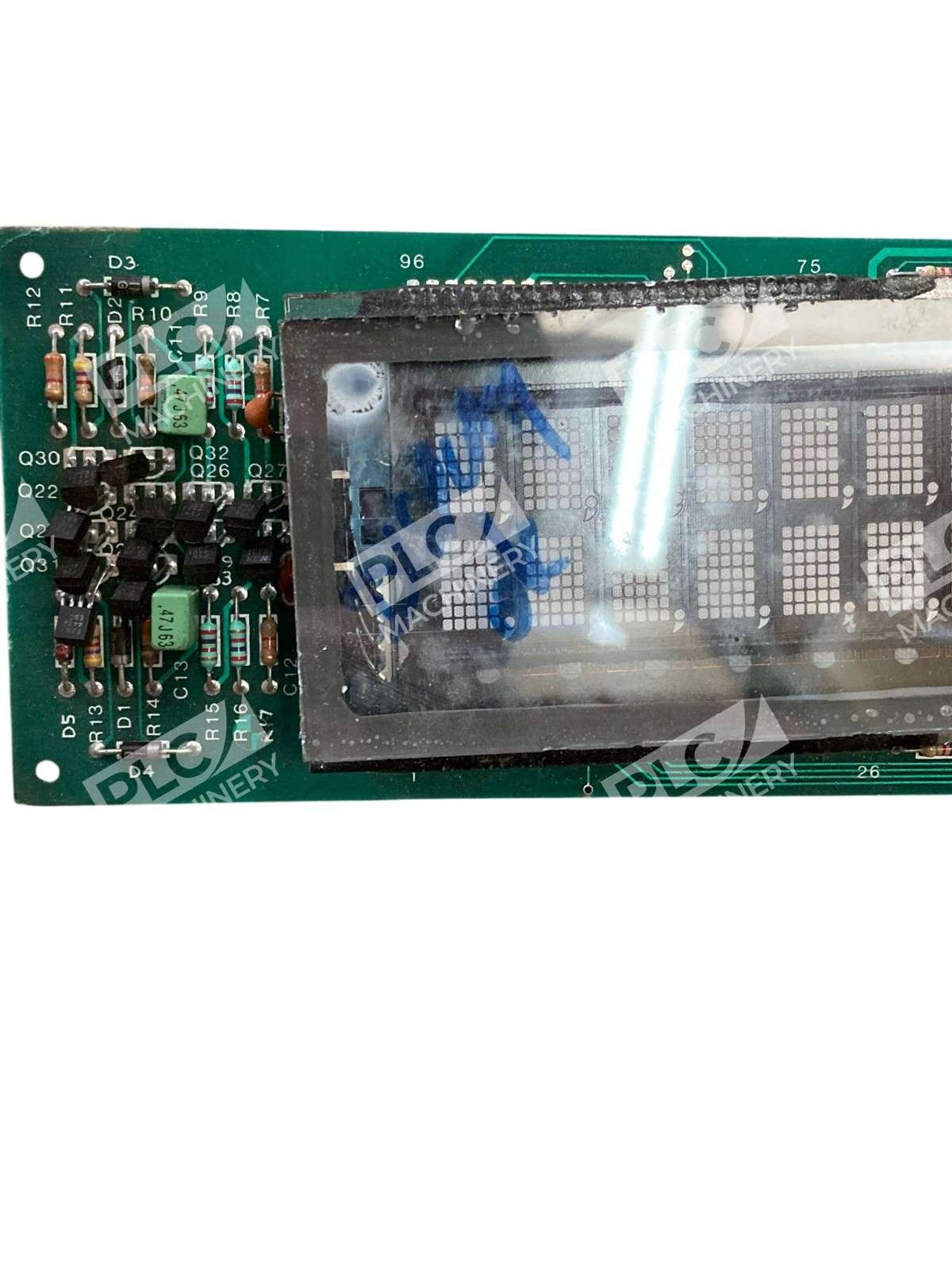

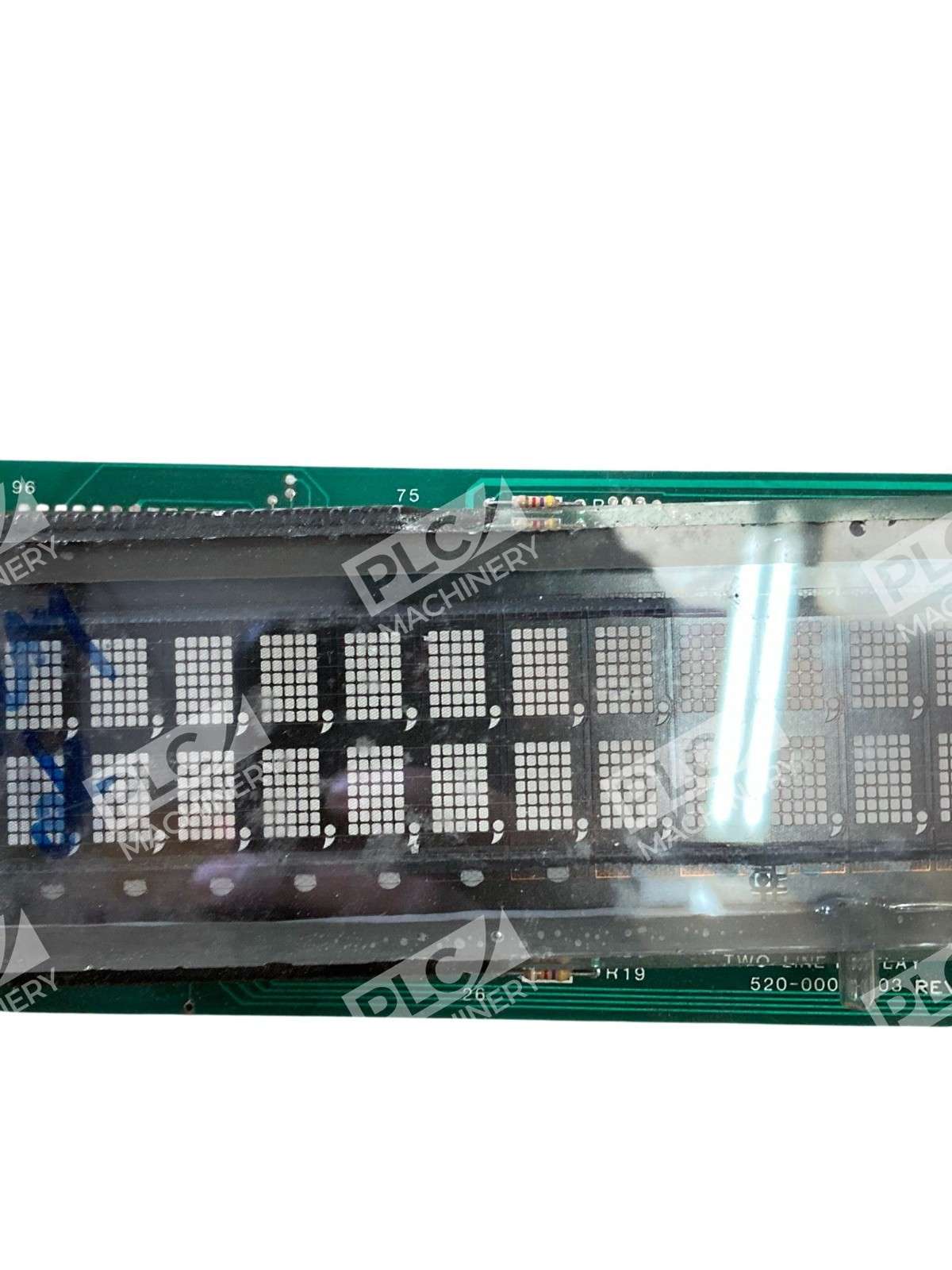

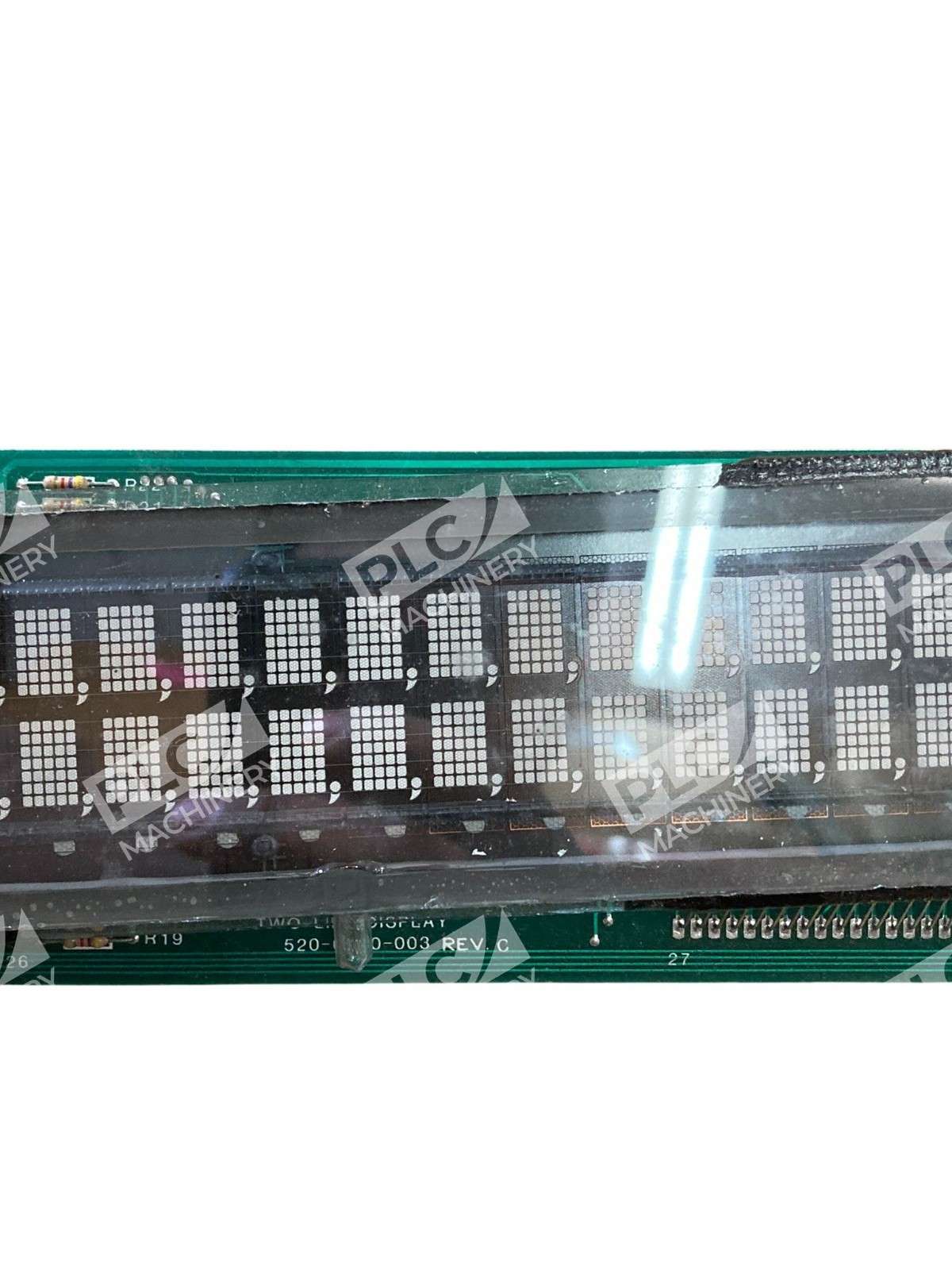

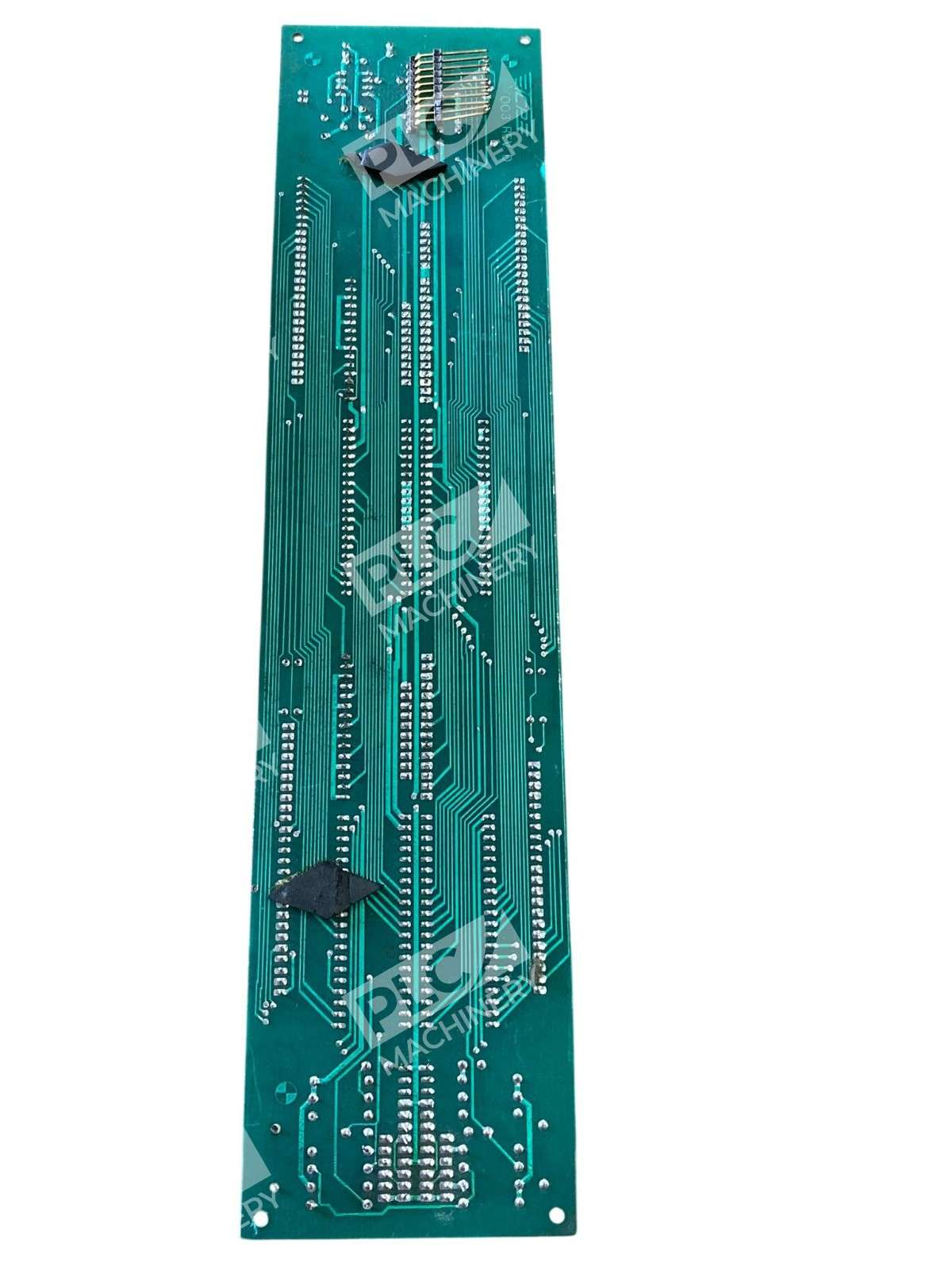

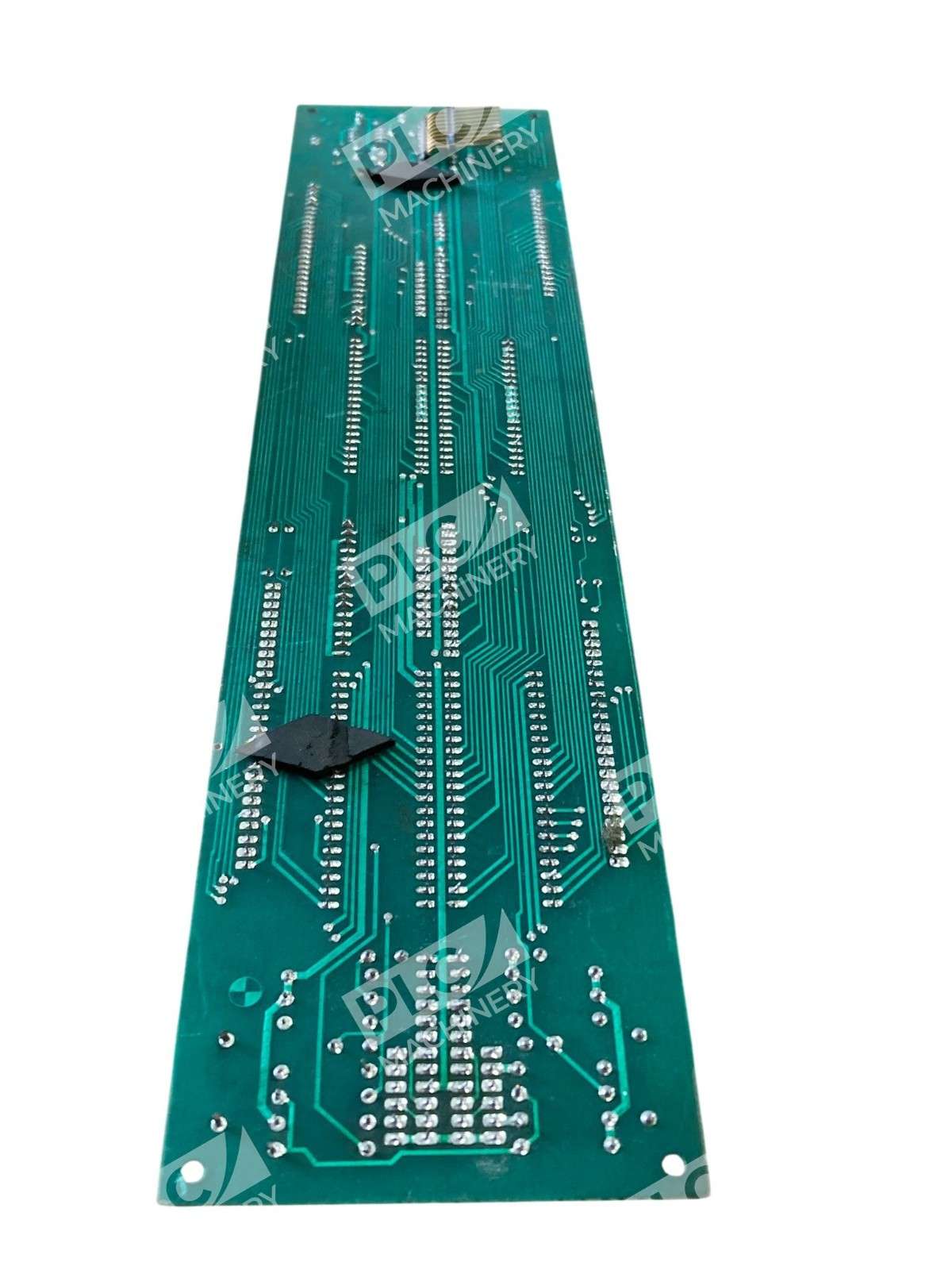

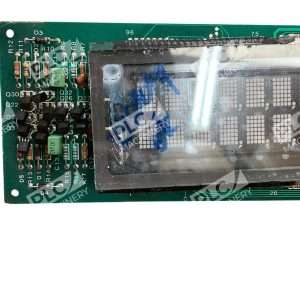

The Total Control Products 520-0000-003 is a two-line display module engineered for integration into industrial operator interface systems. This module provides reliable text display output for real-time process monitoring and operator feedback in manufacturing and automation environments. The unit supports standard industrial display protocols and integrates into Total Control Products control systems as well as compatible OEM platforms.
Key Features

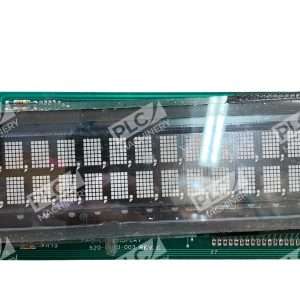

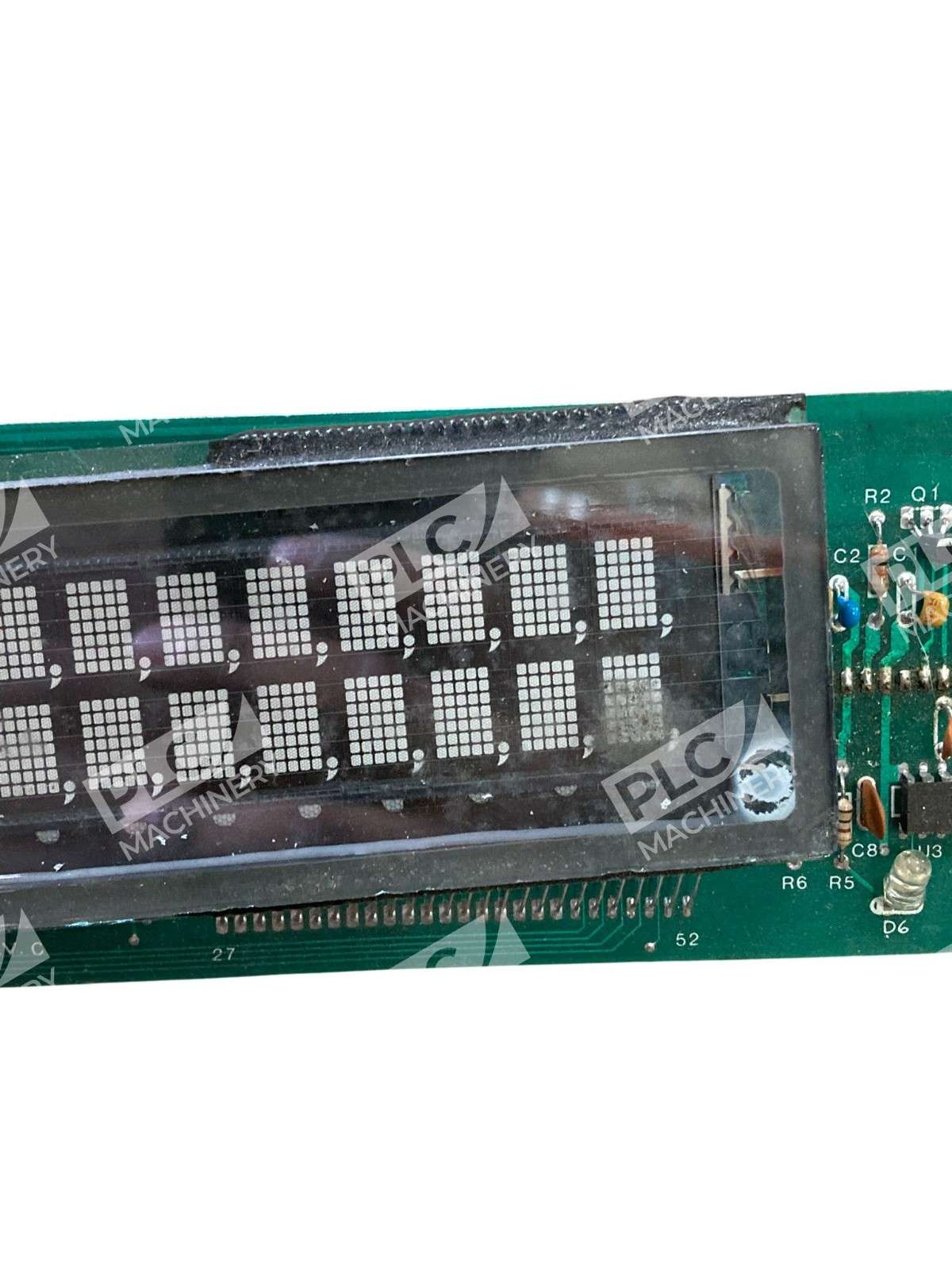

- Two-line alphanumeric display for operator messaging
- Compact form factor suitable for panel mounting
- Compatible with Total Control Products control architecture
- Proven reliability in industrial applications
- Available in used, tested condition

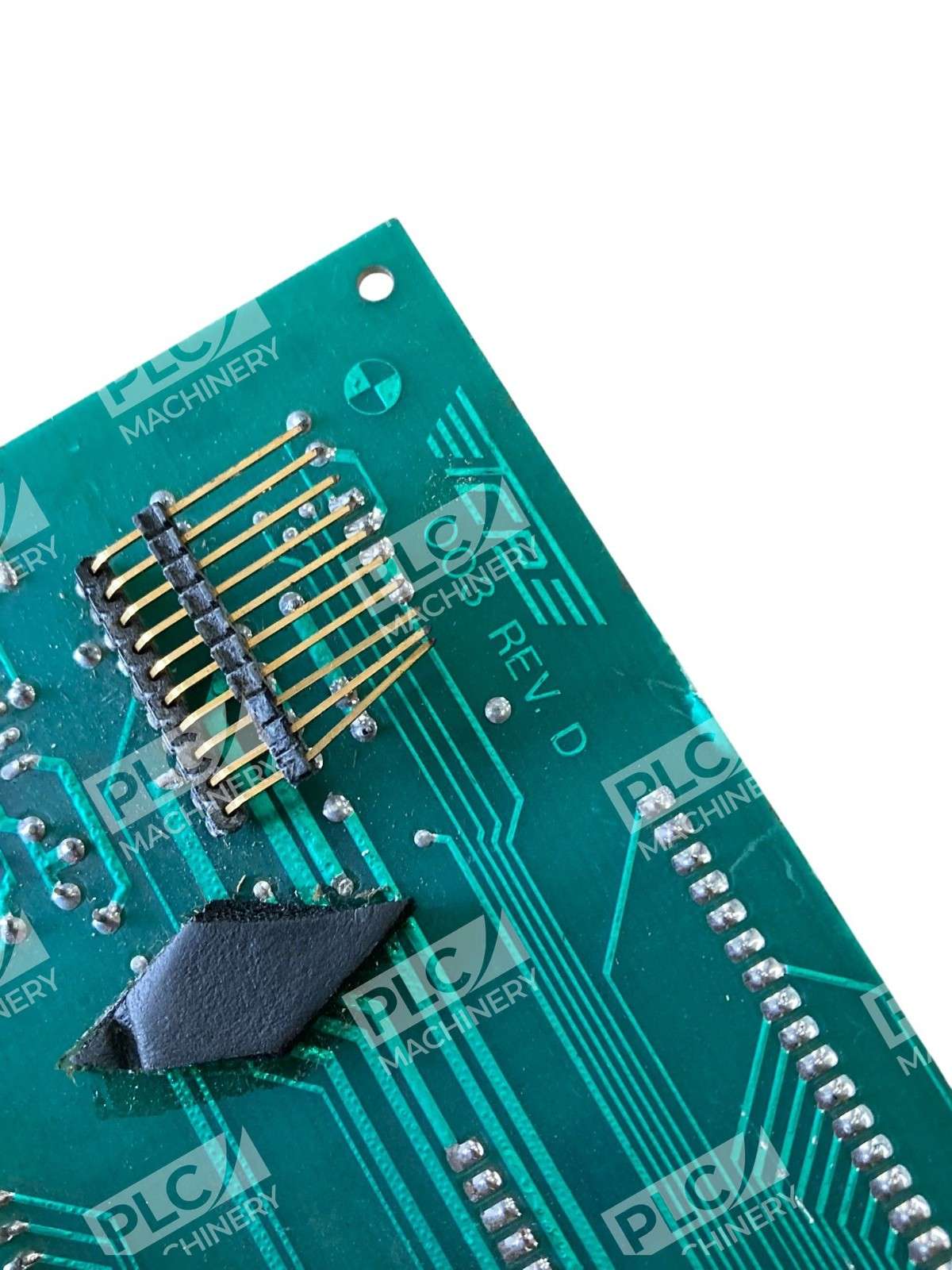

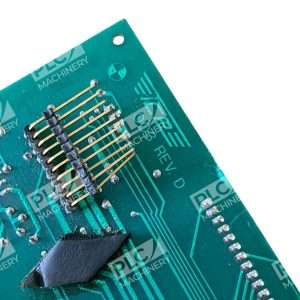

- REV. C / REV. D design with proven field performance
Technical Specifications
The Total Control Products 520-0000-003 display module is designed for integration into industrial control panels and operator stations. Display type is two-line alphanumeric LCD or LED output. Mounting configuration is industrial panel-mount standard. Revision levels C and D are documented in field deployments. The unit operates within standard industrial operating temperature ranges typical of control room environments (0–50°C). Housing construction is designed for NEMA 12 / IP65 equivalent panel integration.
Typical Applications
- Industrial process monitoring and messaging
- Manufacturing equipment operator interfaces
- System status and alarm display
- Production line information display
- Control panel integration for discrete manufacturing
- Legacy system retrofits and replacements
Compatibility & Replacements
Compatible With
- Total Control Products control systems and platforms
- Industrial operator interface panels
- NEMA 12-rated control enclosures
- Standard 24 VDC industrial power supply systems
- RS-232 and parallel data interface protocols (typical)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Total Control Products 520-0000-003 REV. C/D is a direct replacement for identical model numbers in field service and retrofit applications.
Works With
- Total Control Products QuickPanel operator interfaces
- Industrial HMI and SCADA systems supporting legacy integration
- Standard industrial control networking (RS-232, parallel data)
- 24 VDC industrial power systems
- Discrete manufacturing automation platforms
