Overview
The Omron TL-M5MY1 is a round-cable inductive proximity sensor designed for general-purpose industrial automation. This AC-operated model operates within the 90–250V AC range and features a standard 2-meter oil-resistant, vibration-resistant cable with 0.3 mm diameter cores suited for AC switching applications. The sensor delivers reliable non-contact position detection for conveyor systems, manufacturing lines, and machinery control.
Key Features
- AC-rated operation: 90–250V AC voltage compatibility
- Oil-resistant and vibration-resistant round cable construction
- 2-meter cable length for flexible sensor placement
- Compact cylindrical design for tight mounting spaces
- LED indicator for visual detection confirmation
- Non-contact sensing for wear-free operation
- Class A industrial-rated product suitable for factory environments
Technical Specifications
The TL-M5MY1 offers the following verified specifications:
- Sensing Distance: 5 mm (standard for TL-M5 series)
- Operating Voltage: 90–250V AC
- Cable Type: Oil-resistant round cable, 4 mm diameter
- Cable Length: 2 m (standard)
- Cable Cores (AC model): 0.3 mm diameter × 2 cores
- Weight: Approximately 75 g
- Indicator: 10 mm diameter LED
- Temperature Range: Verify with system integrator for oil-resistant environments (upper limit may be 40°C)
- Housing: Cylindrical stainless-steel design
- Certifications: Class A industrial product per Omron standards
Typical Applications
- Conveyor belt speed and position monitoring
- Assembly line part detection and part counting
- Motor shaft position sensing
- Gate and door opening/closing detection
- Machine guard and safety interlock circuits
- Robotic arm endpoint and intermediate positioning
- General manufacturing machine control and automation
Compatibility & Replacements
Compatible With
- AC industrial control circuits (90–250V AC)
- PLC input modules accepting discrete AC sensor signals
- Relay logic control systems
- Automation equipment using standard AC-rated proximity sensors
- Standard industrial wiring and connection terminals
Replaces / Drop-In Replacement For
The TL-M5MY1 is part of Omron’s established TL-M round-cable series. Within the same family, models with similar 5 mm sensing distance and 2 m cable length may have interchangeable mechanical mounting but verify electrical specifications before substitution. Consult Omron’s TL-M product catalog or your system integrator for confirmed replacement models. Never assume model interchangeability without verifying voltage rating and output circuit compatibility.
Works With
- Standard AC relay circuits and contactors
- Industrial PLC platforms (Allen-Bradley, Siemens, Mitsubishi, Omron)
- Discrete input modules (90–250V AC rated)
- Industrial automation supervisory systems
- Legacy and modern manufacturing control architectures
[
{
“label”: “Model”,
“value”: “TL-M5MY1”
},
{
“label”: “Manufacturer”,
“value”: “Omron”
},
{
“label”: “Product Type”,
“value”: “Inductive Proximity Switch (AC-operated)”
},
{
“label”: “Operating Voltage”,
“value”: “90–250V AC”
},
{
“label”: “Sensing Distance”,
“value”: “5 mm”
},
{
“label”: “Cable Length”,
“value”: “2 m (standard)”
},
{
“label”: “Cable Construction”,
“value”: “Oil-resistant, vibration-resistant round cable, 4 mm diameter”
},
{
“label”: “Cable Cores (AC)”,
“value”: “0.3 mm diameter × 2 cores”
},
{
“label”: “Weight”,
“value”: “Approximately 75 g”
},
{
“label”: “Indicator”,
“value”: “10 mm diameter LED”
},
{
“label”: “Housing”,
“value”: “Cylindrical stainless steel”
},
{
“label”: “Product Series”,
“value”: “Omron TL-M Round-Cable Inductive Proximity Series”
},
{

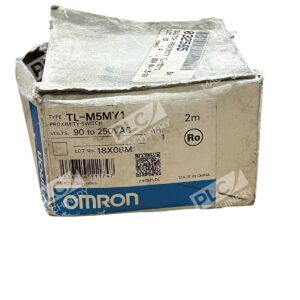

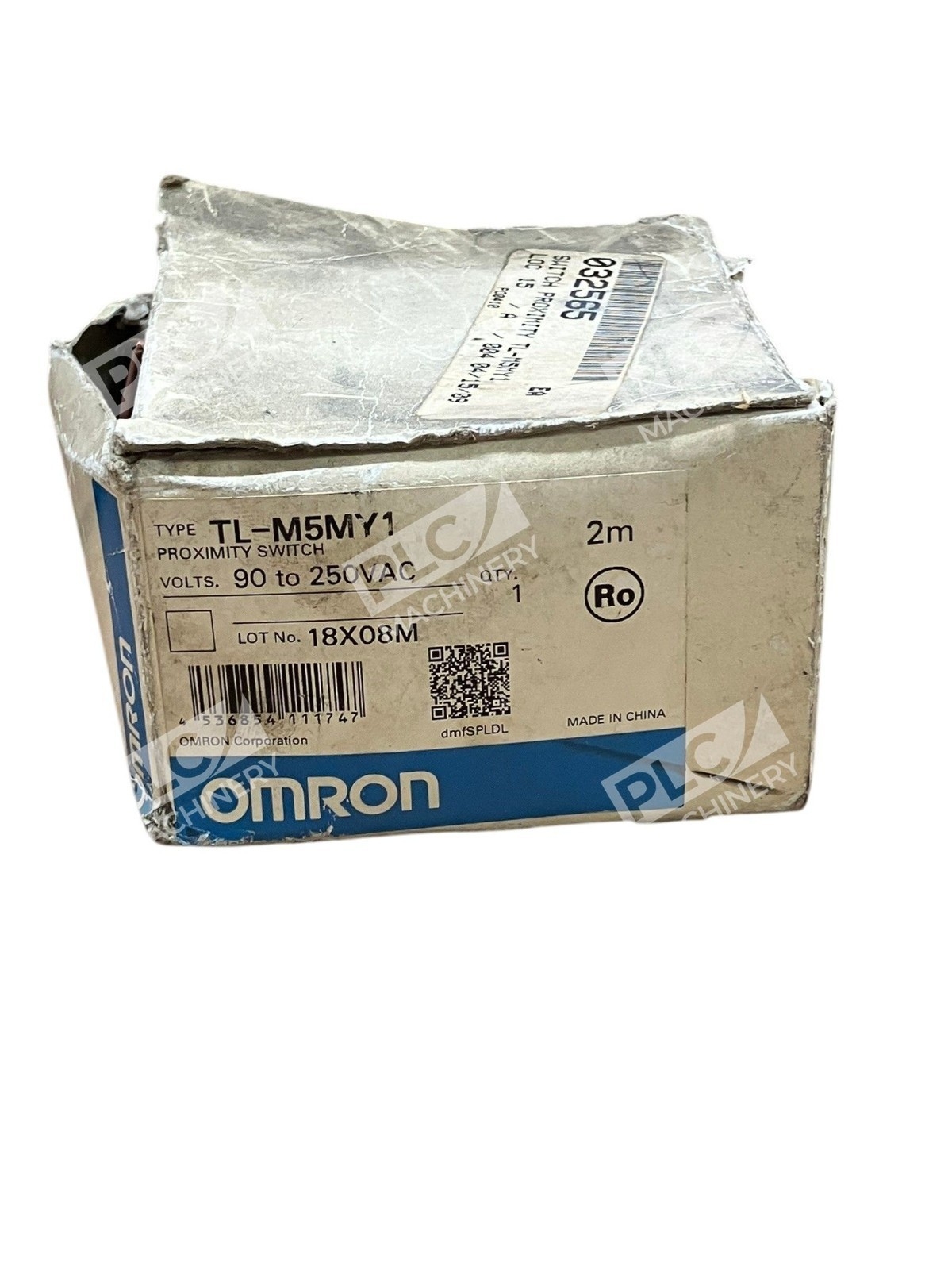

“label”: “Condition”,
“value”: “New in Box”
}
]
