Overview

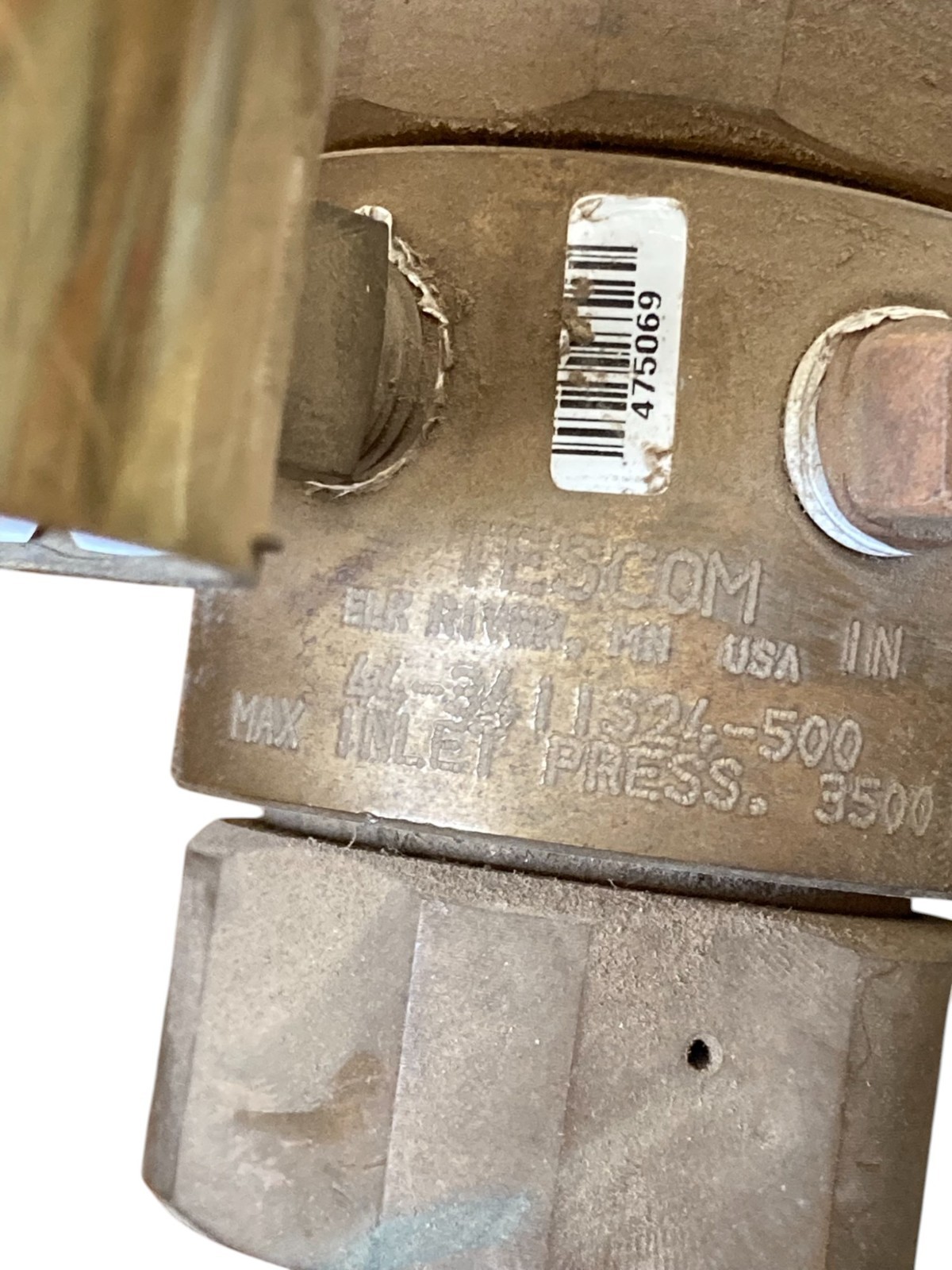

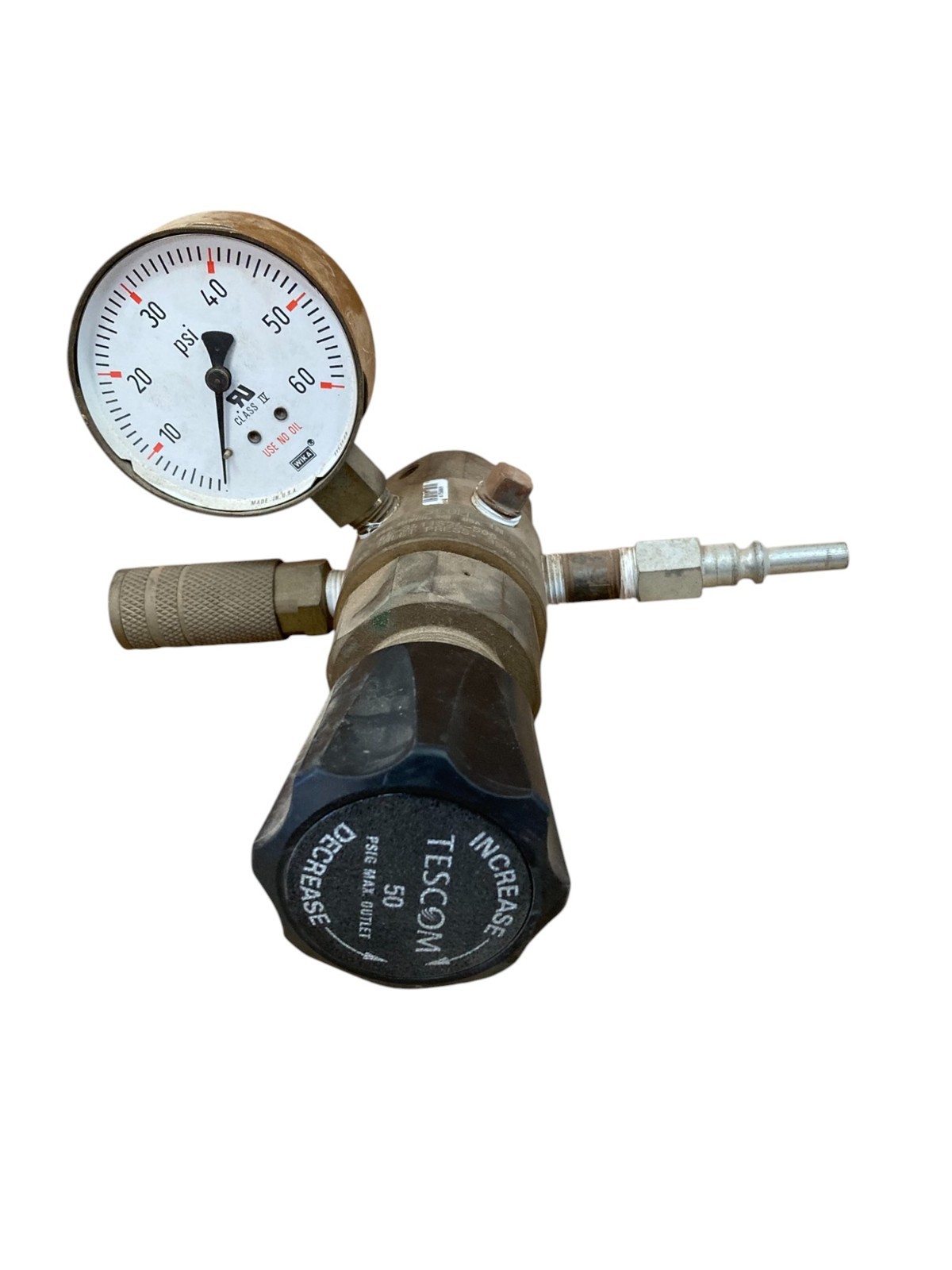

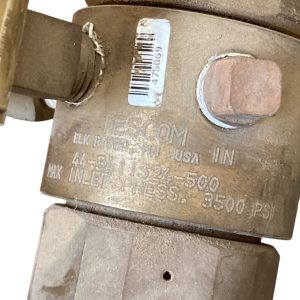

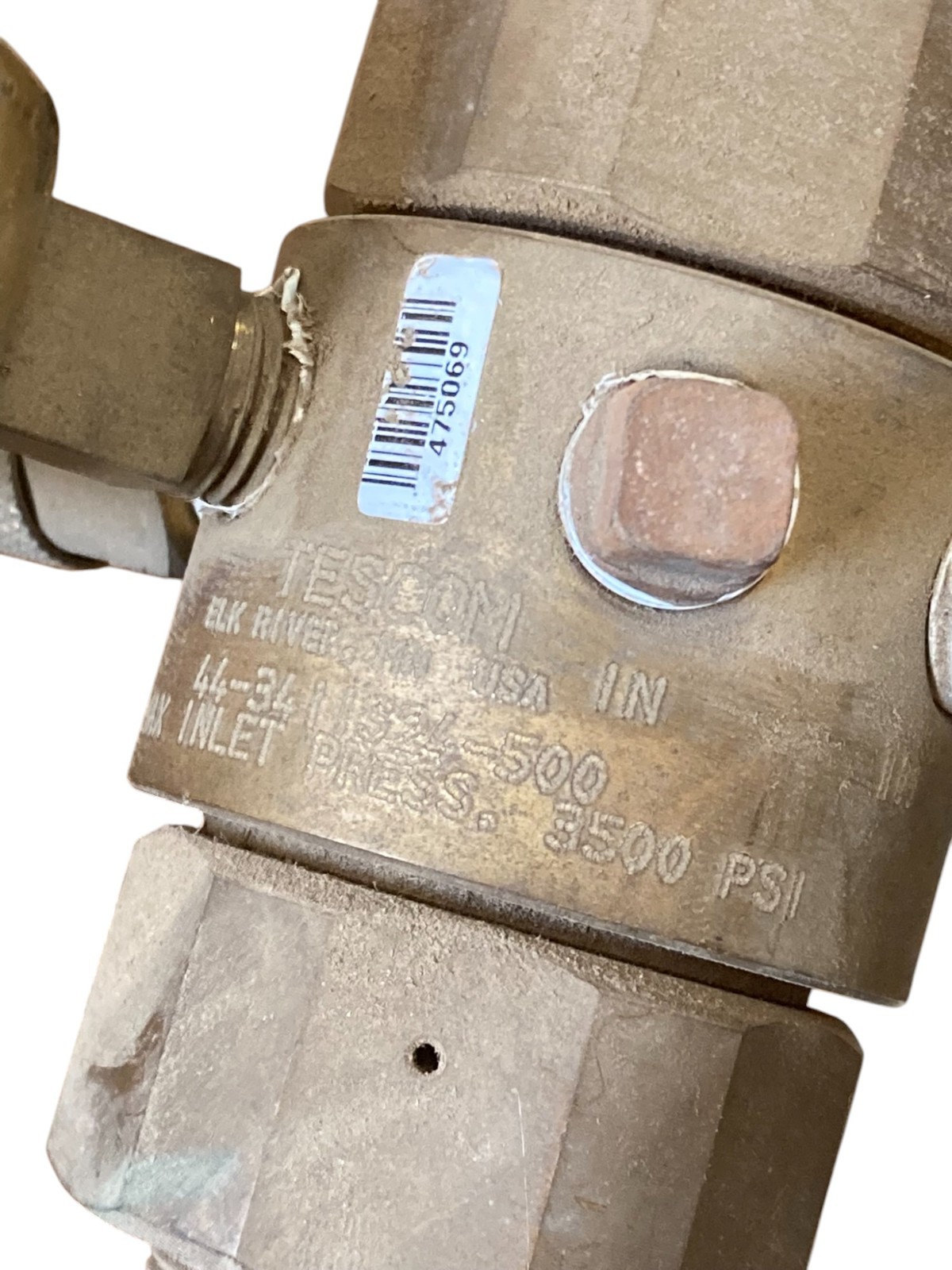

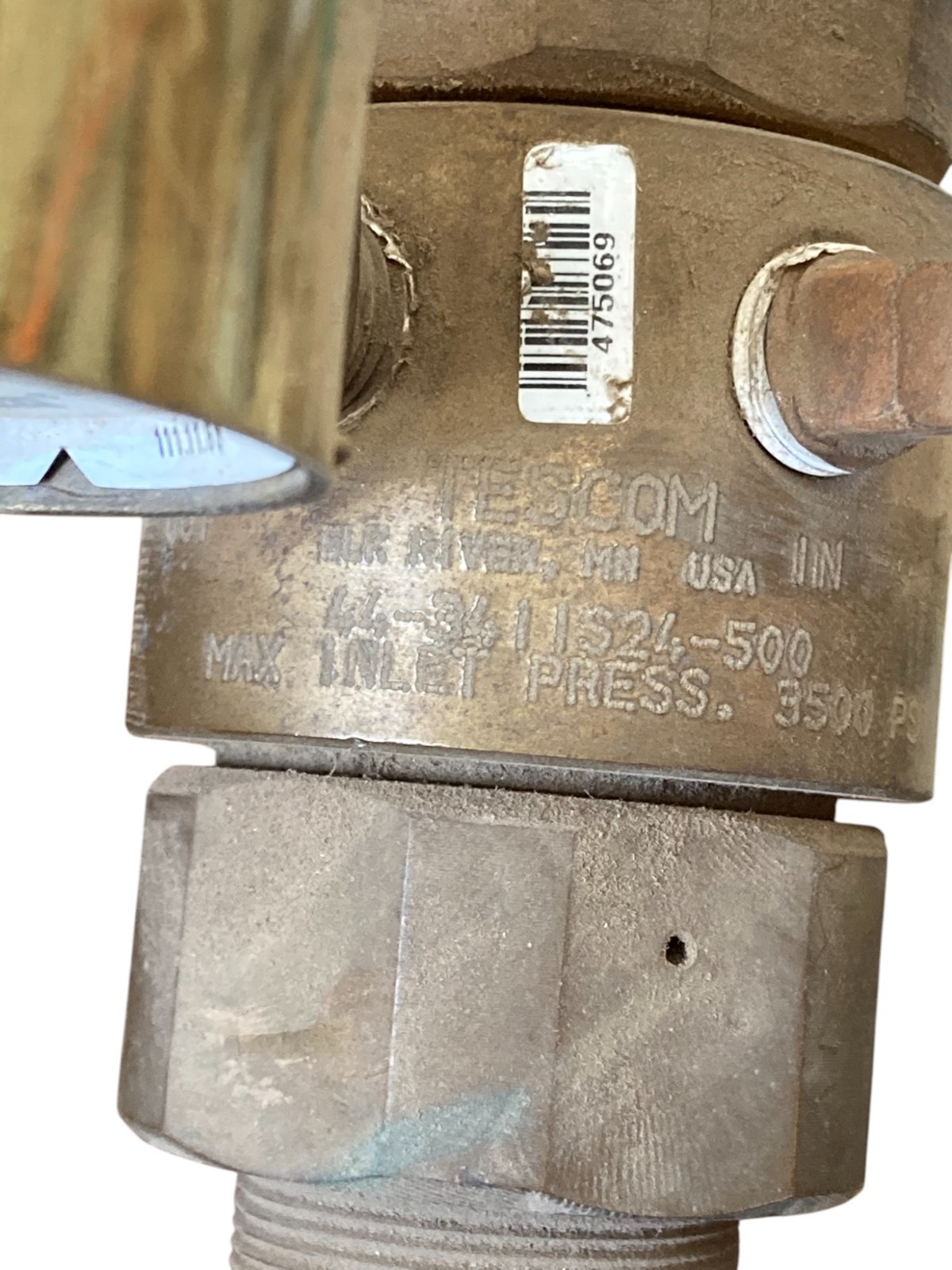

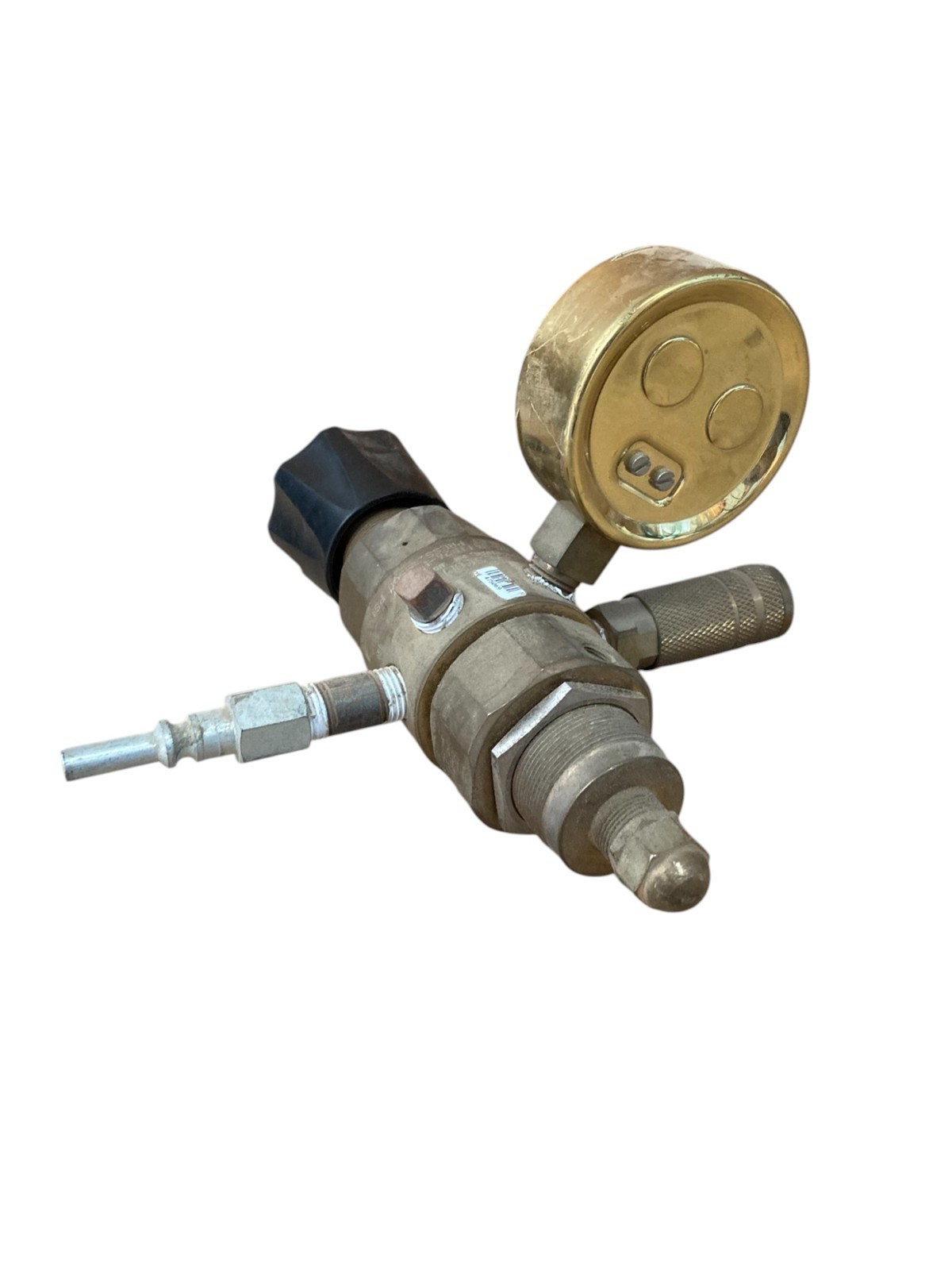

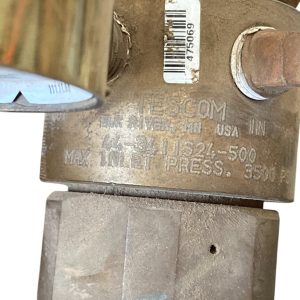

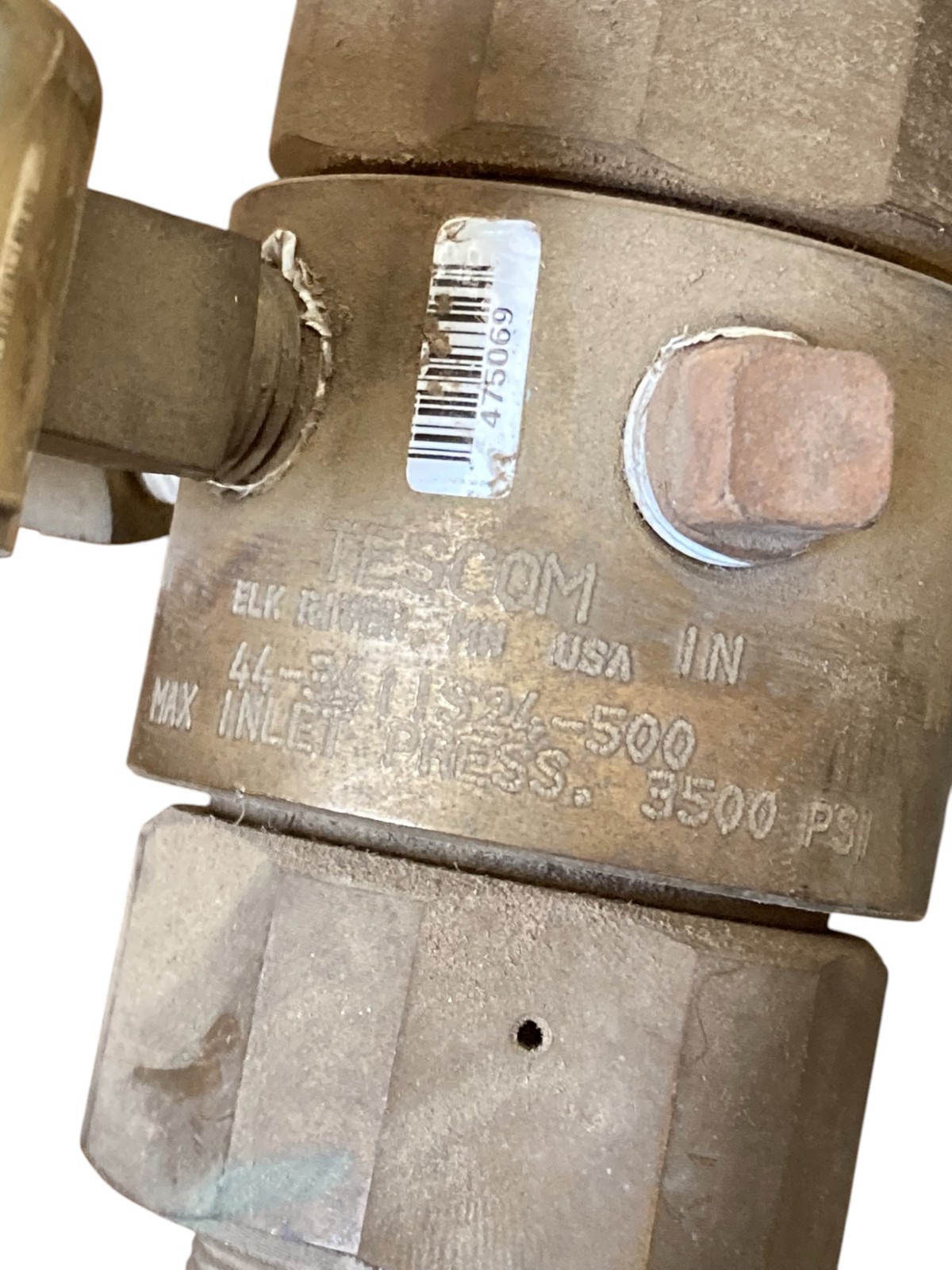

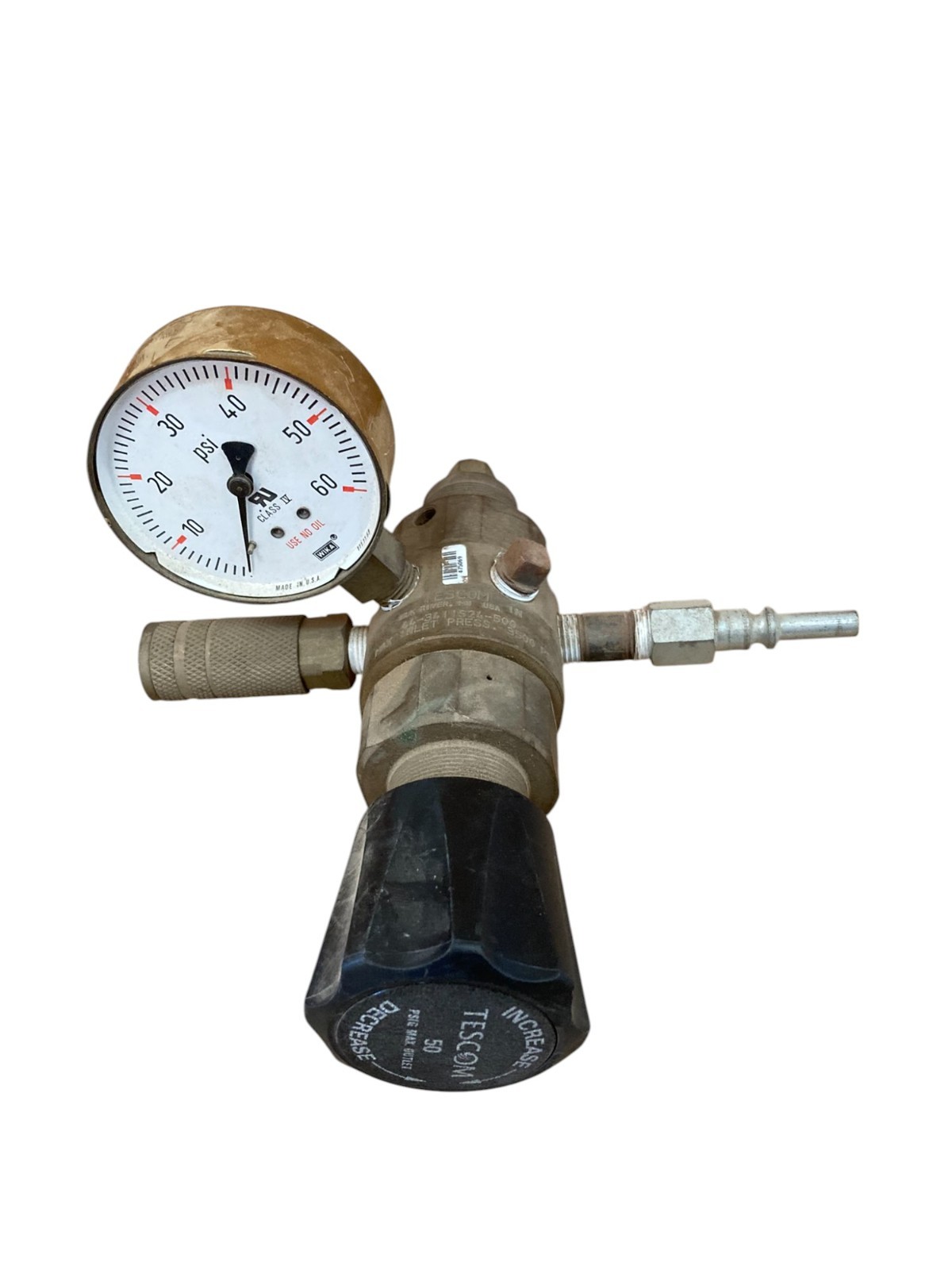

The Tescom 44-3411S24-500 is an industrial pressure regulator combining high-pressure control with integrated pressure indication. This Tescom pressure regulator couples a piston-sensed reducing valve with a Wika 60 PSI dial gauge, enabling real-time pressure monitoring while maintaining precise outlet control. The 1/4″ FNPT ports and brass body construction make it suitable for both new installations and replacement applications in pneumatic systems, testing equipment, and hydraulic panels.
Key Features
- Integrated Wika 60 PSI pressure gauge for direct visual monitoring
- 3500 PSI maximum rated inlet pressure rating
- Piston-sensed design for stable pressure control across flow ranges
- 1/4″ FNPT inlet and outlet ports for standard industrial tubing
- Low-torque adjustment knob for ease of operator control
- Compact, durable brass body suitable for demanding industrial environments
Technical Specifications
| Manufacturer | Tescom (Emerson Automation Solutions) |

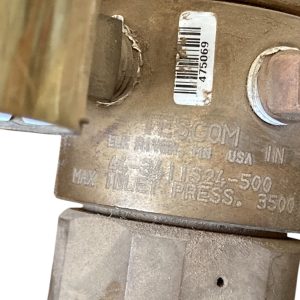

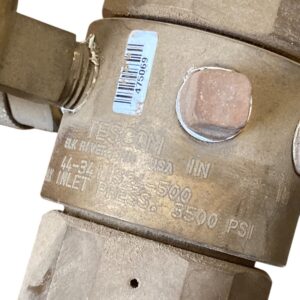

| Part Number | 44-3411S24-500 |
| Maximum Inlet Pressure | 3500 PSI (241 bar) |
| Gauge Type | Wika 60 PSI dial gauge |
| Port Size | 1/4″ FNPT (inlet and outlet) |
| Body Material | Brass |
| Valve Seat Material | Vespel® |
| O-Ring Material | Buna-N |
| Operating Temperature Range | -40°F to 165°F (-40°C to 75°C) |
| Design Proof Pressure | 150% of maximum inlet pressure |
| Flow Coefficient (Cv) | 0.06 |
Typical Applications
- Pneumatic Systems — Regulation of compressed air for plant machinery and air tools
- Testing & Calibration — Precision pressure control for laboratory and R&D environments
- Ground Support Equipment — Aircraft charging carts and support pressure panels
- Hydraulic Panels — Low-pressure line instrumentation and monitoring
- Instrumentation — Pressure reference panels and control applications requiring direct gauge feedback
Compatibility & Replacements
Compatible With
- Standard 1/4″ FNPT pneumatic and hydraulic tubing systems
- Compressed air supply systems operating up to 3500 PSI inlet
- Industrial pressure control circuits and instrumentation panels
- Tescom regulator networks and multi-stage pressure systems
Replaces / Drop-In Replacement For
Verify compatibility with your equipment documentation or contact a system integrator before ordering as a direct replacement. The 44-3411S24-500 gauge/regulator assembly is designed as a complete unit; individual component substitution should be evaluated by a qualified technician.
Works With
- Wika pressure gauge compatibility (60 PSI range)
- Standard industrial pneumatic tubing (1/4″ NPT)
- Compressed gas supply systems (air, nitrogen, inert gases)
- Tescom repair and service networks
