Overview

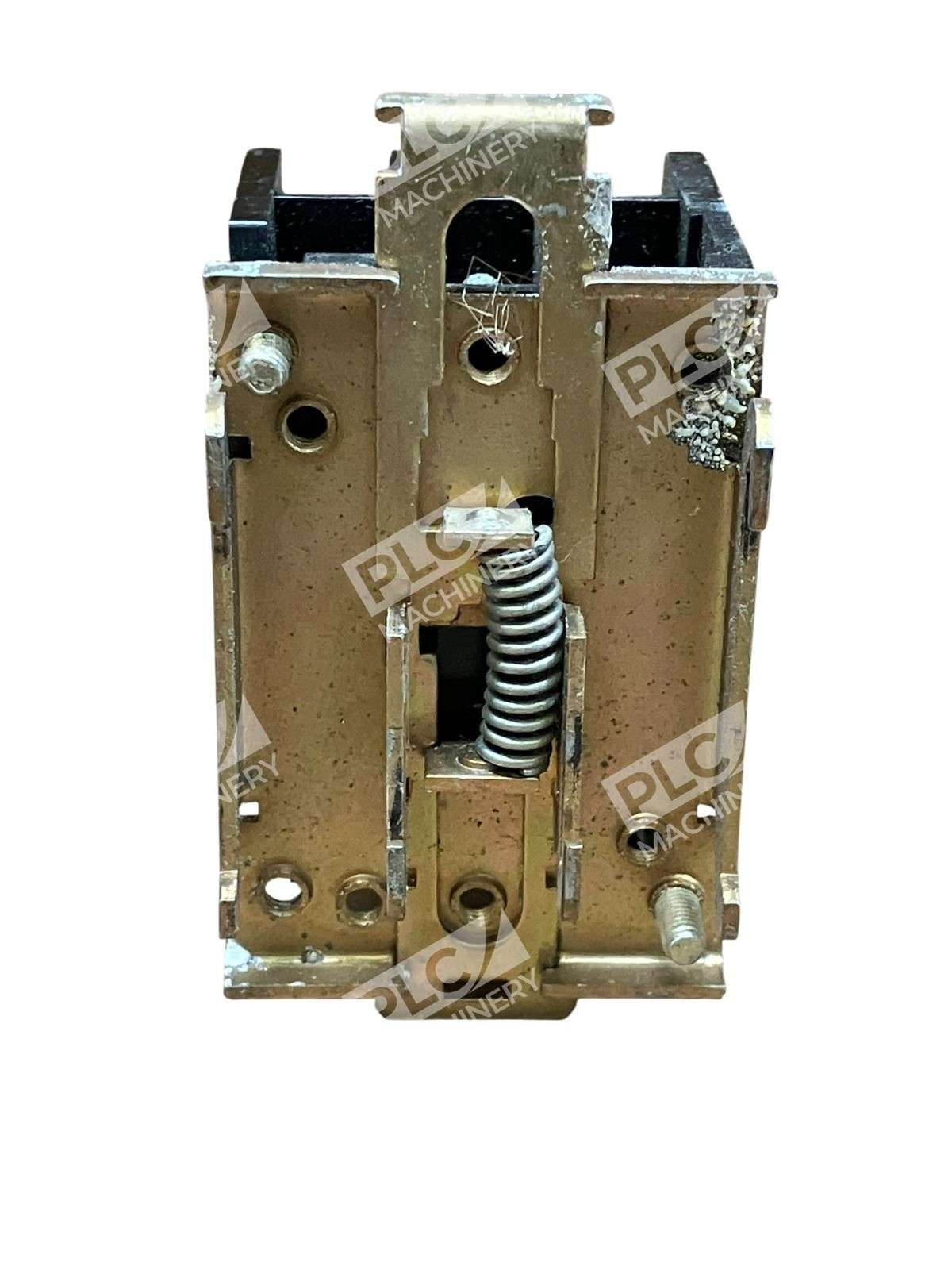

The Telemecanique LA7-D09 54 is a dedicated mounting base for LR1-D09 series overload relays. This accessory provides secure mechanical support and electrical connection, ensuring proper alignment and stability in motor control and overload protection circuits. Designed as a component of Telemecanique’s robust relay systems, it offers a direct replacement solution for legacy installations requiring individual relay mounting on control panels or DIN rail systems.
Key Features
- Designed specifically for LR1-D09 overload relay compatibility
- Provides secure screw-clamp terminal connection
- Enables stable, vibration-resistant mounting
- Supports modular relay architecture for control flexibility
- Discontinued by manufacturer—limited availability; ideal for system maintenance and repair
Technical Specifications
- Manufacturer: Telemecanique (Schneider Electric)
- Part Number: LA7-D09 54 / LA7-D0954
- Product Type: Overload Relay Mounting Base
- Compatible Relay Series: LR1-D09 / LR-D series
- Terminal Type: Screw Clamp
- Mounting Style: Base Mount
- Weight: Approximately 0.15 lbs
- Status: Discontinued by Manufacturer
Typical Applications
- Motor control and overload protection circuits
- Industrial contactor control panels
- Legacy electrical system upgrades and maintenance
- Machine tool control installations
- HVAC compressor and pump motor protection
- General-purpose industrial relay mounting
Compatibility & Replacements
Compatible With
- LR1-D09 overload relays
- LR-D series thermal overload relays
- Telemecanique NC1-D09 contactors
- Standard 35 mm DIN rail systems (when used with optional DIN rail kit)
Replaces / Drop-In Replacement For
- LA7-D0954 (alternative part number format)
- Legacy Telemecanique LA7 series relay bases for D09 frame size
Works With
- Telemecanique overload relay control systems
- Screw-clamp terminal connection standards
- IEC 60947-4-1 thermal overload relay standards
- Industrial control panel wiring and bus arrangements
