Overview

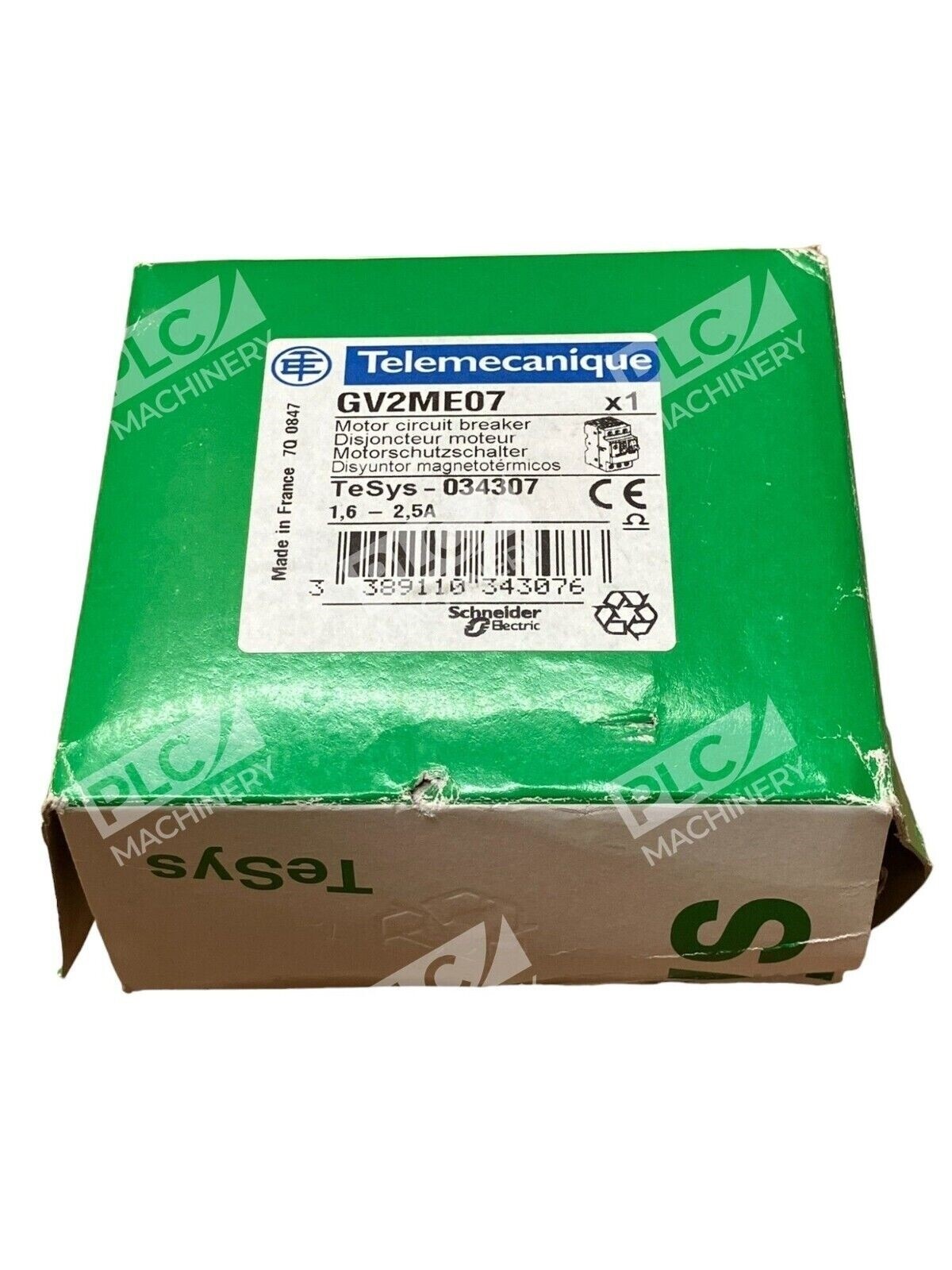

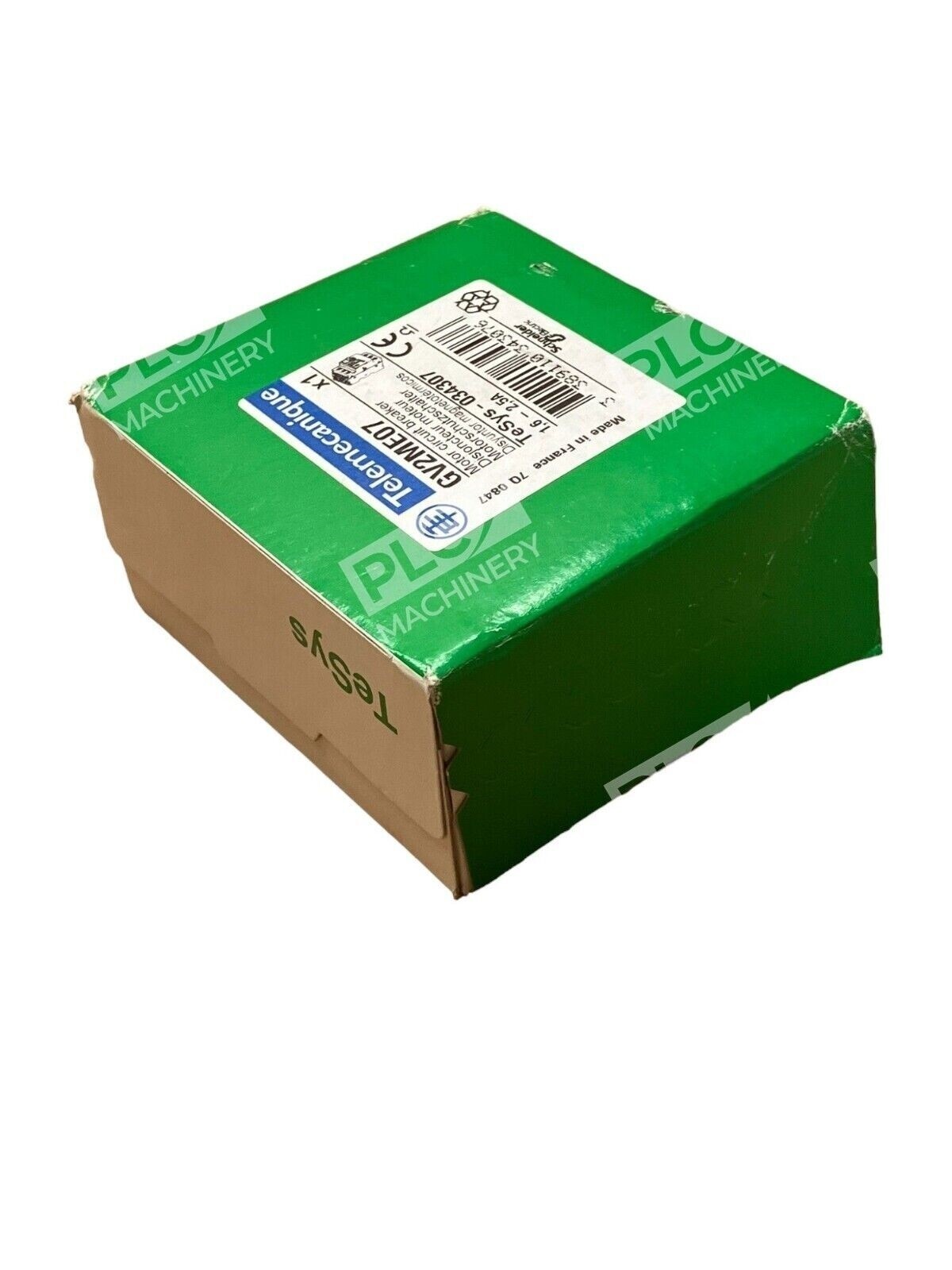

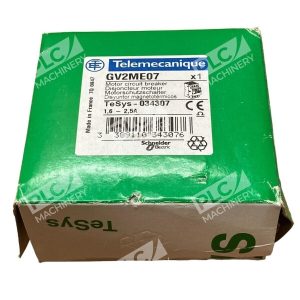

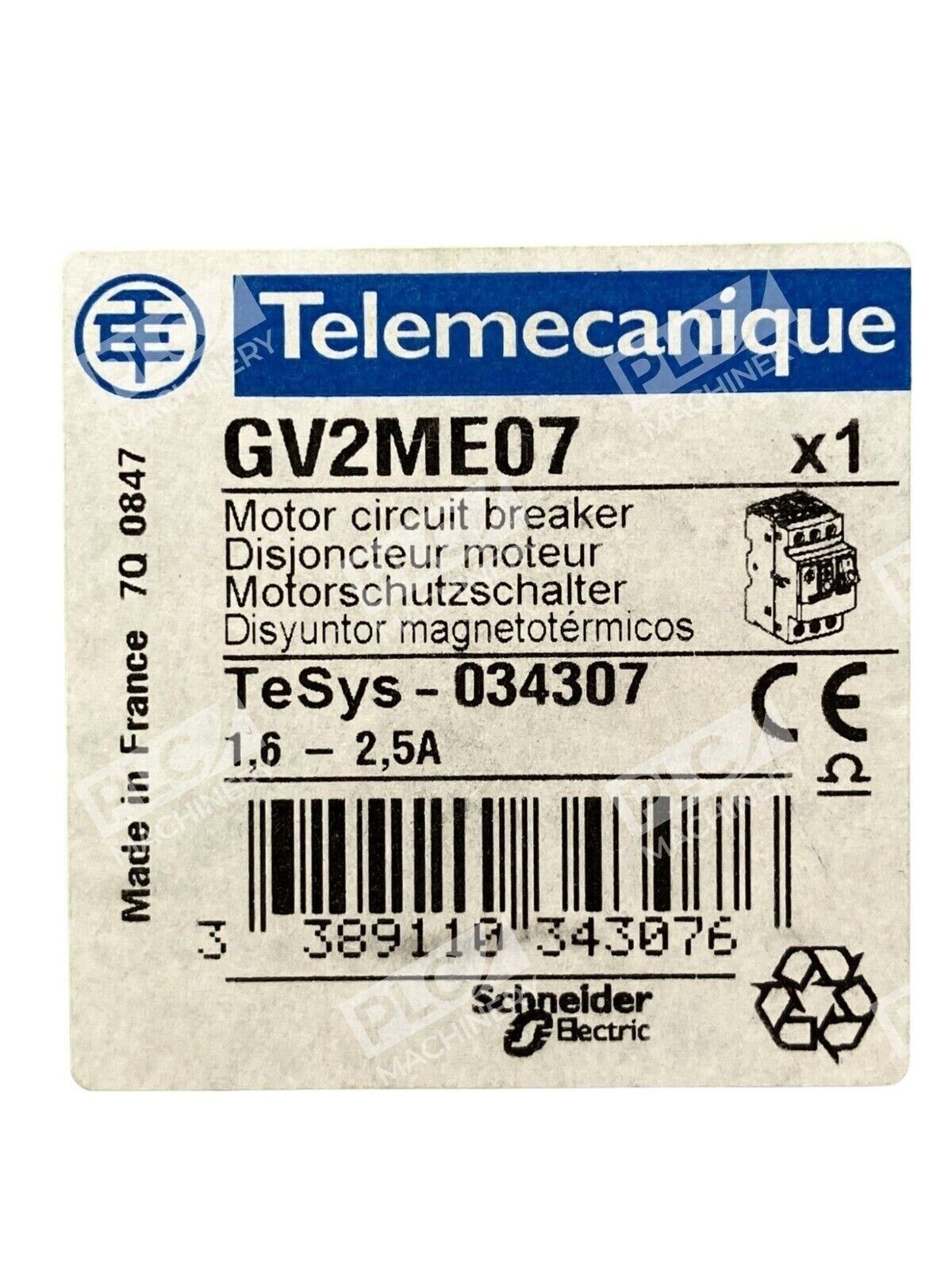

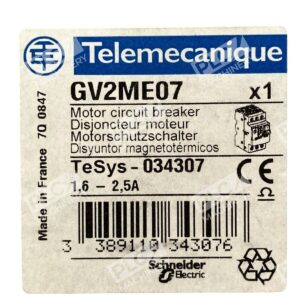

The Telemecanique GV2ME07 is a compact, enclosed 3-pole motor circuit breaker featuring thermal-magnetic trip technology. This GV2M series device combines manual push-button control with adjustable current protection from 1.6 to 2.5A, making it ideal for motor control and branch circuit protection in industrial automation systems. DIN rail mountable with vertical and horizontal positioning flexibility.
Key Features
- Thermal-magnetic trip unit — Reliable overload and short-circuit protection with AC-3 utilization category
- Adjustable current range — 1.6-2.5A setting accommodates various motor sizes
- High breaking capacity — 100 kA at 400/415V and 230/240V AC; 3 kA at 690V AC
- Multiple mounting options — DIN rail (35mm symmetrical) or panel with adaptor plate
- Screw clamp terminals — Accepts 1–6 mm² solid or 1.5–6 mm² flexible conductors
- Optional enhancements — Under-voltage trip, shunt trip, and snap-on auxiliaries available
Technical Specifications
The Telemecanique GV2ME07 meets IEC 60947-2 and IEC 60947-4-1 standards with full international certifications (UL, CSA, CCC, EAC, ATEX, BV). Magnetic tripping threshold is 33.5A with rated impulse withstand voltage of 6 kV.
Typical Applications
- Motor branch circuit protection (0.75–1.5 kW motors)
- Industrial machine controls and automation panels
- Manufacturing equipment and process machinery
- Panel-mounted or DIN rail motor starters
- OEM motor control center integration
Compatibility & Replacements
Compatible With
- TeSys D / TeSys E contactor coils and add-on blocks
- Schneider Electric GV2 series manual starters and contactors
- IEC 60947-compliant motor control centers
- Standard 35 mm DIN rail systems
- Motor protection relays and overload devices
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- Schneider Electric TeSys motor starters and manual protection devices
- IEC 60947-2 and AC-3 compliant automation ecosystems
- Standard industrial control panels and motor control centers (MCCs)
- Manual and pneumatic contactor systems
