Overview

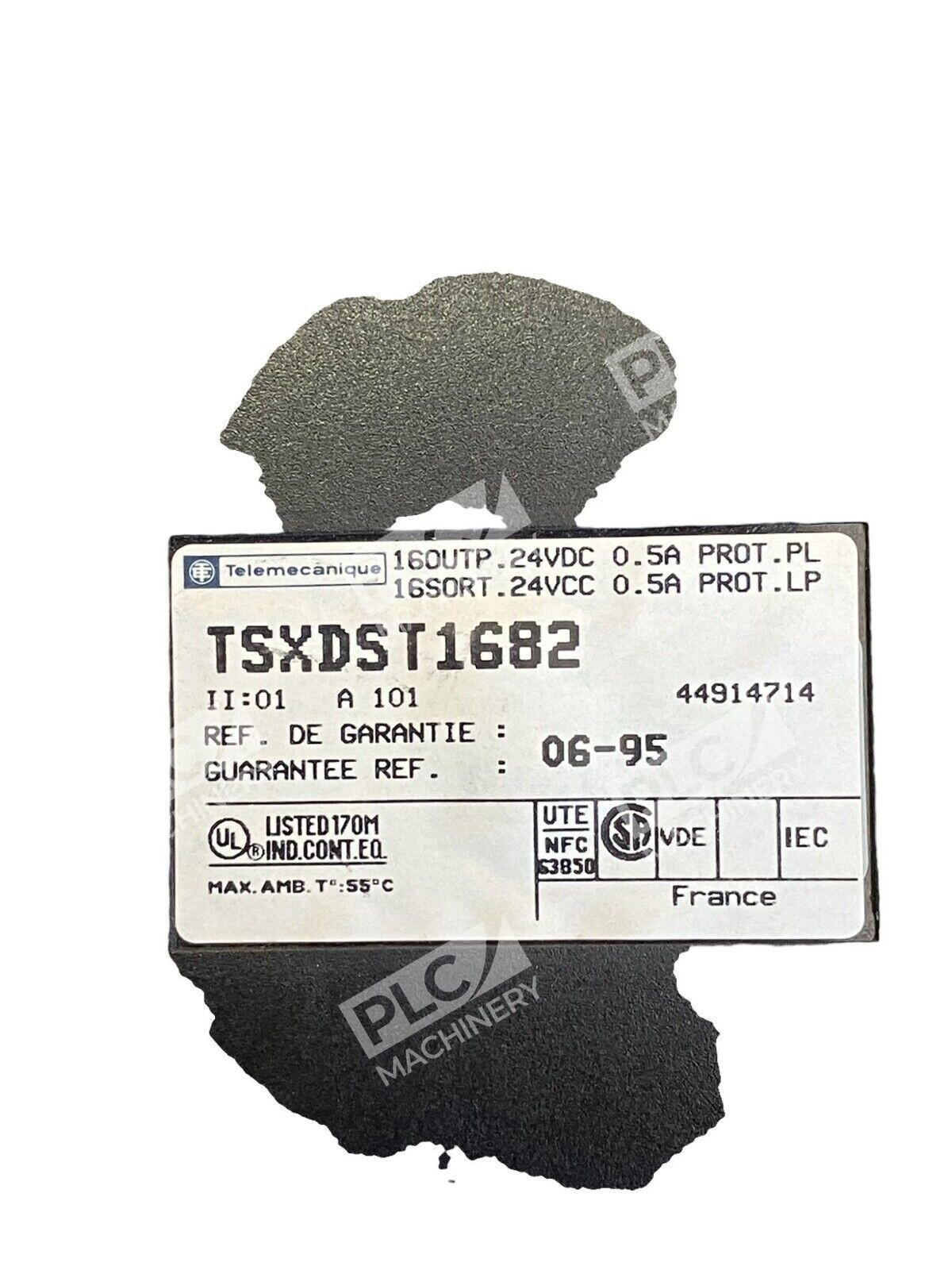

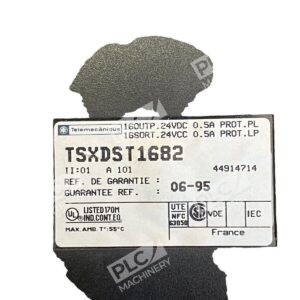

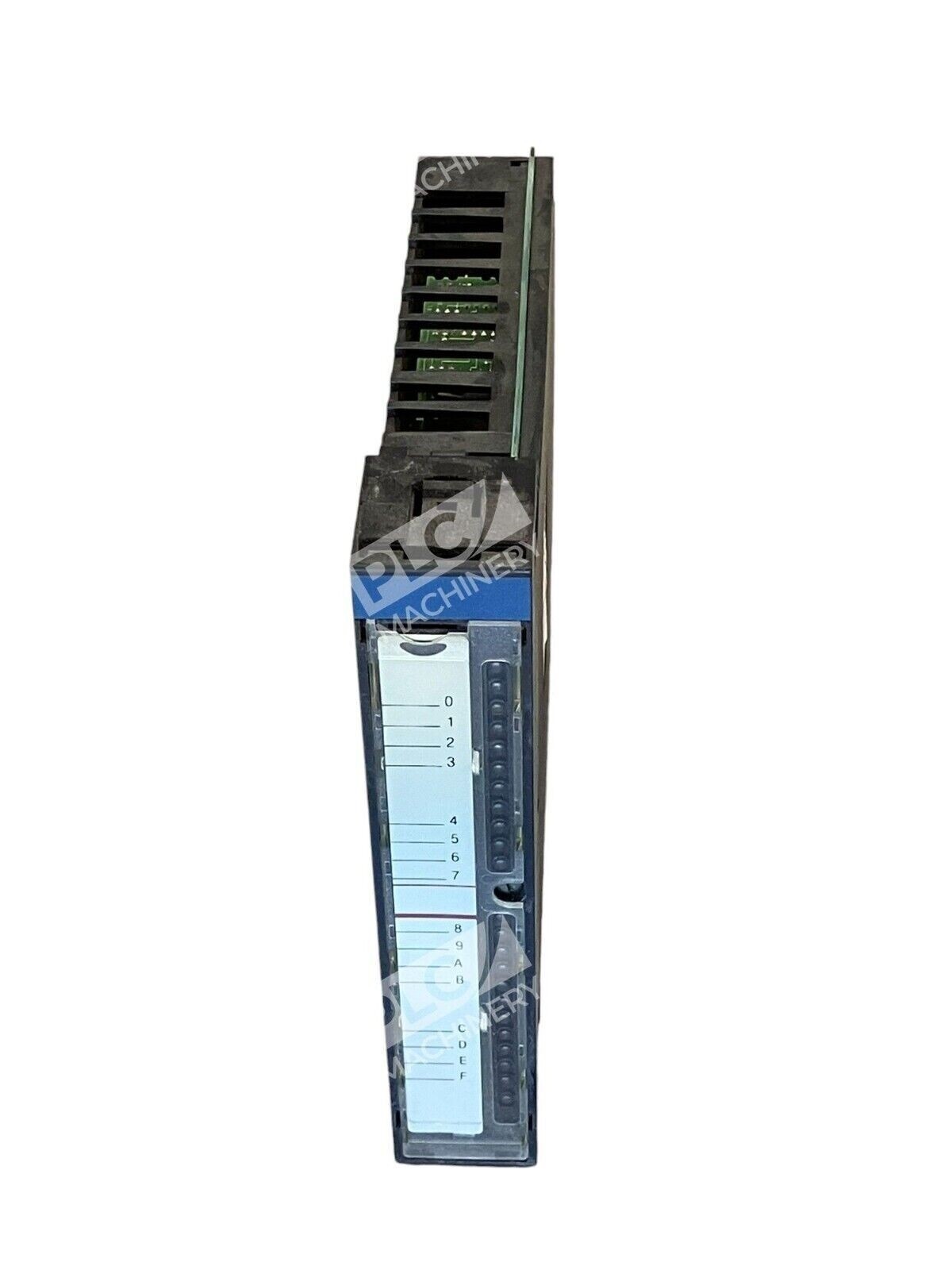

The Telemecanique TSXDST1682 is a 16-channel digital output module engineered for the TSX Series 7 modular PLC platform. This discrete output module operates at 24VDC with a 0.5A per-channel rating, delivering reliable relay-based switching for industrial control applications. The module integrates galvanic isolation and built-in filtering to protect against induced interference, overloads, and overvoltages—critical features for maintaining uptime in harsh manufacturing and process environments.
Key Features
- 16 relay outputs rated 24VDC, 0.5A per channel
- Galvanic isolation and surge suppression for EMI/RFI protection
- Modular plug-in design with hardware location devices to prevent configuration errors
- Redundant software security via parity checks on all I/O bus exchanges
- Compact form factor for rack-mount integration in TSX systems
Technical Specifications
The module incorporates Telemecanique’s proven discrete I/O architecture, including hardware and software location devices that ensure correct module placement and real-time data validation. The I/O bus design features high-level technology, complete screening, and short-circuit withstand capability, ensuring secure data exchange between the processor and output terminals.
Typical Applications
- Industrial machinery and equipment control (CNC machine tools, automated systems)
- Process automation requiring relay-based switching
- Solenoid and motor starter control
- Alarm, indicator, and pilot light circuits
- Legacy TSX Series 7 system modernization and maintenance
Compatibility & Replacements
Compatible With
- TSX47 PLC processor modules
- TSX67 PLC systems
- TSX87 PLC controllers
- TSX107 programmable logic controllers
- TSX Series 7 rack assemblies and power supplies
Replaces / Drop-In Replacement For
- Original equipment TSXDST1682 modules in legacy TSX Series 7 installations
- OEM-equivalent 16-output 24VDC relay modules in compatible racks
- Verify compatibility with your system integrator before ordering to confirm exact module position and software configuration requirements
Works With
- TSX Ladder Logic programming environments
- Telemecanique Terminal Block TSXBLK1 connector modules
- Industrial legacy control systems using TSX Series 7 architecture
