Overview

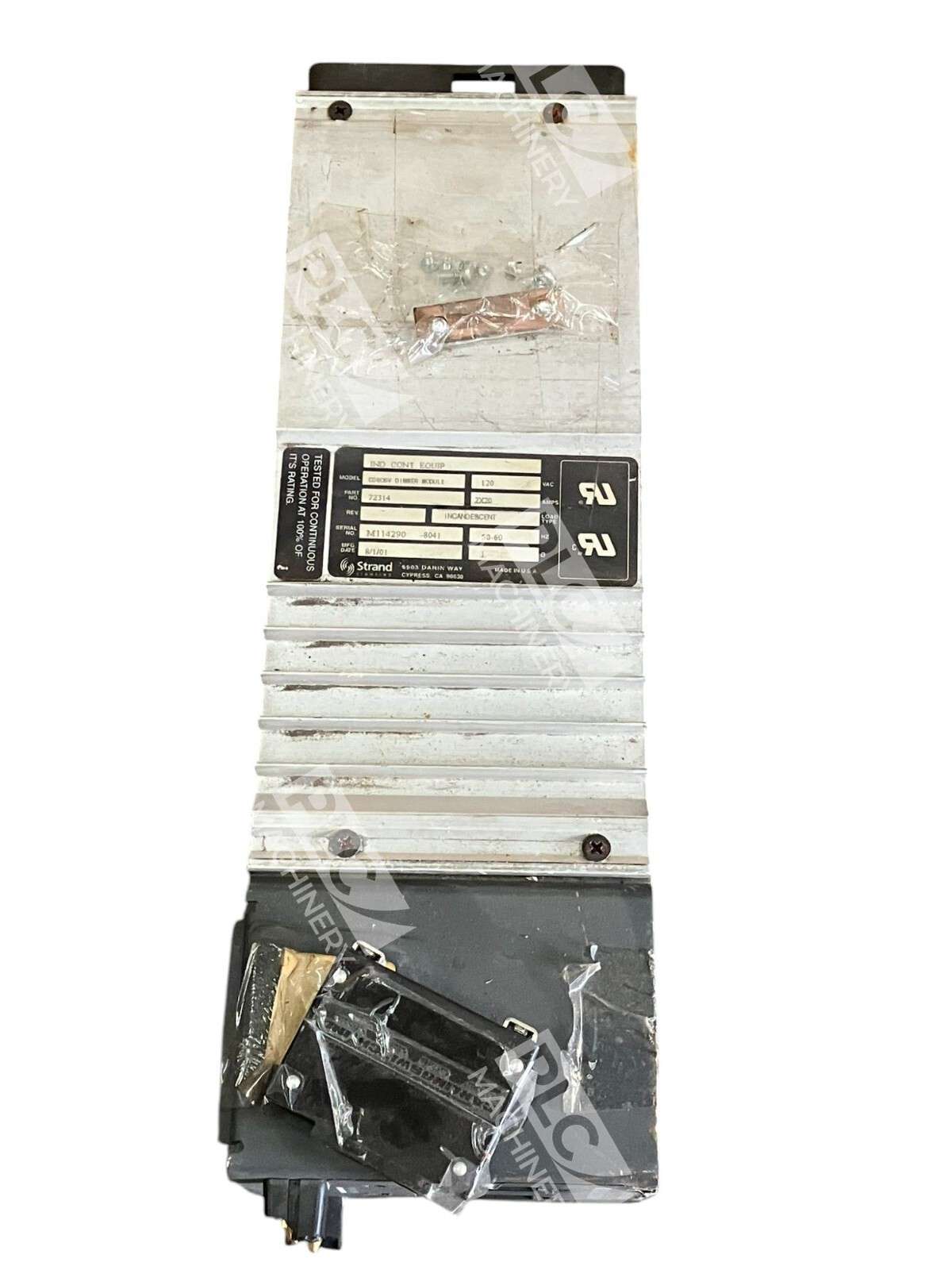

Strand 72314 is a dual 2.4kW 120VAC incandescent dimmer module designed for CD80SV rolling dimmer racks. This standard FF dimmer module includes primary circuit breakers and 350µs toroidal choke, making it ideal for stage lighting control in theatrical venues, production studios, and touring applications.
Key Features
- Dual-channel configuration — 2.4kW capacity with 2X20A power output
- FF firing technology — Full-wave forward phase control for smooth, flicker-free dimming
- 350µs toroidal choke — Toroidal choke filtering for reduced electrical noise and EMI
- Primary circuit breakers — Built-in protection for each channel with improved trip indication
- Heavy-duty aluminum construction — Designed for touring and repeated installation cycles
- 120VAC operation — Standard North American voltage compatibility
Technical Specifications
| Part Number | 72314 |
| Series | CD80SV Standard Dimmer Modules |
| Input Voltage | 120VAC |
| Power Output | Dual 2.4kW (2X20A per channel) |
| Firing Type | FF (Full-Wave Forward) |
| Filter Rise Time | 350 microseconds |
| Load Type | Incandescent |
| Circuit Protection | Primary circuit breakers (both channels) |
| Construction | Heavy-duty formed aluminum |
| Certifications | UL/cUL recognized, ETL/cETL listed |
| Compatible Racks | CD80SV, CD80 with retrofits |
Typical Applications
- Stage and theatrical lighting dimming
- Television and film studio lighting control
- Concert and live event production
- Theme park and venue lighting systems
- Touring lighting packages and temporary installations
- Incandescent fixture control in performing arts venues
Compatibility & Replacements
Compatible With
- CD80SV dimmer racks — Primary system for which this module was designed
- CD80 rolling dimmer racks — Retrofit-compatible with original CD80 systems
- Standard dual 2.4kW rack slots — Direct plug-in module for vertical mounting
- Stage lighting control networks — Strand control systems and DMX-compatible processors
Replaces / Drop-In Replacement For
The Strand 72314 is a standard production module for CD80SV systems. Related dual 2.4kW FF dimmers in the same series include model 72315 (500µs rise time) and 72316 (800µs rise time). Verify your existing module specifications before ordering to ensure rise-time compatibility with your filtering and EMI requirements.
Works With
- CD80SV Supervisor processor and control systems
- Strand C21 dimmer rack processor upgrades
- Standard DMX512 lighting control networks
- Incandescent stage and theatrical fixtures
- Touring and road-case lighting rigs
