Overview

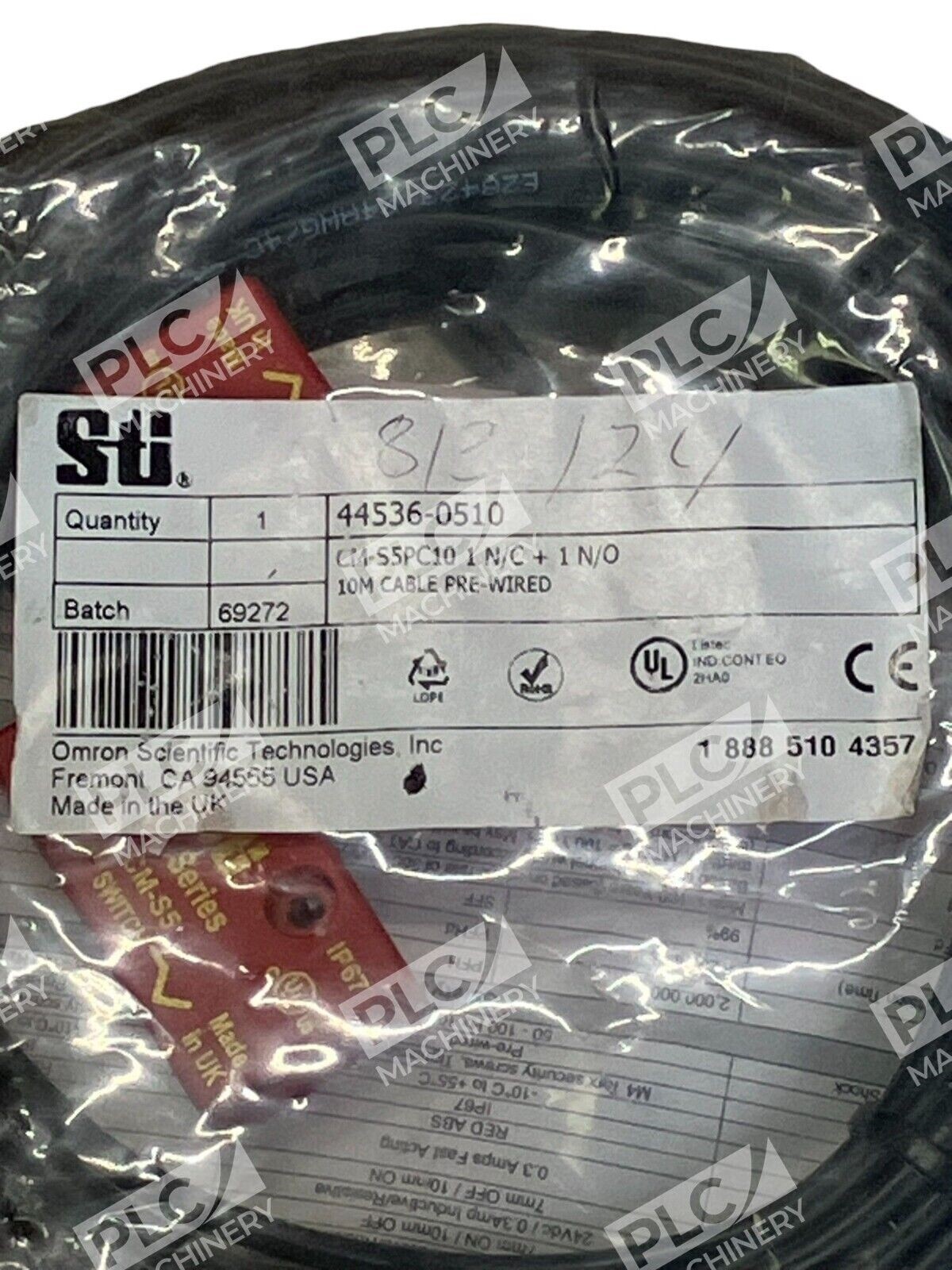

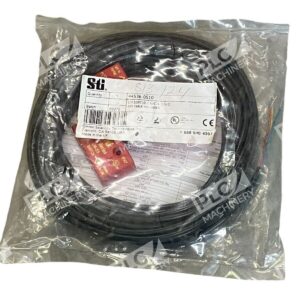

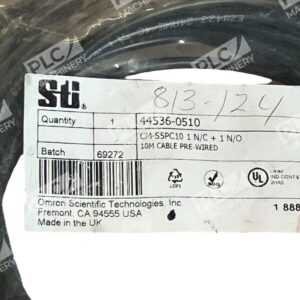

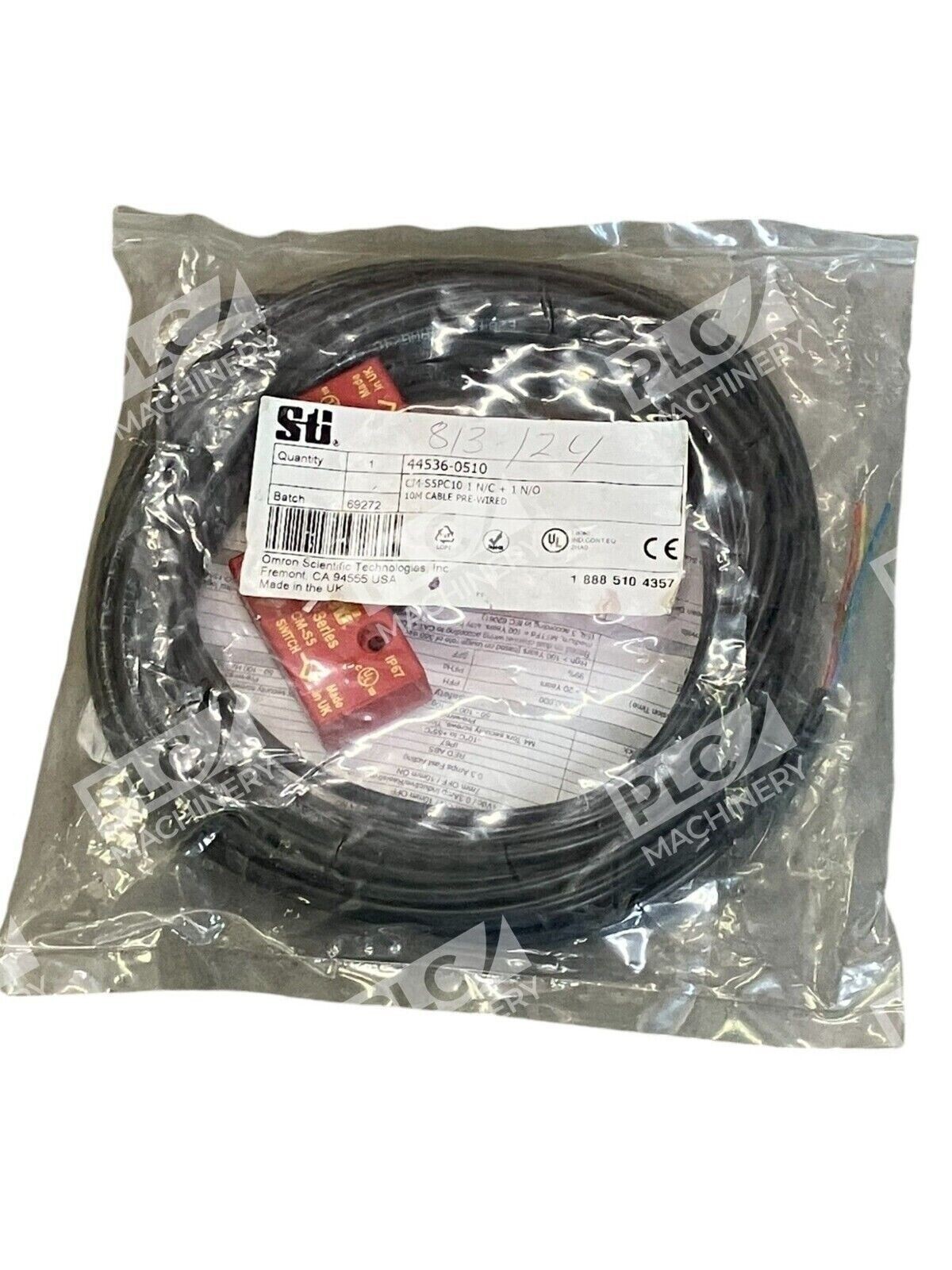

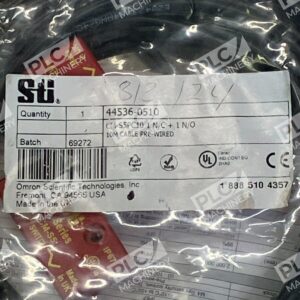

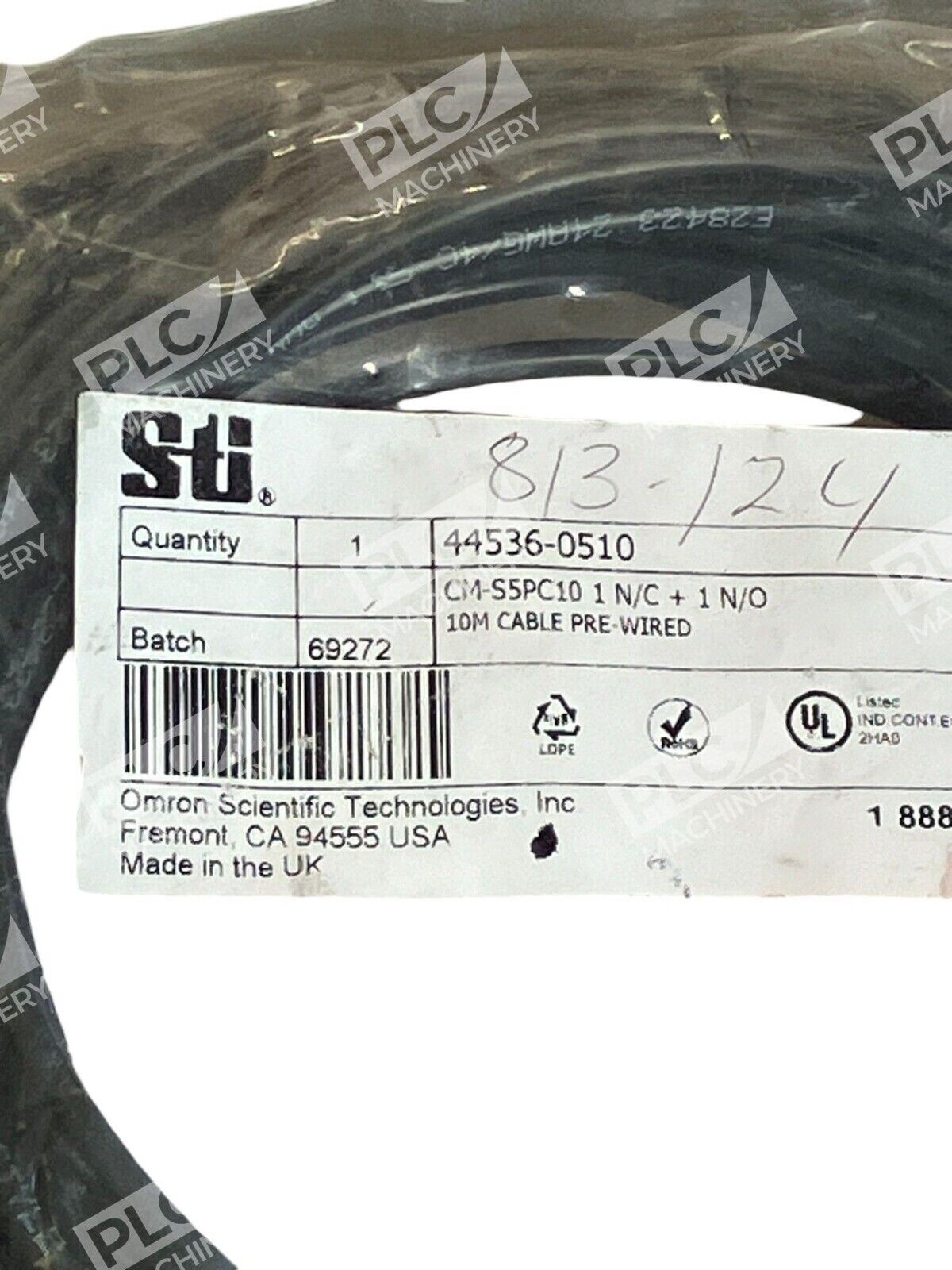

The Omron STI CM-S5PC10 44536-0510 is a magnetically coded safety interlock switch designed for industrial guard locking and safety monitoring applications. This unit features a pre-wired 10-meter cable assembly, plastic housing construction, and dual-channel contact output (1 N/C + 1 N/O) for integration with Omron safety monitoring relays and control systems. The CM-S5PC10 complies with EN292, EN60204-1, and EN954-1 industrial safety standards.
Key Features
- Magnetically coded switch technology for tamper resistance and reliable actuation
- Pre-wired 10-meter cable for quick installation and commissioning
- Dual-channel contact output: 1 Normally Closed (N/C) + 1 Normally Open (N/O) configuration
- Plastic housing rated for industrial environments
- Complies with EN292, EN60204-1, and EN954-1 safety standards
- CE and UL/C-UL marked for North American and European deployment
Technical Specifications
- Model: CM-S5PC10
- Part Number: 44536-0510
- Manufacturer: Omron STI
- Housing Material: Plastic
- Contact Configuration: 1 N/C + 1 N/O
- Cable Length: 10 meters
- Switch Technology: Magnetically coded
- Certifications: CE, UL, C-UL
- Standards Compliance: EN292, EN60204-1, EN954-1
Typical Applications
- Industrial machine guard locking and monitoring
- Safety interlock systems for rotating equipment
- Access door monitoring on hazardous machinery
- Integration with Omron safety relay modules and controller systems
- Factory automation and robotic cell safety monitoring
Compatibility & Replacements
Compatible With
- Omron safety monitoring relays accepting 1N/C + 1N/O switch contact configuration
- Omron SR series safety relay modules (except SR203, SR208, SR209)
- Industrial safety control systems requiring magnetically coded interlock switches
- Standard industrial 24 VDC safety circuits and programmable logic controllers (PLCs)
Replaces / Drop-In Replacement For
- Omron STI CM-S5PC10 (original part number: 44536-0510)
- Functionally equivalent to CM-S5PC5 (5-meter cable variant) for applications requiring longer cable runs
Works With
- Omron STI safety monitoring relay modules
- Omron control and automation platforms
- Standard 24 VDC industrial safety circuits
- Systems using magnetically coded switch technology and monitored safety interlocks
