<h2>Overview</h2>

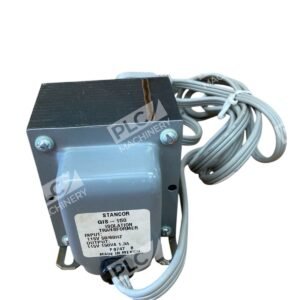

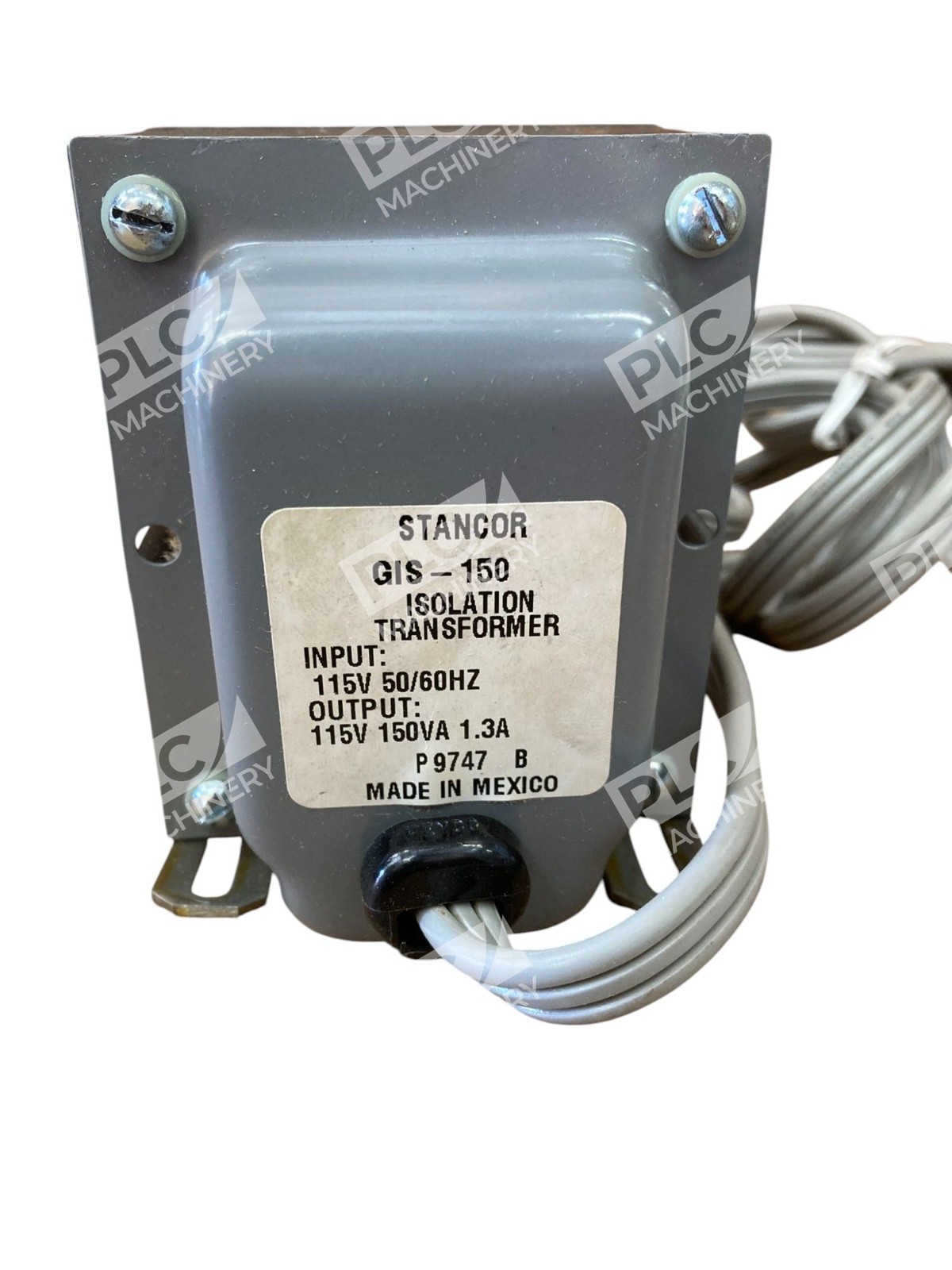

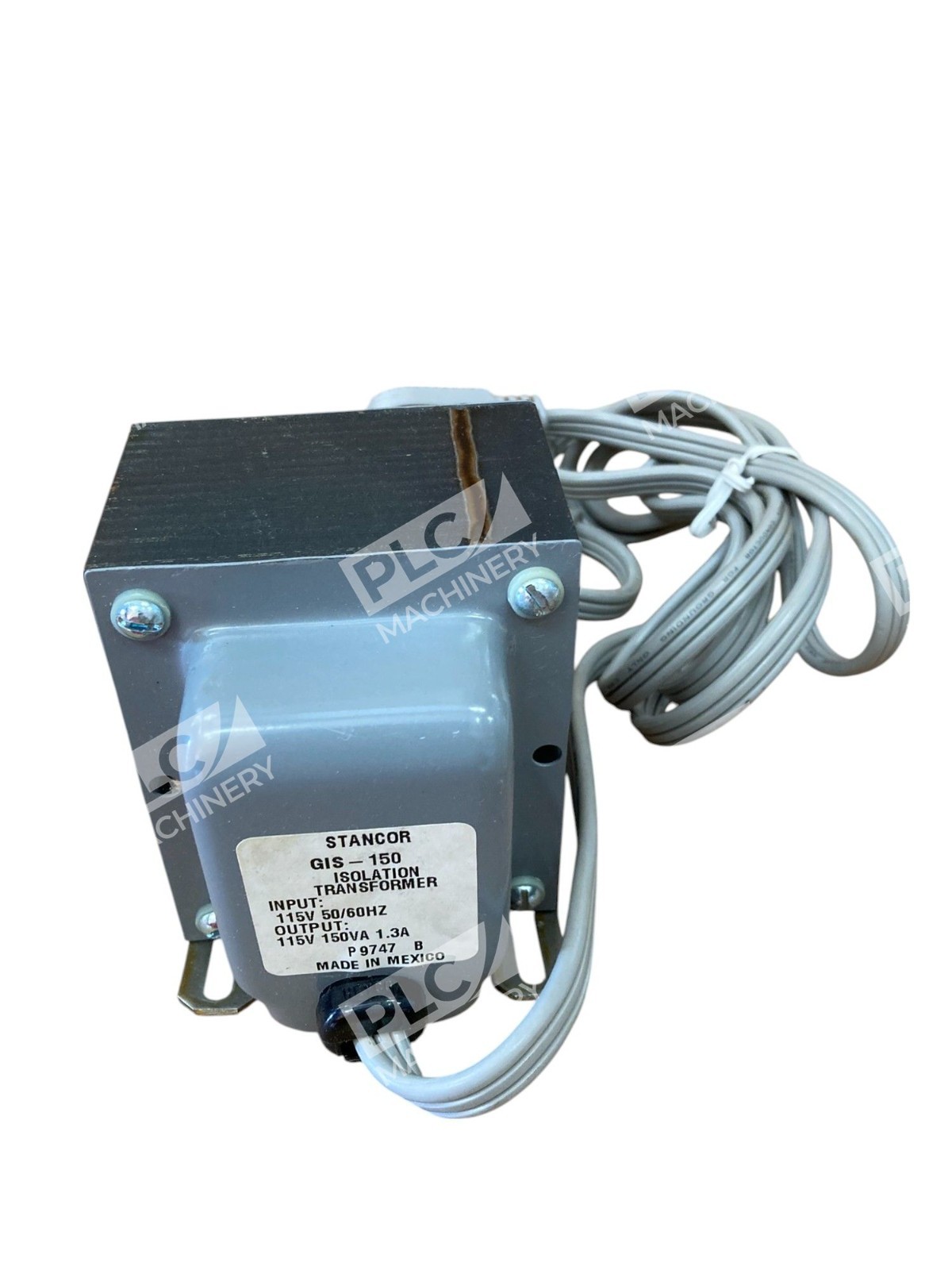

<p>The <strong>Stancor GIS-150</strong> is a compact enclosed isolation transformer that delivers true electrical isolation for industrial and laboratory applications. With dual separate windings and an electrostatic shield connected to case, core, and the third conductor, the GIS-150 eliminates leakage current and ground faults, making it ideal for equipment protection, testing, and maintenance work.</p>
<h2>Key Features</h2>
<ul>
<li>Electrostatic shield between primary and secondary windings for complete electrical isolation</li>
<li>Enclosed die-cast aluminum housing with heavy-duty welded plate for mounting stability</li>

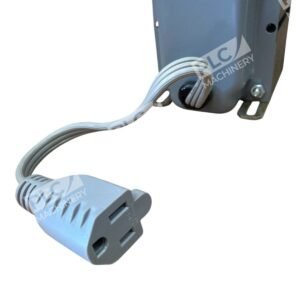

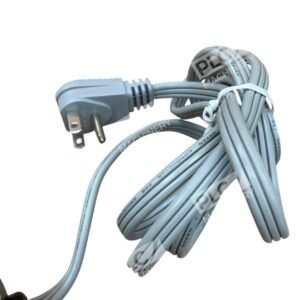

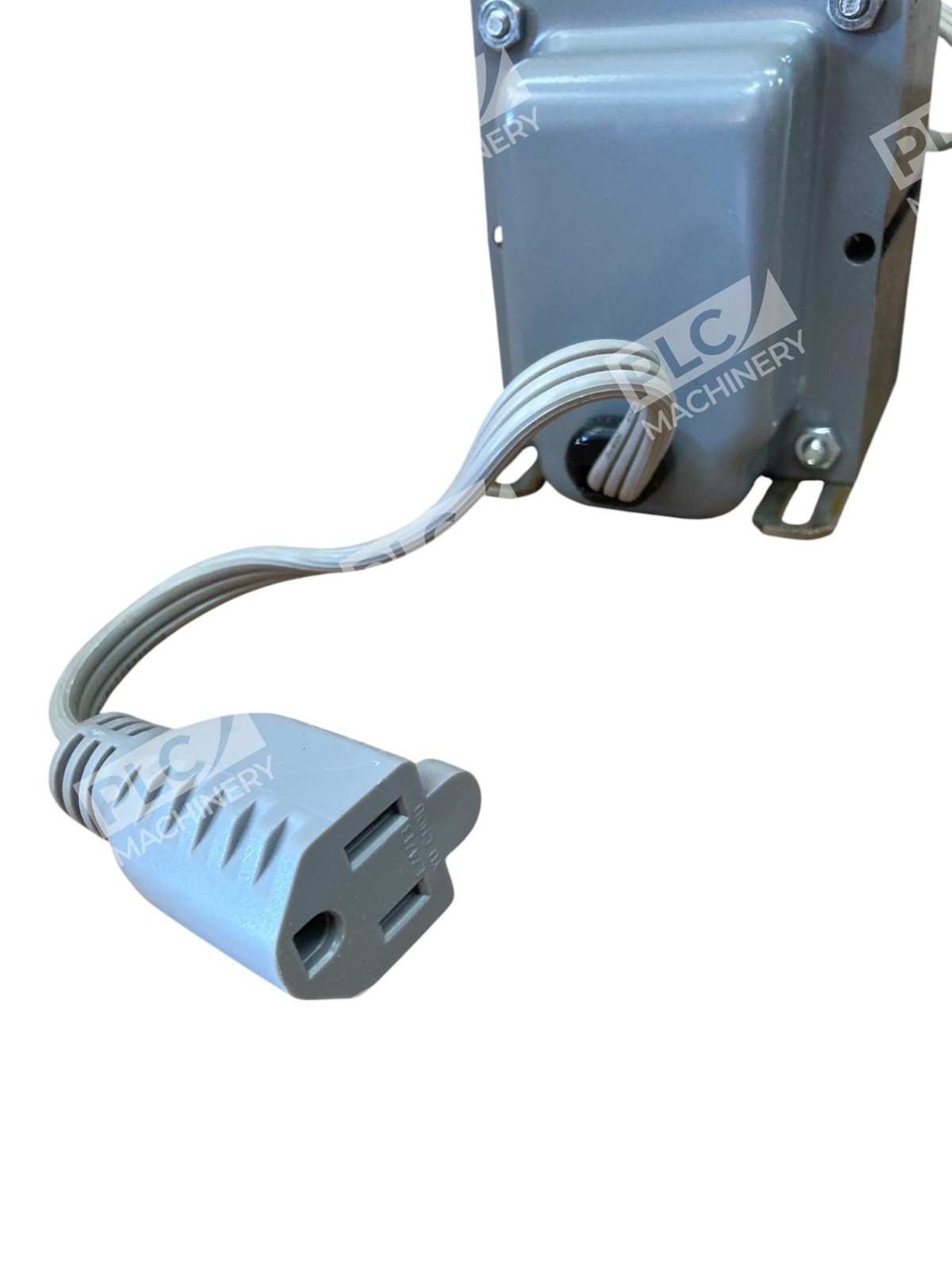

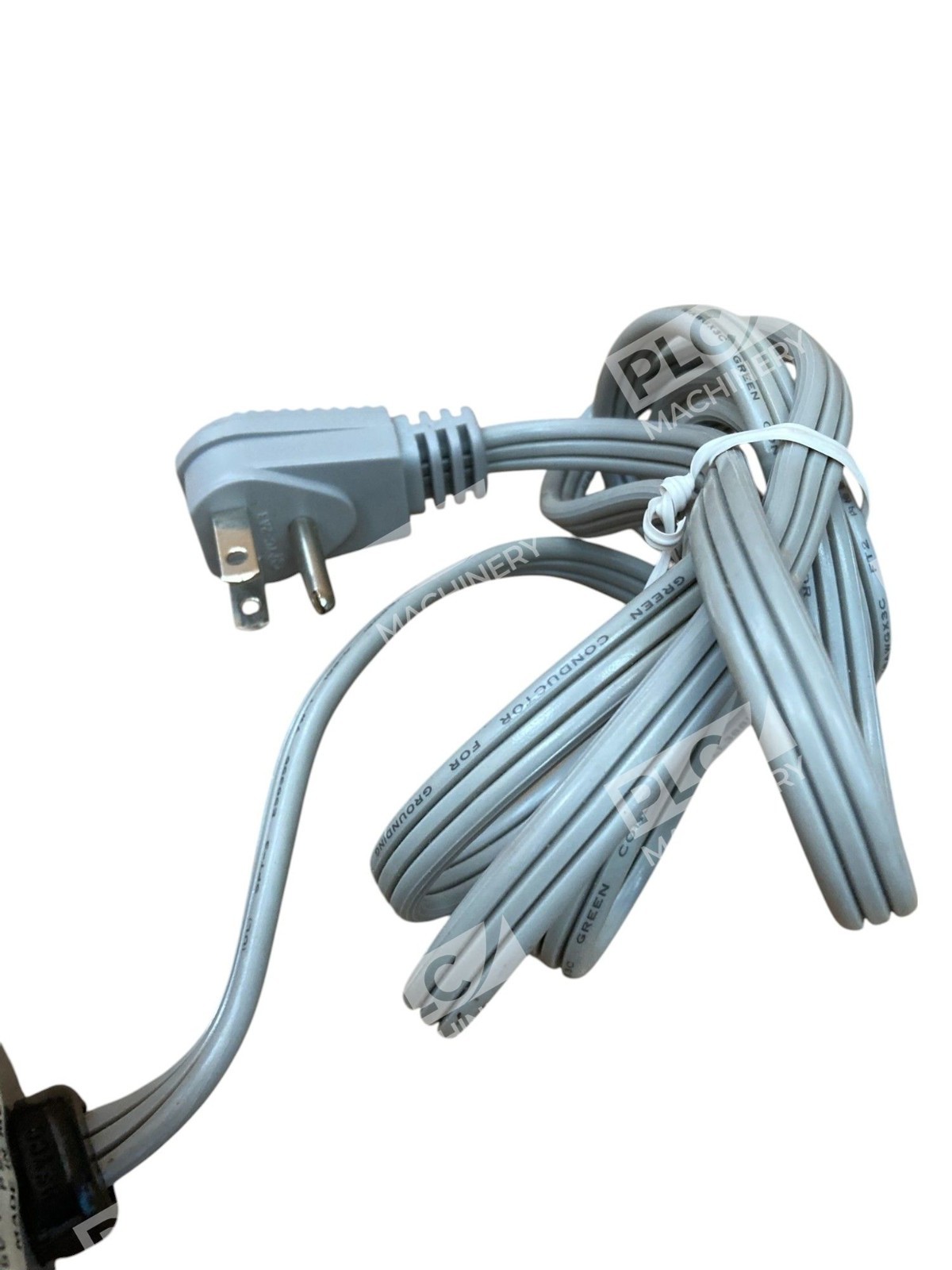

<li>Three-conductor line cord and receptacle configuration</li>
<li>Continuous 50/60 Hz operation across global power standards</li>
<li>Wide operating temperature range suitable for harsh industrial environments</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

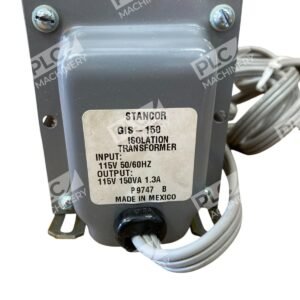

<li><strong>Input Voltage:</strong> 115VAC</li>
<li><strong>Output Voltage:</strong> 115VAC</li>
<li><strong>Power Rating:</strong> 150VA</li>
<li><strong>Output Current:</strong> 1.3A</li>
<li><strong>Frequency:</strong> 50/60 Hz</li>
<li><strong>Dielectric Strength:</strong> 1500V RMS</li>
<li><strong>Insulation Rating:</strong> Class A (105°C)</li>
<li><strong>Temperature Rise:</strong> 65°C above 40°C ambient</li>
<li><strong>Operating Temperature:</strong> -40°C to 105°C</li>
<li><strong>Input Cord Length:</strong> 5.5 ft (minimum)</li>
<li><strong>Output Cord Length:</strong> 8 in (minimum)</li>
<li><strong>Dimensions:</strong> 3.13" W × 3.88" H × 4.19" D</li>
<li><strong>Weight:</strong> 7 lbs</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Equipment testing and troubleshooting in maintenance operations</li>
<li>Medical device and dental equipment protection</li>
<li>Laboratory and bench test equipment isolation</li>
<li>Industrial control circuit isolation and protection</li>
<li>Electrical safety applications requiring ground isolation</li>
<li>Computer and sensitive electronic device protection</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard 115VAC single-phase power systems</li>
<li>North American and international 50/60 Hz electrical networks</li>
<li>Standard three-conductor NEMA receptacles</li>
<li>All 115VAC input voltage equipment and systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Stancor GIS-150 is part of Stancor’s GIS Series isolation transformers and may replace earlier model variants within the 150VA 115VAC category. Verify specific model compatibility with your system integrator or equipment manual before replacement.</p>
<h3>Works With</h3>
<ul>
<li>Industrial maintenance and troubleshooting workflows</li>
<li>Equipment testing and commissioning procedures</li>
<li>Safety protocols requiring galvanic isolation</li>
<li>Multi-voltage international power configurations (with adapter plugs)</li>
</ul>
