Overview

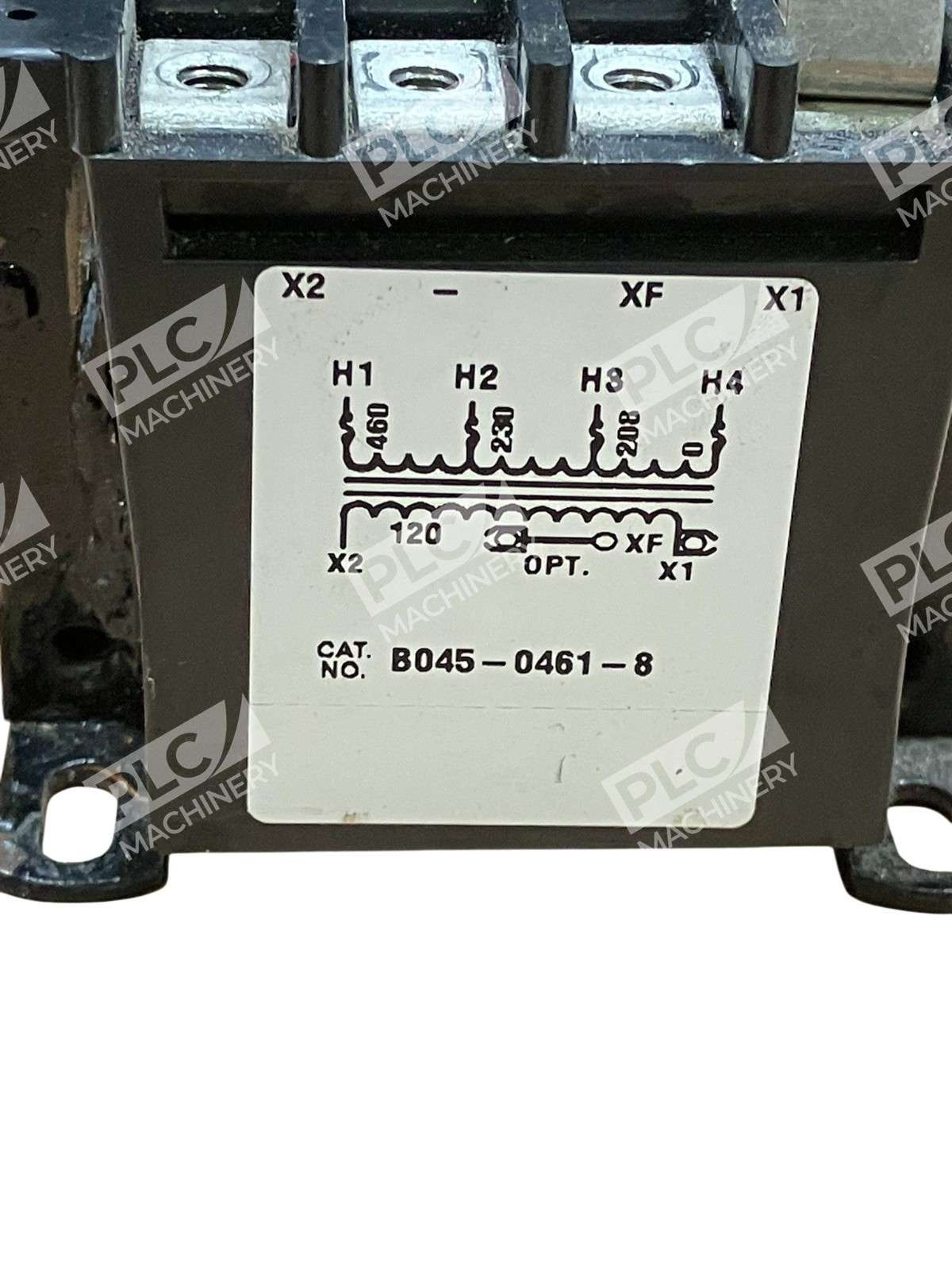

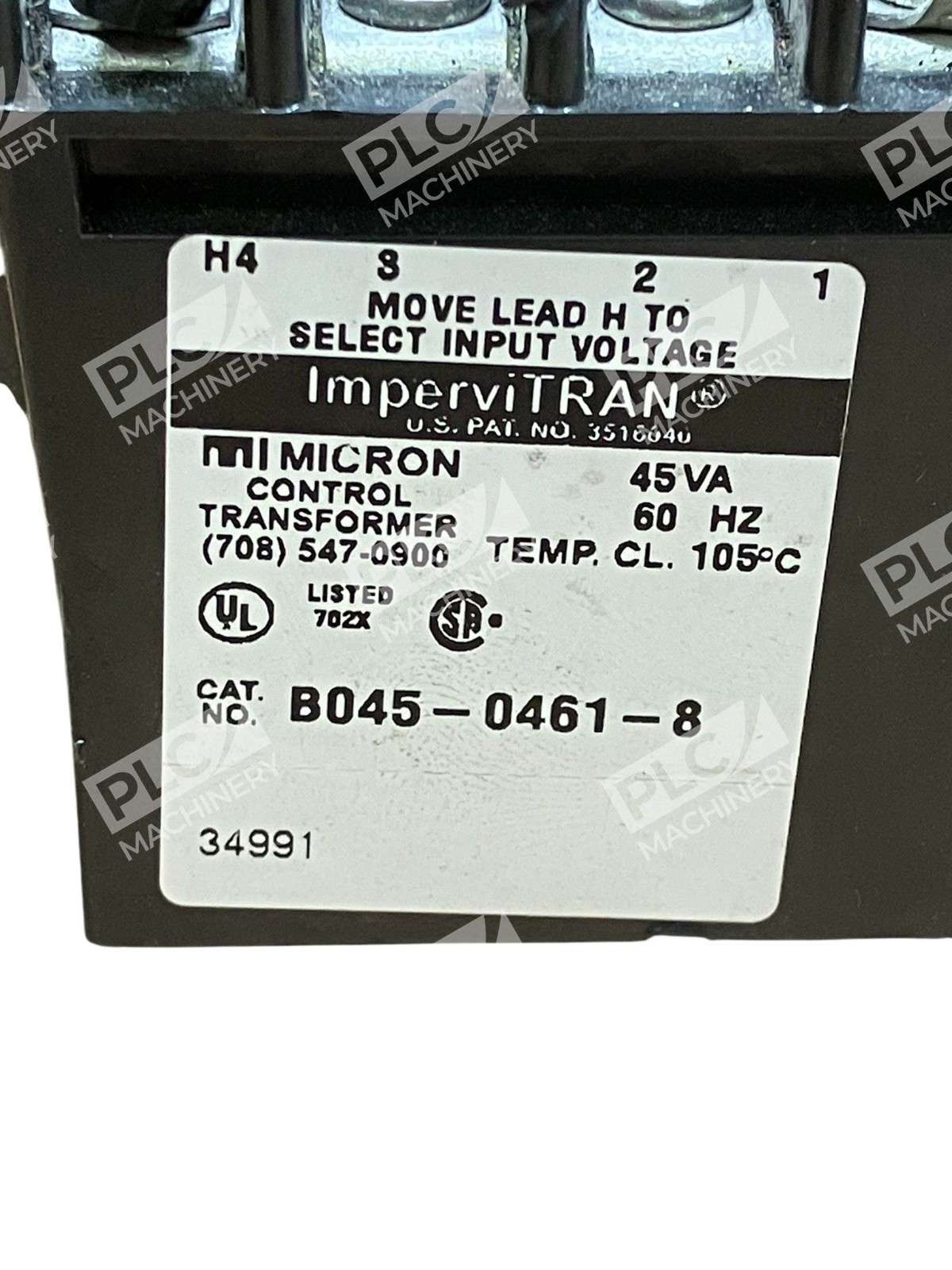

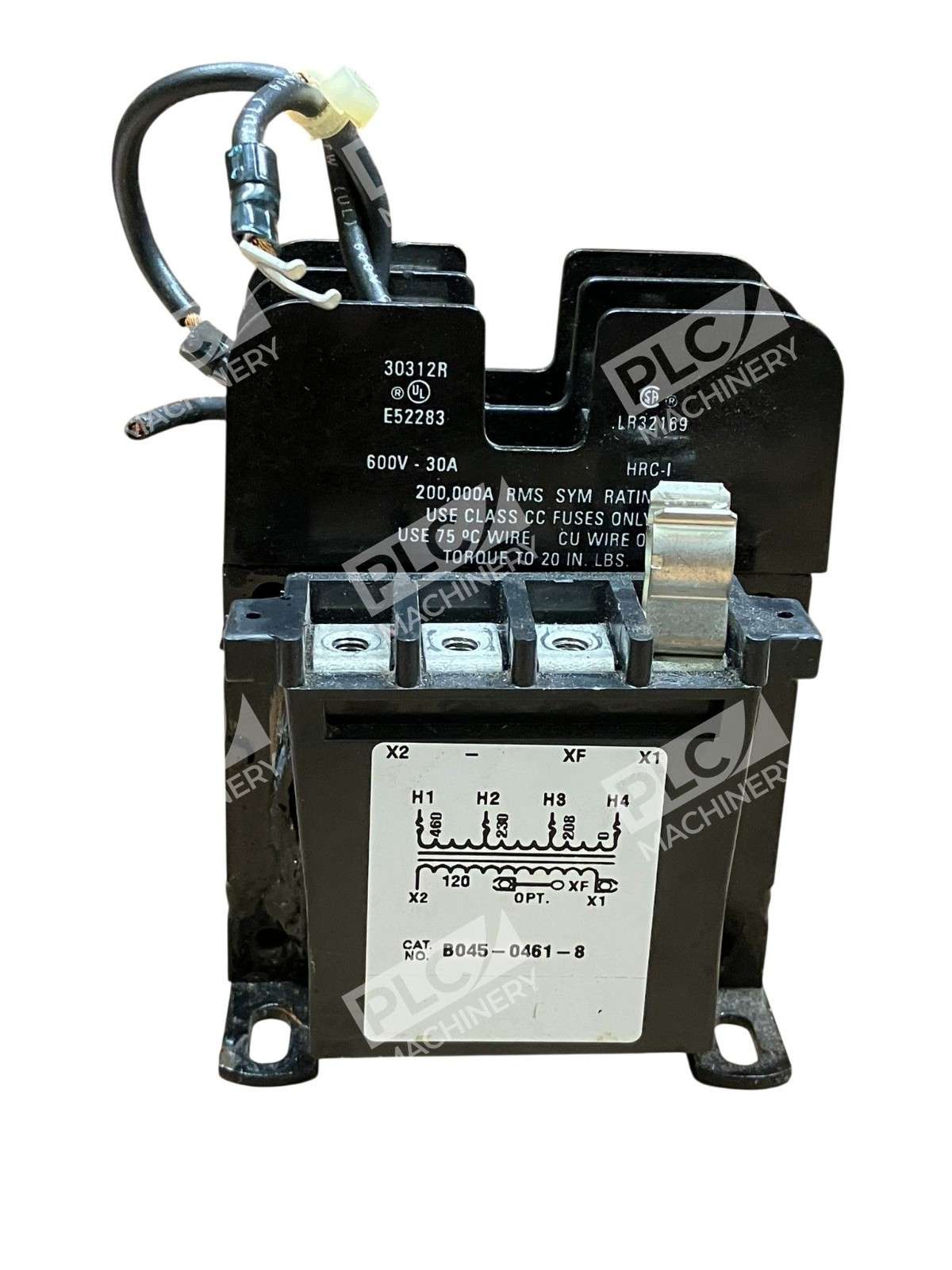

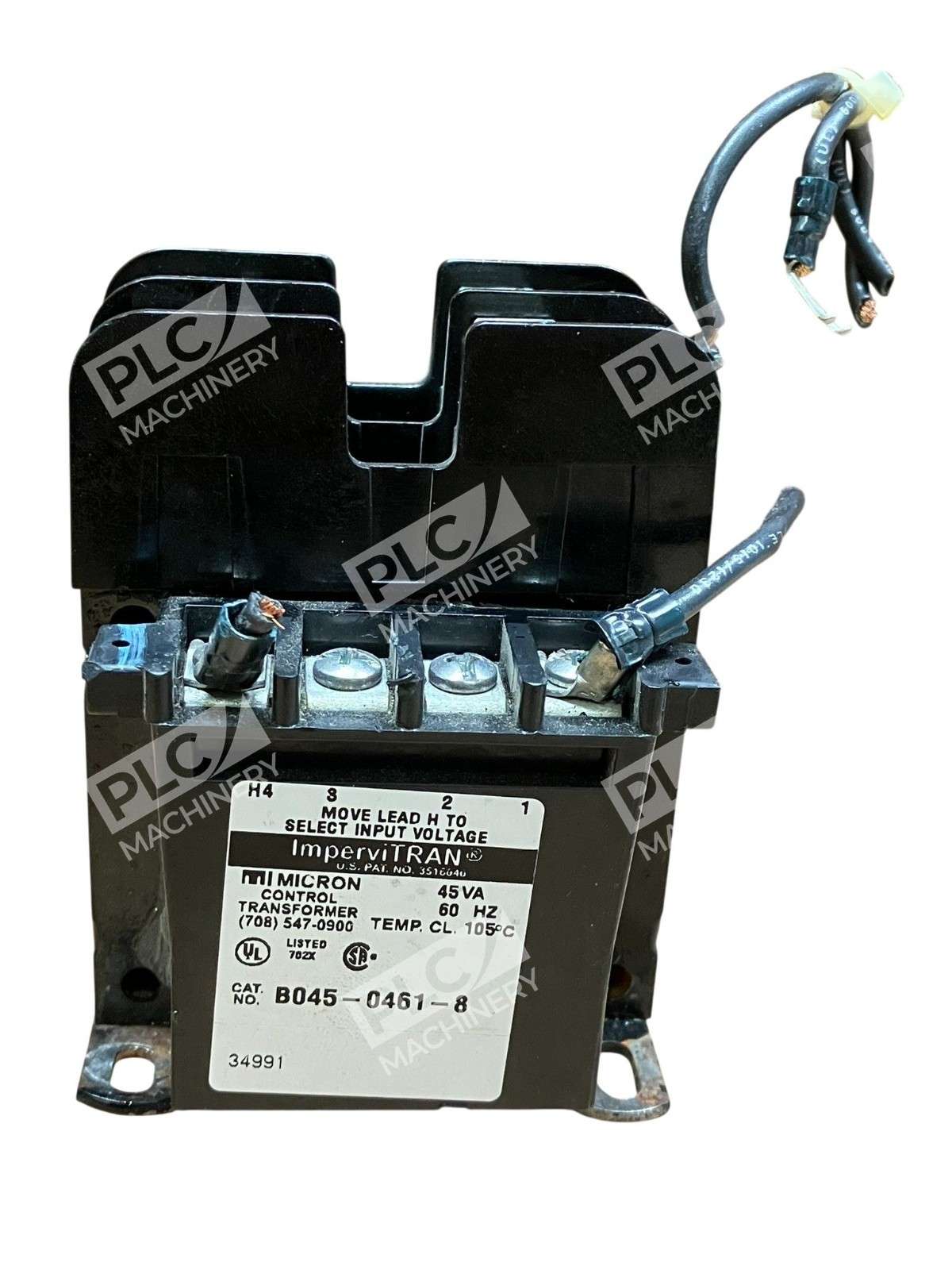

The Impervitran B045-0461-8 is a 45 VA, 60 Hz control transformer manufactured by Micron Industries. This fully encapsulated control transformer steps down 208/230/460V primary input to 120V secondary output, making it suitable for powering control circuits, relays, solenoids, and other industrial equipment. The B045-0461-8 is part of Micron’s proven 600 volt class ImperviTRAN line, trusted across industrial and commercial automation for four decades.
Key Features
- Epoxy-encapsulated design protects windings and solder connections from corrosion and environmental contamination
- Triple-rated primary voltage (208/230/460V) accommodates most North American industrial power distributions
- Compact, robust terminal block construction reduces freight and installation damage

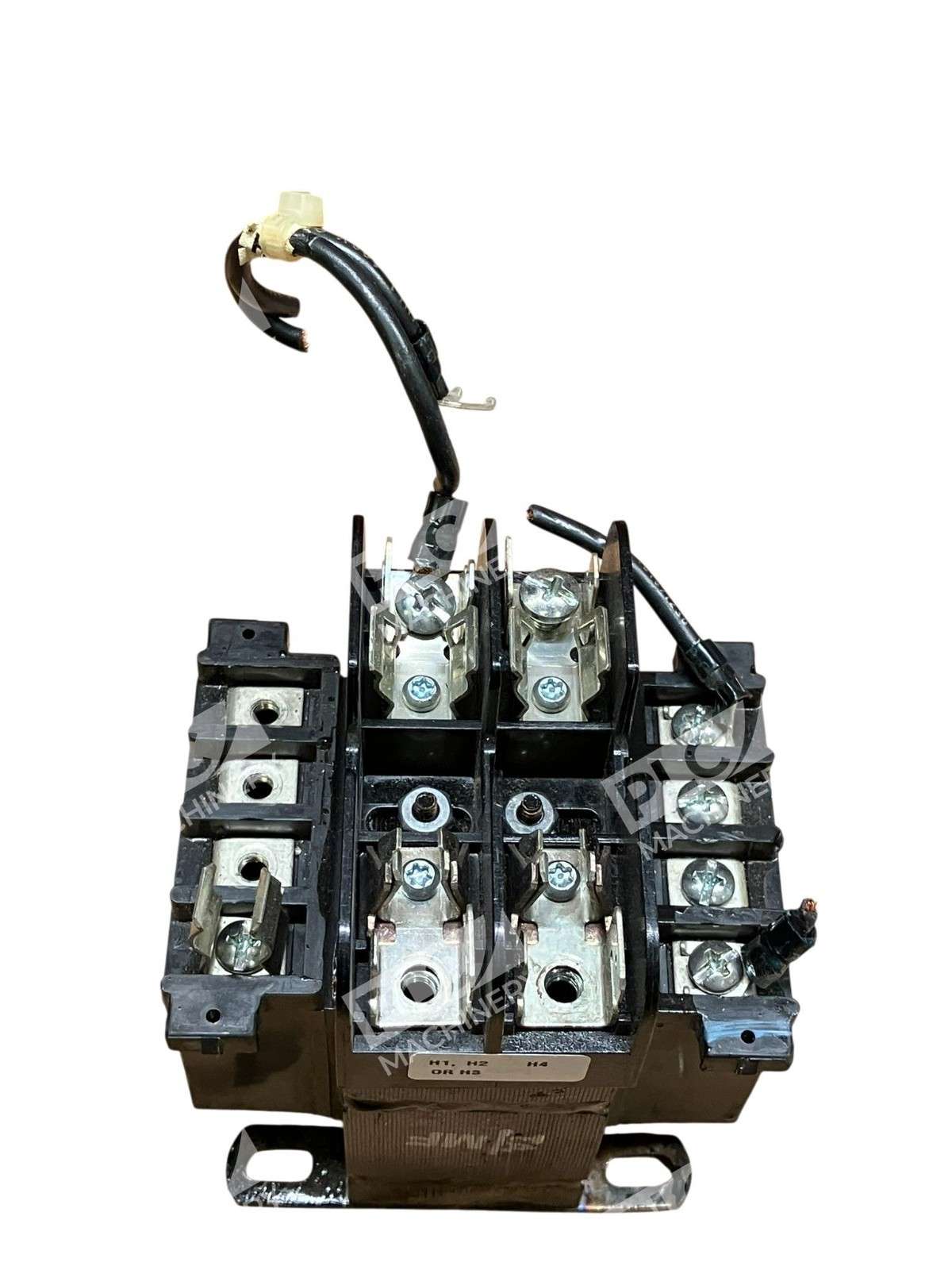

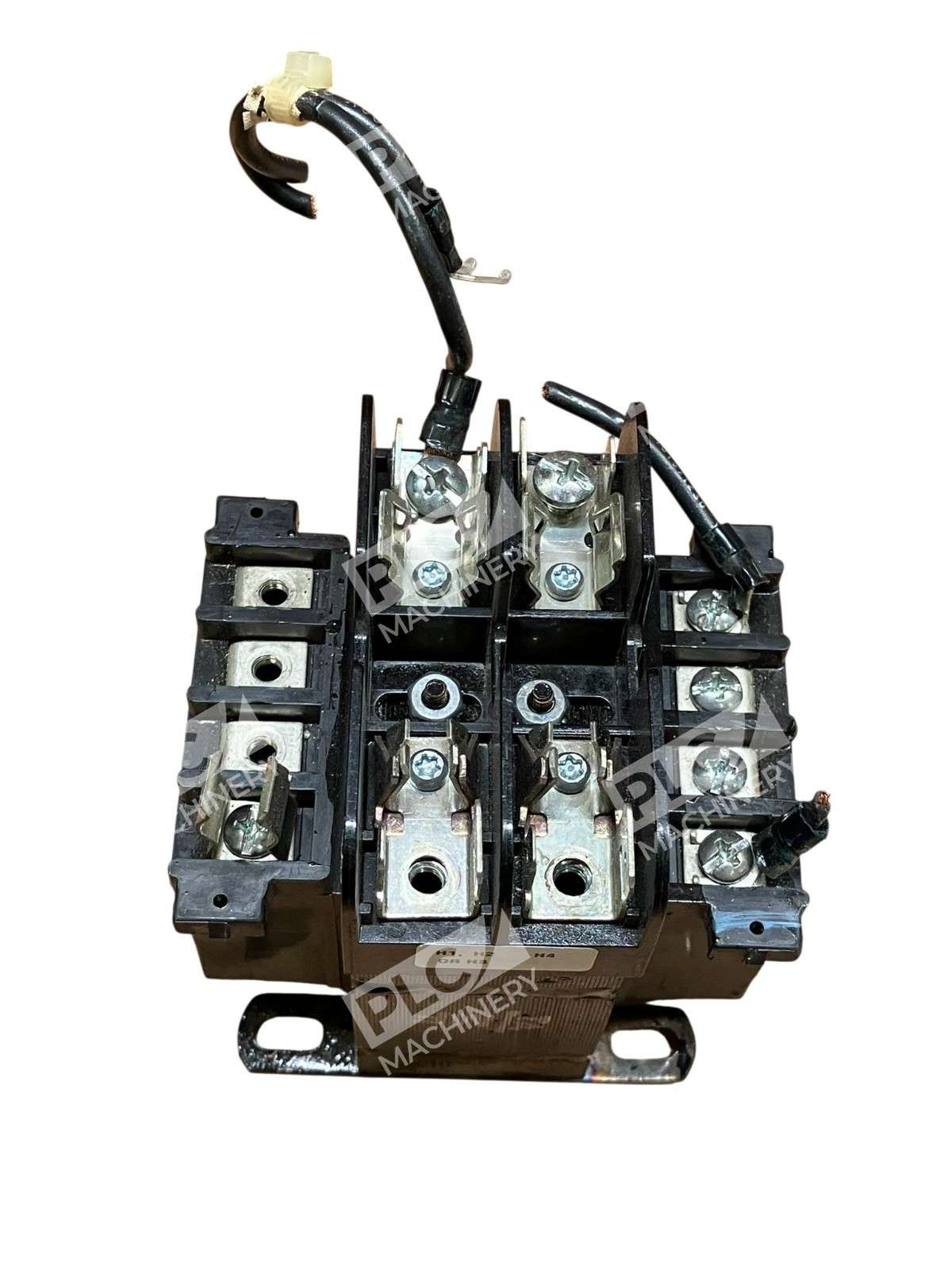

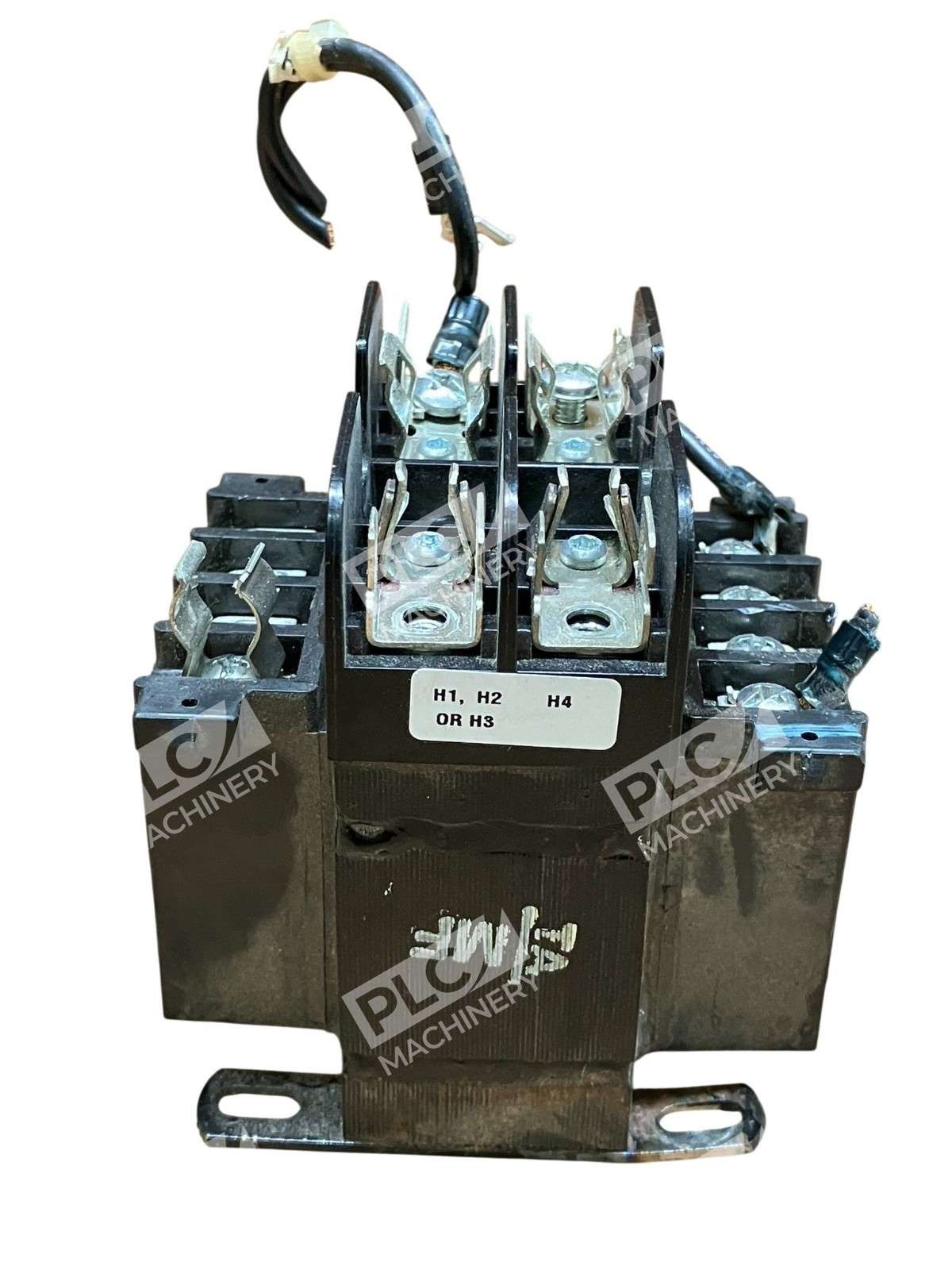

- Integral secondary fusing capability for added circuit protection
- UL/cUL listed and CSA approved, meeting industrial safety standards
- Low profile footprint suitable for panel mounting and retrofit installations
Technical Specifications
- VA Rating: 45 VA
- Frequency: 60 Hz
- Primary Voltage: 208/230/460V (±5% triple rated)
- Secondary Voltage: 120V
- Phase: Single-phase
- Construction: Epoxy-encapsulated
- Temperature Class: 105°C / 130°C optional
- Approvals: UL/cUL (File# E46323), CSA (File# LR27533)
- MTBF (Mean Time Between Failure): 192,720 hours average
- Mounting: Pad or vertical
Typical Applications
- General-purpose industrial control circuits and motor starter applications
- Step-down voltage supply for relay logic, PLC inputs, and control panels
- Solenoid and electromagnet valve actuation
- Instrumentation and signal conditioning in manufacturing and process equipment
- Retrofit and upgrade installations where low-profile form factor is needed
- HVAC and facility automation control systems
Compatibility & Replacements
Compatible With
- Single-phase 208V, 230V, and 460V industrial power distributions
- Standard industrial control panel designs and DIN rail systems
- IEC 60950-1 power supply and industrial control equipment
- Motor control centers (MCCs) and soft-starter applications
- PLC and HMI 120V auxiliary power circuits
- NEMA enclosure installations (Types 1, 3, 3R, 4, 4X, 12)
Replaces / Drop-In Replacement For
The Impervitran B045-0461-8 is a standard catalog item. For specific replacement model confirmation, consult your equipment documentation or contact Micron Industries directly. Verify primary and secondary voltage ratings match your application requirements before ordering.
Works With
- Micron ImperviMOUNTâ„¢ accessory mounting plate (optional)
- Standard secondary fuse clips and integral primary fusing options
- Industrial control relay assemblies and soft-starters
- Allen-Bradley, Siemens, Schneider, and other major PLC platforms requiring 120V control power
- Standard industrial terminal blocks and DIN rail accessories
