Overview

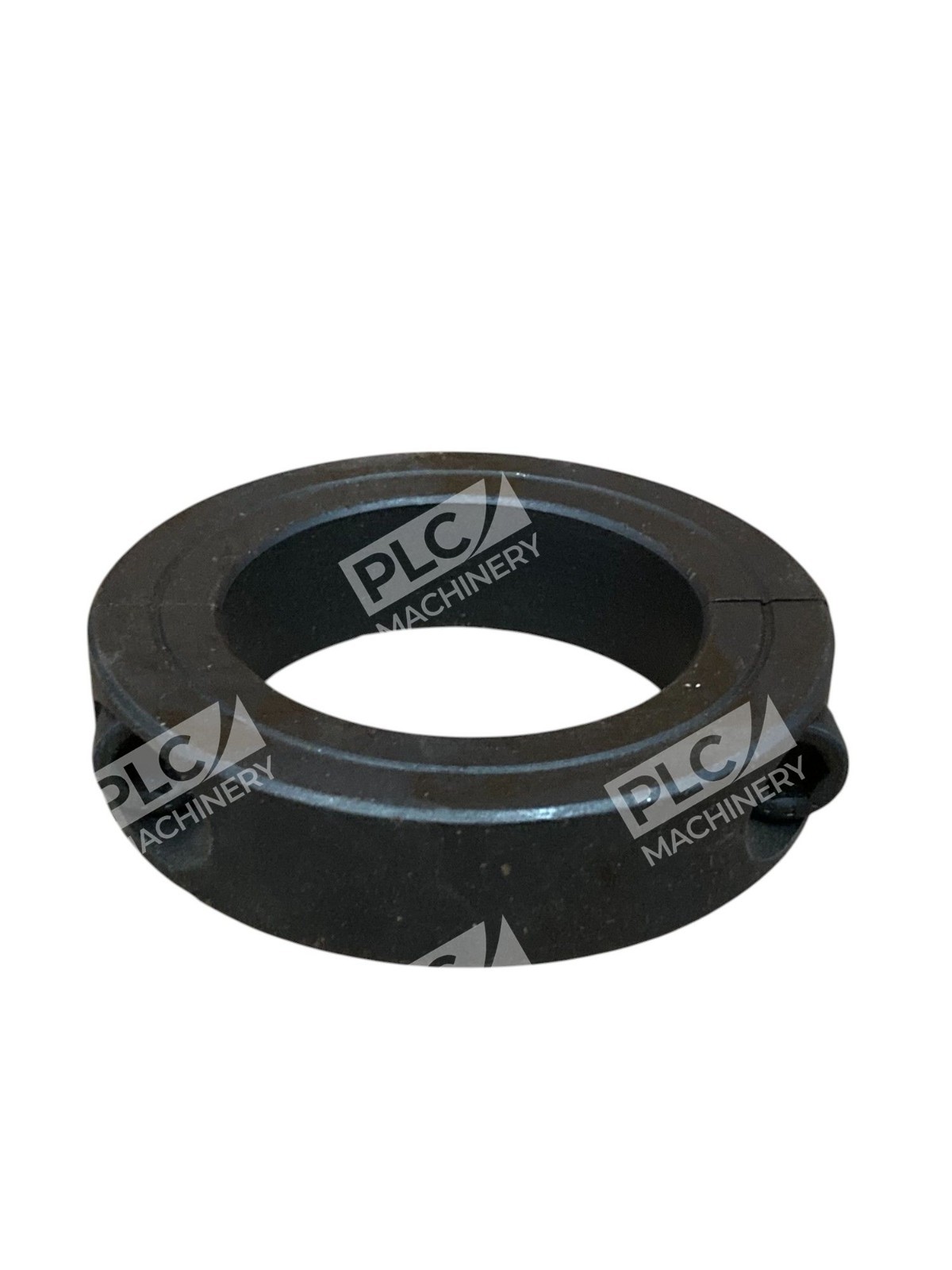

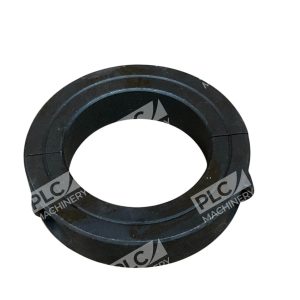

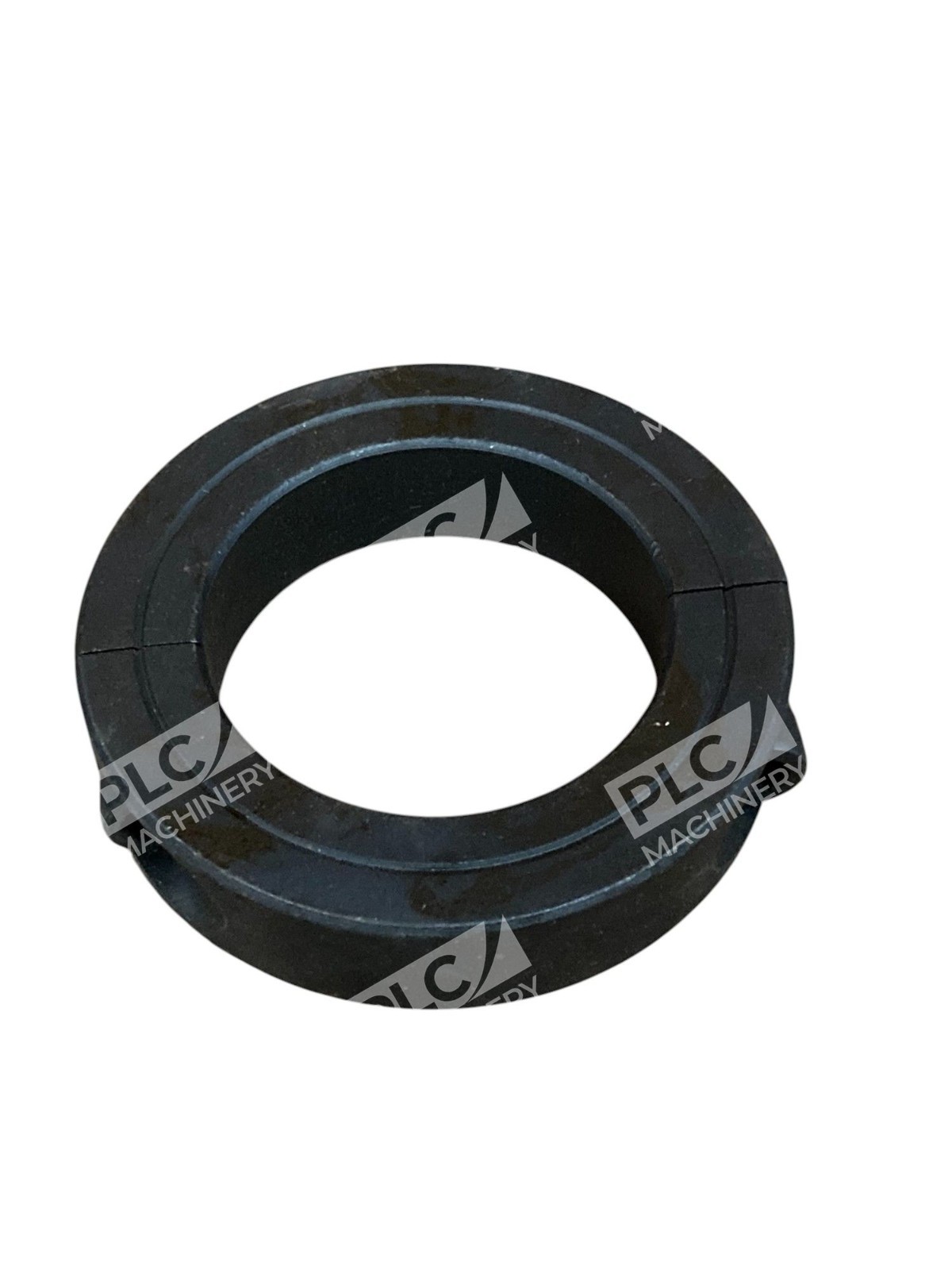

The Stafford 8L115 is a precision two-piece split clamp-type shaft collar engineered for reliable shaft holding and positioning in mechanical power transmission systems. This steel construction collar features a low-profile design that meets tighter clearance requirements while maintaining full radial holding power around the shaft circumference. The 8L115 is a standard offering in Stafford’s comprehensive line of shaft collars and couplings, trusted by manufacturers and maintenance technicians for decades.
Key Features
- Two-piece split design allows complete disassembly for placement anywhere on shaft
- Low-profile configuration for applications with limited radial clearance
- Steel construction with recessed screw heads for cleaner profile
- Full radial holding power without need for keyways or set screws
- Suitable for standard round shafts, hard or soft materials, or thin-wall tubing

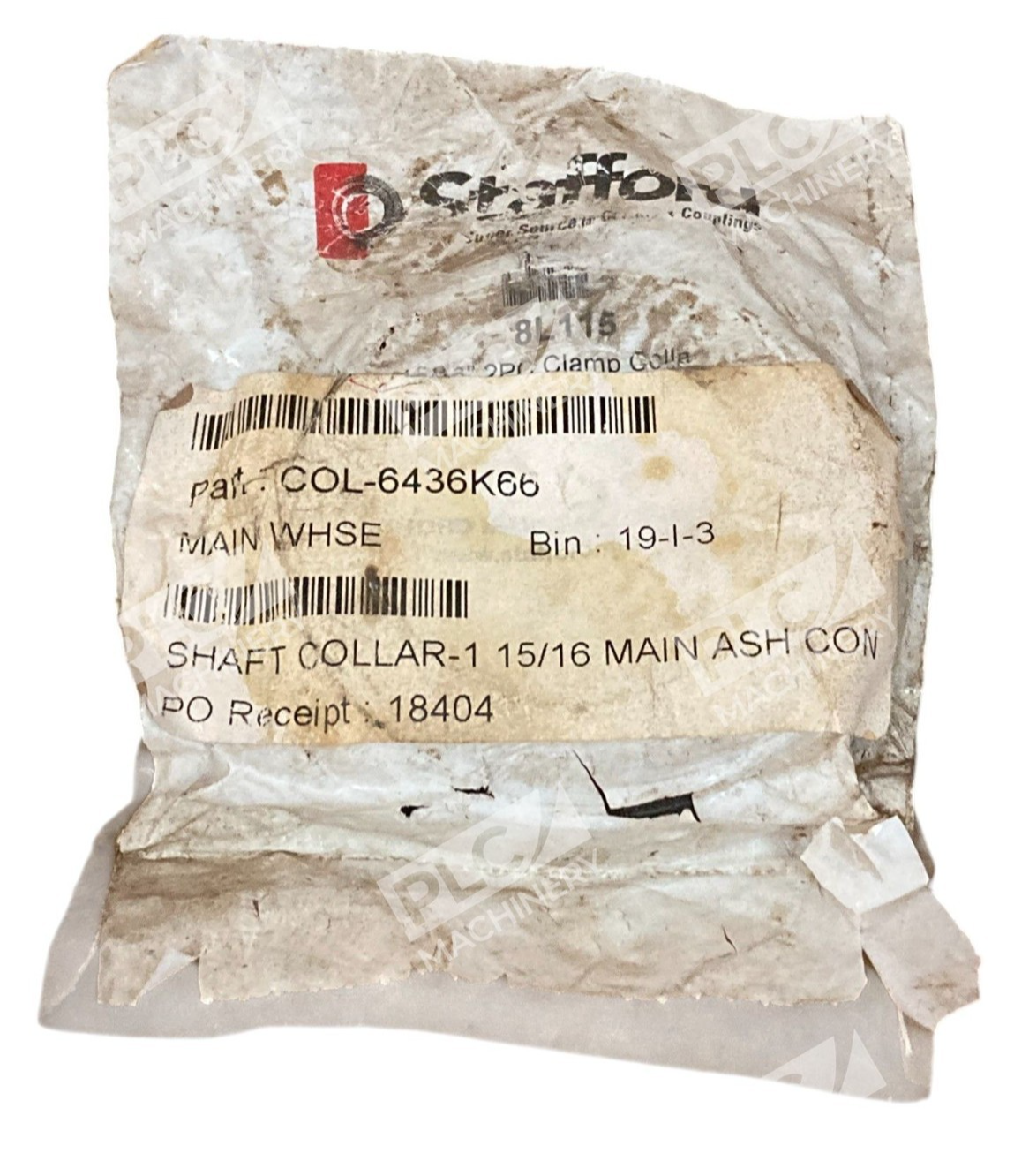

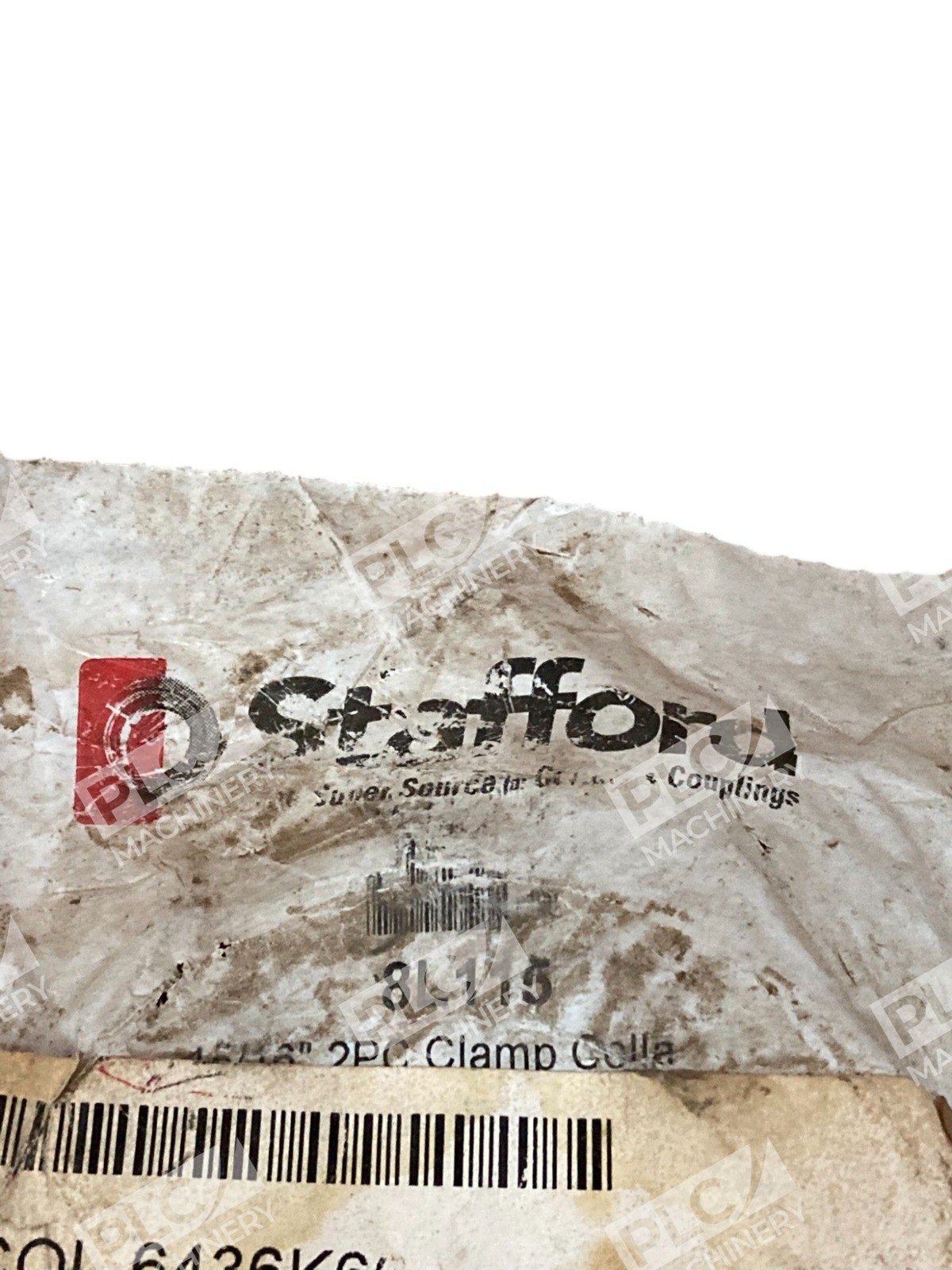

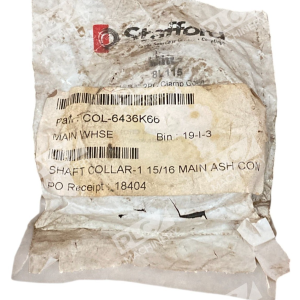

- Available new in box for immediate deployment
Technical Specifications
- Bore Size: 1-15/16″ (49.2 mm)
- Outside Diameter (OD): 3.00″
- Width: 11/16″ (17.5 mm)
- Material: Steel
- Style: Two-Piece Split Clamp-Type
- Design: Low Profile with Recessed Screw Heads
- Finish: Standard steel
Typical Applications
The Stafford 8L115 clamp collar is used as a shaft stop, spacer, or positioning device in warehouse automation, robotic systems, conveyor machinery, printing equipment, and general industrial motion control. The low-profile design makes it suitable for applications where space between outer diameter and neighboring components is restricted. Its ability to be placed anywhere on a shaft without disassembly reduces installation time and equipment downtime.
Compatibility & Replacements
Compatible With
- Standard round shafts (hard or soft steel)
- Thin-wall tubing and split hubs
- Industrial automation and conveyor systems
- Robotic equipment and machinery
- Warehouse automation platforms
Replaces / Drop-In Replacement For
The Stafford 8L115 serves as the direct replacement for Holo-Krome Clamp-Tite collars in the equivalent bore and width specification, following Stafford’s acquisition of the Holo-Krome line. Verify compatibility with your specific equipment or system integrator before ordering if upgrading from other collar types.
Works With
- Stafford shaft collar and coupling assemblies
- Rigid coupling systems
- Shaft positioning and locking applications
- Industrial shaft alignment tooling
